LX60-DEPNS (1982)

Toyota Chaser

Production Aug 1982 - Jul 1984
Engine L
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8208- )SED

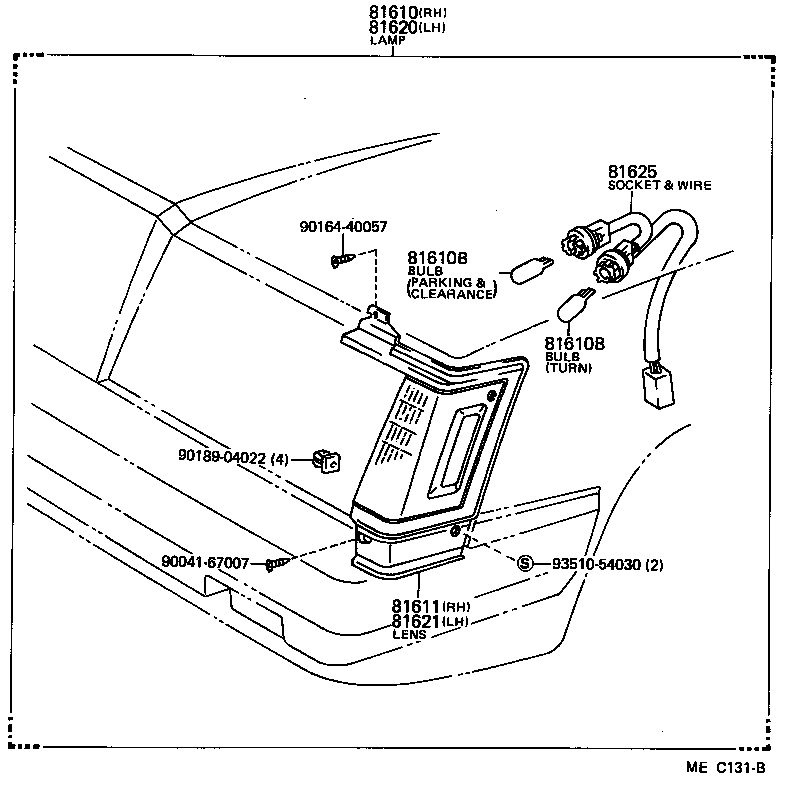

Click highlighted areas on diagram

diagram 81610 81610B 81610B 81611 81620 81621 81625 9004167007 9016440057 9018904022 9351054030
Part # Description Qty Price
81610 - LAMP ASSY, PARKING & CLEARANCE, RH
81610-29305

GX61,LX6#,MX61,SX60..SED

 1
81610B - BULB(FOR PARKING & CLEARANCE LAMP)
99132-12050

GX61,LX6#,MX61,SX60

12V 5W,12V 5W(TURN);12V 5W(PARKING & CLEARANCE)

 2
81610B - BULB(FOR PARKING & CLEARANCE LAMP)
99132-12050

GX61,LX6#,MX61,SX60

12V 5W,12V 5W(TURN);12V 5W(PARKING & CLEARANCE)

 2
81611 - LENS, PARKING & CLEARANCE LAMP, RH
81611-22090

GX61,LX6#,MX61,SX60..SED

 1
81620 - LAMP ASSY, PARKING & CLEARANCE, LH
81620-29295

GX61,LX6#,MX61,SX60..SED

 1
81621 - LENS, PARKING & CLEARANCE LAMP, LH
81621-22090

GX61,LX6#,MX61,SX60..SED

 1
81625 - SOCKET AND WIRE, PARKING AND CLEARANCE LAMP
81615-22090

GX61,LX6#,MX61,SX60..SED

 2
Common parts
90041-67007
90164-40057
90189-04022
93510-54030
