LX60-DEPNS (1982)
Toyota Chaser
Production
Aug 1982
-
Jul 1984
Engine
L
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8208- )

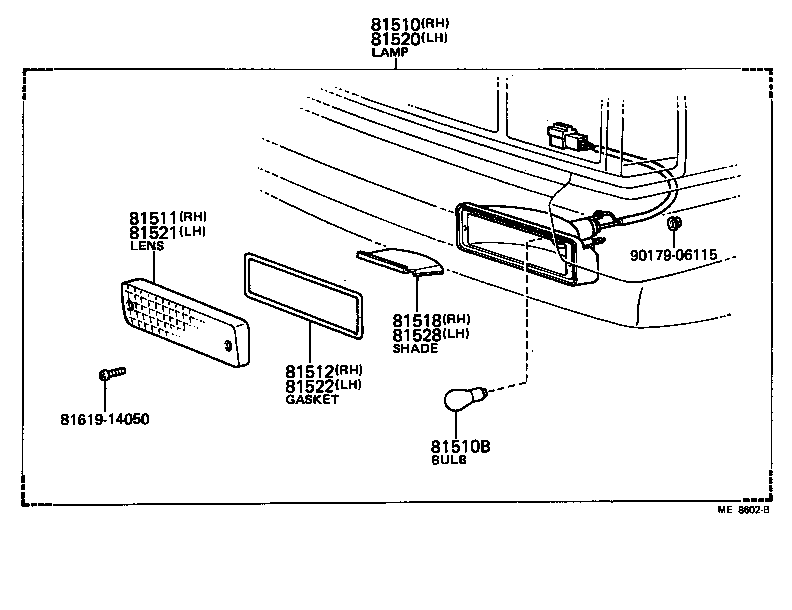

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81510 - LAMP ASSY, FRONT TURN SIGNAL, RH | ||||
| 81510-29705 |
GX61,LX6#,MX61,SX60 |
1 | ||
| 81510-29665 |
GX6#,LX60,RX6#,TX60 |
1 | ||
| 81510B - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 99132-11230 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 12V 23W,12V 23W(TURN) |
2 | ||
| 99132-12050 |
GX6#,LX60,MX61,RX6#,TX60 12V 5W,12V 5W(PARKING & CLEARANCE) |
2 | ||
| 81511 - LENS, FRONT TURN SIGNAL LAMP, RH | ||||
| 81511-22240 |
GX6#,LX60,RX6#,TX60 |
1 | ||
| 81511-22220 |
GX61,LX6#,MX61,SX60 |
1 | ||
| 81512 - GASKET, FRONT TURN SIGNAL LAMP LENS, RH | ||||
| 81512-14140 |
GX61,LX6#,MX61,SX60 |
1 | ||
| 81518 - SHADE, FRONT TURN SIGNAL LAMP, RH | ||||
| 81517-22220 |
GX61,LX6#,MX61,SX60 |
1 | ||
| 81520 - LAMP ASSY, FRONT TURN SIGNAL, LH | ||||
| 81520-29665 |
GX6#,LX60,RX6#,TX60 |
1 | ||
| 81520-29695 |
GX61,LX6#,MX61,SX60 |
1 | ||
| 81521 - LENS, FRONT TURN SIGNAL LAMP, LH | ||||
| 81521-22240 |
GX6#,LX60,RX6#,TX60 |
1 | ||
| 81521-22220 |
GX61,LX6#,MX61,SX60 |
1 | ||
| 81522 - GASKET, FRONT TURN SIGNAL LAMP LENS, LH | ||||
| 81512-14140 |
GX61,LX6#,MX61,SX60 |
1 | ||
| 81528 - SHADE, FRONT TURN SIGNAL LAMP, LH | ||||
| 81517-22220 |
GX61,LX6#,MX61,SX60 |
1 | ||
| Common parts | ||||
| 81619-14050 | ||||
| 90179-06115 | ||||
