LX60-DEMNSY (1980)

Toyota Chaser

Production Sep 1980 - Aug 1982
Engine L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8009- )

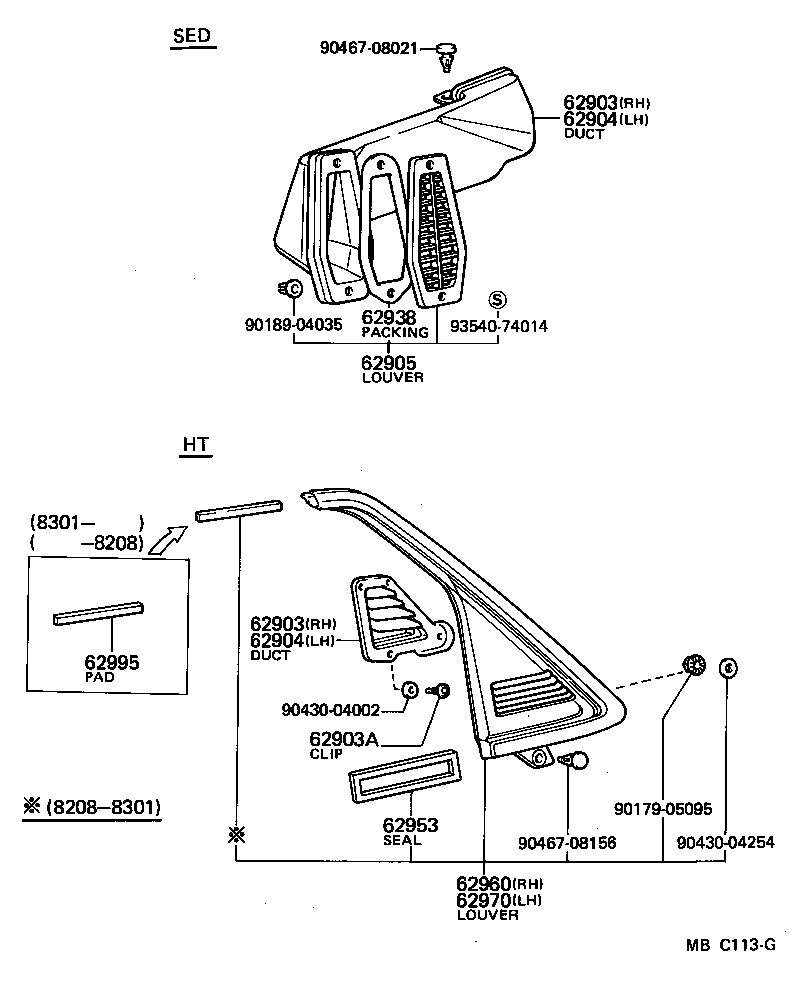

Click highlighted areas on diagram

diagram 62903 62903 62903A 62904 62904 62905 62938 62953 62960 62970 62995 9017905095 9018904035 9043004002 9043004254 9046708021 9046708156 9354074014
Part # Description Qty Price
62903 - DUCT SUB-ASSY, QUARTER VENTILATOR, RH
62931-22050

GX6#,LX6#,MX61,RX6#,SX60,TX60..SED

 1
62903 - DUCT SUB-ASSY, QUARTER VENTILATOR, RH
62931-22050

GX6#,LX6#,MX61,RX6#,SX60,TX60..SED

 1
62904 - DUCT SUB-ASSY, QUARTER VENTILATOR, LH
62932-22040

GX6#,LX6#,MX61,RX6#,SX60,TX60..SED

 1
62904 - DUCT SUB-ASSY, QUARTER VENTILATOR, LH
62932-22040

GX6#,LX6#,MX61,RX6#,SX60,TX60..SED

 1
62905 - LOUVER, QUARTER VENTILATION
62951-29145

GX6#,LX6#,MX61,RX6#,SX60,TX60..SED

 2
62938 - PACKING,QUARTER VENT DUCT
62937-22030

GX6#,LX6#,MX61,RX6#,SX60,TX60..SED

 2
Common parts
90179-05095
90189-04035
90430-04002
90430-04254
90467-08021
90467-08156
93540-74014
