LX60-DEMNSY (1980)

Toyota Chaser

Production Sep 1980 - Aug 1982
Engine L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8009-8208)LX60..XL ; (8208- )LX6#

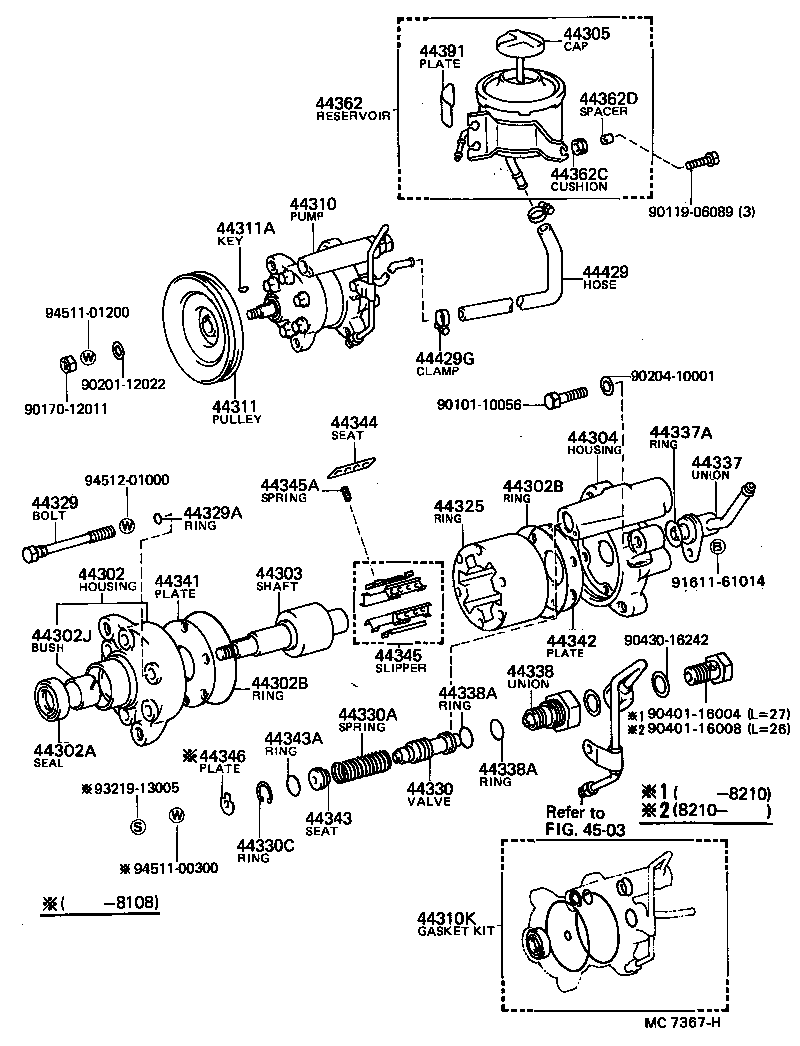

Click highlighted areas on diagram

diagram 44302 44302A 44302B 44302B 44302J 44303 44304 44305 44310 44310K 44311 44311A 44325 44329 44329A 44330 44330A 44330C 44337 44337A 44338 44338A 44338A 44341 44342 44343 44343A 44344 44345 44345A 44346 44362 44362C 44362D 44391 44429 44429G 4503 9010110056 9011906089 9017012011 9020112022 9020410001 9040116004 9040116008 9043016242 9161161014 9321913005 9451100300 9451101200 9451201000
Part # Description Qty Price
44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT
44302-30020

LX60..XL

 1
44302A - SEAL, OIL, NO.1(FOR VANE PUMP HOUSING)
90310-21034

LX60..XL

 1
44302B - RING, O, NO.1(FOR VANE PUMP HOUSING)
90301-69170

LX60..XL

 2
44302B - RING, O, NO.1(FOR VANE PUMP HOUSING)
90301-69170

LX60..XL

 2
44302J - BUSH(FOR VANE PUMP HOUSING)
90384-22109

LX6#

 1
44303 - SHAFT SUB-ASSY, W/ROTOR
44303-22021

LX60..XL

L=39.9725-39.9750,MARK 2

 1
44303-22011

LX60..XL

L=39.9750-39.9775,NO MARK

 1
44304 - HOUSING SUB-ASSY, VANE PUMP, REAR
44304-30040

LX60..XL

 1
44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
44305-30020

GX6#,LX60,RX60,TX60..AVT,SGT,SXL,XG,XL

 1
44310 - PUMP ASSY, VANE
44320-22120

LX60..XL

 1
44310K - GASKET KIT, POWER STEERING PUMP
04446-30010

LX60

 1
44311 - PULLEY, VANE PUMP
44311-30040

LX60..XL

 1
44311A - KEY, VANE PUMP PULLEY
90280-05008

GX6#,LX60,MX61,RX60,TX60..AVT,SGT,SXL,XG,XL

 1
44325 - RING, FIXED(FOR VANE PUMP)
44325-30040

LX60..XL

ﾏｰｸ 2,MARK 2

 1
44325-30030

LX60..XL

ﾏｰｸ 1,NO,MARK

 1
44329 - BOLT, VANE PUMP FRONT HOUSING & REAR HOUSING SET
44329-30010

LX60..XL

 6
44329A - RING, O(FOR VANE PUMP HOUSING SET BOLT)
96711-19007

LX60..XL

 6
96710-01007

LX60..XL

 6
44330 - VALVE ASSY, FLOW CONTROL
44330-30051

LX60..XL

MARK B

 1
44330-30061

LX60..XL

MARK C

 1
44330-30041

LX60..XL

MARK A

 1
44330-30091

LX60..XL

MARK F

 1
44330-30071

LX60..XL

MARK D

 1
44330-30081

LX60..XL

MARK E

 1
44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE)
90501-12447

GX6#,LX60,MX61,RX60,TX60..AVT,SGT,SXL,XG,XL

 1
44330C - RING, SNAP(FOR FLOW CONTROL VALVE)
96151-01700

GX6#,LX60,MX61,RX60,TX60..AVT,SGT,SXL,XG,XL

 2
44337 - UNION, POWER STEERING SUCTION PORT
44337-22020

LX60..XL

 1
44337A - RING, O(FOR POWER STEERING SUCTION PORT)
96710-01013

LX60,RX60

 1
96711-19013

LX60,RX60..XG,XL

 1
44338 - UNION, PRESSURE PORT
44338-30011

LX60..XL

 1
44338A - RING, O(FOR PRESSURE PORT UNION)
96711-19014

LX60,MX61..AVT,SGT,XL

外径=17.0,内径=13.0

 2
96710-01014

LX60,MX61..AVT,SGT,XL

内径=14,外径=17,ID=14,OD=17

 2
44338A - RING, O(FOR PRESSURE PORT UNION)
96711-19014

LX60,MX61..AVT,SGT,XL

外径=17.0,内径=13.0

 2
96710-01014

LX60,MX61..AVT,SGT,XL

内径=14,外径=17,ID=14,OD=17

 2
44341 - PLATE, VANE PUMP SIDE, FRONT
44341-30020

LX60..XL

 1
44342 - PLATE, VANE PUMP SIDE, REAR
44341-30020

LX60..XL

 1
44343 - SEAT, FLOW CONTROL SPRING
44343-30020

LX60..XL

 1
44343-12010

LX60..XL

 1
44343A - RING, O(FOR FLOW CONTROL SPRING SEAT)
96711-19014

GX6#,LX60,MX61,RX60,TX60..AVT,SGT,SXL,XG,XL

 2
96710-01014

GX6#,LX60,MX61,RX60,TX60..AVT,SGT,SXL,XG,XL

 2
44344 - SEAT, SPRING(FOR VANE PUMP)
44344-30010

LX60..XL

 6
44345 - SLIPPER, VANE PUMP
44307-22010

LX60..XL

ﾏｰｸ無し,L=39.942-39.937,RING NO,MARK

 1
44307-22020

LX60..XL

ﾏｰｸ無し,L=39.937-39.932,RING MARK 2

 1
44345A - SPRING, COMPRESSION(FOR VANE PUMP SLIPPER)
90501-06445

LX60..XL

 24
44346 - PLATE, SNAP RING LOCK
44346-30020

LX60..XL

 1
44362 - RESERVOIR, OIL(FOR VANE PUMP)
44360-22040

LX60..XL

 1
44362C - CUSHION(FOR VANE PUMP OIL RESERVOIR)
90540-09004

LX60,RX60..XG,XL

 3
44362D - SPACER(FOR VANE PUMP OIL RESERVOIR)
90560-06238

LX60,RX60..XG,XL

 3
90560-06014

LX60,RX60..XG,XL

 3
44391 - PLATE, POWER STEERING OIL RESERVOIR CAUTION
44391-30020

GX6#,LX60,MX61,RX60,TX60..AVT,SGT,SXL,XG,XL

 1
44429 - HOSE, RESERVOIR TO OIL PUMP
44348-22040

LX60..XL

 1
44429G - CLAMP, RESERVOIR TO OIL PUMP HOSE
90460-26001

LX60,RX60..XG,XL

 2
Common parts
90101-10056
90119-06089
90170-12011
90201-12022
90204-10001
90401-16004
90401-16008
90430-16242
91611-61014
93219-13005
94511-00300
94511-01200
94512-01000
Linked diagrams
4503
