LX60-DEMNS (1982)

Toyota Chaser

Production Aug 1982 - Jul 1984
Engine L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8208- )SED

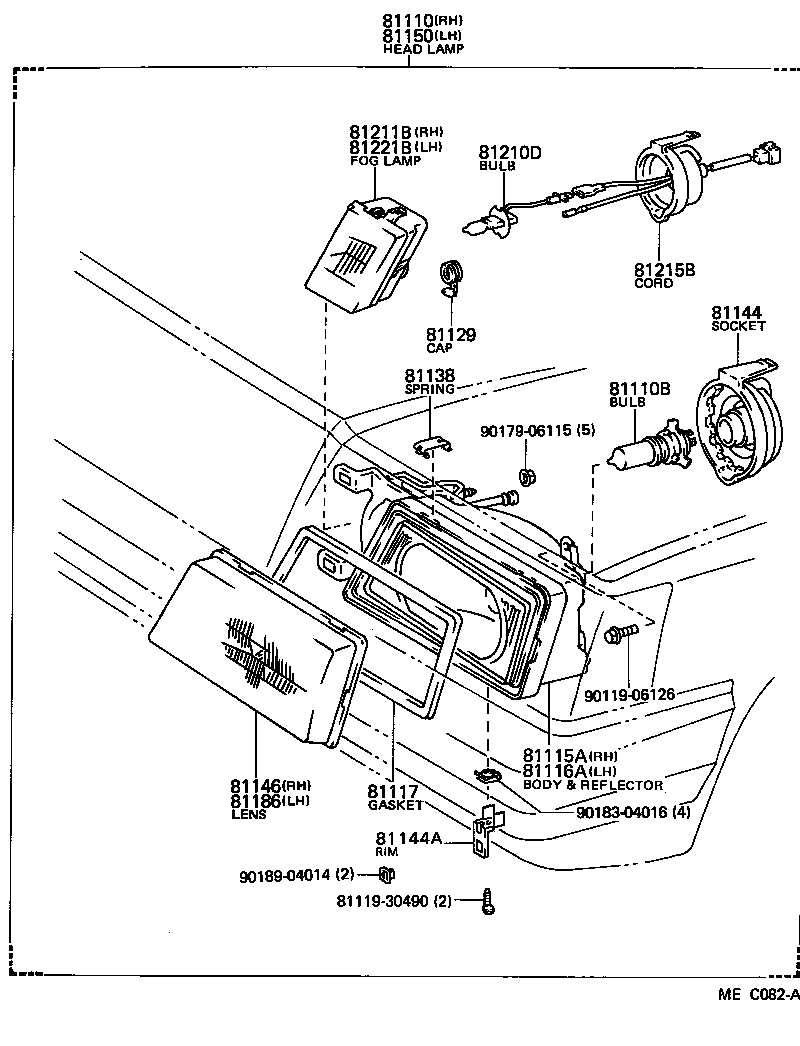

Click highlighted areas on diagram

diagram 81110 81110B 81115A 81116A 81117 8111930490 81129 81138 81144 81144A 81146 81150 81186 81210D 81211B 81215B 81221B 9011906126 9017906115 9018304016 9018904014
Part # Description Qty Price
81110 - HEADLAMP ASSY, RH
81110-80096

GX6#,LX60,MX61,RX6#,TX60

 1
81110-80239

GX61,LX6#,MX61,SX60..SED

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13015

GX6#,LX6#,MX61,RX6#,SX60,TX60

12V 60/55W,*HAL *WH,12V 60/55W

 2
81115A - BODY AND REFLECTOR SUB-ASSY, HEADLAMP, RH
81115-22370

GX6#,LX60,MX61,RX6#,TX60

 1
81135-22411

GX61,LX6#,MX61,SX60..SED

 1
81116A - BODY AND REFLECTOR SUB-ASSY, HEADLAMP, LH
81175-22411

GX61,LX6#,MX61,SX60..SED

 1
81116-22370

GX6#,LX60,MX61,RX6#,TX60

 1
81117 - PACKING, HEADLAMP HOUSING
81147-32020

GX61,LX6#,MX61,SX60..SED

 2
81147-30490

GX6#,LX60,MX61,RX6#,TX60

 2
81129 - CAP, FOG LAMP
81129-22411

GX61,LX6#,MX61,SX60..SED

 2
81138 - SPRING, HEADLAMP
81138-20550

GX6#,LX6#,MX61,RX6#,SX60,TX60

 16
81144 - COVER, HEADLAMP, NO.1
81139-30490

GX6#,LX60,MX61,RX6#,TX60

 2
81139-30481

GX61,LX6#,MX61,SX60

 2
81144A - RIM, HEADLAMP FITTING
81144-22341

GX61,LX6#,MX61,SX60..SED

 4
81146 - LENS, HEADLAMP, RH
81146-32020

GX61,LX6#,MX61,SX60..SED

 1
81146-30490

GX6#,LX60,MX61,RX6#,TX60

 1
81150 - HEADLAMP ASSY, LH
81150-80093

GX6#,LX60,MX61,RX6#,TX60

 1
81150-80236

GX61,LX6#,MX61,SX60..SED

 1
81186 - LENS, HEADLAMP, LH
81186-30600

GX6#,LX60,MX61,RX6#,TX60

 1
81186-32020

GX61,LX6#,MX61,SX60..SED

 1
81210D - BULB, FOG LAMP
90981-13018

GX61,LX6#,MX61,SX60

12V 55W,ﾊﾛｹﾞﾝ,12V 55W

 2
81211B - FOG LAMP, RH
81211-22411

GX61,LX6#,MX61,SX60..SED

 1
81215B - CORD, FOG LAMP
81215-22301

GX61,LX6#,MX61,SX60..SED

 2
81221B - FOG LAMP, LH
81221-22411

GX61,LX6#,MX61,SX60..SED

 1
Common parts
81119-30490
90119-06126
90179-06115
90183-04016
90189-04014
