LX60-DEMNS (1982)

Toyota Chaser

Production Aug 1982 - Jul 1984
Engine L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8208- )

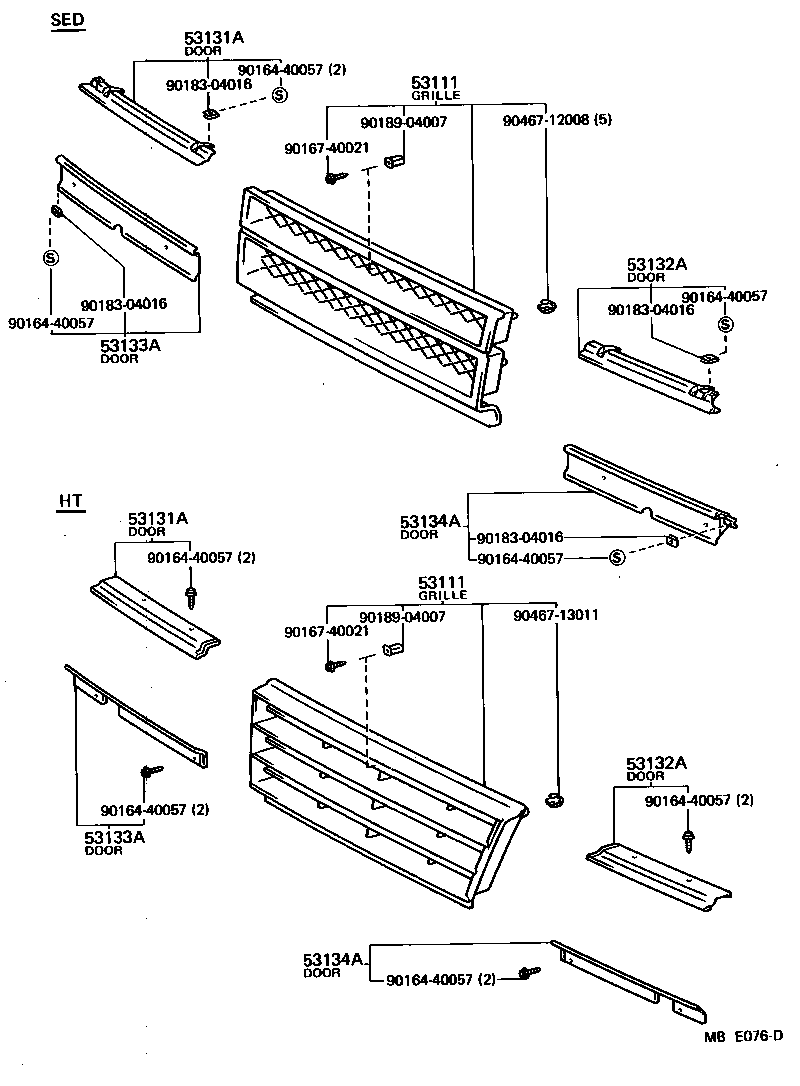

Click highlighted areas on diagram

diagram 53111 53111 53131A 53131A 53132A 53132A 53133A 53133A 53134A 53134A 9016440057 9016440057 9016440057 9016440057 9016440057 9016440057 9016440057 9016440057 9016740021 9016740021 9018304016 9018304016 9018304016 9018304016 9018904007 9018904007 9046712008 9046713011
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53100-29215

GX61,LX6#,MX61,SX60..SED

 1
53100-29135

GX6#,LX60,RX6#,TX60..SED

 1
53111 - GRILLE, RADIATOR
53100-29215

GX61,LX6#,MX61,SX60..SED

 1
53100-29135

GX6#,LX60,RX6#,TX60..SED

 1
53131A - DOOR, HEADLAMP, RH
53131-29265

GX6#,LX60,RX6#,TX60

 1
53131-29355

GX61,LX6#,MX61,SX60..SED

 1
53131A - DOOR, HEADLAMP, RH
53131-29265

GX6#,LX60,RX6#,TX60

 1
53131-29355

GX61,LX6#,MX61,SX60..SED

 1
53132A - DOOR, HEADLAMP, LH
53132-29245

GX6#,LX60,RX6#,TX60

 1
53132-29335

GX61,LX6#,MX61,SX60..SED

 1
53132A - DOOR, HEADLAMP, LH
53132-29245

GX6#,LX60,RX6#,TX60

 1
53132-29335

GX61,LX6#,MX61,SX60..SED

 1
53133A - DOOR, HEADLAMP, LOWER RH
53133-29035

GX61,LX6#,MX61,SX60..SED

 1
53133A - DOOR, HEADLAMP, LOWER RH
53133-29035

GX61,LX6#,MX61,SX60..SED

 1
53134A - DOOR, HEADLAMP, LOWER LH
53134-29035

GX61,LX6#,MX61,SX60..SED

 1
53134A - DOOR, HEADLAMP, LOWER LH
53134-29035

GX61,LX6#,MX61,SX60..SED

 1
Common parts
90164-40057
90167-40021
90183-04016
90189-04007
90467-12008
90467-13011
