LX60-DEMDSY (1980)

Toyota Chaser

Production Sep 1980 - Aug 1982
Engine L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8009- )

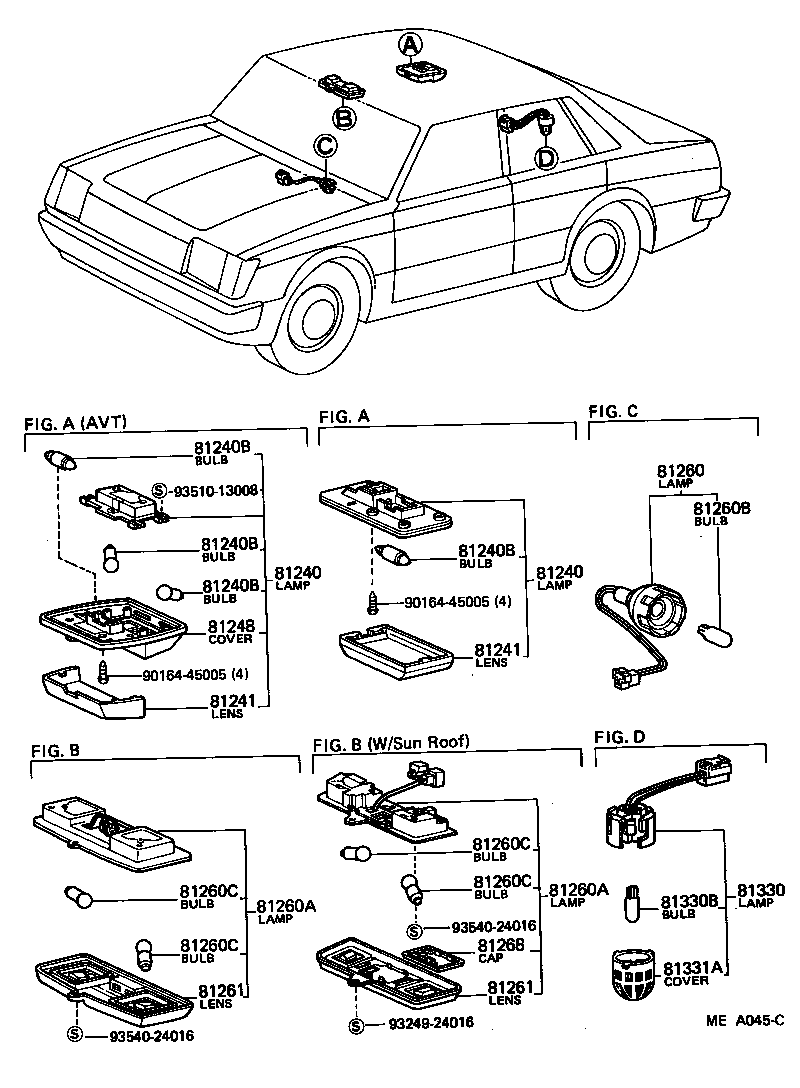

Click highlighted areas on diagram

diagram 81240 81240 81240B 81240B 81240B 81240B 81241 81241 81248 81260 81260A 81260A 81260B 81260C 81260C 81260C 81260C 81261 81261 81268 81330 81330B 81331A 9016445005 9016445005 9324924016 9351013008 9354024016 9354024016
Part # Description Qty Price
81240 - LAMP ASSY, ROOM, NO.1
81240-2205004

GX6#,LX60,MX61,RX6#,TX60..DLX,GT,SGT,SXL,XG,XL

BLUE,BLUE,TRIM8#

 1
81240-2205008

GX6#,LX6#,MX61,RX6#,SX60,TX60..DLX,GT,SGT,SXL,XG,XL

IVORY,IVORY,TRIM2#,3#,4#

 1
81240 - LAMP ASSY, ROOM, NO.1
81240-2205004

GX6#,LX60,MX61,RX6#,TX60..DLX,GT,SGT,SXL,XG,XL

BLUE,BLUE,TRIM8#

 1
81240-2205008

GX6#,LX6#,MX61,RX6#,SX60,TX60..DLX,GT,SGT,SXL,XG,XL

IVORY,IVORY,TRIM2#,3#,4#

 1
81240B - BULB, ROOM LAMP, NO.1
99132-12100

GX6#,LX6#,MX61,RX6#,SX60,TX60

12V 10W,12V 10W

 1
81240B - BULB, ROOM LAMP, NO.1
99132-12100

GX6#,LX6#,MX61,RX6#,SX60,TX60

12V 10W,12V 10W

 1
81240B - BULB, ROOM LAMP, NO.1
99132-12100

GX6#,LX6#,MX61,RX6#,SX60,TX60

12V 10W,12V 10W

 1
81240B - BULB, ROOM LAMP, NO.1
99132-12100

GX6#,LX6#,MX61,RX6#,SX60,TX60

12V 10W,12V 10W

 1
81241 - LENS, ROOM LAMP, NO.1
81241-20060

GX6#,LX6#,MX61,RX6#,SX60,TX60..DLX,GT,SGT,SXL,XG,XL

 1
81241 - LENS, ROOM LAMP, NO.1
81241-20060

GX6#,LX6#,MX61,RX6#,SX60,TX60..DLX,GT,SGT,SXL,XG,XL

 1
81260 - LAMP ASSY, GLOVE BOX
81260-22070

GX6#,LX60,MX61,RX6#,TX60

 1
81260B - BULB(FOR GLOVE BOX)
90981-11018

GX6#,LX60,MX61,RX6#,TX60

12V 1.2W ｿｹｯﾄ無し,12V 1.2W

 1
Common parts
90164-45005
93249-24016
93510-13008
93540-24016
