LX100-BTPQT (1996)

Toyota Chaser

Production Sep 1996 - Aug 1999
Engine 2LTE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9609- )

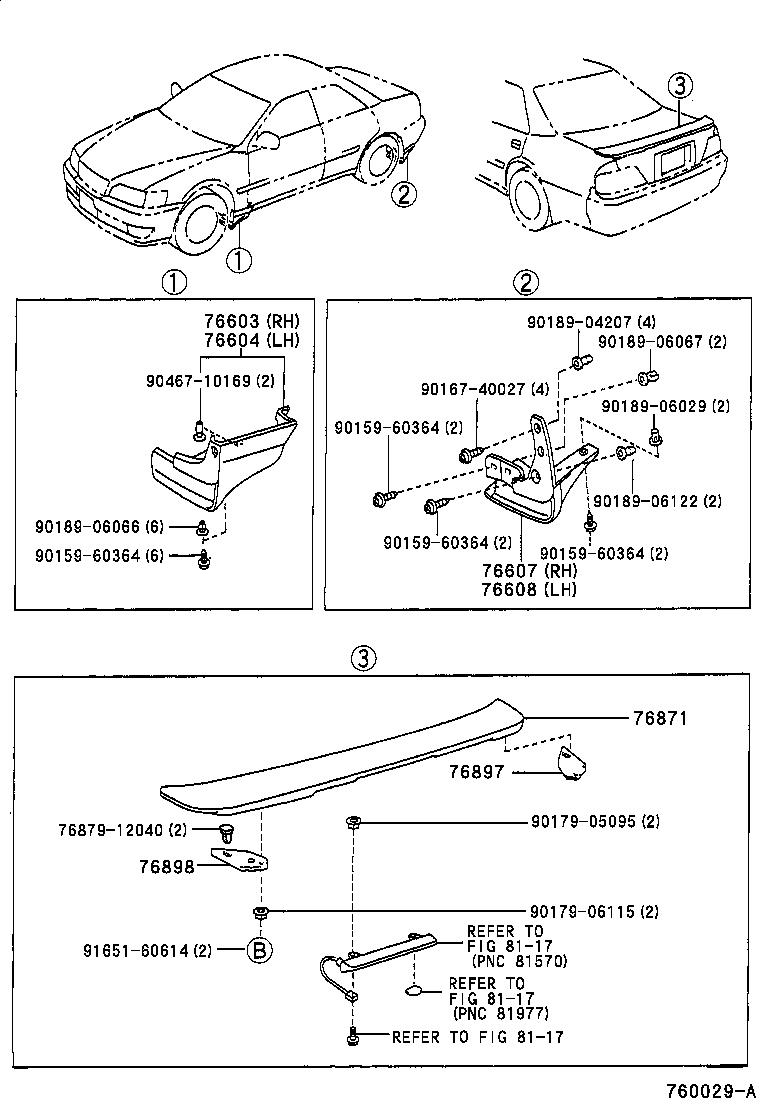

Click highlighted areas on diagram

diagram 76603 76604 76607 76608 76871 76897 76898 8117 8117 8117 9015960364 9015960364 9015960364 9015960364 9016740027 9017905095 9017906115 9018904207 9018906029 9018906066 9018906067 9018906122 9046710169 9165160614
Part # Description Qty Price
76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH
76603-22070

GX10#,JZX10#,LX100,SX100

 1
76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH
76604-22070

GX10#,JZX10#,LX100,SX100

 1
76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
76625-22080

GX10#,JZX10#,LX100,SX100

 1
76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
76626-22080

GX10#,JZX10#,LX100,SX100

 1
Common parts
90159-60364
90167-40027
90179-05095
90179-06115
90189-04207
90189-06029
90189-06066
90189-06067
90189-06122
90467-10169
91651-60614
Linked diagrams
8117
