LX100-BTPQT (1996)
Toyota Chaser
Production
Sep 1996
-
Aug 1999
Engine
2LTE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9609- )LX100

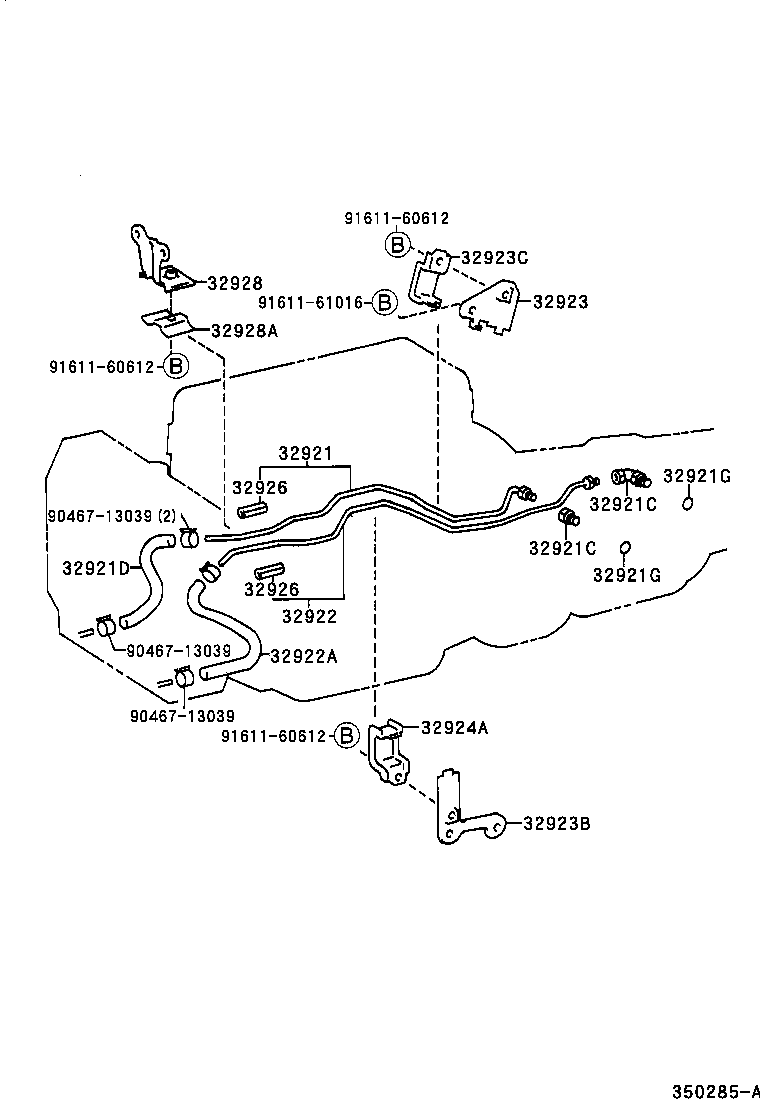

Click highlighted areas on diagram
A43D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32921 - TUBE, OIL COOLER INLET, NO.1 | ||||
| 32921-22750 |
LX100 |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90407-16010 |
GX100,LX100..4FC ｱｳﾄﾚｯﾄ |
1 | ||
| 90404-16021 |
LX100 ｲﾝﾚｯﾄ |
1 | ||
| 90404-16021 |
GX100,LX100..4FC ｲﾝﾚｯﾄ |
1 | ||
| 90407-16010 |
LX100 ｱｳﾄﾚｯﾄ |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90407-16010 |
GX100,LX100..4FC ｱｳﾄﾚｯﾄ |
1 | ||
| 90404-16021 |
LX100 ｲﾝﾚｯﾄ |
1 | ||
| 90404-16021 |
GX100,LX100..4FC ｲﾝﾚｯﾄ |
1 | ||
| 90407-16010 |
LX100 ｱｳﾄﾚｯﾄ |
1 | ||
| 32921D - HOSE(FOR OIL COOLER INLET) | ||||
| 90445-15042 |
LX100 |
1 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
GX100,LX100,SX100..4FC |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
GX100,LX100,SX100..4FC |
2 | ||
| 32922 - TUBE, OIL COOLER OUTLET, NO.1 | ||||
| 32922-22750 |
LX100 |
1 | ||
| 32922A - HOSE(FOR OIL COOLER OUTLET) | ||||
| 90445-15057 |
LX100 |
1 | ||
| 32923 - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE | ||||
| 32923-22070 |
LX100 |
1 | ||
| 32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1 | ||||
| 32924-30210 |
LX100 |
1 | ||
| 32923C - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4 | ||||
| 32929-28010 |
LX100 |
1 | ||
| 32924A - CLAMP(FOR OIL COOLER TUBE, NO.2) | ||||
| 32929-22050 |
LX100 |
1 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30020 |
LX100 長さ=35,内径=10 |
6 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30020 |
LX100 長さ=35,内径=10 |
6 | ||
| 32928 - CLAMP, FLEXIBLE HOSE, NO.1 | ||||
| 32928-22110 |
LX100 |
1 | ||
| 32928A - CLAMP(FOR FLEXIBLE HOSE CLAMP) | ||||
| 90462-12047 |
LX100 |
1 | ||
| Common parts | ||||
| 90467-13039 | ||||
| 91611-60612 | ||||
| 91611-61016 | ||||
