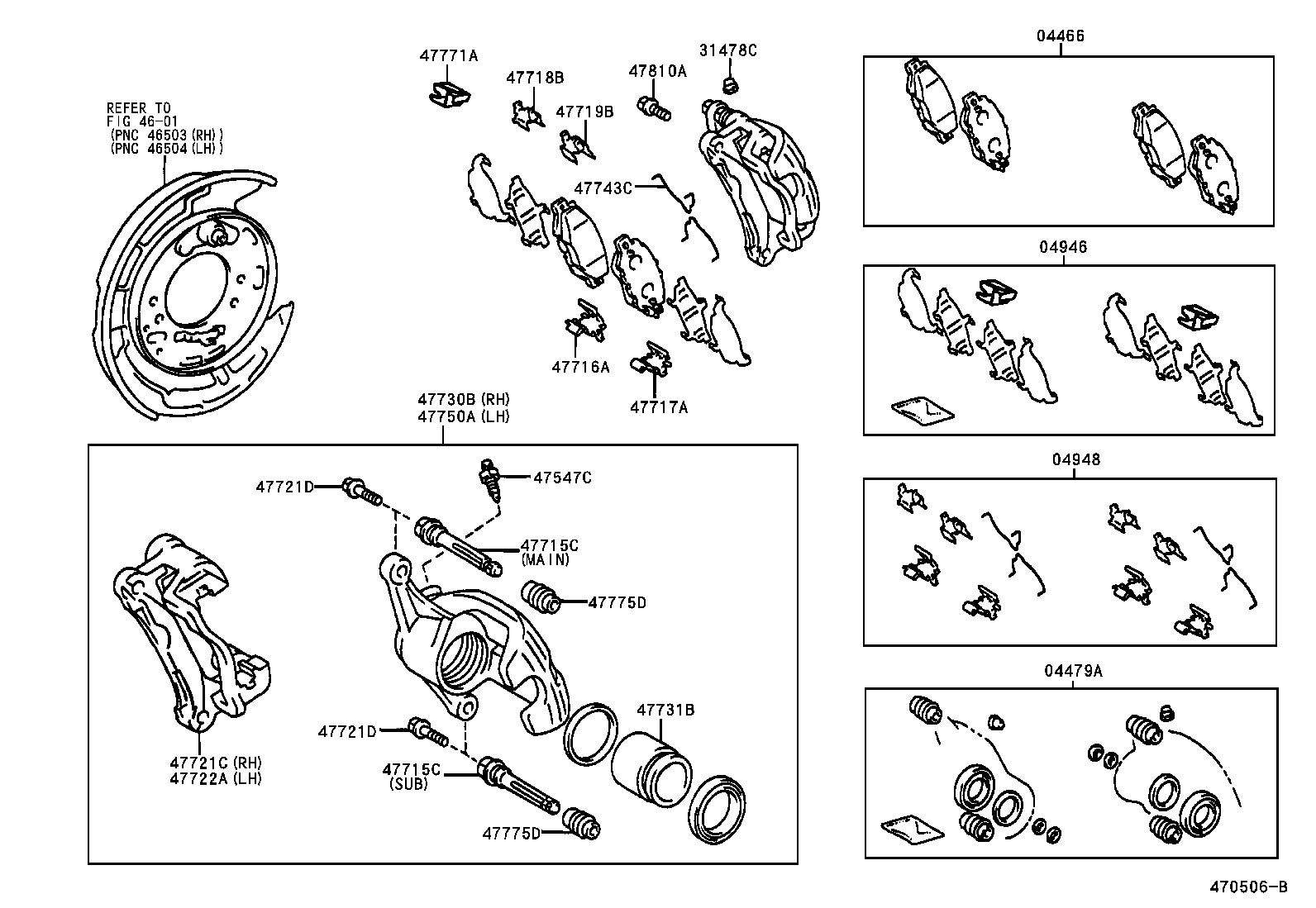

LX100-BTPNT (1996)
Toyota Chaser
(9609- )TOUV ; (9609- )GX100,LX100,SX100
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04466 - PAD KIT, DISC BRAKE, REAR | ||||
| 04466-22170 |
GX100,LX100,SX100 |
1 | ||
| 04466-22150 |
JZX100..TOUV;GX100,LX100,SX100 |
1 | ||
| 04479A - CYLINDER KIT, DISC BRAKE, REAR | ||||
| 04479-22130 |
GX100,LX100,SX100 |
1 | ||
| 04946 - SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE) | ||||
| 04946-22071 |
JZX100..TOUV;GX100,LX100,SX100 |
1 | ||
| 04948 - FITTING KIT, DISC BRAKE, REAR | ||||
| 04948-22070 |
GX100,LX100,SX100 |
1 | ||
| 31478C - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE) | ||||
| 31478-30010 |
GX10#,JZX10#,LX100,SX100 |
2 | ||
| 47547C - PLUG, BLEEDER(FOR REAR DISC BRAKE) | ||||
| 47547-35020 |
JZX100..TOUV;GX100,LX100,SX100 |
2 | ||
| 47715C - PIN, CYLINDER SLIDE(FOR REAR DISC BRAKE) | ||||
| 47715-22110 |
JZX100..TOUV;GX100,LX100,SX100 ｻﾌﾞ |
2 | ||
| 47715-22120 |
JZX100..TOUV;GX100,LX100,SX100 ﾒｲﾝ |
2 | ||
| 47715C - PIN, CYLINDER SLIDE(FOR REAR DISC BRAKE) | ||||
| 47715-22110 |
JZX100..TOUV;GX100,LX100,SX100 ｻﾌﾞ |
2 | ||
| 47715-22120 |
JZX100..TOUV;GX100,LX100,SX100 ﾒｲﾝ |
2 | ||
| 47716A - PLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE) | ||||
| 47716-22060 |
JZX100..TOUV;GX100,LX100,SX100 |
2 | ||
| 47717A - PLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE) | ||||
| 47717-22050 |
JZX100..TOUV;GX100,LX100,SX100 |
2 | ||
| 47718B - PLATE, PAD SUPPORT, NO.3(FOR REAR DISK BRAKE) | ||||
| 47718-22040 |
JZX100..TOUV;GX100,LX100,SX100 |
2 | ||
| 47719B - PLATE, PAD SUPPORT, NO.4(FOR REAR DISK BRAKE) | ||||
| 47719-22040 |
JZX100..TOUV;GX100,LX100,SX100 |
2 | ||
| 47721C - MOUNTING, REAR DISC BRAKE CYLINDER, RH | ||||
| 47721-22230 |
GX100,LX100,SX100 |
1 | ||
| 47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING) | ||||
| 90105-08304 |
JZX100..TOUV;GX100,LX100,SX100 *8−1.00PX20−9 |
4 | ||
| 47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING) | ||||
| 90105-08304 |
JZX100..TOUV;GX100,LX100,SX100 *8−1.00PX20−9 |
4 | ||
| 47722A - MOUNTING, REAR DISC BRAKE CYLINDER, LH | ||||
| 47721-22230 |
GX100,LX100,SX100 |
1 | ||
| 47730B - CYLINDER ASSY, REAR DISC BRAKE, RH | ||||
| 47730-22350 |
GX100,LX100,SX100 |
1 | ||
| 47731B - PISTON, REAR DISC BRAKE | ||||
| 47731-22080 |
GX100,LX100,SX100 |
2 | ||
| 47743C - SPRING, ANTI-SQUEAL(FOR REAR DISC BRAKE) | ||||
| 47743-22070 |
GX100,LX100,SX100 |
4 | ||
| 47750A - CYLINDER ASSY, DISC BRAKE, REAR LH | ||||
| 47750-22350 |
GX100,LX100,SX100 |
1 | ||
| 47771A - PLATE, PAD WEAR INDICATOR(FOR REAR DISC BRAKE) | ||||
| 47771-22070 |
JZX100..TOUV;GX100,LX100,SX100 |
2 | ||
| 47775D - BOOT, BUSH DUST(FOR REAR DISC BRAKE) | ||||
| 47775-22070 |
JZX100..TOUV;GX100,LX100,SX100 |
4 | ||
| 47775D - BOOT, BUSH DUST(FOR REAR DISC BRAKE) | ||||
| 47775-22070 |
JZX100..TOUV;GX100,LX100,SX100 |
4 | ||
| 47810A - BOLT, HEXAGON(FOR REAR CALIPER) | ||||
| 90119-10206 |
GX10#,JZX10#,LX100,SX100 |
4 | ||
| Linked diagrams | ||||
| 4601 | ||||
