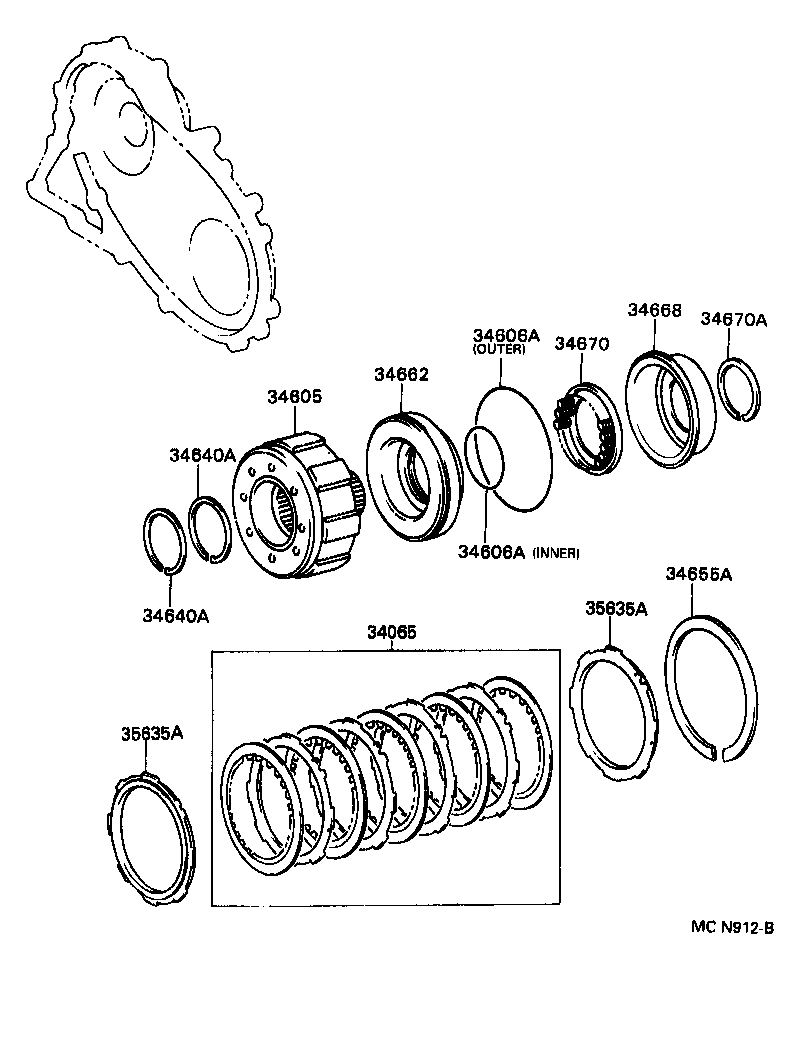

Toyota Chaser JZX93 TRANSFER DIRECT CLUTCH, LOW BRAKE & SUPPORT

Part #	Description	Period	Qty
34065 - DISC SET, CENTER DIFFERENTIAL CLUTCH
34065-30010	JZX93	10/1993 - 09/1996	1
34605 - DRUM SUB-ASSY, TRANSFER DIRECT CLUTCH
34605-30010	JZX93	10/1993 - 09/1996	1
34606A - RING, O (FOR TRANSFER DIRECT CLUTCH PISTON)
90301-99058	JZX93 外側	10/1993 - 09/1996	1
90301-56004	JZX93 内側	10/1993 - 09/1996	1
34606A - RING, O (FOR TRANSFER DIRECT CLUTCH PISTON)
90301-99058	JZX93 外側	10/1993 - 09/1996	1
90301-56004	JZX93 内側	10/1993 - 09/1996	1
34640A - RING, SEAL(FOR TRANSFER CENTER SUPPORT)
35617-30030	JZX93	10/1993 - 09/1996	2
34640A - RING, SEAL(FOR TRANSFER CENTER SUPPORT)
35617-30030	JZX93	10/1993 - 09/1996	2
34655A - RING, SNAP (FOR TRANSFER DIRECT CLUTCH FLANGE)
90521-99001	JZX93	10/1993 - 09/1996	1
34662 - PISTON, CENTER DIFFERENTIAL CLUTCH
34662-30010	JZX93	10/1993 - 09/1996	1
34668 - BALANCER, CENTER DIFFERENTIAL CLUTCH PRESSURE
34668-30010	JZX93	10/1993 - 09/1996	1
34670 - SPRING ASSY, TRANSFER DIRECT CLUTCH RETURN
34670-30010	JZX93	10/1993 - 09/1996	1
34670A - RING, SNAP (FOR TRANSFER DIRECT CLUTCH RETURN SPRING)
90520-53002	JZX93	10/1993 - 09/1996	1
35635A - FLANGE, CENTER DIFFERENTIAL CLUTCH DISC
35635-50040	JZX93 厚さ=3.40,ﾏｰｸ 45	10/1993 - 09/1996	1
35635-50060	JZX93 厚さ=3.00,ﾏｰｸ 61	10/1993 - 09/1996	2
35635-50050	JZX93 厚さ=3.20,ﾏｰｸ 60	10/1993 - 09/1996	1
35635A - FLANGE, CENTER DIFFERENTIAL CLUTCH DISC
35635-50040	JZX93 厚さ=3.40,ﾏｰｸ 45	10/1993 - 09/1996	1
35635-50060	JZX93 厚さ=3.00,ﾏｰｸ 61	10/1993 - 09/1996	2
35635-50050	JZX93 厚さ=3.20,ﾏｰｸ 60	10/1993 - 09/1996	1

JZX93-BTPZF (1993)

(9310- )JZX93
