JZX93-BTPZF (1993)
Toyota Chaser

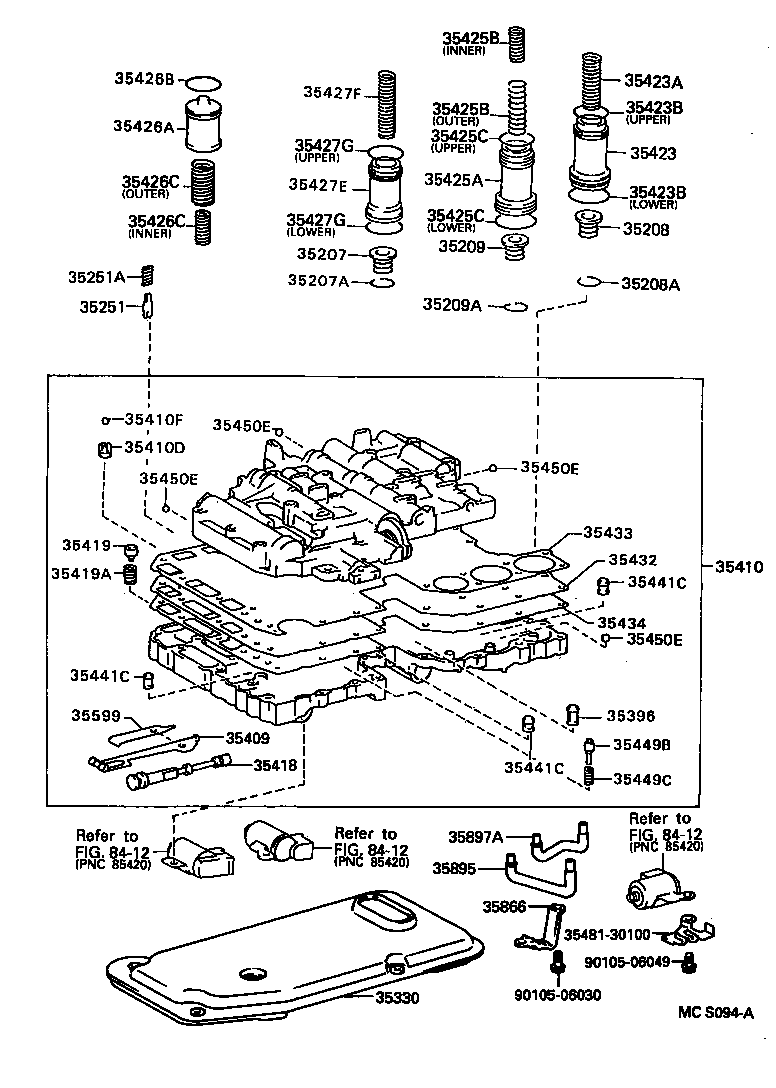

ILLUST NO. 1 OF 4(9310- )JZX93
A340H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35207 - SPRING SUB-ASSY, B-0 ACCUMULATOR | ||||
| 35207-22010 |
JZX9#..AVT,AVTG,TOUS |
1 | ||
| 35207A - RING, HOLE SNAP (FOR B-0 ACCUMULATOR SPRING) | ||||
| 90521-22004 |
JZX9#..ATM |
1 | ||
| 35208 - SPRING SUB-ASSY, B-2 ACCUMULATOR | ||||
| 35208-30010 |
JZX90,93..AVT,AVTG,TOUS |
1 | ||
| 35208A - RING, HOLE SNAP (FOR B-2 ACCUMULATOR SPRING) | ||||
| 90521-22004 |
JZX9#..ATM |
1 | ||
| 90521-22004 |
GX90,JZX9#,LX90..ATM |
1 | ||
| 90521-22004 |
GX90,JZX9#..ATM |
1 | ||
| 35209 - SPRING SUB-ASSY, C-2 ACCUMULATOR | ||||
| 35209-50010 |
JZX93 |
1 | ||
| 35209A - RING, HOLE SNAP (FOR C-2 ACCUMULATOR SPRING) | ||||
| 90521-22004 |
JZX9#..ATM |
1 | ||
| 35251 - BODY, CHECK BALL | ||||
| 35251-30020 |
JZX9#..ATM |
1 | ||
| 35251A - SPRING, COMPRESSION (FOR CHECK BALL BODY) | ||||
| 90501-03005 |
JZX9#..ATM |
1 | ||
| 35330 - STRAINER ASSY, VALVE BODY OIL | ||||
| 35330-22010 |
JZX93 |
1 | ||
| 35396 - STRAINER, THROTTLE OIL | ||||
| 35396-30010 |
JZX9#..ATM |
1 | ||
| 35409 - SPRING SUB-ASSY, MANUAL DETENT | ||||
| 35409-22020 |
JZX90,93..ATM |
1 | ||
| 35410 - BODY ASSY, TRANSMISSION VALVE | ||||
| 35410-22580 |
JZX93 |
1 | ||
| 35410D - VALVE, CHECK | ||||
| 90917-10073 |
JZX9#..ATM |
1 | ||
| 35410F - BALL (FOR CHECK VALVE) | ||||
| 90360-06004 |
JZX9#..ATM |
1 | ||
| 35418 - VALVE, MANUAL | ||||
| 35418-30070 |
JZX9#..ATM |
1 | ||
| 35419 - VALVE, CHECK, NO.1 | ||||
| 35419-12030 |
JZX9#..ATM |
1 | ||
| 35419A - SPRING, COMPRESSION (FOR CHECK VALVE) | ||||
| 90501-10079 |
JZX90,93..AVT,AVTG,TOUS |
1 | ||
| 35423 - PISTON, B-2 ACCUMULATOR | ||||
| 35423-30030 |
JZX9#..ATM |
1 | ||
| 35423A - SPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90501-24014 |
JZX90,93..AVT,AVTG,TOUS |
1 | ||
| 35423B - RING, O (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90301-31002 |
JZX9#..ATM LOWER |
1 | ||
| 90301-23194 |
JZX9#..ATM UPPER |
1 | ||
| 35423B - RING, O (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90301-31002 |
JZX9#..ATM LOWER |
1 | ||
| 90301-23194 |
JZX9#..ATM UPPER |
1 | ||
| 35425A - PISTON, C-2 ACCUMULATOR | ||||
| 35425-30020 |
JZX9#..ATM |
1 | ||
| 35425B - SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90501-22015 |
JZX93 外側 |
1 | ||
| 90501-25027 |
JZX9#..ATM 内側 |
1 | ||
| 35425B - SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90501-22015 |
JZX93 外側 |
1 | ||
| 90501-25027 |
JZX9#..ATM 内側 |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-31002 |
JZX9#..ATM LOWER |
1 | ||
| 90301-25003 |
JZX9#..ATM UPPER |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-31002 |
JZX9#..ATM LOWER |
1 | ||
| 90301-25003 |
JZX9#..ATM UPPER |
1 | ||
| 35426A - PISTON, C-0 ACCUMULATOR | ||||
| 35426-40010 |
JZX9#..ATM |
1 | ||
| 35426B - RING, O (FOR C-0 ACCUMULATOR PISTON) | ||||
| 90301-24001 |
JZX9#..ATM |
1 | ||
| 35426C - SPRING, COMPRESSION (FOR C-0 ACCUMULATOR PISTON) | ||||
| 90501-23073 |
JZX9#..ATM 外側 |
1 | ||
| 90501-22008 |
JZX9#..ATM 内側 |
1 | ||
| 35426C - SPRING, COMPRESSION (FOR C-0 ACCUMULATOR PISTON) | ||||
| 90501-23073 |
JZX9#..ATM 外側 |
1 | ||
| 90501-22008 |
JZX9#..ATM 内側 |
1 | ||
| 35427E - PISTON, B-0 ACCUMULATOR | ||||
| 35427-30040 |
JZX9#..ATM |
1 | ||
| 35427F - SPRING, COMPRESSION (FOR B-0 ACCUMULATOR PISTON) | ||||
| 90501-23095 |
JZX90,93..AVT,AVTG,TOUS |
1 | ||
| 35427G - RING, O (FOR B-0 ACCUMULATOR PISTON) | ||||
| 90301-26002 |
JZX9#..ATM LOWER |
1 | ||
| 90301-20002 |
JZX9#..ATM UPPER |
1 | ||
| 35427G - RING, O (FOR B-0 ACCUMULATOR PISTON) | ||||
| 90301-26002 |
JZX9#..ATM LOWER |
1 | ||
| 90301-20002 |
JZX9#..ATM UPPER |
1 | ||
| 35432 - PLATE, VALVE BODY, NO.1 | ||||
| 35432-22230 |
JZX93 |
1 | ||
| 35433 - GASKET, VALVE BODY, NO.1 | ||||
| 35433-30064 |
JZX9#..ATM |
1 | ||
| 35434 - GASKET, VALVE BODY, NO.2 | ||||
| 35434-30076 |
JZX9#..ATM |
1 | ||
| 35441C - STRAINER, SOLENOID OIL | ||||
| 35441-30020 |
JZX9#..ATM LWR VALVE BODY SIDE |
2 | ||
| 35441-30031 |
JZX9#..ATM UPR VALVE BODY SIDE |
1 | ||
| 35441C - STRAINER, SOLENOID OIL | ||||
| 35441-30020 |
JZX9#..ATM LWR VALVE BODY SIDE |
2 | ||
| 35441-30031 |
JZX9#..ATM UPR VALVE BODY SIDE |
1 | ||
| 35441C - STRAINER, SOLENOID OIL | ||||
| 35441-30020 |
JZX9#..ATM LWR VALVE BODY SIDE |
2 | ||
| 35441-30031 |
JZX9#..ATM UPR VALVE BODY SIDE |
1 | ||
| 35449B - VALVE, PRESSURE RELIEF | ||||
| 35449-32010 |
JZX9#..ATM |
1 | ||
| 35449C - SPRING, COMPRESSION (FOR VALVE PRESSURE RELIEF) | ||||
| 90501-09032 |
JZX9#..ATM |
1 | ||
| 35450E - BALL (FOR UPPER VALVE BODY) | ||||
| 35496-22030 |
JZX9#..ATM 外径=6.35,ﾗﾊﾞｰ |
1 | ||
| 35495-22020 |
JZX93 外径=5.535,ﾗﾊﾞｰ |
6 | ||
| 35450E - BALL (FOR UPPER VALVE BODY) | ||||
| 35496-22030 |
JZX9#..ATM 外径=6.35,ﾗﾊﾞｰ |
1 | ||
| 35495-22020 |
JZX93 外径=5.535,ﾗﾊﾞｰ |
6 | ||
| 35450E - BALL (FOR UPPER VALVE BODY) | ||||
| 35496-22030 |
JZX9#..ATM 外径=6.35,ﾗﾊﾞｰ |
1 | ||
| 35495-22020 |
JZX93 外径=5.535,ﾗﾊﾞｰ |
6 | ||
| 35450E - BALL (FOR UPPER VALVE BODY) | ||||
| 35496-22030 |
JZX9#..ATM 外径=6.35,ﾗﾊﾞｰ |
1 | ||
| 35495-22020 |
JZX93 外径=5.535,ﾗﾊﾞｰ |
6 | ||
| 35599 - COVER, MANUAL DETENT SPRING | ||||
| 35599-22020 |
JZX90,93..ATM |
1 | ||
| 35866 - BRACKET, TRANSFER APPLY TUBE | ||||
| 35866-22010 |
JZX93 |
1 | ||
| 35895 - TUBE, FRONT CLUTCH APPLY | ||||
| 35895-22010 |
JZX93 |
1 | ||
| 35897A - TUBE, 1ST & REVERSE BRAKE, NO.1 | ||||
| 35897-30020 |
JZX93 |
1 | ||
| Common parts | ||||
| 35481-30100 | ||||
| 90105-06030 | ||||
| 90105-06049 | ||||
| Linked diagrams | ||||
| 8412 | ||||

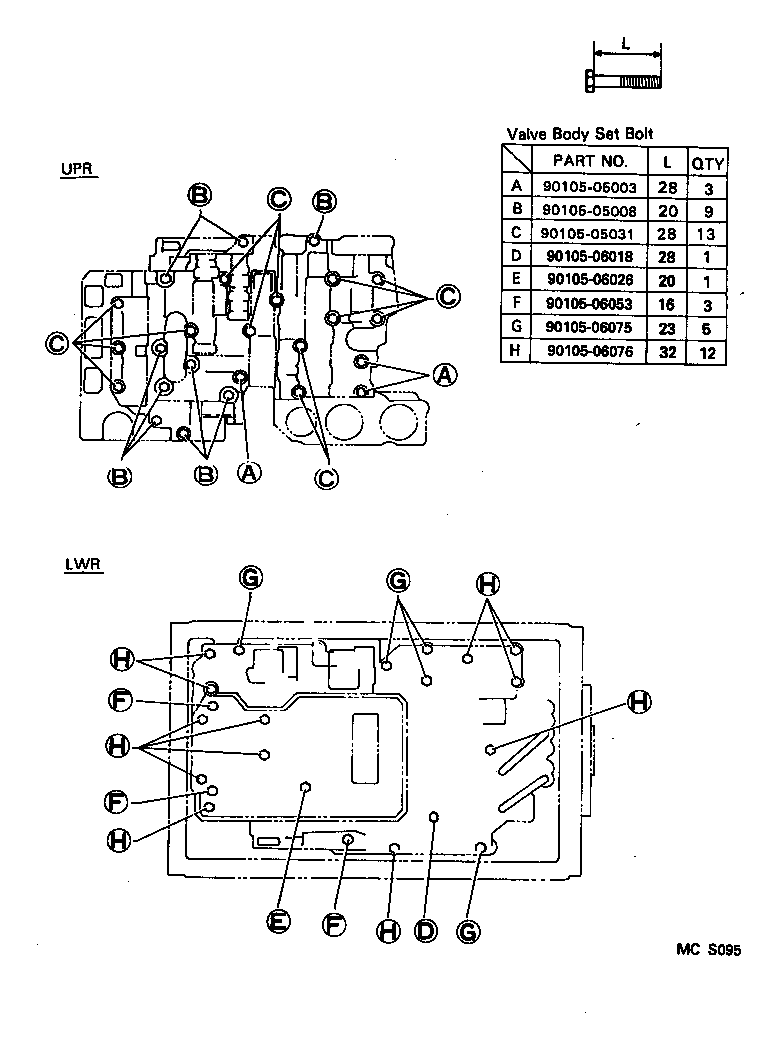

ILLUST NO. 4 OF 4(9310- )JZX93
A340H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-05003 | ||||
| 90105-05008 | ||||
| 90105-05031 | ||||
| 90105-06018 | ||||
| 90105-06026 | ||||
| 90105-06053 | ||||
| 90105-06075 | ||||
| 90105-06076 | ||||
