JZX90-BTPZF (1992)

Toyota Chaser

Production Oct 1992 - Sep 1996
Engine 1JZGE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9210- )JZX9#

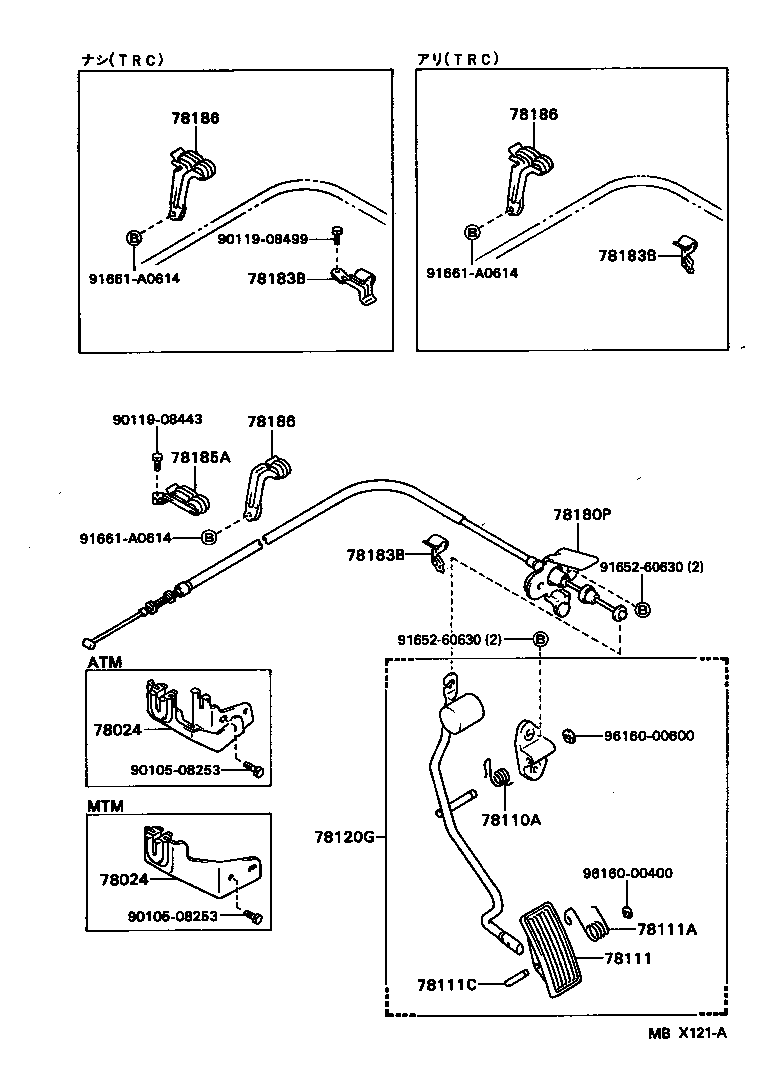

Click highlighted areas on diagram

diagram 78024 78024 78110A 78111 78111A 78111C 78120G 78180P 78183B 78183B 78183B 78185A 78186 78186 78186 9010508253 9010508253 9011908443 9011908499 9165260630 9165260630 91661A0614 91661A0614 91661A0614 9616000400 9616000600
Part # Description Qty Price
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-18103

JZX90,93..AVT,AVTG,TOUS

 1
78111 - PEDAL, ACCELERATOR
78111-22010

GX90,JZX9#,LX90,SX90

 1
78111A - SPRING (FOR ACCELERATOR PEDAL)
90508-23108

GX90,JZX9#,LX90,SX90

 1
78111C - PIN (FOR ACCELERATOR PEDAL)
90249-05001

GX90,JZX9#,LX90,SX90

 1
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-22320

JZX90,93..AVT,AVTG,TOUS

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-2A480

JZX9#..AVT,AVTG,TOUS

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-22080

JZX90,LX90..ATM..(AVT,AVTG,RAF,TOUS)

ｱﾘ(TRC)

 1
78183-22090

GX90,JZX90,93,LX90,SX90..AVT,AVTG,RAF,TOUS,XL

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-22080

JZX90,LX90..ATM..(AVT,AVTG,RAF,TOUS)

ｱﾘ(TRC)

 1
78183-22090

GX90,JZX90,93,LX90,SX90..AVT,AVTG,RAF,TOUS,XL

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-22080

JZX90,LX90..ATM..(AVT,AVTG,RAF,TOUS)

ｱﾘ(TRC)

 1
78183-22090

GX90,JZX90,93,LX90,SX90..AVT,AVTG,RAF,TOUS,XL

 1
78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
78186-22110

GX90,JZX9#,LX90..AVT,AVTG,RAF,TOUS,XL

 1
78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
78186-22110

GX90,JZX9#,LX90..AVT,AVTG,RAF,TOUS,XL

 1
78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
78186-22110

GX90,JZX9#,LX90..AVT,AVTG,RAF,TOUS,XL

 1
Common parts
90105-08253
90119-08443
90119-08499
91652-60630
91661-A0614
96160-00400
96160-00600
