JZX90-BTPZF (1992)

Toyota Chaser

Production Oct 1992 - Sep 1996
Engine 1JZGE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9210- )

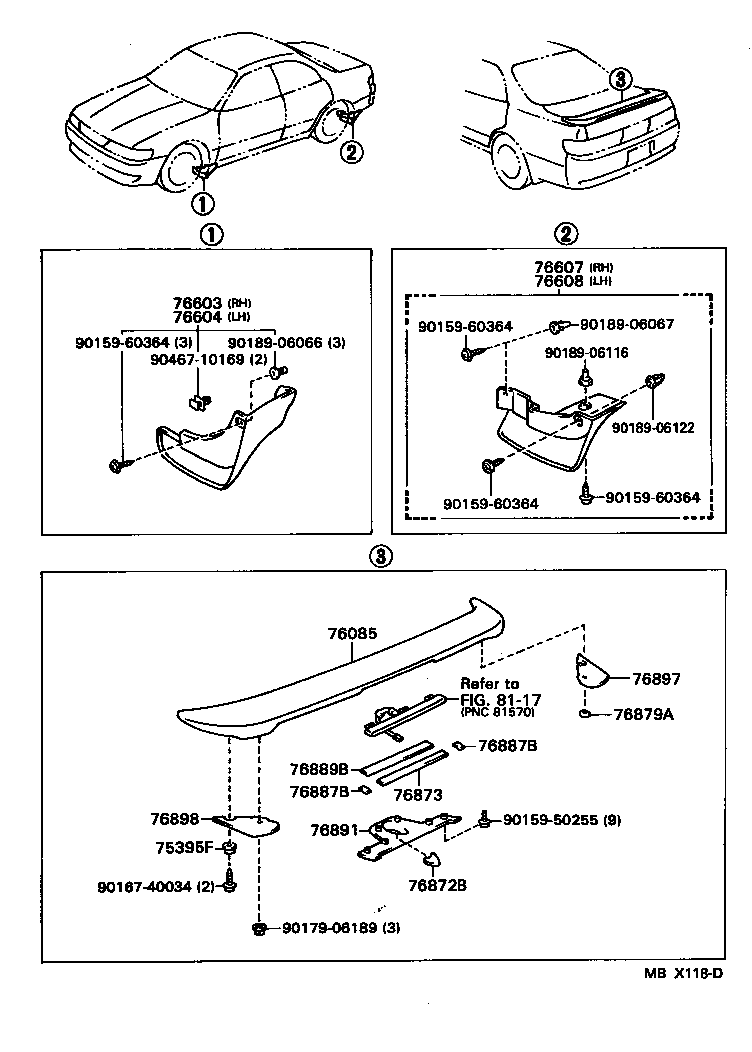

Click highlighted areas on diagram

diagram 75395F 76085 76603 76604 76607 76608 76872B 76873 76879A 76887B 76887B 76889B 76891 76897 76898 8117 9015950255 9015960364 9015960364 9015960364 9015960364 9016740034 9017906189 9018906066 9018906067 9018906116 9018906122 9046710169
Part # Description Qty Price
76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH
76603-29285

GX90,JZX9#,LX90,SX90

 1
76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH
76604-29285

GX90,JZX9#,LX90,SX90

 1
76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
76625-29165

GX90,JZX9#,LX90,SX90

 1
76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
76626-29165

GX90,JZX9#,LX90,SX90

 1
Common parts
90159-50255
90159-60364
90167-40034
90179-06189
90189-06066
90189-06067
90189-06116
90189-06122
90467-10169
Linked diagrams
8117
