JZX90-BTPVZ (1992)
Toyota Chaser
(9210- )

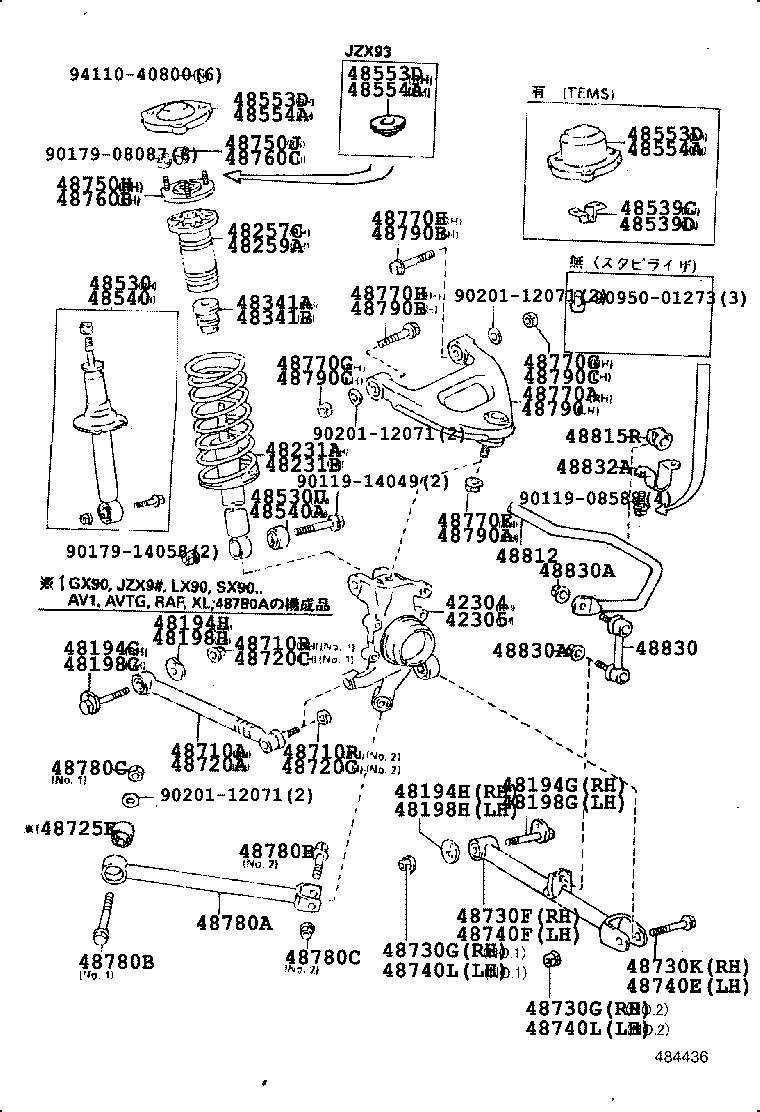

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42304 - CARRIER SUB-ASSY, REAR AXLE, RH | ||||
| 42304-22021 |
JZX93;JZX90,91..AVTG,TOUV |
1 | ||
| 42304-30040 |
JZX93;JZX90,91..AVTG,TOUV |
1 | ||
| 42305 - CARRIER SUB-ASSY, REAR AXLE, LH | ||||
| 42305-22021 |
JZX93;JZX90,91..AVTG,TOUV |
1 | ||
| 42305-30040 |
JZX93;JZX90,91..AVTG,TOUV |
1 | ||
| 48194G - CAM, REAR SUSPENSION CAMBER ADJUST, NO.1 RH | ||||
| 48190-22030 |
GX90,JZX9#,LX90,SX90 |
2 | ||
| 48194G - CAM, REAR SUSPENSION CAMBER ADJUST, NO.1 RH | ||||
| 48190-22030 |
GX90,JZX9#,LX90,SX90 |
2 | ||
| 48194H - CAM, REAR SUSPENSION CAMBER ADJUST, NO.2 RH | ||||
| 48198-22020 |
GX90,JZX9#,LX90,SX90 |
2 | ||
| 48194H - CAM, REAR SUSPENSION CAMBER ADJUST, NO.2 RH | ||||
| 48198-22020 |
GX90,JZX9#,LX90,SX90 |
2 | ||
| 48198G - CAM, REAR SUSPENSION CAMBER ADJUST, NO.1 LH | ||||
| 48190-22030 |
GX90,JZX9#,LX90,SX90 |
2 | ||
| 48198G - CAM, REAR SUSPENSION CAMBER ADJUST, NO.1 LH | ||||
| 48190-22030 |
GX90,JZX9#,LX90,SX90 |
2 | ||
| 48198H - CAM, CAMBER ADJUST, NO.2 | ||||
| 48198-22020 |
GX90,JZX9#,LX90,SX90 |
2 | ||
| 48198H - CAM, CAMBER ADJUST, NO.2 | ||||
| 48198-22020 |
GX90,JZX9#,LX90,SX90 |
2 | ||
| 48231A - SPRING, COIL, REAR RH | ||||
| 48231-2A270 |
JZX90..TOUV |
1 | ||
| 48231B - SPRING, COIL, REAR LH | ||||
| 48231-2A270 |
JZX90..TOUV |
1 | ||
| 48257C - INSULATOR, REAR COIL SPRING, UPPER RH | ||||
| 48257-22070 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 48257-22070 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 48259A - INSULATOR, REAR COIL SPRING, UPPER LH | ||||
| 48257-22070 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 48257-22070 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 48341A - BUMPER, REAR SPRING, NO.1 RH | ||||
| 48341-22120 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 48341B - BUMPER, REAR SPRING, NO.1 LH | ||||
| 48341-22120 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48530-29255 |
JZX90..TOUS,TOUV ﾏｰｸ 48530−22250 |
1 | ||
| 48530-29255 |
JZX90..TOUV ﾏｰｸ 48530−22250 |
1 | ||
| 48530U - BUSH(FOR REAR SHOCK ABSORBER RH) | ||||
| 90389-14044 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48530-29255 |
JZX90..TOUV ﾏｰｸ 48530−22250 |
1 | ||
| 48530-29255 |
JZX90..TOUS,TOUV ﾏｰｸ 48530−22250 |
1 | ||
| 48540A - BUSH(FOR REAR SHOCK ABSORBER LH) | ||||
| 90389-14044 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 48553D - CAP, REAR SHOCK ABSORBER, RH | ||||
| 48553-22070 |
GX90,JZX90,LX90,SX90 |
1 | ||
| 48553D - CAP, REAR SHOCK ABSORBER, RH | ||||
| 48553-22070 |
GX90,JZX90,LX90,SX90 |
1 | ||
| 48553D - CAP, REAR SHOCK ABSORBER, RH | ||||
| 48553-22070 |
GX90,JZX90,LX90,SX90 |
1 | ||
| 48554A - CAP, REAR SHOCK ABSORBER, LH | ||||
| 48553-22070 |
GX90,JZX90,LX90,SX90 |
1 | ||
| 48554A - CAP, REAR SHOCK ABSORBER, LH | ||||
| 48553-22070 |
GX90,JZX90,LX90,SX90 |
1 | ||
| 48554A - CAP, REAR SHOCK ABSORBER, LH | ||||
| 48553-22070 |
GX90,JZX90,LX90,SX90 |
1 | ||
| 48710A - ARM ASSY, REAR SUSPENSION, NO.1 RH | ||||
| 48710-22300 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 48710R - NUT(FOR REAR SUSPENSION ARM NO.1 RH) | ||||
| 90179-12027 |
GX90,JZX9#,LX90,SX90 NO.2 |
1 | ||
| 90179-12127 |
GX90,JZX9#,LX90,SX90 NO.1 |
1 | ||
| 48710R - NUT(FOR REAR SUSPENSION ARM NO.1 RH) | ||||
| 90179-12027 |
GX90,JZX9#,LX90,SX90 NO.2 |
1 | ||
| 90179-12127 |
GX90,JZX9#,LX90,SX90 NO.1 |
1 | ||
| 48720A - ARM ASSY, REAR SUSPENSION, NO.1 LH | ||||
| 48710-22300 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 48720C - NUT(FOR REAR SUSPENSION ARM NO.1 LH) | ||||
| 90179-12027 |
GX90,JZX9#,LX90,SX90 NO.2 |
1 | ||
| 90179-12027 |
JZX93..AVT;GX90,JZX90,91,LX90,SX90 NO.2 |
1 | ||
| 90179-12127 |
GX90,JZX9#,LX90,SX90 NO.1 |
1 | ||
| 90179-12127 |
JZX93..AVT;GX90,JZX90,91,LX90,SX90 NO.1 |
1 | ||
| 48720C - NUT(FOR REAR SUSPENSION ARM NO.1 LH) | ||||
| 90179-12027 |
GX90,JZX9#,LX90,SX90 NO.2 |
1 | ||
| 90179-12027 |
JZX93..AVT;GX90,JZX90,91,LX90,SX90 NO.2 |
1 | ||
| 90179-12127 |
GX90,JZX9#,LX90,SX90 NO.1 |
1 | ||
| 90179-12127 |
JZX93..AVT;GX90,JZX90,91,LX90,SX90 NO.1 |
1 | ||
| 48730F - ARM ASSY, REAR SUSPENSION, NO.2 RH | ||||
| 48730-22051 |
JZX90..TOUS,TOUV |
1 | ||
| 48730-30070 |
JZX90..TOUS,TOUV |
1 | ||
| 48730G - NUT, NO.1(FOR REAR SUSPENSION ARM NO.2 RH) | ||||
| 90179-12127 |
GX90,JZX9#,LX90,SX90 NO.1 |
1 | ||
| 90179-12121 |
GX90,JZX9#,LX90,SX90 NO.2 |
1 | ||
| 48730G - NUT, NO.1(FOR REAR SUSPENSION ARM NO.2 RH) | ||||
| 90179-12127 |
GX90,JZX9#,LX90,SX90 NO.1 |
1 | ||
| 90179-12121 |
GX90,JZX9#,LX90,SX90 NO.2 |
1 | ||
| 48730K - BOLT(FOR REAR SUSPENSION ARM NO.2 RH) | ||||
| 90119-12260 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 48740E - BOLT(FOR REAR SUSPENSION ARM NO.2 LH) | ||||
| 90119-12260 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 48740F - ARM ASSY, REAR SUSPENSION, NO.2 LH | ||||
| 48730-22051 |
JZX90..TOUS,TOUV |
1 | ||
| 48730-30070 |
JZX90..TOUS,TOUV |
1 | ||
| 48740L - NUT, NO.1(FOR REAR SUSPENSION ARM NO.2 LH) | ||||
| 90179-12121 |
GX90,JZX9#,LX90,SX90 NO.2 |
1 | ||
| 90179-12127 |
GX90,JZX9#,LX90,SX90 NO.1 |
1 | ||
| 48740L - NUT, NO.1(FOR REAR SUSPENSION ARM NO.2 LH) | ||||
| 90179-12121 |
GX90,JZX9#,LX90,SX90 NO.2 |
1 | ||
| 90179-12127 |
GX90,JZX9#,LX90,SX90 NO.1 |
1 | ||
| 48750H - SUPPORT ASSY, REAR SUSPENSION, RH | ||||
| 48755-22030 |
JZX90..TOUS,TOUV |
1 | ||
| 48750J - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH) | ||||
| 90179-12140 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 94187-11200 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 48760B - SUPPORT ASSY REAR SUSPENSION, LH | ||||
| 48755-22030 |
JZX90..TOUS,TOUV |
1 | ||
| 48760C - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH) | ||||
| 90179-12140 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 94187-11200 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 48770A - ARM ASSY, UPPER CONTROL, REAR RH | ||||
| 48770-22030 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 48770-22030 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 48770-22030 |
JZX93;JZX90,91..AVTG,TOUV |
1 | ||
| 48770-22030 |
JZX93;JZX90,91..AVTG,TOUV |
1 | ||
| 48770E - NUT, NO.1(FOR REAR UPPER CONTROL ARM RH) | ||||
| 90179-14015 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 48770G - NUT, NO.2(FOR REAR UPPER CONTROL ARM RH) | ||||
| 90170-12042 |
GX90,JZX9#,LX90,SX90 |
2 | ||
| 90170-12035 |
GX90,JZX9#,LX90,SX90 |
2 | ||
| 48770G - NUT, NO.2(FOR REAR UPPER CONTROL ARM RH) | ||||
| 90170-12042 |
GX90,JZX9#,LX90,SX90 |
2 | ||
| 90170-12035 |
GX90,JZX9#,LX90,SX90 |
2 | ||
| 48770H - BOLT(FOR REAR UPPER CONTROL ARM RH) | ||||
| 90105-12253 |
GX90,JZX9#,LX90,SX90 |
2 | ||
| 90105-12290 |
GX90,JZX9#,LX90,SX90 |
2 | ||
| 48770H - BOLT(FOR REAR UPPER CONTROL ARM RH) | ||||
| 90105-12253 |
GX90,JZX9#,LX90,SX90 |
2 | ||
| 90105-12290 |
GX90,JZX9#,LX90,SX90 |
2 | ||
| 48780A - ROD ASSY, STRUT, REAR | ||||
| 48780-22040 |
JZX90..TOUS,TOUV |
2 | ||
| 48780B - BOLT(FOR STRUT ROD) | ||||
| 90105-12289 |
GX90,JZX9#,LX90,SX90 NO.1 |
2 | ||
| 90105-12252 |
GX90,JZX9#,LX90,SX90 NO.1 |
2 | ||
| 90119-14035 |
GX90,JZX9#,LX90,SX90 NO.2 |
2 | ||
| 48780B - BOLT(FOR STRUT ROD) | ||||
| 90105-12289 |
GX90,JZX9#,LX90,SX90 NO.1 |
2 | ||
| 90105-12252 |
GX90,JZX9#,LX90,SX90 NO.1 |
2 | ||
| 90119-14035 |
GX90,JZX9#,LX90,SX90 NO.2 |
2 | ||
| 48780C - NUT(FOR STRUT ROD) | ||||
| 90170-12035 |
GX90,JZX9#,LX90,SX90 NO.1 |
2 | ||
| 90170-12042 |
GX90,JZX9#,LX90,SX90 NO.1 |
2 | ||
| 90179-14058 |
GX90,JZX9#,LX90,SX90 NO.2 |
2 | ||
| 48780C - NUT(FOR STRUT ROD) | ||||
| 90170-12035 |
GX90,JZX9#,LX90,SX90 NO.1 |
2 | ||
| 90170-12042 |
GX90,JZX9#,LX90,SX90 NO.1 |
2 | ||
| 90179-14058 |
GX90,JZX9#,LX90,SX90 NO.2 |
2 | ||
| 48790 - ARM ASSY, UPPER CONTROL, REAR LH | ||||
| 48790-22030 |
JZX93;JZX90,91..AVTG,TOUV |
1 | ||
| 48790-22030 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 48790A - NUT, NO.1(FOR REAR UPPER CONTROL ARM LH) | ||||
| 90179-14015 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 48790B - BOLT(FOR REAR UPPER CONTROL ARM LH) | ||||
| 90105-12290 |
GX90,JZX9#,LX90,SX90 |
2 | ||
| 90105-12253 |
GX90,JZX9#,LX90,SX90 |
2 | ||
| 48790B - BOLT(FOR REAR UPPER CONTROL ARM LH) | ||||
| 90105-12290 |
GX90,JZX9#,LX90,SX90 |
2 | ||
| 90105-12253 |
GX90,JZX9#,LX90,SX90 |
2 | ||
| 48790C - NUT, NO.2(FOR REAR UPPER CONTROL ARM LH) | ||||
| 90170-12042 |
GX90,JZX9#,LX90,SX90 |
2 | ||
| 90170-12035 |
GX90,JZX9#,LX90,SX90 |
2 | ||
| 48790C - NUT, NO.2(FOR REAR UPPER CONTROL ARM LH) | ||||
| 90170-12042 |
GX90,JZX9#,LX90,SX90 |
2 | ||
| 90170-12035 |
GX90,JZX9#,LX90,SX90 |
2 | ||
| 48812 - BAR, STABILIZER, REAR | ||||
| 48812-22270 |
JZX90..TOUS,TOUV |
1 | ||
| 48815R - BUSH, STABILIZER(FOR REAR) | ||||
| 48815-22140 |
JZX90..TOUS,TOUV |
2 | ||
| 48830 - LINK ASSY, REAR STABILIZER | ||||
| 48830-22040 |
JZX90..TOUS,TOUV |
2 | ||
| 48830-22041 |
JZX90..TOUS,TOUV |
2 | ||
| 48830A - NUT(FOR REAR STABILIZER LINK) | ||||
| 90179-12052 |
JZX90..TOUS,TOUV |
4 | ||
| 48830A - NUT(FOR REAR STABILIZER LINK) | ||||
| 90179-12052 |
JZX90..TOUS,TOUV |
4 | ||
| 48832A - BRACKET, REAR STABILIZER BAR, NO.1 | ||||
| 48824-14060 |
JZX90..TOUS,TOUV |
2 | ||
| Common parts | ||||
| 90119-08588 | ||||
| 90119-14049 | ||||
| 90179-08087 | ||||
| 90179-14058 | ||||
| 90201-12071 | ||||
| 90950-01273 | ||||
| 94110-40800 | ||||
