JZX90-BTPVZ (1992)

Toyota Chaser

Production Oct 1992 - Sep 1996
Engine 1JZGTE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9210- )1JZ#,2JZGE

Click highlighted areas on diagram

diagram 9099992002 9099992002 9099992003 9099992004 9099992006 9099992007 9099992008
Part # Description Qty Price
Common parts
90999-92002
90999-92003
90999-92004
90999-92006
90999-92007
90999-92008

(9210- )1JZGTE

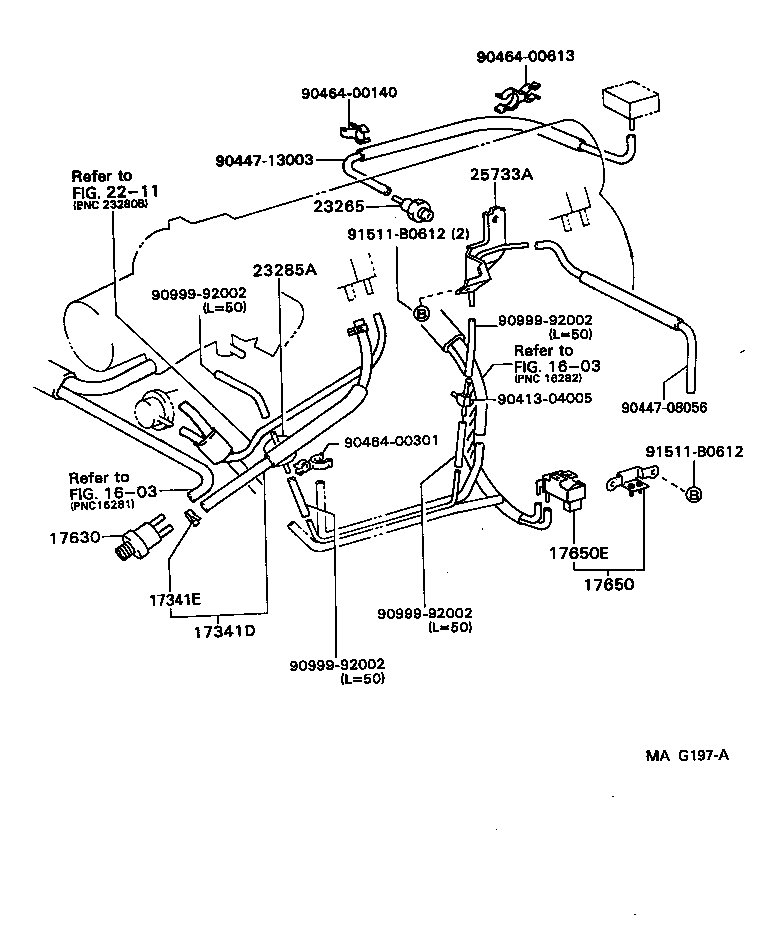

Click highlighted areas on diagram

diagram 1603 1603 17341D 17341E 17630 17650 17650E 2211 23265 23285A 25733A 9041304005 9044708056 9044713003 9046400140 9046400301 9046400613 9099992002 9099992002 9099992002 9099992002 91511B0612 91511B0612
Part # Description Qty Price
17341D - HOSE, NO.1(FOR IDLE-UP)
17341-46140

1JZGTE..JZX90

 1
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
96132-51000

1JZGTE..JZX90

 2
17630 - VALVE ASSY, AIR CONTROL
17630-70020

1JZ#,2JZGE..JZX9#

 1
17650 - VALVE ASSY, VACUUM SWITCHING
25860-46090

1JZGTE..JZX90

 1
17650E - VALVE, VACUUM SWITCHING
90910-12145

1JZGTE..JZX90

 1
23265 - FILTER, GAS, NO.1
90917-11031

1JZ#,2JZGE..JZX9#

 1
90917-11031

1JZ#,2JZGE..JZX9#

 1
23285A - VALVE, CHECK, NO.1
90917-10080

1JZ#,2JZGE..JZX9#

 1
25733A - PIPE, VACUUM, NO.1
25706-88400

1JZGTE..JZX90

 1
Common parts
90413-04005
90447-08056
90447-13003
90464-00140
90464-00301
90464-00613
90999-92002
91511-B0612
Linked diagrams
1603
2211
