JZX90-BTPVZ (1992)

Toyota Chaser

Production Oct 1992 - Sep 1996

Engine 1JZGTE

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

(9210- )1JZGTE

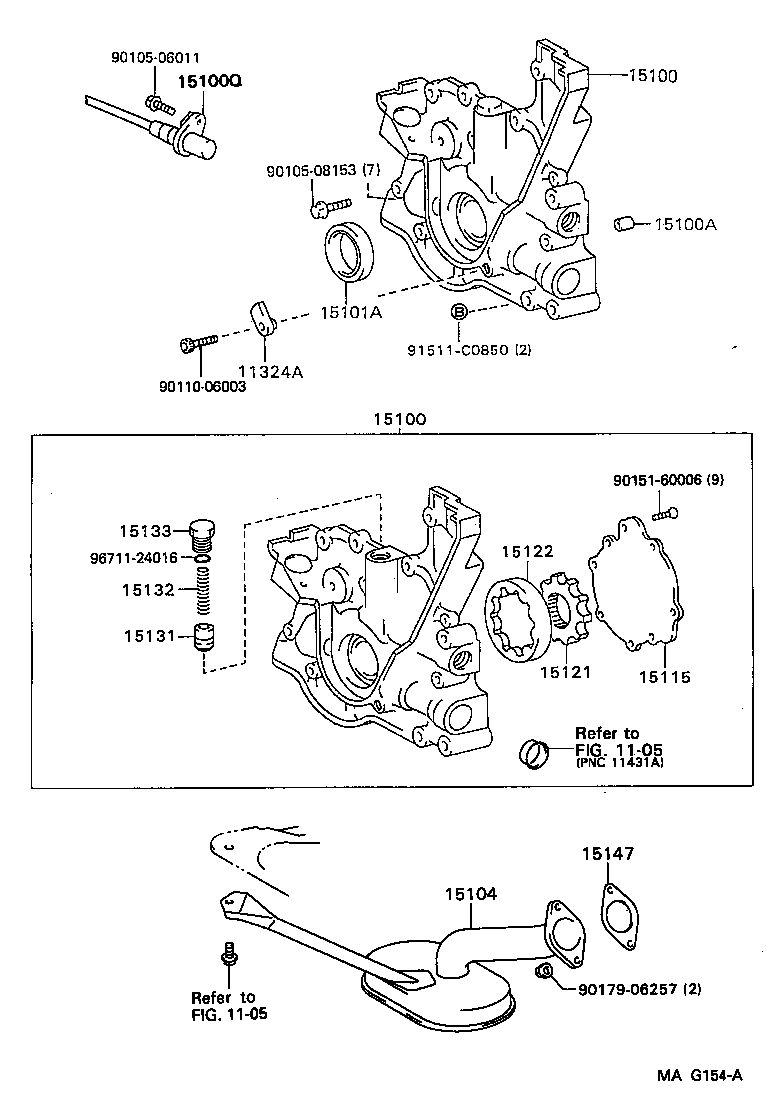

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
11324A - PLATE, TIMING BELT
11324-46010	1JZGTE..JZX90	10/1992 - 09/1996	1
15100 - PUMP ASSY, OIL
15100-46030	1JZGTE..JZX90	10/1992 - 09/1996	1
15100 - PUMP ASSY, OIL
15100-46030	1JZGTE..JZX90	10/1992 - 09/1996	1
15100A - PIN, RING(FOR OIL PUMP SET)
90253-11021	1JZ#,2JZGE..JZX9#	10/1992 - 09/1996	2
15100Q - SENSOR, CRANK POSITION
90919-05006	1JZGTE..JZX90	10/1992 - 09/1996	1
15101A - SEAL(FOR CRANKSHAFT)
90311-46001	1JZ#,2JZGE..JZX9#	10/1992 - 09/1996	1
15104 - STRAINER SUB-ASSY, OIL
15104-46011	1JZ#,2JZGE..JZX9#	10/1992 - 08/1993	1
15104-46060	1JZ#,2JZGE..JZX90,91	08/1993 - 09/1996	1
15115 - COVER, OIL PUMP
15115-46030	1JZGTE..JZX90	10/1992 - 09/1996	1
15121 - GEAR, OIL PUMP DRIVE
15121-46030	1JZGTE..JZX90	10/1992 - 09/1996	1
15122 - GEAR, OIL PUMP DRIVEN
15122-46030	1JZGTE..JZX90	10/1992 - 09/1996	1
15131 - VALVE, OIL PUMP RELIEF
15131-46030	1JZGTE..JZX90	10/1992 - 09/1996	1
15132 - SPRING, OIL PUMP RELIEF VALVE
15132-46030	1JZGTE..JZX90	10/1992 - 09/1996	1
15133 - PLUG, OIL PUMP RELIEF VALVE
15133-46030	1JZGTE..JZX90	10/1992 - 09/1996	1
15147 - GASKET, OIL STRAINER
15147-46010	1JZ#,2JZGE..JZX90,91	10/1992 - 09/1996	1
Common parts
90105-06011
90105-08153
90110-06003
90151-60006
90179-06257
91511-C0850
96711-24016
Linked diagrams
1105
