JZX90-BTPVF (1992)

Toyota Chaser

Production Oct 1992 - Sep 1996
Engine 1JZGE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

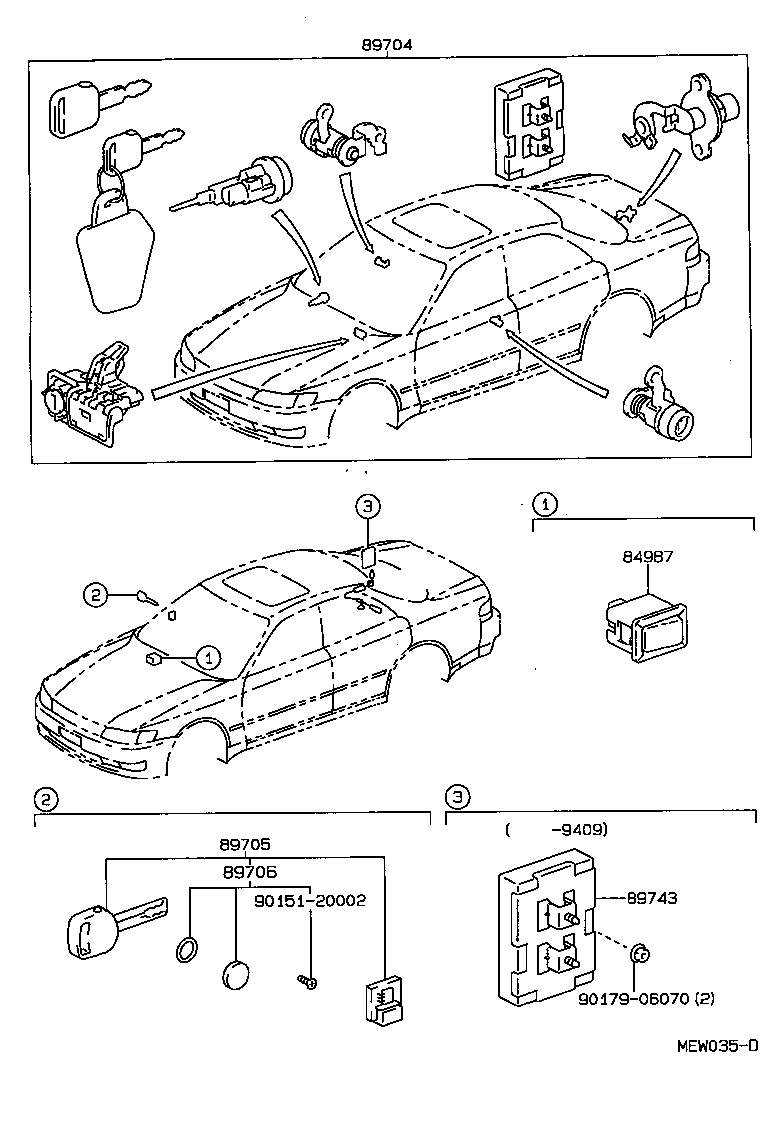

(9210-9409)

Click highlighted areas on diagram

diagram 84987 89704 89705 89706 89743 9015120002 9017906070
Part # Description Qty Price
89706 - BATTERY SET, TRANSMITTER
89706-50010

GX90,JZX90,91

 1
Common parts
90151-20002
90179-06070

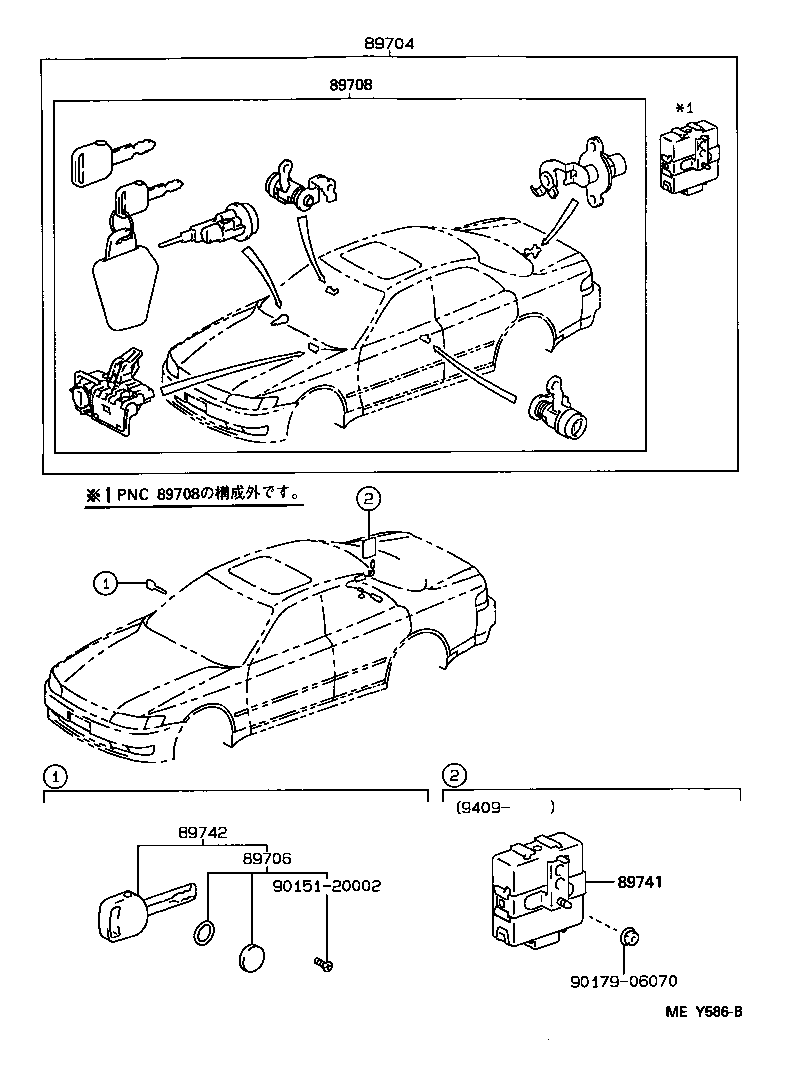

(9409- )

Click highlighted areas on diagram

diagram 89704 89706 89708 89741 89742 9015120002 9017906070
Part # Description Qty Price
89706 - BATTERY SET, TRANSMITTER
89706-50010

GX90,JZX90,91

 1
89708 - CYLINDER SET, WIRELESS DOOR LOCK
89708-22050

GX90,JZX90,91

 1
89741 - RECEIVER, DOOR CONTROL
89741-22050

JZX90,91;GX90..MTM

 1
89742 - TRANSMITTER, DOOR CONTROL
89742-22100

GX90,JZX90,91

 1
Common parts
90151-20002
90179-06070
