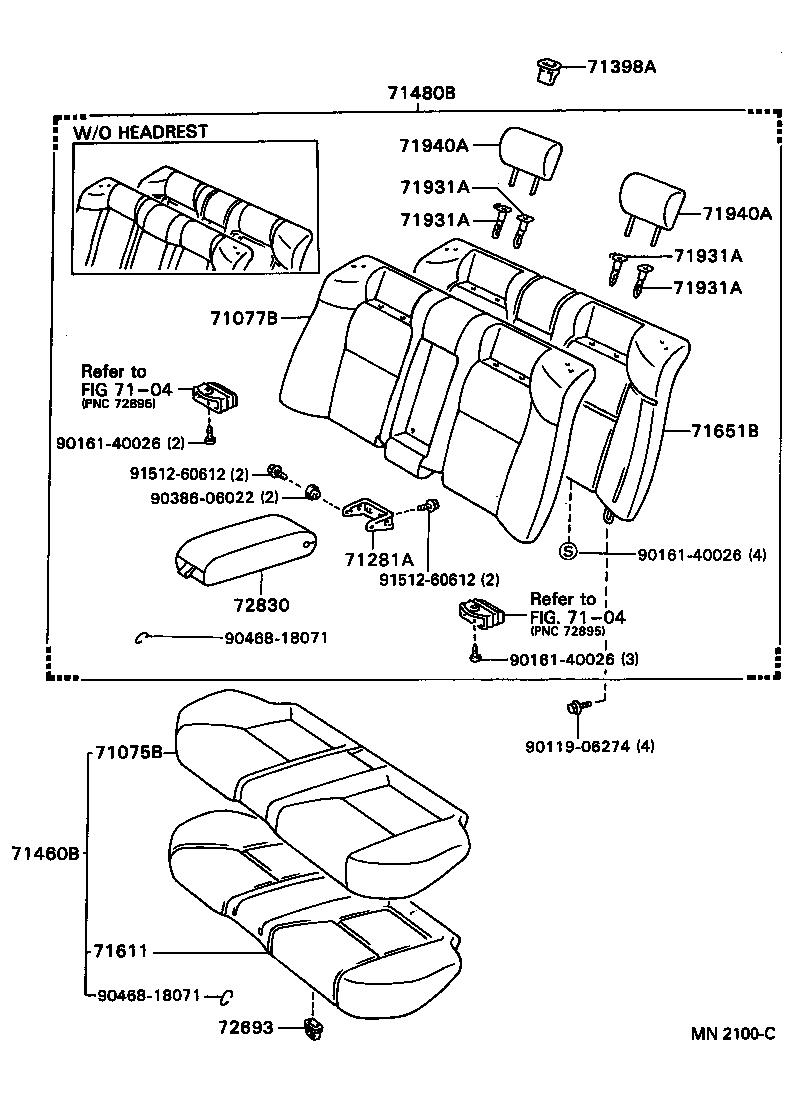

Toyota Chaser JZX90 REAR SEAT & SEAT TRACK

Part #	Description	Period	Qty
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71065-22390G1	JZX90..TOUS,TOUV JADE,TRIM6#	10/1992 - 09/1994	1
71065-22390J1	JZX90..TOUS,TOUV GRAYISH BLUE,TRIM8#	10/1992 - 09/1994	1
71065-22391J0	JZX90..TOUS,TOUV GRAYISH BLUE,TRIM8#	09/1994 - 09/1996	1
71065-22391G0	JZX90..TOUS,TOUV JADE,TRIM6#	09/1994 - 09/1996	1
71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE)
71077-2A570G1	JZX90..TOUS,TOUV JADE,TRIM6#	10/1992 - 09/1994	1
71077-2A570J1	JZX90..TOUS,TOUV GRAYISH BLUE,TRIM8#	10/1992 - 09/1994	1
71077-2A571J0	JZX90..TOUS,TOUV GRAYISH BLUE,TRIM8#	09/1994 - 09/1996	1
71077-2A571G0	JZX90..TOUS,TOUV JADE,TRIM6#	09/1994 - 09/1996	1
71281A - HINGE, REAR SEAT CENTER ARMREST
71281-22070	GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV	10/1992 - 09/1996	1
71398A - HOLDER, REAR SEAT BACK
71398-22010	GX90,JZX9#,LX90,SX90	10/1992 - 09/1996	3
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71560-22560G1	JZX90..TOUS,TOUV JADE,TRIM6#	10/1992 - 09/1994	1
71560-22560J1	JZX90..TOUS,TOUV GRAYISH BLUE,TRIM8#	10/1992 - 09/1994	1
71560-22561G0	JZX90..TOUS,TOUV ***,JADE,TRIM6#	09/1994 - 09/1996	1
71560-22561J0	JZX90..TOUS,TOUV ***,GRAYISH BLUE,TRIM8#	09/1994 - 09/1996	1
71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE)
71480-2A640J1	JZX90..TOUS,TOUV GRAYISH BLUE,TRIM8#	10/1992 - 09/1994	1
71480-2A640G1	JZX90..TOUS,TOUV JADE,TRIM6#	10/1992 - 09/1994	1
71480-2A641G0	JZX90..TOUS,TOUV ***,JADE,TRIM6#	09/1994 - 09/1996	1
71480-2A641J0	JZX90..TOUS,TOUV ***,GRAYISH BLUE,TRIM8#	09/1994 - 09/1996	1
71611 - PAD, REAR SEAT CUSHION
71503-22030	JZX90..TOUS,TOUV	10/1992 - 09/1996	1
71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE)
71507-22360	JZX90..TOUS,TOUV	10/1992 - 09/1996	1
71931A - SUPPORT, REAR SEAT HEADREST
71930-10070G3	JZX9#..AVTG,TOUS,TOUV ﾛｯｸ付,JADE,TRIM6#	09/1994 - 09/1996	2
71930-10070J2	JZX90..TOUS,TOUV ﾛｯｸ付,GRAYISH BLUE,TRIM8#	09/1994 - 09/1996	2
71930-10070G3	JZX90,91 ﾛｯｸ付,JADE,TRIM6#	10/1992 - 09/1994	2
71930-10070J2	JZX90,91 ﾛｯｸ付,GRAYISH BLUE,TRIM8#	10/1992 - 09/1994	2
71931-10020J2	JZX90,91 ﾛｯｸ無,GRAYISH BLUE,TRIM8#	10/1992 - 09/1994	2
71931-10020J2	JZX90..TOUS,TOUV ﾛｯｸ無,GRAYISH BLUE,TRIM8#	09/1994 - 09/1996	2
71931-10020G2	JZX90,91 ﾛｯｸ無,JADE,TRIM6#	10/1992 - 09/1994	2
71931-10020G2	JZX9#..AVTG,TOUS,TOUV ﾛｯｸ無,JADE,TRIM6#	09/1994 - 09/1996	2
71931A - SUPPORT, REAR SEAT HEADREST
71930-10070G3	JZX9#..AVTG,TOUS,TOUV ﾛｯｸ付,JADE,TRIM6#	09/1994 - 09/1996	2
71930-10070J2	JZX90..TOUS,TOUV ﾛｯｸ付,GRAYISH BLUE,TRIM8#	09/1994 - 09/1996	2
71930-10070G3	JZX90,91 ﾛｯｸ付,JADE,TRIM6#	10/1992 - 09/1994	2
71930-10070J2	JZX90,91 ﾛｯｸ付,GRAYISH BLUE,TRIM8#	10/1992 - 09/1994	2
71931-10020J2	JZX90,91 ﾛｯｸ無,GRAYISH BLUE,TRIM8#	10/1992 - 09/1994	2
71931-10020J2	JZX90..TOUS,TOUV ﾛｯｸ無,GRAYISH BLUE,TRIM8#	09/1994 - 09/1996	2
71931-10020G2	JZX90,91 ﾛｯｸ無,JADE,TRIM6#	10/1992 - 09/1994	2
71931-10020G2	JZX9#..AVTG,TOUS,TOUV ﾛｯｸ無,JADE,TRIM6#	09/1994 - 09/1996	2
71931A - SUPPORT, REAR SEAT HEADREST
71930-10070G3	JZX9#..AVTG,TOUS,TOUV ﾛｯｸ付,JADE,TRIM6#	09/1994 - 09/1996	2
71930-10070J2	JZX90..TOUS,TOUV ﾛｯｸ付,GRAYISH BLUE,TRIM8#	09/1994 - 09/1996	2
71930-10070G3	JZX90,91 ﾛｯｸ付,JADE,TRIM6#	10/1992 - 09/1994	2
71930-10070J2	JZX90,91 ﾛｯｸ付,GRAYISH BLUE,TRIM8#	10/1992 - 09/1994	2
71931-10020J2	JZX90,91 ﾛｯｸ無,GRAYISH BLUE,TRIM8#	10/1992 - 09/1994	2
71931-10020J2	JZX90..TOUS,TOUV ﾛｯｸ無,GRAYISH BLUE,TRIM8#	09/1994 - 09/1996	2
71931-10020G2	JZX90,91 ﾛｯｸ無,JADE,TRIM6#	10/1992 - 09/1994	2
71931-10020G2	JZX9#..AVTG,TOUS,TOUV ﾛｯｸ無,JADE,TRIM6#	09/1994 - 09/1996	2
71931A - SUPPORT, REAR SEAT HEADREST
71930-10070G3	JZX9#..AVTG,TOUS,TOUV ﾛｯｸ付,JADE,TRIM6#	09/1994 - 09/1996	2
71930-10070J2	JZX90..TOUS,TOUV ﾛｯｸ付,GRAYISH BLUE,TRIM8#	09/1994 - 09/1996	2
71930-10070G3	JZX90,91 ﾛｯｸ付,JADE,TRIM6#	10/1992 - 09/1994	2
71930-10070J2	JZX90,91 ﾛｯｸ付,GRAYISH BLUE,TRIM8#	10/1992 - 09/1994	2
71931-10020J2	JZX90,91 ﾛｯｸ無,GRAYISH BLUE,TRIM8#	10/1992 - 09/1994	2
71931-10020J2	JZX90..TOUS,TOUV ﾛｯｸ無,GRAYISH BLUE,TRIM8#	09/1994 - 09/1996	2
71931-10020G2	JZX90,91 ﾛｯｸ無,JADE,TRIM6#	10/1992 - 09/1994	2
71931-10020G2	JZX9#..AVTG,TOUS,TOUV ﾛｯｸ無,JADE,TRIM6#	09/1994 - 09/1996	2
71940A - HEADREST ASSY, REAR SEAT
71940-22461J3	JZX90..TOUS,TOUV GRAYISH BLUE,TRIM8#	09/1994 - 09/1996	2
71940-22460G2	JZX90..TOUS,TOUV JADE,TRIM6#	10/1992 - 09/1994	2
71940-22460J2	JZX90..TOUS,TOUV GRAYISH BLUE,TRIM8#	10/1992 - 09/1994	2
71940-22461G2	JZX90..TOUS,TOUV JADE,TRIM6#	09/1994 - 09/1996	2
71940A - HEADREST ASSY, REAR SEAT
71940-22461J3	JZX90..TOUS,TOUV GRAYISH BLUE,TRIM8#	09/1994 - 09/1996	2
71940-22460G2	JZX90..TOUS,TOUV JADE,TRIM6#	10/1992 - 09/1994	2
71940-22460J2	JZX90..TOUS,TOUV GRAYISH BLUE,TRIM8#	10/1992 - 09/1994	2
71940-22461G2	JZX90..TOUS,TOUV JADE,TRIM6#	09/1994 - 09/1996	2
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-32020	GX90,JZX9#,LX90,SX90	10/1992 - 09/1996	2
72830 - ARMREST ASSY, REAR SEAT, CENTER
72830-22390G0	JZX90..TOUS,TOUV JADE,TRIM6#	10/1992 - 09/1994	1
72830-22390J0	JZX90..TOUS,TOUV GRAYISH BLUE,TRIM8#	10/1992 - 09/1994	1
72830-22391J1	JZX90..TOUS,TOUV GRAYISH BLUE,TRIM8#	09/1994 - 09/1996	1
72830-22391G0	JZX90..TOUS,TOUV JADE,TRIM6#	09/1994 - 09/1996	1
Common parts
90119-06274
90161-40026
90386-06022
90468-18071
91512-60612
Linked diagrams
7104

JZX90-BTPVF (1992)

(9210- )
