JZX90-BTPVF (1992)
Toyota Chaser
Production
Oct 1992
-
Sep 1996
Engine
1JZGE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9210- )

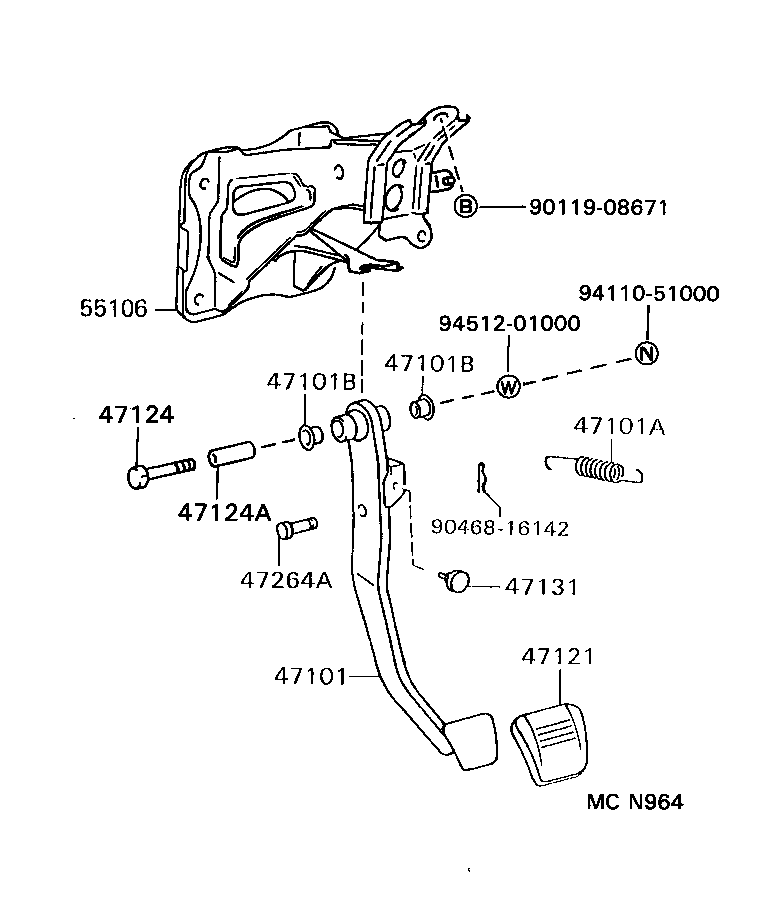

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47101 - PEDAL SUB-ASSY, BRAKE | ||||
| 47101-22380 |
GX90,JZX9#,LX90,SX90..ATM |
1 | ||
| 47101A - SPRING(FOR BRAKE PEDAL RETURN) | ||||
| 90507-13006 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 47101B - BUSH(FOR BRAKE PEDAL) | ||||
| 90386-13015 |
GX90,JZX9#,LX90,SX90 |
2 | ||
| 47101B - BUSH(FOR BRAKE PEDAL) | ||||
| 90386-13015 |
GX90,JZX9#,LX90,SX90 |
2 | ||
| 47121 - PAD, BRAKE PEDAL | ||||
| 47121-14010 |
GX90,JZX9#,LX90,SX90..ATM |
1 | ||
| 47124 - SHAFT, BRAKE PEDAL | ||||
| 90101-10015 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 90101-10039 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 47124A - COLLAR(FOR BRAKE PEDAL SHAFT) | ||||
| 90387-10003 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 47131 - CUSHION(FOR STOP LAMP SWITCH) | ||||
| 90541-06032 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 90541-06036 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 47264A - PIN(FOR PUSH ROD) | ||||
| 90249-10064 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 55106 - SUPPORT SUB-ASSY, BRAKE PEDAL | ||||
| 55106-22210 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| Common parts | ||||
| 90119-08671 | ||||
| 90468-16142 | ||||
| 94110-51000 | ||||
| 94512-01000 | ||||
