JZX90-BTPQF (1992)
Toyota Chaser

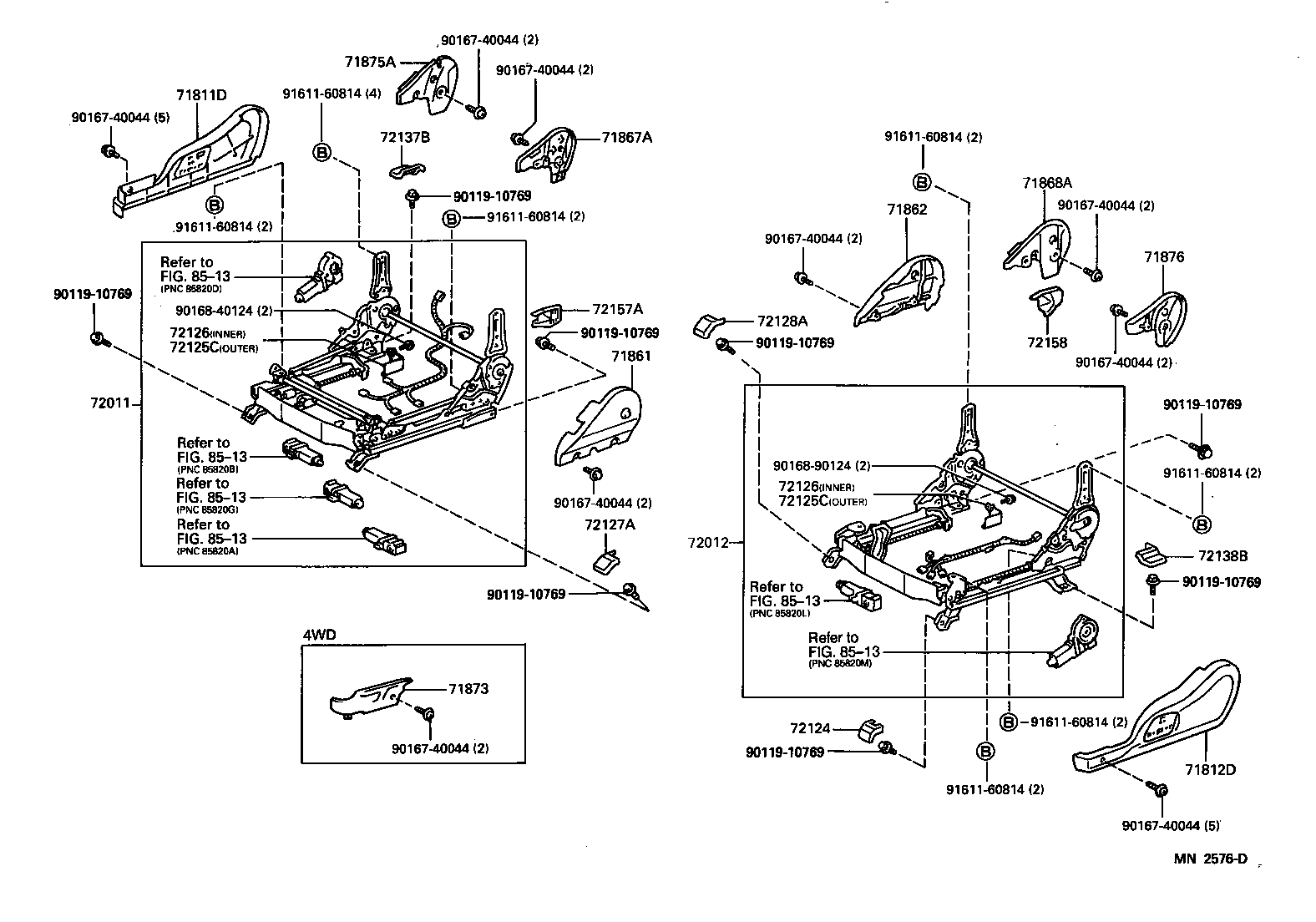

ILLUST NO. 2 OF 2(9210- )
ﾏﾆﾕｱﾙ ｼ-ﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-22260G0 |
JZX93..AVTG;JZX90,91..AVT,AVTG JADE,TRIM6# |
1 | ||
| 71811-22260E0 |
JZX93..AVTG;JZX90,91..AVT,AVTG SABLE,TRIM4# |
1 | ||
| 71811-22260J0 |
JZX90,91..AVT,AVTG GRAYISH BLUE,TRIM8# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-22200E0 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,XL SABLE,TRIM4# |
1 | ||
| 71812-22200G0 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV JADE,TRIM6# |
1 | ||
| 71812-22200J0 |
GX90,JZX90,91,LX90,SX90 GRAYISH BLUE,TRIM8# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-22120J0 |
JZX90,91..AVT,AVTG GRAYISH BLUE,TRIM8# |
1 | ||
| 71861-22120E0 |
JZX93..AVTG;JZX90,91..AVT,AVTG SABLE,TRIM4# |
1 | ||
| 71861-22120G0 |
JZX93..AVTG;JZX90,91..AVT,AVTG JADE,TRIM6# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-22130E0 |
GX90,JZX90,91,LX90,SX90..AVT,AVTG,RAF,XL SABLE,TRIM4# |
1 | ||
| 71862-22130G0 |
GX90,JZX90,91,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV JADE,TRIM6# |
1 | ||
| 71862-22130J0 |
GX90,JZX90,91,LX90,SX90 GRAYISH BLUE,TRIM8# |
1 | ||
| 71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-22050G0 |
JZX93..AVTG;JZX90,91..AVT,AVTG JADE,TRIM6# |
1 | ||
| 71867-22050E0 |
JZX93..AVTG;JZX90,91..AVT,AVTG SABLE,TRIM4# |
1 | ||
| 71867-22050J0 |
JZX90,91..AVT,AVTG GRAYISH BLUE,TRIM8# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-22050G0 |
JZX93..AVTG;JZX90,91..AVT,AVTG JADE,TRIM6# |
1 | ||
| 71875-22050J0 |
JZX90,91..AVT,AVTG GRAYISH BLUE,TRIM8# |
1 | ||
| 71875-22050E0 |
JZX93..AVTG;JZX90,91..AVT,AVTG SABLE,TRIM4# |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-22040E0 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,XL SABLE,TRIM4# |
1 | ||
| 71876-22040J0 |
GX90,JZX90,91,LX90,SX90 GRAYISH BLUE,TRIM8# |
1 | ||
| 71876-22040G0 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV JADE,TRIM6# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-22270 |
JZX90,91..AVT,AVTG |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72020-22220 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72123-20130G0 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV JADE,TRIM6# |
1 | ||
| 72123-20130J1 |
GX90,JZX90,91,LX90,SX90 GRAYISH BLUE,TRIM8# |
1 | ||
| 72123-20130E1 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,XL SABLE,TRIM4# |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-22060J0 |
GX90,JZX90,91,LX90,SX90 GRAYISH BLUE,TRIM8# |
1 | ||
| 72127-22060G0 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV JADE,TRIM6# |
1 | ||
| 72127-22060E0 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,XL SABLE,TRIM4# |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72128-22060J0 |
GX90,JZX90,91,LX90,SX90 GRAYISH BLUE,TRIM8# |
1 | ||
| 72128-22060E0 |
GX90,JZX90,91,LX90,SX90..AVT,AVTG,RAF,XL SABLE,TRIM4# |
1 | ||
| 72128-22060G0 |
GX90,JZX90,91,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV JADE,TRIM6# |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-22060J0 |
GX90,JZX90,91,LX90,SX90 GRAYISH BLUE,TRIM8# |
1 | ||
| 72137-22060E0 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,XL SABLE,TRIM4# |
1 | ||
| 72137-22060G0 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV JADE,TRIM6# |
1 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-22060J0 |
GX90,JZX90,91,LX90,SX90 GRAYISH BLUE,TRIM8# |
1 | ||
| 72138-22060E0 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,XL SABLE,TRIM4# |
1 | ||
| 72138-22060G0 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV JADE,TRIM6# |
1 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-22280 |
GX90,JZX90,91,LX90,SX90 |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-22050J0 |
GX90,JZX90,91,LX90,SX90 GRAYISH BLUE,TRIM8# |
1 | ||
| 72157-22050E0 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,XL SABLE,TRIM4# |
1 | ||
| 72157-22050G0 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV JADE,TRIM6# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-22010G0 |
GX90,JZX90,91,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV JADE,TRIM6# |
1 | ||
| 72158-22010J0 |
GX90,JZX90,91,LX90,SX90 GRAYISH BLUE,TRIM8# |
1 | ||
| 72158-22010E0 |
GX90,JZX90,91,LX90,SX90..AVT,AVTG,RAF,XL SABLE,TRIM4# |
1 | ||
| 72301D - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH | ||||
| 72301-12090 |
GX90,JZX90,91,LX90,SX90 |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-22040G0 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV JADE,TRIM6# |
1 | ||
| 72526-22040E0 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,XL SABLE,TRIM4# |
1 | ||
| 72526-22040J0 |
GX90,JZX90,91,LX90,SX90 GRAYISH BLUE,TRIM8# |
1 | ||
| Common parts | ||||
| 90119-08134 | ||||
| 90119-10116 | ||||
| 90119-10769 | ||||
| 90167-40044 | ||||
| 90520-01006 | ||||
| 93381-16012 | ||||
| 96160-00800 | ||||
| 96160-01200 | ||||

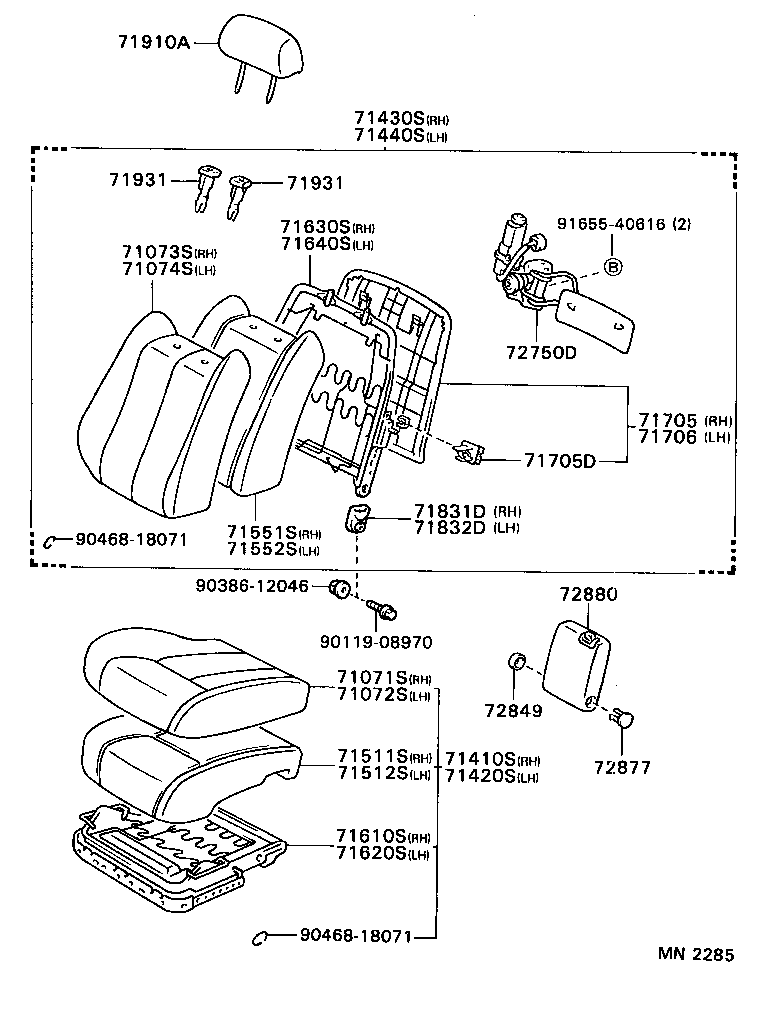

ILLUST NO. 1 OF 2(9210- )AVT,AVTG,RAF,TOUS,TOUV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-2A690E0 |
JZX90,91..AVT,AVTG BEIGE,TRIM4# |
1 | ||
| 71071-2A690J0 |
JZX90,91..AVT,AVTG GRAYISH BLUE,TRIM8# |
1 | ||
| 71071-2A880E0 |
JZX90..AVT 2.5ｱﾊﾞﾝﾃﾛ-ﾄﾞﾘ-ﾅﾋﾞﾊﾟﾂｹ-ｼﾞ,BEIGE,TRIM4# |
1 | ||
| 71071-2A690G0 |
JZX90,91..AVT,AVTG JADE,TRIM6# |
1 | ||
| 71071-2A830E0 |
JZX90..AVT SABLE,TRIM4# |
1 | ||
| 71071-2A830G0 |
JZX90..AVT JADE,TRIM6# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-2A230J0 |
JZX90,91..AVT,AVTG GRAYISH BLUE,TRIM8# |
1 | ||
| 71072-2A230E0 |
JZX90,91..AVT,AVTG BEIGE,TRIM4# |
1 | ||
| 71072-2A230G0 |
JZX90,91..AVT,AVTG JADE,TRIM6# |
1 | ||
| 71072-2A350E0 |
GX90,JZX90..ATM..AVT ｱﾊﾞﾝﾃﾛ-ﾄﾞﾘ-ﾅﾋﾞﾊﾟﾂｹ-ｼﾞ,BEIGE,TRIM4# |
1 | ||
| 71072-2A221G0 |
GX90,JZX90,LX90,SX90..AVT,RAF JADE,TRIM6# |
1 | ||
| 71072-2A221E0 |
GX90,JZX90,LX90,SX90..AVT,RAF SABLE,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-2C110G0 |
JZX90,91..AVT,AVTG JADE,TRIM6# |
1 | ||
| 71073-2C110E0 |
JZX90,91..AVT,AVTG BEIGE,TRIM4# |
1 | ||
| 71073-2C250E0 |
JZX90..AVT 2.5ｱﾊﾞﾝﾃﾛ-ﾄﾞﾘ-ﾅﾋﾞﾊﾟﾂｹ-ｼﾞ,BEIGE,TRIM4# |
1 | ||
| 71073-2C110J0 |
JZX90,91..AVT,AVTG GRAYISH BLUE,TRIM8# |
1 | ||
| 71073-2C230G0 |
JZX90..AVT JADE,TRIM6# |
1 | ||
| 71073-2C230E0 |
JZX90..AVT SABLE,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-2A360G0 |
JZX90,91..AVT,AVTG JADE,TRIM6# |
1 | ||
| 71074-2A360E0 |
JZX90,91..AVT,AVTG BEIGE,TRIM4# |
1 | ||
| 71074-2A360J0 |
JZX90,91..AVT,AVTG GRAYISH BLUE,TRIM8# |
1 | ||
| 71074-2A440E0 |
GX90,JZX90..ATM..AVT ｱﾊﾞﾝﾃﾛ-ﾄﾞﾘ-ﾅﾋﾞﾊﾟﾂｹ-ｼﾞ,BEIGE,TRIM4# |
1 | ||
| 71074-2A351E0 |
GX90,JZX90,93,LX90,SX90..AVT,RAF SABLE,TRIM4# |
1 | ||
| 71074-2A351G0 |
GX90,JZX90,93,LX90,SX90..AVT,RAF JADE,TRIM6# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-2C080E0 |
JZX90,91..AVT,AVTG ***,BEIGE,TRIM4# |
1 | ||
| 71410-2C080J0 |
JZX90,91..AVT,AVTG ***,GRAYISH BLUE,TRIM8# |
1 | ||
| 71410-2C080G0 |
JZX90,91..AVT,AVTG ***,JADE,TRIM6# |
1 | ||
| 71410-2C210E0 |
JZX90..AVT ***,SABLE,TRIM4# |
1 | ||
| 71410-2C210G0 |
JZX90..AVT ***,JADE,TRIM6# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-2A470E0 |
JZX90,91..AVT,AVTG ***,BEIGE,TRIM4# |
1 | ||
| 71420-2A470J0 |
JZX90,91..AVT,AVTG ***,GRAYISH BLUE,TRIM8# |
1 | ||
| 71420-2A470G0 |
JZX90,91..AVT,AVTG ***,JADE,TRIM6# |
1 | ||
| 71420-2A461G0 |
GX90,JZX90,LX90,SX90..AVT,RAF JADE,TRIM6# |
1 | ||
| 71420-2A461E0 |
GX90,JZX90,LX90,SX90..AVT,RAF SABLE,TRIM4# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-2C580J1 |
JZX90..AVT ***,GRAYISH BLUE,TRIM8# |
1 | ||
| 71430-2C580G1 |
JZX90..AVT;JZX93..AVTG ***,JADE,TRIM6# |
1 | ||
| 71430-2C580E1 |
JZX90..AVT;JZX93..AVTG ***,BEIGE,TRIM4# |
1 | ||
| 71430-2C650G0 |
JZX90..AVT ***,JADE,TRIM6# |
1 | ||
| 71430-2C650E0 |
JZX90..AVT ***,SABLE,TRIM4# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-2C420E1 |
JZX90..AVT;JZX93..AVTG ***,BEIGE,TRIM4# |
1 | ||
| 71440-2C420J1 |
JZX90..AVT ***,GRAYISH BLUE,TRIM8# |
1 | ||
| 71440-2C271E0 |
GX90,JZX90,93,LX90,SX90..AVT,RAF SABLE,TRIM4# |
1 | ||
| 71440-2C420G1 |
JZX90..AVT;JZX93..AVTG ***,JADE,TRIM6# |
1 | ||
| 71440-2C271G0 |
GX90,JZX90,93,LX90,SX90..AVT,RAF JADE,TRIM6# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-22510 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-22130 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-22490 |
GX90,JZX9#,LX90,SX90..ATM..(AVT,AVTG,RAF) |
1 | ||
| 71551-22491 |
GX90,JZX9#,LX90,SX90..ATM..(AVT,AVTG,RAF) |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-22480 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-22400 |
JZX90,91..AVT,AVTG |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-22170 |
GX90,JZX90,91,LX90,SX90 |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-22621 |
JZX93..AVTG;JZX90,91..AVT,AVTG |
1 | ||
| 71630-22620 |
JZX93..AVTG;JZX90,91..AVT,AVTG |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-22430 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV |
1 | ||
| 71640-22431 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV |
1 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71705-22420G3 |
JZX93;GX90,JZX90,LX90,SX90..AVT,RAF JADE,TRIM6# |
1 | ||
| 71705-22420J3 |
GX90,JZX90,LX90,SX90..AVT,RAF GRAYISH BLUE,TRIM8# |
1 | ||
| 71705-22420E3 |
JZX93;GX90,JZX90,LX90,SX90..AVT,RAF BEIGE,TRIM4# |
1 | ||
| 71705-22421G5 |
JZX90..AVT JADE,TRIM6# |
1 | ||
| 71705-22421E5 |
JZX90..AVT BEIGE,TRIM4# |
1 | ||
| 71705D - CLIP, FRONT SEAT BACK BOARD | ||||
| 71769-16010 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF |
4 | ||
| 71769-16010 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV |
4 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71705-22420G3 |
JZX93;GX90,JZX90,LX90,SX90..AVT,RAF JADE,TRIM6# |
1 | ||
| 71705-22420E3 |
JZX93;GX90,JZX90,LX90,SX90..AVT,RAF BEIGE,TRIM4# |
1 | ||
| 71705-22420J3 |
GX90,JZX90,LX90,SX90..AVT,RAF GRAYISH BLUE,TRIM8# |
1 | ||
| 71705-22421G5 |
JZX90..AVT JADE,TRIM6# |
1 | ||
| 71705-22421E5 |
JZX90..AVT BEIGE,TRIM4# |
1 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71831-22050 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-22870G0 |
JZX93..AVTG;JZX90,91..AVT,AVTG JADE,TRIM6# |
2 | ||
| 71910-22870E0 |
JZX93..AVTG;JZX90,91..AVT,AVTG BEIGE,TRIM4# |
2 | ||
| 71910-22870J0 |
JZX90,91..AVT,AVTG GRAYISH BLUE,TRIM8# |
2 | ||
| 71910-22861G1 |
GX90,JZX90,93,LX90,SX90..AVT,RAF JADE,TRIM6# |
2 | ||
| 71910-2A020E0 |
GX90,JZX90..ATM..AVT ｱﾊﾞﾝﾃﾛ-ﾄﾞﾘ-ﾅﾋﾞﾊﾟﾂｹ-ｼﾞ,BEIGE,TRIM4# |
1 | ||
| 71910-22861E1 |
GX90,JZX90,93,LX90,SX90..AVT,RAF BEIGE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-10070J2 |
GX90,JZX90,91,LX90,SX90 ﾛｯｸ付,GRAYISH BLUE,TRIM8# |
2 | ||
| 71930-10070E7 |
JZX93..AVT;GX90,JZX90,91,LX90,SX90..AVT,AVTG,RAF,XL ﾛｯｸ付,SABLE,TRIM4# |
2 | ||
| 71931-10020E7 |
JZX93..AVT;GX90,JZX90,91,LX90,SX90..AVT,AVTG,RAF,XL ﾛｯｸ無,SABLE,TRIM4# |
2 | ||
| 71930-10070G3 |
JZX93..AVT;GX90,JZX90,91,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV ﾛｯｸ付,JADE,TRIM6# |
2 | ||
| 71931-10020G2 |
JZX93..AVT;GX90,JZX90,91,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV ﾛｯｸ無,JADE,TRIM6# |
2 | ||
| 71930-10070G3 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV ﾛｯｸ付,JADE,TRIM6# |
2 | ||
| 71931-10020J2 |
GX90,JZX90,91,LX90,SX90 ﾛｯｸ無,GRAYISH BLUE,TRIM8# |
2 | ||
| 71930-10070E7 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,XL ﾛｯｸ付,SABLE,TRIM4# |
2 | ||
| 71931-10020G2 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV ﾛｯｸ無,JADE,TRIM6# |
2 | ||
| 71931-10020E7 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,XL ﾛｯｸ無,SABLE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-10070J2 |
GX90,JZX90,91,LX90,SX90 ﾛｯｸ付,GRAYISH BLUE,TRIM8# |
2 | ||
| 71930-10070E7 |
JZX93..AVT;GX90,JZX90,91,LX90,SX90..AVT,AVTG,RAF,XL ﾛｯｸ付,SABLE,TRIM4# |
2 | ||
| 71931-10020E7 |
JZX93..AVT;GX90,JZX90,91,LX90,SX90..AVT,AVTG,RAF,XL ﾛｯｸ無,SABLE,TRIM4# |
2 | ||
| 71930-10070G3 |
JZX93..AVT;GX90,JZX90,91,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV ﾛｯｸ付,JADE,TRIM6# |
2 | ||
| 71931-10020G2 |
JZX93..AVT;GX90,JZX90,91,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV ﾛｯｸ無,JADE,TRIM6# |
2 | ||
| 71930-10070G3 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV ﾛｯｸ付,JADE,TRIM6# |
2 | ||
| 71931-10020J2 |
GX90,JZX90,91,LX90,SX90 ﾛｯｸ無,GRAYISH BLUE,TRIM8# |
2 | ||
| 71930-10070E7 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,XL ﾛｯｸ付,SABLE,TRIM4# |
2 | ||
| 71931-10020G2 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV ﾛｯｸ無,JADE,TRIM6# |
2 | ||
| 71931-10020E7 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,XL ﾛｯｸ無,SABLE,TRIM4# |
2 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-22110 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV |
1 | ||
| 72750-22110 |
JZX90,91;JZX93..AVTG |
1 | ||
| 72849 - CAP, SEAT ARMREST, NO.2 | ||||
| 72849-22010 |
GX90,JZX9#,LX90,SX90..ATM..(AVT,AVTG,RAF) |
1 | ||
| 72877 - COVER, SEAT ARMREST, RH | ||||
| 90950-01594J0 |
GX90,JZX90,91,LX90,SX90..ATM..(AVT,AVTG,RAF) GRAYISH BLUE,TRIM8# |
1 | ||
| 90950-01594E0 |
GX90,JZX9#,LX90,SX90..ATM..(AVT,AVTG,RAF) SABLE,TRIM4# |
1 | ||
| 90950-01594G0 |
GX90,JZX9#,LX90,SX90..ATM..(AVT,AVTG,RAF) JADE,TRIM6# |
1 | ||
| 72880 - ARMREST ASSY, SEAT, C RH | ||||
| 72880-22120E0 |
GX90,JZX90..ATM..AVT ｱﾊﾞﾝﾃﾛ-ﾄﾞﾘ-ﾅﾋﾞﾊﾟﾂｹ-ｼﾞ,BEIGE,TRIM4# |
1 | ||
| 72880-22090J0 |
JZX90,91..AVT,AVTG GRAYISH BLUE,TRIM8# |
1 | ||
| 72880-22081E1 |
GX90,JZX90,93,LX90,SX90..ATM..(AVT,RAF) SABLE,TRIM4# |
1 | ||
| 72880-22090G0 |
JZX93..AVTG;JZX90,91..AVT,AVTG JADE,TRIM6# |
1 | ||
| 72880-22090E0 |
JZX93..AVTG;JZX90,91..AVT,AVTG BEIGE,TRIM4# |
1 | ||
| 72880-22081G1 |
GX90,JZX90,93,LX90,SX90..ATM..(AVT,RAF) JADE,TRIM6# |
1 | ||
| Common parts | ||||
| 90119-08970 | ||||
| 90386-12046 | ||||
| 90468-18071 | ||||
| 91655-40616 | ||||
ILLUST NO. 2 OF 2(9210- )
ﾊﾟﾜ- ｼ-ﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-22260G0 |
JZX93..AVTG;JZX90,91..AVT,AVTG JADE,TRIM6# |
1 | ||
| 71811-22260E0 |
JZX93..AVTG;JZX90,91..AVT,AVTG SABLE,TRIM4# |
1 | ||
| 71811-22260J0 |
JZX90,91..AVT,AVTG GRAYISH BLUE,TRIM8# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-22200E0 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,XL SABLE,TRIM4# |
1 | ||
| 71812-22200G0 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV JADE,TRIM6# |
1 | ||
| 71812-22200J0 |
GX90,JZX90,91,LX90,SX90 GRAYISH BLUE,TRIM8# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-22120J0 |
JZX90,91..AVT,AVTG GRAYISH BLUE,TRIM8# |
1 | ||
| 71861-22120E0 |
JZX93..AVTG;JZX90,91..AVT,AVTG SABLE,TRIM4# |
1 | ||
| 71861-22120G0 |
JZX93..AVTG;JZX90,91..AVT,AVTG JADE,TRIM6# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-22130E0 |
GX90,JZX90,91,LX90,SX90..AVT,AVTG,RAF,XL SABLE,TRIM4# |
1 | ||
| 71862-22130G0 |
GX90,JZX90,91,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV JADE,TRIM6# |
1 | ||
| 71862-22130J0 |
GX90,JZX90,91,LX90,SX90 GRAYISH BLUE,TRIM8# |
1 | ||
| 71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-22050G0 |
JZX93..AVTG;JZX90,91..AVT,AVTG JADE,TRIM6# |
1 | ||
| 71867-22050E0 |
JZX93..AVTG;JZX90,91..AVT,AVTG SABLE,TRIM4# |
1 | ||
| 71867-22050J0 |
JZX90,91..AVT,AVTG GRAYISH BLUE,TRIM8# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-22050G0 |
JZX93..AVTG;JZX90,91..AVT,AVTG JADE,TRIM6# |
1 | ||
| 71875-22050J0 |
JZX90,91..AVT,AVTG GRAYISH BLUE,TRIM8# |
1 | ||
| 71875-22050E0 |
JZX93..AVTG;JZX90,91..AVT,AVTG SABLE,TRIM4# |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-22040E0 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,XL SABLE,TRIM4# |
1 | ||
| 71876-22040J0 |
GX90,JZX90,91,LX90,SX90 GRAYISH BLUE,TRIM8# |
1 | ||
| 71876-22040G0 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV JADE,TRIM6# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-22270 |
JZX90,91..AVT,AVTG |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72020-22220 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72123-20130G0 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV JADE,TRIM6# |
1 | ||
| 72123-20130J1 |
GX90,JZX90,91,LX90,SX90 GRAYISH BLUE,TRIM8# |
1 | ||
| 72123-20130E1 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,XL SABLE,TRIM4# |
1 | ||
| 72125C - COVER, SEAT TRACK LOCK PLATE, NO.1 | ||||
| 72125-22010 |
JZX93..AVTG;JZX90,91..AVT,AVTG |
1 | ||
| 72125C - COVER, SEAT TRACK LOCK PLATE, NO.1 | ||||
| 72125-22010 |
JZX93..AVTG;JZX90,91..AVT,AVTG |
1 | ||
| 72126 - COVER, SEAT TRACK LOCK PLATE, NO.2 | ||||
| 72126-22010 |
JZX93..AVTG;JZX90,91..AVT,AVTG |
1 | ||
| 72126 - COVER, SEAT TRACK LOCK PLATE, NO.2 | ||||
| 72126-22010 |
JZX93..AVTG;JZX90,91..AVT,AVTG |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-22060J0 |
GX90,JZX90,91,LX90,SX90 GRAYISH BLUE,TRIM8# |
1 | ||
| 72127-22060G0 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV JADE,TRIM6# |
1 | ||
| 72127-22060E0 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,XL SABLE,TRIM4# |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72128-22060J0 |
GX90,JZX90,91,LX90,SX90 GRAYISH BLUE,TRIM8# |
1 | ||
| 72128-22060E0 |
GX90,JZX90,91,LX90,SX90..AVT,AVTG,RAF,XL SABLE,TRIM4# |
1 | ||
| 72128-22060G0 |
GX90,JZX90,91,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV JADE,TRIM6# |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-22060J0 |
GX90,JZX90,91,LX90,SX90 GRAYISH BLUE,TRIM8# |
1 | ||
| 72137-22060E0 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,XL SABLE,TRIM4# |
1 | ||
| 72137-22060G0 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV JADE,TRIM6# |
1 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-22060J0 |
GX90,JZX90,91,LX90,SX90 GRAYISH BLUE,TRIM8# |
1 | ||
| 72138-22060E0 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,XL SABLE,TRIM4# |
1 | ||
| 72138-22060G0 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV JADE,TRIM6# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-22050J0 |
GX90,JZX90,91,LX90,SX90 GRAYISH BLUE,TRIM8# |
1 | ||
| 72157-22050E0 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,XL SABLE,TRIM4# |
1 | ||
| 72157-22050G0 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV JADE,TRIM6# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-22010G0 |
GX90,JZX90,91,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV JADE,TRIM6# |
1 | ||
| 72158-22010J0 |
GX90,JZX90,91,LX90,SX90 GRAYISH BLUE,TRIM8# |
1 | ||
| 72158-22010E0 |
GX90,JZX90,91,LX90,SX90..AVT,AVTG,RAF,XL SABLE,TRIM4# |
1 | ||
| Common parts | ||||
| 90119-10769 | ||||
| 90167-40044 | ||||
| 90168-40124 | ||||
| 90168-90124 | ||||
| 91611-60814 | ||||
| Linked diagrams | ||||
| 8513 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
