JZX90-BTPQF (1992)
Toyota Chaser

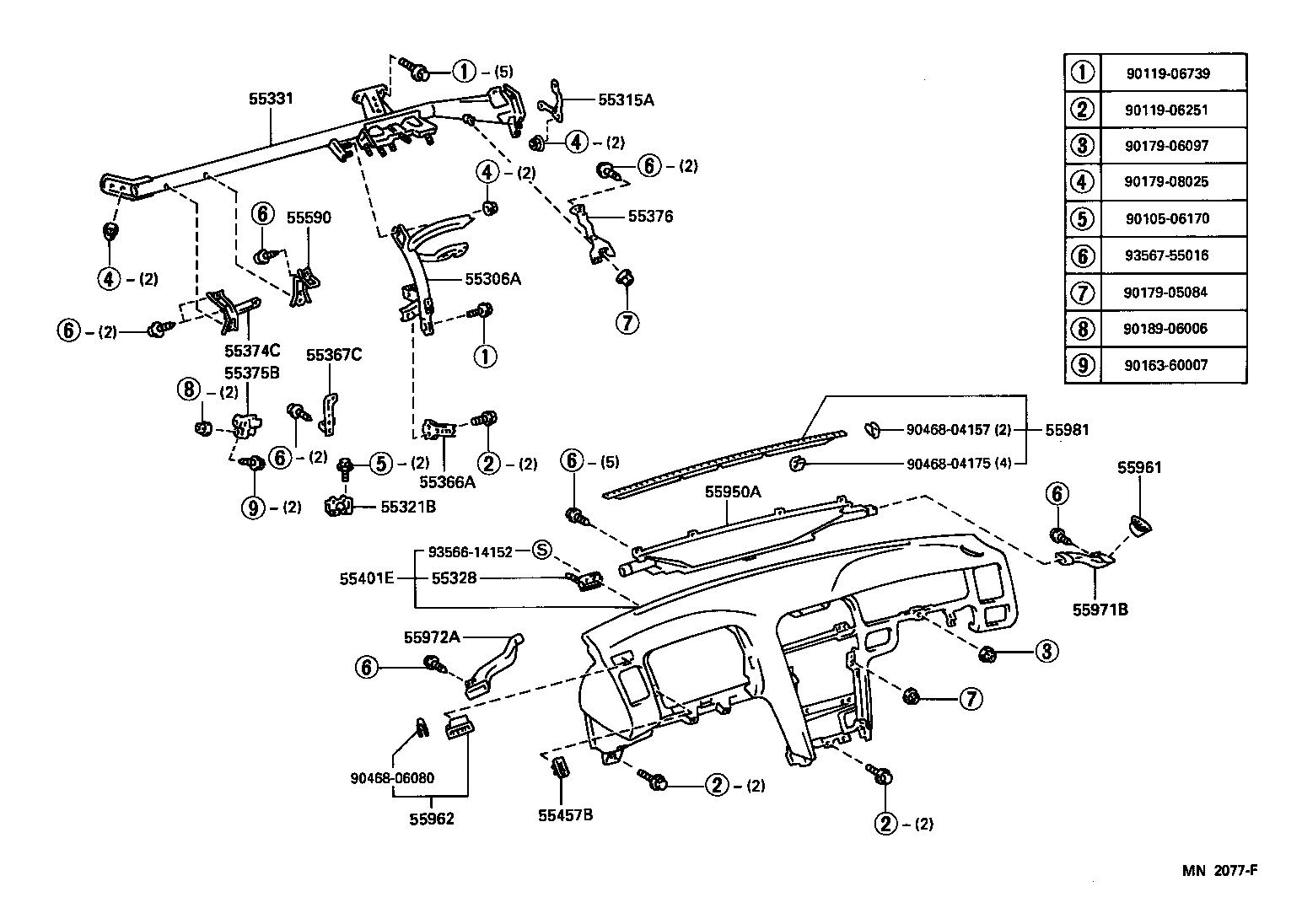

ILLUST NO. 1 OF 2(9210- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-22200 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 55315A - SPACER, INSTRUMENT PANEL, NO.1 | ||||
| 55315-22050 |
GX90,JZX9#,LX90,SX90 厚さ=0.5 |
1 | ||
| 55315-22080 |
GX90,JZX9#,LX90,SX90 T = 2.0 |
1 | ||
| 55315-22080 |
GX90,JZX9#,LX90,SX90 厚さ=2.0 |
1 | ||
| 55315-22060 |
GX90,JZX9#,LX90,SX90 厚さ=1.0 |
1 | ||
| 55315-22070 |
GX90,JZX9#,LX90,SX90 T = 1.6 |
1 | ||
| 55315-22050 |
GX90,JZX9#,LX90,SX90 T = 0.5 |
1 | ||
| 55315-22070 |
GX90,JZX9#,LX90,SX90 厚さ=1.6 |
1 | ||
| 55315-22060 |
GX90,JZX9#,LX90,SX90 T = 1.0 |
1 | ||
| 55321B - BRACKET, INSTRUMENT PANEL, NO.1 | ||||
| 55321-22100 |
GX90,JZX9#,LX90,SX90..ATM |
1 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-22040 |
GX90,JZX9#,LX90,SX90 |
3 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-22140 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 55366A - BRACKET, RADIO MOUNTING, NO.1 | ||||
| 55366-22090 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 55367C - BRACKET, RADIO TUNER MOUNTING, NO.3 | ||||
| 55367-22050 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 55374C - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1 | ||||
| 55374-22081 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 55375B - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2 | ||||
| 55375-22080 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 55376 - BRACKET, INSTRUMENT PANEL MOUNTING, NO.1 | ||||
| 55376-22070 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55401-22260G0 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV JADE,TRIM6# |
1 | ||
| 55401-22260E0 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,XL SABLE,TRIM4# |
1 | ||
| 55401-22260J0 |
GX90,JZX90,91,LX90,SX90 GRAYISH BLUE,TRIM8# |
1 | ||
| 55457B - SPACER, INSTRUMENT PANEL SAFETY PAD | ||||
| 55457-22040 |
GX90,JZX9#,LX90,SX90 |
2 | ||
| 55590 - PLATE ASSY, GROVE COMPARTMENT DOOR LOCK STRIKER | ||||
| 55590-22030 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 55950A - NOZZLE ASSY, DEFROSTER | ||||
| 55950-22090 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-22080J0 |
GX90,JZX90,91,LX90,SX90 GRAYISH BLUE,TRIM8# |
1 | ||
| 55961-22080G0 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV JADE,TRIM6# |
1 | ||
| 55961-22080E0 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,XL SABLE,TRIM4# |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55962-22080J0 |
GX90,JZX90,91,LX90,SX90 GRAYISH BLUE,TRIM8# |
1 | ||
| 55962-22080G0 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV JADE,TRIM6# |
1 | ||
| 55962-22080E0 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,XL SABLE,TRIM4# |
1 | ||
| 55971B - DUCT, SIDE DEFROSTER NOZZLE, NO.1 | ||||
| 55971-22060 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 55972A - DUCT, SIDE DEFROSTER NOZZLE, NO.2 | ||||
| 55972-22050 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 55981 - GARNISH, DEFROSTER NOZZLE, NO.1 | ||||
| 55981-22040G0 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV JADE,TRIM6# |
1 | ||
| 55981-22040J0 |
GX90,JZX90,91,LX90,SX90 GRAYISH BLUE,TRIM8# |
1 | ||
| 55981-22040E0 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,XL SABLE,TRIM4# |
1 | ||
| Common parts | ||||
| 90105-06170 | ||||
| 90119-06251 | ||||
| 90119-06739 | ||||
| 90163-60007 | ||||
| 90179-05084 | ||||
| 90179-06097 | ||||
| 90179-08025 | ||||
| 90189-06006 | ||||
| 90468-04157 | ||||
| 90468-04175 | ||||
| 90468-06080 | ||||
| 93566-14152 | ||||
| 93567-55016 | ||||

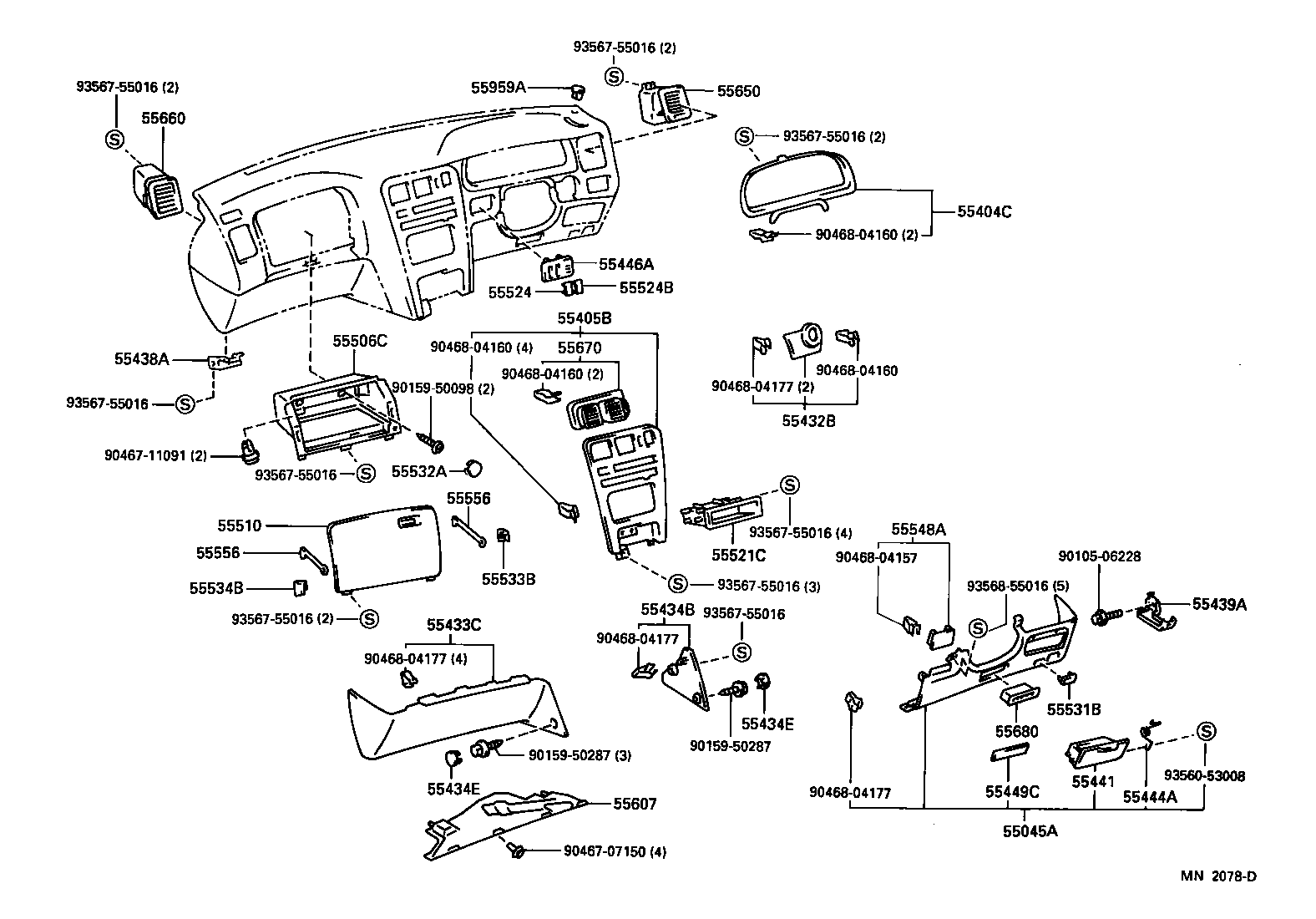

ILLUST NO. 2 OF 2(9210- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55045A - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER RH | ||||
| 55045-22080E0 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,XL SABLE,TRIM4# |
1 | ||
| 55045-22090J0 |
GX90,JZX90,91,LX90,SX90 GRAYISH BLUE,TRIM8# |
1 | ||
| 55045-22090E0 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,XL SABLE,TRIM4# |
1 | ||
| 55045-22090G0 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV JADE,TRIM6# |
1 | ||
| 55045-22080G0 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV JADE,TRIM6# |
1 | ||
| 55045-22080J0 |
GX90,JZX90,91,LX90,SX90 GRAYISH BLUE,TRIM8# |
1 | ||
| 55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2 | ||||
| 55404-22170 |
GX90,JZX90,93..ATM..AVT ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞ ﾒ-ﾀ) |
1 | ||
| 55404-22160 |
GX90,JZX90,93,LX90,SX90..AVT,RAF,TOUS,TOUV,XL |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-22150 |
GX90,JZX90..AVT,TOUS,TOUV |
1 | ||
| 55405-22160 |
JZX90,91;JZX93..AVTG |
1 | ||
| 55405-22250 |
JZX90,91..AVT,AVTG ｱﾘ(ﾏﾙﾁﾋﾞｼﾞﾖﾝ) |
1 | ||
| 55405-22240 |
GX90,JZX9# |
1 | ||
| 55405-22170 |
JZX90,91..AVT,AVTG ｱﾘ(ﾏﾙﾁﾋﾞｼﾞﾖﾝ) |
1 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55480-22020E0 |
GX90,JZX9#,LX90,SX90..ATM..(AVT,AVTG,RAF,XL) SABLE,TRIM4# |
1 | ||
| 55480-22020J0 |
GX90,JZX90,91,LX90,SX90..ATM GRAYISH BLUE,TRIM8# |
1 | ||
| 55480-22020G0 |
GX90,JZX9#,LX90,SX90..ATM..(AVT,AVTG,RAF,TOUS,TOUV) JADE,TRIM6# |
1 | ||
| 55433C - PANEL, INSTRUMENT PANEL FINISH, LOWER LH | ||||
| 55433-22090E0 |
JZX93;GX90,JZX90,LX90,SX90..AVT,RAF,XL SABLE,TRIM4# |
1 | ||
| 55433-22090G0 |
JZX93;GX90,JZX90,LX90,SX90..AVT,RAF,TOUS,TOUV JADE,TRIM6# |
1 | ||
| 55433-22090J0 |
GX90,JZX90,LX90,SX90..AVT,RAF,TOUS,TOUV,XL GRAYISH BLUE,TRIM8# |
1 | ||
| 55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55434-22110G0 |
JZX93;GX90,JZX90,LX90,SX90..AVT,RAF,TOUS,TOUV JADE,TRIM6# |
1 | ||
| 55434-22110E0 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,XL SABLE,TRIM4# |
1 | ||
| 55434-22110E0 |
JZX93;GX90,JZX90,LX90,SX90..AVT,RAF,XL SABLE,TRIM4# |
1 | ||
| 55434-22110G0 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV JADE,TRIM6# |
1 | ||
| 55434-22110J0 |
GX90,JZX90,91,LX90,SX90 GRAYISH BLUE,TRIM8# |
1 | ||
| 55434E - CAP | ||||
| 90339-10014E0 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,XL SABLE,TRIM4# |
1 | ||
| 90339-10014J0 |
GX90,JZX90,91,LX90,SX90 GRAYISH BLUE,TRIM8# |
1 | ||
| 90339-10014G0 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV JADE,TRIM6# |
1 | ||
| 90339-10014J0 |
GX90,JZX90,91,LX90,SX90 GRAYISH BLUE,TRIM8# |
2 | ||
| 90339-10014E0 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,XL SABLE,TRIM4# |
2 | ||
| 90339-10014G0 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV JADE,TRIM6# |
2 | ||
| 55434E - CAP | ||||
| 90339-10014E0 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,XL SABLE,TRIM4# |
1 | ||
| 90339-10014J0 |
GX90,JZX90,91,LX90,SX90 GRAYISH BLUE,TRIM8# |
1 | ||
| 90339-10014G0 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV JADE,TRIM6# |
1 | ||
| 90339-10014J0 |
GX90,JZX90,91,LX90,SX90 GRAYISH BLUE,TRIM8# |
2 | ||
| 90339-10014E0 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,XL SABLE,TRIM4# |
2 | ||
| 90339-10014G0 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV JADE,TRIM6# |
2 | ||
| 55438A - RETAINER, INSTRUMENT PANEL FINISH PANEL, NO.2 | ||||
| 55438-22040 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 55439A - RETAINER, INSTRUMENT PANEL FINISH PANEL, NO.3 | ||||
| 55439-22060 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 55441 - BOX, INSTRUMENT PANEL | ||||
| 55440-22010J0 |
GX90,JZX90,91,LX90,SX90 GRAYISH BLUE,TRIM8# |
1 | ||
| 55440-22010E0 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,XL SABLE,TRIM4# |
1 | ||
| 55440-22010G0 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV JADE,TRIM6# |
1 | ||
| 55444A - SPRING, INSTRUMENT PANEL BOX | ||||
| 55444-22020 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-22070G0 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV JADE,TRIM6# |
1 | ||
| 55446-22070J0 |
GX90,JZX90,91,LX90,SX90 GRAYISH BLUE,TRIM8# |
1 | ||
| 55446-22070E0 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,XL SABLE,TRIM4# |
1 | ||
| 55449C - CUSHION, INSTRUMENT PANEL FINISH PANEL, NO.2 | ||||
| 55449-22110 |
GX90,JZX90,91,LX90,SX90 |
1 | ||
| 55506C - COMPARTMENT SUB-ASSY, GLOVE | ||||
| 55506-22090 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 55506-22090 |
GX90,JZX9#,LX90,SX90 PLANT NO.= Q11 |
1 | ||
| 55506-22100 |
GX90,JZX9#,LX90,SX90 PLANT NO.= M21,M22 |
1 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-22160E0 |
JZX93;GX90,JZX90,LX90,SX90..AVT,RAF,XL SABLE,TRIM4# |
1 | ||
| 55550-22160G0 |
JZX93;GX90,JZX90,LX90,SX90..AVT,RAF,TOUS,TOUV JADE,TRIM6# |
1 | ||
| 55550-22160J0 |
GX90,JZX90,LX90,SX90..AVT,RAF,TOUS,TOUV,XL GRAYISH BLUE,TRIM8# |
1 | ||
| 55524 - COVER, SWITCH BACE HOLE | ||||
| 55524-22061G0 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV JADE,TRIM6# |
1 | ||
| 55524-22061J0 |
GX90,JZX90,91,LX90,SX90 GRAYISH BLUE,TRIM8# |
1 | ||
| 55524-22061E0 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,XL SABLE,TRIM4# |
1 | ||
| 55524B - COVER, SWITCH BASE HOLE | ||||
| 55524-22061G0 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV JADE,TRIM6# |
1 | ||
| 55524-22061E0 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,XL SABLE,TRIM4# |
1 | ||
| 55524-22061J0 |
GX90,JZX90,91,LX90,SX90 GRAYISH BLUE,TRIM8# |
1 | ||
| 55531B - COVER, CHOKE KNOB HOLE | ||||
| 55531-22160J0 |
GX90,JZX90,LX90,SX90..AVT,RAF,TOUS,TOUV,XL GRAYISH BLUE,TRIM8# |
1 | ||
| 55531-22160G0 |
JZX93;GX90,JZX90,LX90,SX90..AVT,RAF,TOUS,TOUV JADE,TRIM6# |
1 | ||
| 55531-22160E0 |
JZX93;GX90,JZX90,LX90,SX90..AVT,RAF,XL SABLE,TRIM4# |
1 | ||
| 55531-22160G0 |
JZX93;GX90,JZX90,LX90,SX90..AVT,RAF,TOUS JADE,TRIM6# |
1 | ||
| 55532A - PANEL, GLOVE COMPARTMENT, NO.2 | ||||
| 55532-22020 |
GX90,JZX9#,LX90,SX90 |
2 | ||
| 55556 - ARM, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55556-22110 |
GX90,JZX9#,LX90,SX90 |
2 | ||
| 55556 - ARM, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55556-22110 |
GX90,JZX9#,LX90,SX90 |
2 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-22090 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-22140E0 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,XL SABLE,TRIM4# |
1 | ||
| 55650-22140G0 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV JADE,TRIM6# |
1 | ||
| 55650-22140J0 |
GX90,JZX90,91,LX90,SX90 GRAYISH BLUE,TRIM8# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-22140E0 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,XL SABLE,TRIM4# |
1 | ||
| 55660-22140J0 |
GX90,JZX90,91,LX90,SX90 GRAYISH BLUE,TRIM8# |
1 | ||
| 55660-22140G0 |
GX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV JADE,TRIM6# |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-22160 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 55680 - REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 55680-89101 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| Common parts | ||||
| 90105-06228 | ||||
| 90159-50098 | ||||
| 90159-50287 | ||||
| 90467-07150 | ||||
| 90467-11091 | ||||
| 90468-04157 | ||||
| 90468-04160 | ||||
| 90468-04177 | ||||
| 93560-53008 | ||||
| 93567-55016 | ||||
| 93568-55016 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
