JZX81-BTPVZ (1990)

Toyota Chaser

Production Aug 1990 - Oct 1992
Engine 1JZGTE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9008- )TWT

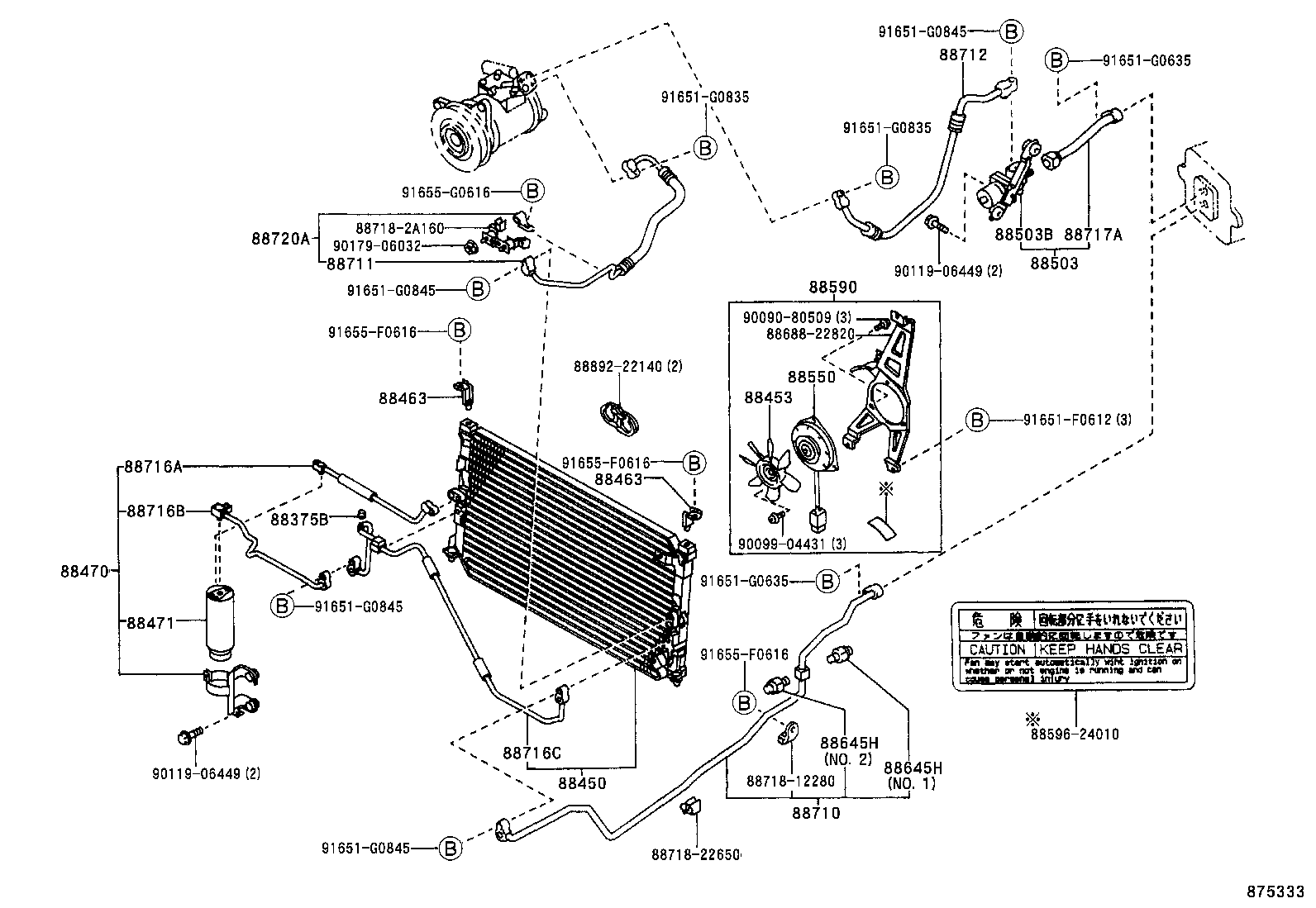

Click highlighted areas on diagram

diagram 88375B 88450 88453 88463 88463 88470 88471 88503 88503B 88550 88590 8859624010 88645H 88645H 8868822820 88710 88711 88712 88716A 88716B 88716C 88717A 8871812280 8871822650 887182A160 88720A 8889222140 9009080509 9009904431 9011906449 9011906449 9017906032 91651F0612 91651G0635 91651G0635 91651G0835 91651G0835 91651G0845 91651G0845 91651G0845 91651G0845 91655F0616 91655F0616 91655F0616 91655G0616
Part # Description Qty Price
88375B - CAP, SERVICE VALVE, NO.1
88375-20010

GX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG,XL

 1
88450 - CONDENSER ASSY, W/RECEIVER
88460-22440

JZX81..TWT

 1
88453 - FAN, COOLING (FOR CONDENSER)
88453-12040

GX81..4FC;JZX81..TWT

 1
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-22010

GX81,JZX81,LX80,MX83,SX80,YX80

 2
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-22010

GX81,JZX81,LX80,MX83,SX80,YX80

 2
88470 - RECEIVER & DRYER ASSY, COOLER
88470-22030

JZX81..TWT

 1
88471 - TANK, RECEIVER AIR CONDITIONER
88471-12020

GX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG,XL

 1
88503 - REGULATOR ASSY, PRESSURE
88503-22181

GX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG,XL

 1
88503-22180

GX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG,XL

 1
88503B - REGULATOR SUB-ASSY, PRESSURE
88503-22190

GX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG,XL

 1
88503-22191

GX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG,XL

 1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-22070

JZX81..TWT

 1
88590 - BLOWER ASSY, W/SHROUD
88590-22101

JZX81..TWT

 1
88645H - SWITCH, PRESSURE NO.1
88645-30281

SX80;LX80..KYO;LX80..4FC..(XG,XL);GX81,JZX81,MX83,YX80..ATM

NO.2

 1
88645H - SWITCH, PRESSURE NO.1
88645-30281

SX80;LX80..KYO;LX80..4FC..(XG,XL);GX81,JZX81,MX83,YX80..ATM

NO.2

 1
88710 - TUBE ASSY, AIR CONDITIONER
88710-22520

JZX81,SX80..GT,XG,XL

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-22560

JZX81..TWT

 1
88711-22561

JZX81..TWT

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-22830

JZX81

 1
88712-22831

JZX81

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-2A170

JZX81..TWT

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-2A180

JZX81..TWT

 1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-2A160

JZX81..TWT

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-22340

GX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG,XL

 1
88720A - HOSE & ACCESSORY, AIR CONDITIONER
88720-22150

JZX81..TWT

 1
88720-22151

JZX81..TWT

 1
Common parts
88596-24010
88688-22820
88718-12280
88718-22650
88718-2A160
88892-22140
90090-80509
90099-04431
90119-06449
90179-06032
91651-F0612
91651-G0635
91651-G0835
91651-G0845
91655-F0616
91655-G0616
