JZX81-BTPVZ (1990)
Toyota Chaser
Production
Aug 1990
-
Oct 1992
Engine
1JZGTE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

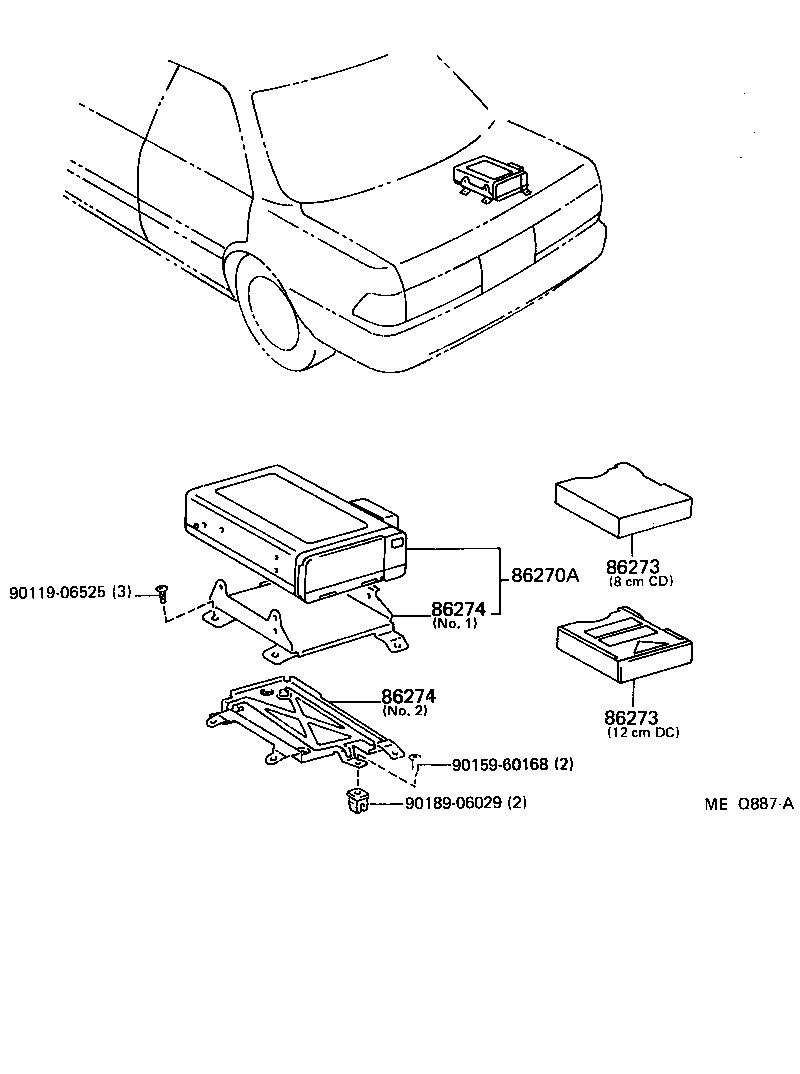

ILLUST NO. 3 OF 3(9008- )AVT,AVTG,GT
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86270A - DISC PLAYER ASSY | ||||
| 86270-22040 |
GX81,JZX81,MX83..AVT,AVTG,GT |
1 | ||
| 86273 - MAGAZINE, DISC PLAYER | ||||
| 86273-50020 |
GX81,JZX81,MX83..AVT,AVTG,GT 12CM CD |
1 | ||
| 86273-22010 |
GX81,JZX81,MX83..AVT,AVTG,GT 8CM CD |
1 | ||
| 86273 - MAGAZINE, DISC PLAYER | ||||
| 86273-50020 |
GX81,JZX81,MX83..AVT,AVTG,GT 12CM CD |
1 | ||
| 86273-22010 |
GX81,JZX81,MX83..AVT,AVTG,GT 8CM CD |
1 | ||
| 86274 - BRACKET, DISC PLAYER | ||||
| 86274-22030 |
GX81,JZX81,MX83..AVT,AVTG,GT NO.1 |
1 | ||
| 86274-22020 |
GX81,JZX81,MX83..AVT,AVTG,GT NO.2 |
1 | ||
| 86274 - BRACKET, DISC PLAYER | ||||
| 86274-22030 |
GX81,JZX81,MX83..AVT,AVTG,GT NO.1 |
1 | ||
| 86274-22020 |
GX81,JZX81,MX83..AVT,AVTG,GT NO.2 |
1 | ||
| Common parts | ||||
| 90119-06525 | ||||
| 90159-60168 | ||||
| 90189-06029 | ||||
