JZX81-BTPVZ (1990)

Toyota Chaser

Production Aug 1990 - Oct 1992
Engine 1JZGTE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9008- )JZX81

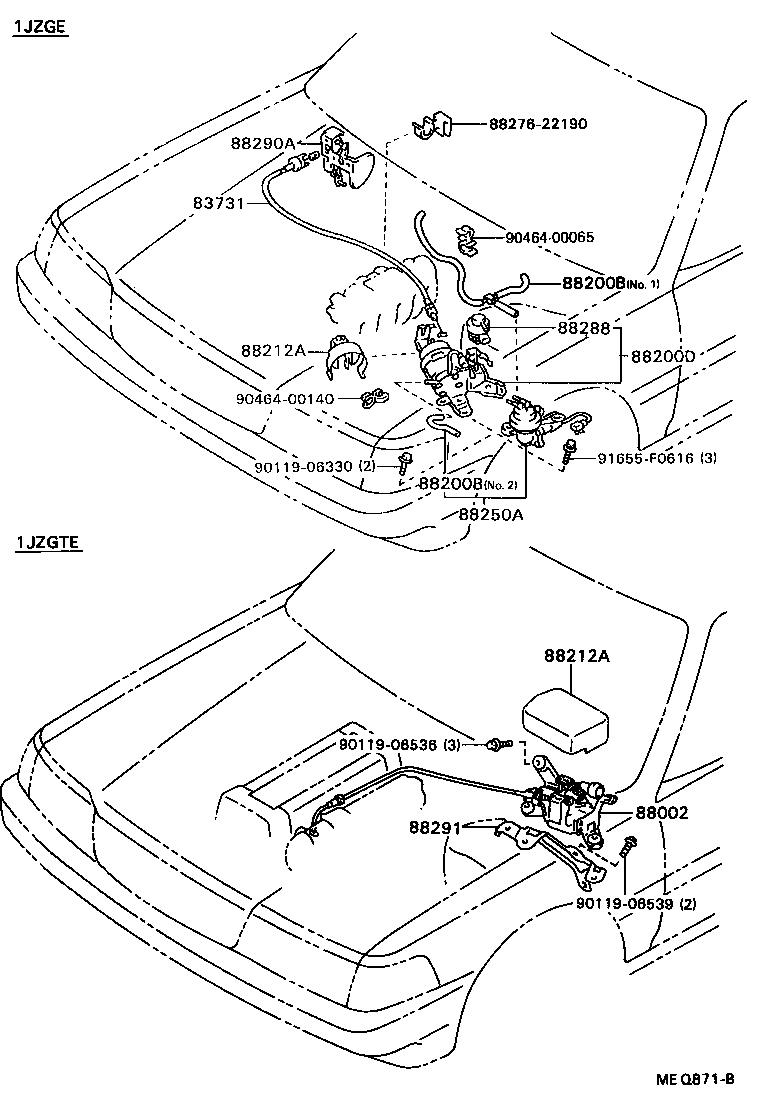

Click highlighted areas on diagram

diagram 83731 88002 88200B 88200B 88200D 88212A 88212A 88250A 8827622190 88288 88290A 88291 9011906330 9011906536 9011906539 9046400065 9046400140 91655F0616
Part # Description Qty Price
88002 - CRUISE CONTROL(AUTO DRIVE) SET
88002-22010

JZX81..TWT

 1
88212A - COVER, CRUISE CONTROL ACTUATOR
88212-22160

JZX81..TWT

 1
88212A - COVER, CRUISE CONTROL ACTUATOR
88212-22160

JZX81..TWT

 1
88291 - BRACKET, CRUISE CONTROL(AUTO DRIVE), NO.1
88291-22140

JZX81..TWT

 1
Common parts
88276-22190
90119-06330
90119-06536
90119-06539
90464-00065
90464-00140
91655-F0616
