JZX81-BTPVZ (1990)

Toyota Chaser

Production Aug 1990 - Oct 1992
Engine 1JZGTE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9008- )JZX81

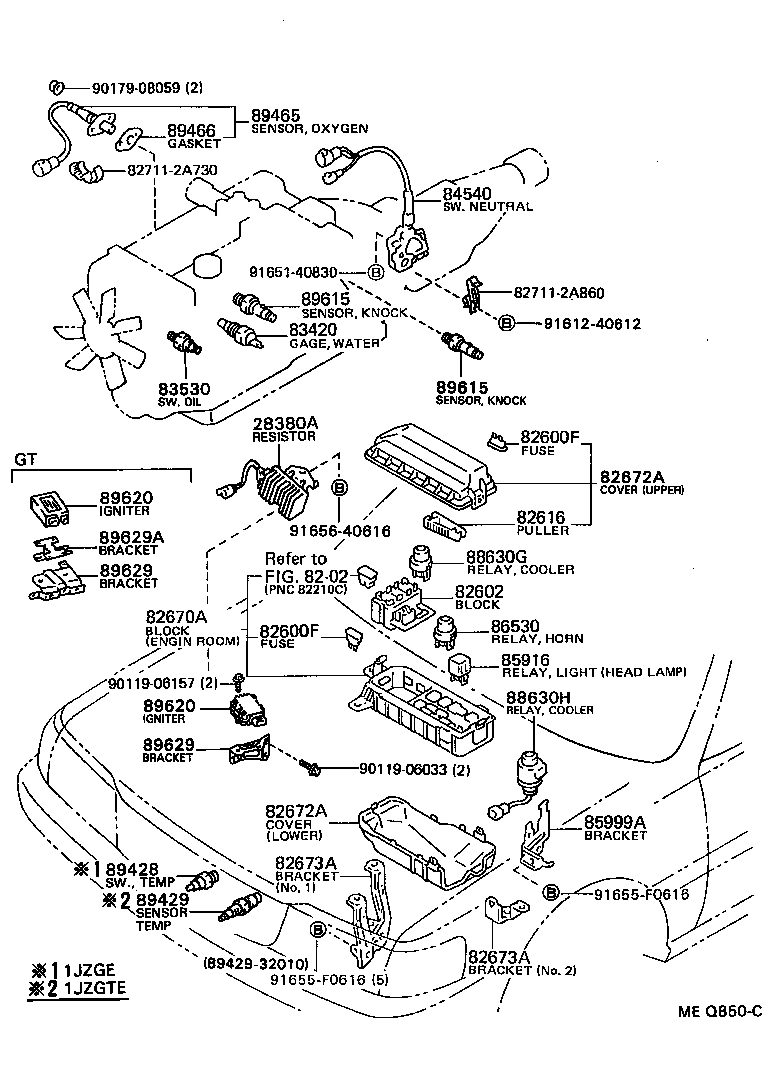

Click highlighted areas on diagram

diagram 28380A 8202 82600F 82600F 82602 82616 82670A 82672A 82672A 82673A 82673A 827112A730 827112A860 83420 83530 84540 85916 85999A 86530 88630G 88630H 89428 89429 8942932010 89465 89466 89615 89615 89620 89620 89629 89629 89629A 9011906033 9011906157 9017908059 9161240612 9165140830 91655F0616 91655F0616 9165640616
Part # Description Qty Price
82600F - FUSE, FUSE BLOCK
90982-09005

GX81,JZX81,LX80,MX83,SX80,YX80

7.5A,COWL SIDE

 4
90982-09003

GX81,JZX81,LX80,MX83,SX80,YX80

15A,E/G ROOM J/B

 4
90982-09003

GX81,JZX81,LX80,MX83,YX80

15A,E/G ROOM J/B

 4
90982-09003

JZX81,MX83

15A,COWL SIDE

 7
90982-09004

GX81,JZX81,LX80,MX83,YX80

20A,黄,E/G ROOM J/B

 2
90982-09004

GX81,JZX81,LX80,MX83,SX80,YX80

20A,黄,E/G ROOM J/B

 2
82600F - FUSE, FUSE BLOCK
90982-09005

GX81,JZX81,LX80,MX83,SX80,YX80

7.5A,COWL SIDE

 4
90982-09003

GX81,JZX81,LX80,MX83,SX80,YX80

15A,E/G ROOM J/B

 4
90982-09003

GX81,JZX81,LX80,MX83,YX80

15A,E/G ROOM J/B

 4
90982-09003

JZX81,MX83

15A,COWL SIDE

 7
90982-09004

GX81,JZX81,LX80,MX83,YX80

20A,黄,E/G ROOM J/B

 2
90982-09004

GX81,JZX81,LX80,MX83,SX80,YX80

20A,黄,E/G ROOM J/B

 2
82602 - BLOCK SUB-ASSY, RELAY
82602-22360

JZX81..TWT

 1
82616 - PULLER, FUSE
82616-12020

GX81,JZX81,LX80,MX83,SX80,YX80

 1
82670A - BLOCK ASSY, JUNCTION, NO.1
82670-22090

SX80..KYO,XL;GX81,JZX81,LX80,MX83,YX80

NO.1

 1
82671-22031

GX81,JZX81,MX83,YX80..AVT,AVTG,GT,KYO

NO.3

 1
82670-22090

GX81,JZX81,LX80,MX83,SX80,YX80

NO.1

 1
82671-22031

GX81,JZX81,LX80,MX83,SX80,YX80

NO.3

 1
82670-22010

GX81,JZX81,MX83

ENGINE ROOM

 1
82672A - COVER, JUNCTION BLOCK
82672-22070

GX81,JZX81,LX80,MX83,SX80,YX80

LOWER

 1
82672A - COVER, JUNCTION BLOCK
82672-22070

GX81,JZX81,LX80,MX83,SX80,YX80

LOWER

 1
82673A - BRACKET, JUNCTION BLOCK
82673-22010

GX81,JZX81,LX80,MX83,SX80,YX80

NO.1

 1
82673-22030

GX81,JZX81,MX83,SX80,YX80

NO.2

 1
82673A - BRACKET, JUNCTION BLOCK
82673-22010

GX81,JZX81,LX80,MX83,SX80,YX80

NO.1

 1
82673-22030

GX81,JZX81,MX83,SX80,YX80

NO.2

 1
83420 - GAGE ASSY, WATER TEMPERATURE SENDER
83420-20020

GX81,JZX81,LX80,MX83,YX80

 1
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-30080

JZX81,SX80

 1
84540 - SWITCH ASSY, NEUTRAL START
84540-30240

GX81,JZX81,MX83..4FC..(SPC,TWC,TWT)

 1
84540-30241

GX81,JZX81,MX83..4FC..(TWC,TWT)

 1
85916 - RELAY, LIGHT CONTROL
90987-02006

GX81,JZX81,LX80,MX83,SX80,YX80

HEADLAMP

 1
90987-02004

GX81,JZX81,LX80,MX83,SX80,YX80

*ND,TAIL LAMP

 1
90987-02002

GX81,JZX81,LX80,MX83,SX80,YX80

MARUKO,TAIL LAMP

 1
86530 - RELAY ASSY, HORN
90987-02002

GX81,JZX81,LX80,MX83,SX80,YX80

MARUKO

 1
90987-02004

GX81,JZX81,LX80,MX83,SX80,YX80

NIPPONDENSO

 1
88630G - RELAY ASSY, COOLER
90987-02004

GX81,JZX81,LX80,MX83,SX80,YX80

 1
88630H - RELAY ASSY, COOLER
88630-22070

SX80;GX81,JZX81,YX80..ATM

 1
89429 - SENSOR, OIL TEMPERATURE
89429-32010

JZX81..TWT

 1
89465 - SENSOR, OXYGEN
89465-29435

JZX81..TWT

 1
89615 - SENSOR, KNOCK CONTROL
89615-22040

JZX81

 2
89615 - SENSOR, KNOCK CONTROL
89615-22040

JZX81

 2
89620 - IGNITER ASSY
89621-22020

JZX81..TWT

NIPPONDENSO

 1
89621-22030

JZX81..TWT

TOYOTA

 1
89620 - IGNITER ASSY
89621-22020

JZX81..TWT

NIPPONDENSO

 1
89621-22030

JZX81..TWT

TOYOTA

 1
89629 - BRACKET, IGNITER ASSY
89629-22120

JZX81..TWT

 1
89629 - BRACKET, IGNITER ASSY
89629-22120

JZX81..TWT

 1
89629A - BRACKET, IGNITER, NO.2
89629-22110

JZX81..TWT

MATUSHITA

 1
89629-22140

JZX81..TWT

TOYOTA

 1
Common parts
82711-2A730
82711-2A860
89429-32010
90119-06033
90119-06157
90179-08059
91612-40612
91651-40830
91655-F0616
91656-40616
Linked diagrams
8202
