JZX81-BTPVZ (1990)

Toyota Chaser

Production Aug 1990 - Oct 1992
Engine 1JZGTE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF12(9008- )JZX81

Click highlighted areas on diagram

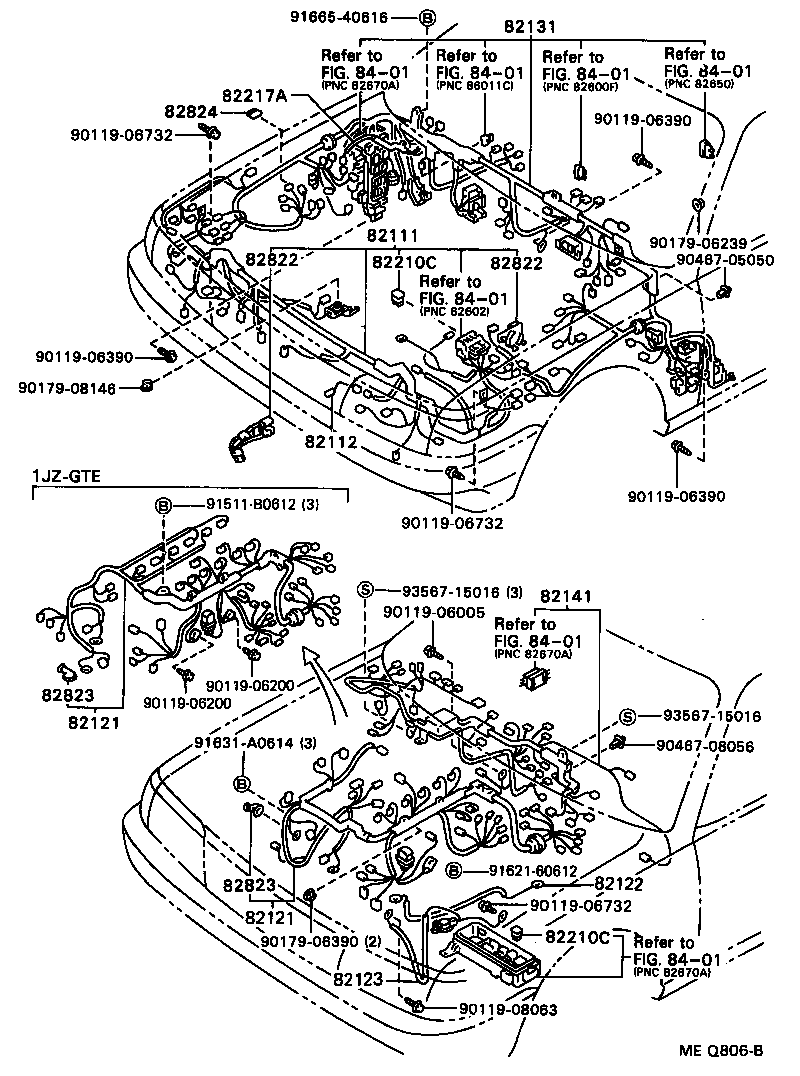

diagram 82111 82112 82121 82121 82122 82123 82131 82141 82210C 82210C 82217A 82822 82822 82823 82823 82824 8401 8401 8401 8401 8401 8401 8401 9011906005 9011906200 9011906200 9011906390 9011906390 9011906390 9011906732 9011906732 9011906732 9011908063 9017906239 9017906390 9017908146 9046705050 9046708056 91511B0612 9162160612 91631A0614 9166540616 9356715016 9356715016
Part # Description Qty Price
82111 - WIRE, ENGINE ROOM MAIN
82111-2A430

JZX81..TWT

 1
82112 - WIRE, ENGINE ROOM, NO.2
82112-22050

JZX81..TWT

 1
82121 - WIRE, ENGINE
82121-22700

JZX81..TWT

 1
82121-22701

JZX81..TWT

 1
82121 - WIRE, ENGINE
82121-22700

JZX81..TWT

 1
82121-22701

JZX81..TWT

 1
82122 - WIRE, ENGINE, NO.2
82122-22180

JZX81..TWT

 1
82122-22190

JZX81..TWT

ｶﾝﾚｲﾁ ｼﾖｳ

 1
82123 - WIRE, ENGINE, NO.3
82123-22070

GX81..5F..TWT;JZX81,MX83,SX80,YX80;GX81..4FC..(SPC,TWC,TWT)

 1
82131 - WIRE, COWL
82131-2C300

JZX81..TWT

 1
82141 - WIRE, INSTRUMENT PANEL
82141-22640

JZX81..AVTG,GT

 1
82141-22630

JZX81..AVTG,GT

ｱﾘ(7 ｽﾋﾟ-ｶ) OR ｱﾘ(CD ｵ-ﾄ ﾁｴﾝｼﾞﾔ)---ﾉｿﾞｸ(*66,*TRC,*DS)

 1
82141-22690

GX81..TWC;JZX81..AVTG,GT

ｱﾘ(*DS & 7 ｽﾋﾟ-ｶ) OR ｱﾘ(*DS & CD ｵ-ﾄ ﾁｴﾝｼﾞﾔ)

 1
82141-22700

GX81,JZX81..TWC,TWT

ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ)

 1
82210C - FUSIBLE LINK
90982-08189

GX81,JZX81,LX80,MX83,SX80,YX80

40A,ﾒｽ端子,緑,E/G ROOM J/B

 2
90982-08188

GX81,JZX81,LX80,MX83,SX80,YX80

30A,ﾒｽ端子,ﾋﾟﾝｸ,E/G ROOM J/B

 2
90982-08246

JZX81..AVT,GT

100A,ｵｽ端子,青

 1
82210C - FUSIBLE LINK
90982-08189

GX81,JZX81,LX80,MX83,SX80,YX80

40A,ﾒｽ端子,緑,E/G ROOM J/B

 2
90982-08188

GX81,JZX81,LX80,MX83,SX80,YX80

30A,ﾒｽ端子,ﾋﾟﾝｸ,E/G ROOM J/B

 2
90982-08246

JZX81..AVT,GT

100A,ｵｽ端子,青

 1
82217A - WIRE, FRONT WINDOW DEFOGGER
82217-22010

GX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG,XL

 1
82822 - BRACKET,CONNECTOR BLOCK
82822-22210

GX81,JZX81,LX80,MX83,SX80,YX80

左側

 1
82822 - BRACKET,CONNECTOR BLOCK
82822-22210

GX81,JZX81,LX80,MX83,SX80,YX80

左側

 1
Common parts
90119-06005
90119-06200
90119-06390
90119-06732
90119-08063
90179-06239
90179-06390
90179-08146
90467-05050
90467-08056
91511-B0612
91621-60612
91631-A0614
91665-40616
93567-15016
Linked diagrams
8401
