JZX81-BTPVZ (1990)

Toyota Chaser

Production Aug 1990 - Oct 1992
Engine 1JZGTE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

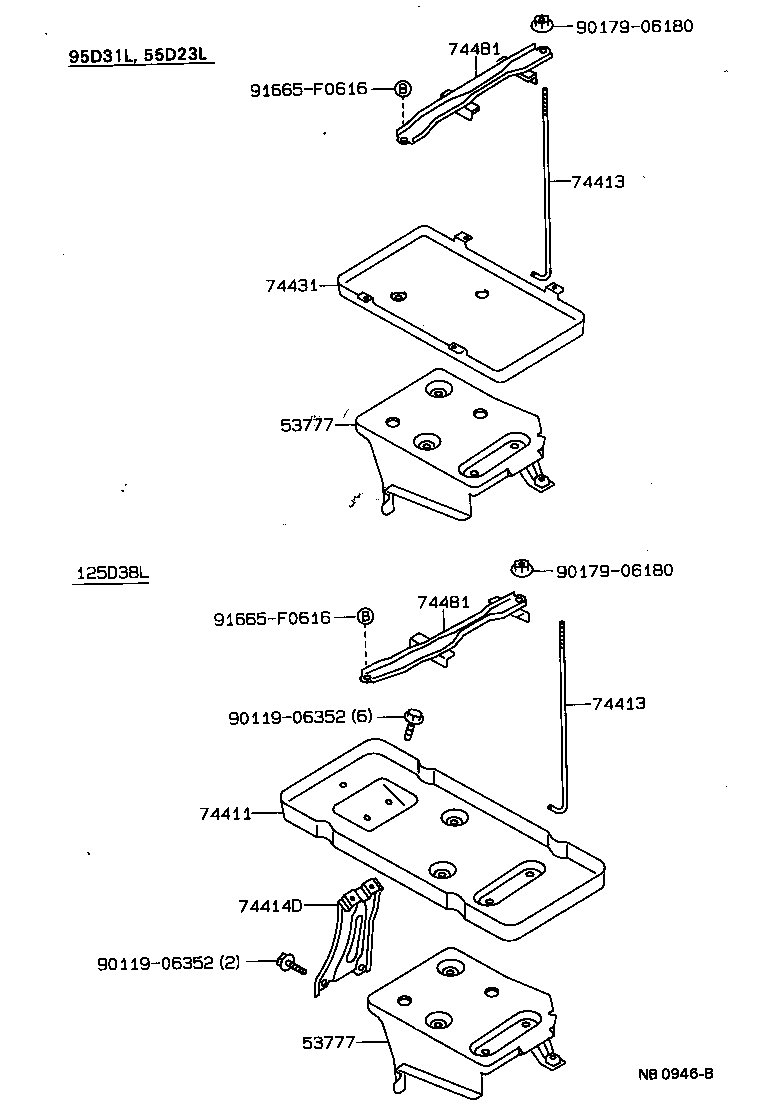

ILLUST NO. 2 OF 2(8808-9210)LX80 ; (9008-9210)TWT

Click highlighted areas on diagram

diagram 53777 53777 74411 74413 74413 74414D 74431 74481 74481 9011906352 9011906352 9017906180 9017906180 91665F0616 91665F0616
Part # Description Qty Price
53777 - SUPPORT, BATTERY CARRIER, NO.2
53777-22060

LX80..XL..TD;JZX81,LX80..GT,KYO,XG

 1
53777 - SUPPORT, BATTERY CARRIER, NO.2
53777-22060

LX80..XL..TD;JZX81,LX80..GT,KYO,XG

 1
74413 - BOLT, BATTERY CLAMP
74451-22030

LX80..XL..TD;JZX81,LX80..GT,KYO,XG

 1
74413 - BOLT, BATTERY CLAMP
74451-22030

LX80..XL..TD;JZX81,LX80..GT,KYO,XG

 1
74431 - TRAY, BATTERY
74431-22080

JZX81..TWT

 1
74481 - CLAMP, BATTERY HOLD DOWN
74404-22240

JZX81..TWT

 1
74481 - CLAMP, BATTERY HOLD DOWN
74404-22240

JZX81..TWT

 1
Common parts
90119-06352
90179-06180
91665-F0616
