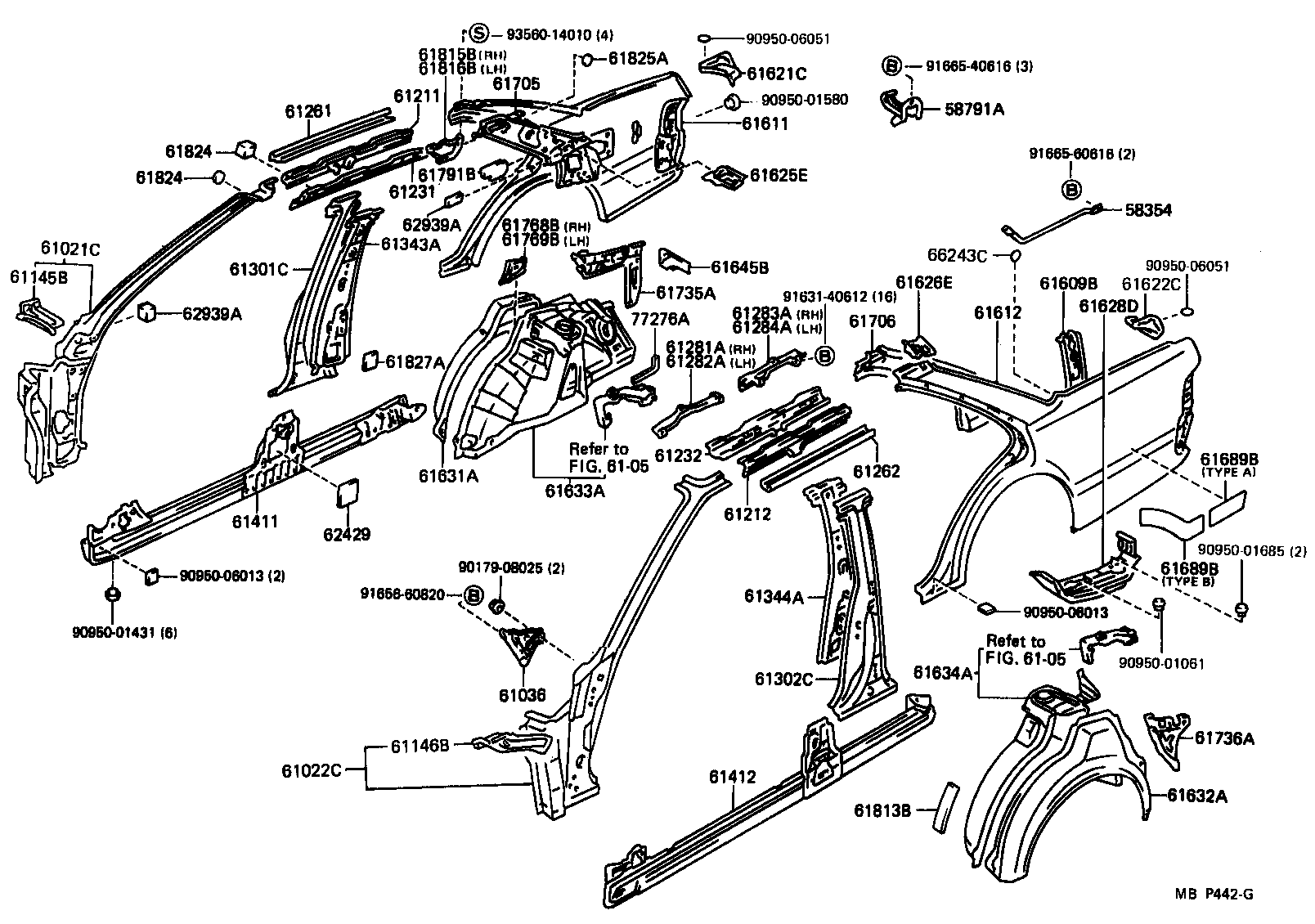

JZX81-BTPVZ (1990)
Toyota Chaser
(8808-9210)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58791A - CARRIER, JACK | ||||
| 58791-22020 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 61021C - PILLAR SUB-ASSY, FRONT BODY, RH | ||||
| 61021-22280 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 61022C - PILLAR SUB-ASSY, FRONT BODY, LH | ||||
| 61022-22270 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 61036 - BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, LH | ||||
| 61166-22090 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 61145B - GUSSET, FRONT BODY PILLAR, LOWER RH | ||||
| 61145-22060 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 61146B - GUSSET, FRONT BODY PILLAR, LOWER LH | ||||
| 61146-22060 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-22110 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-22110 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-22230 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-22210 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 61261 - CHANNEL, ROOF DRIP, RH | ||||
| 61261-22100 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 61262 - CHANNEL, ROOF DRIP, LH | ||||
| 61262-22100 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 61281A - BRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.1 | ||||
| 61281-22040 |
GX81,JZX81,MX83..AVT,AVTG,GT |
1 | ||
| 61282A - BRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.2 | ||||
| 61282-22020 |
GX81,JZX81,MX83..AVT,AVTG,GT |
1 | ||
| 61283A - BRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.3 RH | ||||
| 61283-91601 |
GX81,JZX81,MX83..AVT,AVTG,GT |
1 | ||
| 61284A - BRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.3 LH | ||||
| 61284-91601 |
GX81,JZX81,MX83..AVT,AVTG,GT |
1 | ||
| 61301C - PILLAR SUB-ASSY, CENTER BODY, OUTER RH | ||||
| 61301-22912 |
JZX81 |
1 | ||
| 61302C - PILLAR SUB-ASSY, CENTER BODY, OUTER LH | ||||
| 61302-22912 |
JZX81 |
1 | ||
| 61343A - PILLAR, CENTER BODY, INNER RH | ||||
| 61343-22912 |
JZX81 |
1 | ||
| 61344A - PILLAR, CENTER BODY, INNER LH | ||||
| 61344-22912 |
JZX81 |
1 | ||
| 61411 - PANEL, ROCKER, OUTER RH | ||||
| 61401-22050 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 61412 - PANEL, ROCKER, OUTER LH | ||||
| 61402-22050 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 61609B - BRACE SUB-ASSY, QUARTER PANEL | ||||
| 61609-91604 |
GX81,JZX81,LX80,MX83,SX80 |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61601-23912 |
JZX81 |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61602-23910 |
JZX81 |
1 | ||
| 61621C - TROUGH, LUGGAGE COMPARTMENT OPENING, RH | ||||
| 61621-91602 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 61622C - TROUGH, LUGGAGE COMPARTMENT OPENING, LH | ||||
| 61622-91602 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 61625E - EXTENSION, QUARTER PANEL, INNER REAR RH | ||||
| 61625-91602 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 61626E - EXTENSION, QUARTER PANEL, INNER REAR LH | ||||
| 61626-91602 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 61628D - EXTENSION, QUARTER PANEL, REAR LOWER LH | ||||
| 61628-22030 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-22907 |
JZX81 |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-22110 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61607-91610 |
JZX81..AVTG,GT;GX81,MX83..AVTG |
1 | ||
| 61645B - GUSSET, QUARTER WHEEL HOUSE, REAR RH | ||||
| 61645-22030 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 61705 - PANEL SUB-ASSY, ROOF SIDE, INNER RH | ||||
| 61705-91609 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 61706 - PANEL SUB-ASSY, ROOF SIDE, INNER LH | ||||
| 61706-91610 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 61735A - PANEL, ROOF SIDE, INNER REAR RH | ||||
| 61735-91690 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 61736A - PANEL, ROOF SIDE, INNER REAR LH | ||||
| 61736-91690 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 61768B - REINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR RH | ||||
| 61768-91601 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 61769B - REINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR LH | ||||
| 61769-91601 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 61791B - COVER, ROOF SIDE INNER SERVICE HOLE | ||||
| 61791-91602 |
GX81,JZX81,LX80,MX83,SX80,YX80 右側 |
1 | ||
| 61792-91602 |
GX81,JZX81,LX80,MX83,SX80,YX80 左側 |
1 | ||
| 61813B - PLATE, DUST PROOF, NO.1 | ||||
| 61813-22040 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
2 | ||
| 61815B - COVER, ROOF SIDE, INNER UPPER RH | ||||
| 61815-91602 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 61816B - COVER, ROOF SIDE, INNER UPPER LH | ||||
| 61816-91602 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-22030 |
GX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG,XL 40 X 35,T=2.0 |
12 | ||
| 61824-22050 |
GX81,JZX81,MX83..AVT,AVTG,GT ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),50 X 50,T=2.0 |
4 | ||
| 62939-23010 |
GX81,JZX81,LX80,MX83,SX80,YX80 50 X 50,T=50 |
1 | ||
| 61824-22050 |
GX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG,XL 50 X 50,T=2.0 |
8 | ||
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-22030 |
GX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG,XL 40 X 35,T=2.0 |
12 | ||
| 61824-22050 |
GX81,JZX81,MX83..AVT,AVTG,GT ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),50 X 50,T=2.0 |
4 | ||
| 62939-23010 |
GX81,JZX81,LX80,MX83,SX80,YX80 50 X 50,T=50 |
1 | ||
| 61824-22050 |
GX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG,XL 50 X 50,T=2.0 |
8 | ||
| 61825A - PLATE, NOISE CONTROL, NO.2 | ||||
| 61825-22020 |
GX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG,XL |
8 | ||
| 61825-22020 |
GX81,JZX81,MX83..AVT,AVTG,GT ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) |
4 | ||
| 61827A - PLATE, NOISE CONTROL, NO.4 | ||||
| 61827-22030 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
2 | ||
| 62429 - COVER, CENTER PILLAR SERVICE HOLE | ||||
| 62429-22020 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
2 | ||
| 62939A - SILENCER, QUARTER VENT | ||||
| 62939-23010 |
GX81,JZX81,LX80,MX83,SX80,YX80 70 X 70,T=70 |
1 | ||
| 62939-91602 |
GX81,JZX81,LX80,MX83,SX80,YX80 50 X 250,T=50 |
1 | ||
| 62939-23010 |
GX81,JZX81,MX83..AVT,AVTG,GT ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) |
1 | ||
| 62939A - SILENCER, QUARTER VENT | ||||
| 62939-23010 |
GX81,JZX81,LX80,MX83,SX80,YX80 70 X 70,T=70 |
1 | ||
| 62939-91602 |
GX81,JZX81,LX80,MX83,SX80,YX80 50 X 250,T=50 |
1 | ||
| 62939-23010 |
GX81,JZX81,MX83..AVT,AVTG,GT ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) |
1 | ||
| 66243C - PROTECTOR, REAR BODY, NO.1 | ||||
| 66243-20010 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
2 | ||
| 90950-06051 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
4 | ||
| 77276A - PROTECTOR, FUEL HOSE | ||||
| 77276-23010 |
GX81,JZX81,LX80,MX83,SX80 |
1 | ||
| Common parts | ||||
| 90179-08025 | ||||
| 90950-01061 | ||||
| 90950-01431 | ||||
| 90950-01580 | ||||
| 90950-01685 | ||||
| 90950-06013 | ||||
| 90950-06051 | ||||
| 91631-40612 | ||||
| 91656-60820 | ||||
| 91665-40616 | ||||
| 91665-60616 | ||||
| 93560-14010 | ||||
| Linked diagrams | ||||
| 6105 | ||||
