JZX81-BTPVZ (1990)

Toyota Chaser

Production Aug 1990 - Oct 1992
Engine 1JZGTE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9008- )GX81,JZX81,MX83

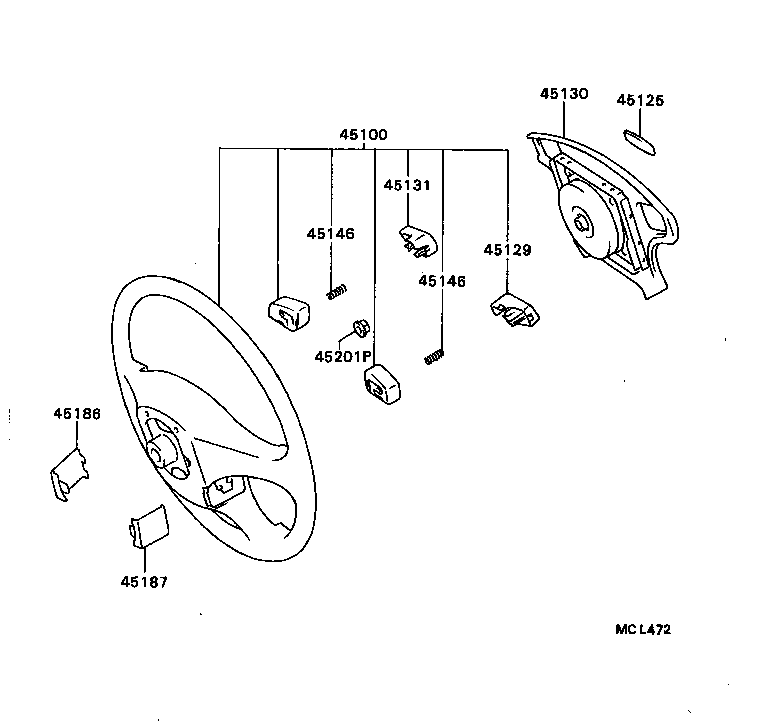

Click highlighted areas on diagram

ｱﾘ(ｴｱ ﾊﾞﾂｸ)

diagram 45100 45125 45129 45130 45131 45146 45146 45186 45187 45201P
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-2233206

GX81,JZX81..(AVT,GT)..(HTWC,TWT)

ｱﾘ(*80),SABLE,SABLE,TRIM4#

 1
45100-2234106

JZX81..TWT

SABLE,TRIM4#

 1
45100-2234102

JZX81..TWT

NEW MAROON,TRIM3#

 1
45100-2233202

GX81,JZX81..(AVT,GT)..(HTWC,TWT)

ｱﾘ(*80),NEW MAROON,TRIM3#

 1
45100-2233203

GX81,JZX81..(AVT,GT)..(HTWC,TWT)

ｱﾘ(*80),MEDIUM GRAY,TRIM1#

 1
45100-2234103

JZX81..TWT

MEDIUM GRAY,TRIM1#

 1
45129 - BUTTON, HORN, NO.2
45129-2012013

GX81,JZX81,MX83..AVT,AVTG,GT

MEDIUM GRAY,TRIM1#

 1
45129-2012016

GX81,JZX81,MX83..AVT,AVTG,GT

SABLE,TRIM4#

 1
45129-33010D1

GX81,JZX81,MX83..AVT,AVTG,GT

NEW MAROON,TRIM3#

 1
45129-2012022

GX81,JZX81,MX83..AVT,AVTG,GT

NEW MAROON,TRIM3#

 1
45129-33010B2

GX81,JZX81,MX83..AVT,AVTG,GT

MEDIUM DRAY,TRIM1#

 1
45129-33010E1

GX81,JZX81,MX83..AVT,AVTG,GT

SABLE,TRIM4#

 1
45130 - BUTTON ASSY, HORN
45130-2240206

GX81,JZX81,MX83..AVT,AVTG,GT

ｱﾘ(*80),SABLE,TRIM4#

 1
45130-2231102

JZX81..TWT

NEW MAROON,TRIM3#

 1
45130-2231106

JZX81..TWT

SABLE,TRIM4#

 1
45130-2240203

GX81,JZX81,MX83..AVT,AVTG,GT

ｱﾘ(*80),MEDIUM GRAY,TRIM1#

 1
45130-2240202

GX81,JZX81,MX83..AVT,AVTG,GT

ｱﾘ(*80),NEW MAROON,TRIM3#

 1
45130-22403E0

GX81,JZX81,MX83..AVT,AVTG,GT

ｱﾘ(*80),SABLE,TRIM4#

 1
45130-22403D4

GX81,JZX81,MX83..AVT,AVTG,GT

ｱﾘ(*80),NEW MAROON,TRIM3#

 1
45130-2231103

JZX81..TWT

MEDIUM GRAY,TRIM1#

 1
45130-22403S4

GX81,JZX81,MX83..AVT,AVTG,GT

ｱﾘ(*80),MEDIUM GRAY,TRIM1#

 1
45131 - BUTTON, HORN, NO.1
45131-33010D1

GX81,JZX81,MX83..AVT,AVTG,GT

NEW MAROON,TRIM3#

 1
45131-33010E1

GX81,JZX81,MX83..AVT,AVTG,GT

SABLE,TRIM4#

 1
45131-33010B2

GX81,JZX81,MX83..AVT,AVTG,GT

MEDIUM DRAY,TRIM1#

 1
45131-2024006

GX81,JZX81,MX83..AVT,AVTG,GT

SABLE,TRIM4#

 1
45131-2024022

GX81,JZX81,MX83..AVT,AVTG,GT

NEW MAROON,TRIM3#

 1
45131-2024013

GX81,JZX81,MX83..AVT,AVTG,GT

MEDIUM GRAY,TRIM1#

 1
45146 - SPRING, HORN BUTTON CONTACT
45146-20230

GX81,JZX81,MX83..AVT,AVTG,GT

 2
45146 - SPRING, HORN BUTTON CONTACT
45146-20230

GX81,JZX81,MX83..AVT,AVTG,GT

 2
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-2201003

GX81,JZX81,MX83..AVT,AVTG,GT

MEDIUM GRAY,TRIM1#

 1
45186-2201002

GX81,JZX81,MX83..AVT,AVTG,GT

NEW MAROON,TRIM3#

 1
45186-2201006

GX81,JZX81,MX83..AVT,AVTG,GT

SABLE,TRIM4#

 1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45187-2201002

GX81,JZX81,MX83..AVT,AVTG,GT

NEW MAROON,TRIM3#

 1
45187-2201003

GX81,JZX81,MX83..AVT,AVTG,GT

MEDIUM GRAY,TRIM1#

 1
45187-2201006

GX81,JZX81,MX83..AVT,AVTG,GT

SABLE,TRIM4#

 1
