JZX81-BTPVZ (1990)

Toyota Chaser

Production Aug 1990 - Oct 1992
Engine 1JZGTE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9008- )TWT

Click highlighted areas on diagram

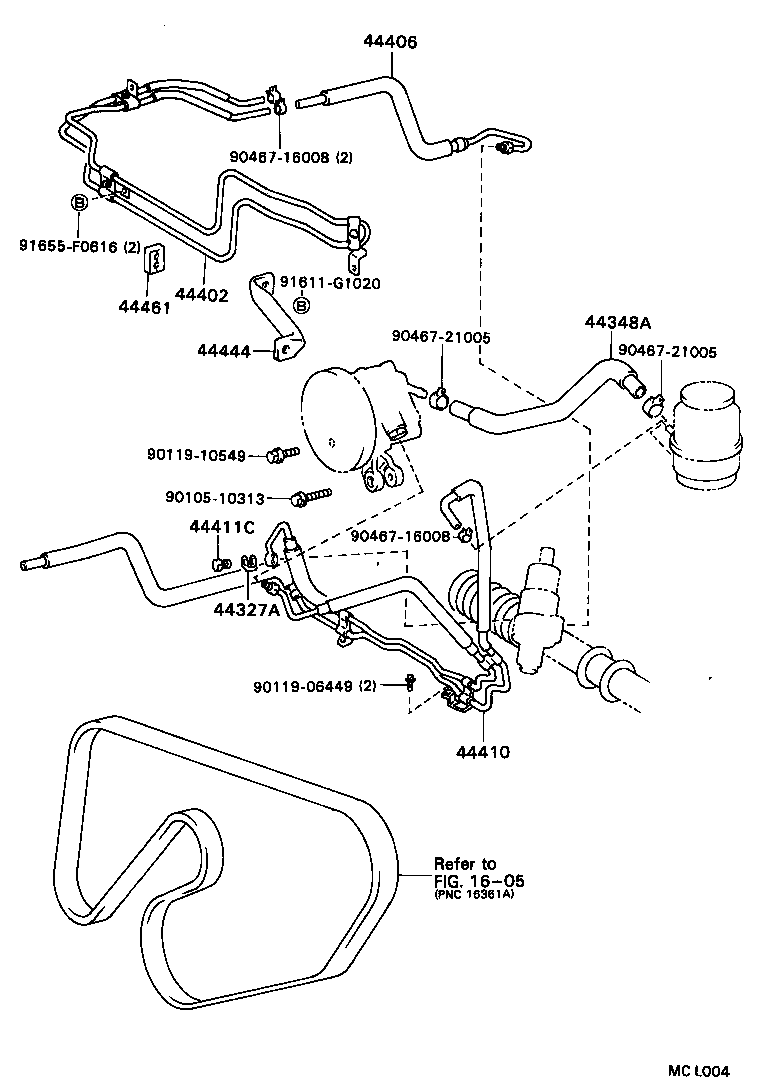

diagram 1605 44327A 44348A 44402 44406 44410 44411C 44444 44461 9010510313 9011906449 9011910549 9046716008 9046716008 9046721005 9046721005 91611G1020 91655F0616
Part # Description Qty Price
44327A - GASKET, PRESSURE PORT, NO.1
44327-12010

GX81,JZX81,MX83..SPC,TWC,TWT

 1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-22250

JZX81..TWT

 1
44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1
44402-22230

JZX81..TWT

 1
44406 - TUBE SUB-ASSY, RETURN
44406-22131

GX81,JZX81,MX83..TWC,TWT

 1
44410 - TUBE ASSY, PRESSURE FEED
44410-22440

JZX81..TWT

 1
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
90401-16008

GX81,JZX81,MX83..SPC,TWC,TWT

 1
44444 - STAY, PUMP, REAR
44444-22090

JZX81

 1
44461 - INSULATOR, TUBE REFRIGERANT
44461-22011

SX80..KYO;GX81,JZX81,MX83,YX80..LPG,TWC,TWT

 1
Common parts
90105-10313
90119-06449
90119-10549
90467-16008
90467-21005
91611-G1020
91655-F0616
Linked diagrams
1605
