JZX81-BTPVZ (1990)

Toyota Chaser

Production Aug 1990 - Oct 1992
Engine 1JZGTE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9008- )TWT

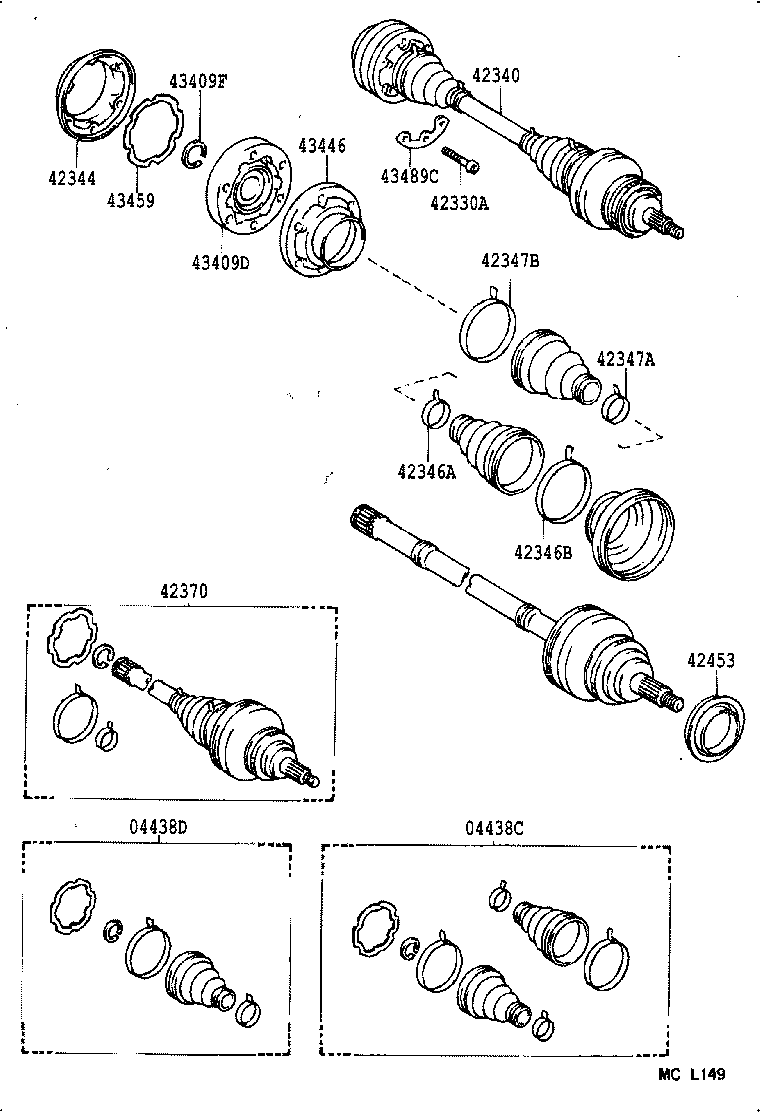

Click highlighted areas on diagram

diagram 04438C 04438D 42330A 42340 42344 42346A 42346B 42347A 42347B 42370 42453 43409D 43409F 43446 43459 43489C
Part # Description Qty Price
04438C - BOOT KIT, REAR DRIVE SHAFT
04437-50021

JZX81..TWT

 2
04438D - BOOT KIT, REAR DRIVE SHAFT INBOARD JOINT
04437-50011

JZX81..TWT

 2
42330A - BOLT(FOR REAR DRIVE SHAFT)
90110-12003

JZX81..TWT

*12−1.25PX53−28

 12
42340 - SHAFT ASSY, REAR DRIVE
42340-22080

JZX81..TWT

 2
42344 - COVER, REAR AXLE INBOARD JOINT END
42344-50011

JZX81..TWT

 2
42346A - CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT)
90949-01514

JZX81..TWT

 2
42346B - CLAMP, NO. 2 (FOR RR DRIVE SHAFT OUTBOARD JOINT BOOT)
90949-01513

JZX81..TWT

 2
42347A - CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)
90949-01514

JZX81..TWT

 2
42347B - CLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)
90949-01513

JZX81..TWT

 2
42370 - SHAFT ASSY, REAR DRIVE OUTBOARD JOINT
42370-29085

JZX81..TWT

 2
42453 - DEFLECTOR, REAR WHEEL BEARING DUST, NO.3
42452-22030

JZX81..TWT

 2
43409D - JOINT SUB-ASSY, REAR DRIVE SHAFT CROSS GROOVE
43409-22010

JZX81..TWT

 2
43409-24010

JZX81..TWT

 2
43409F - RING, SNAP (FOR REAR DRIVE SHAFT CROSS GROOVE JOINT)
90520-27052

JZX81..TWT

 2
43446 - COVER, REAR AXLE INBOARD JOINT
43446-50020

JZX81..TWT

 2
43459 - GASKET, REAR AXLE INBOARD JOINT END COVER
43459-50011

JZX81..TWT

 2
43489C - WASHER, REAR DRIVE SHAFT
43489-50010

JZX81..TWT

 4
