JZX81-BTPVZ (1990)
Toyota Chaser

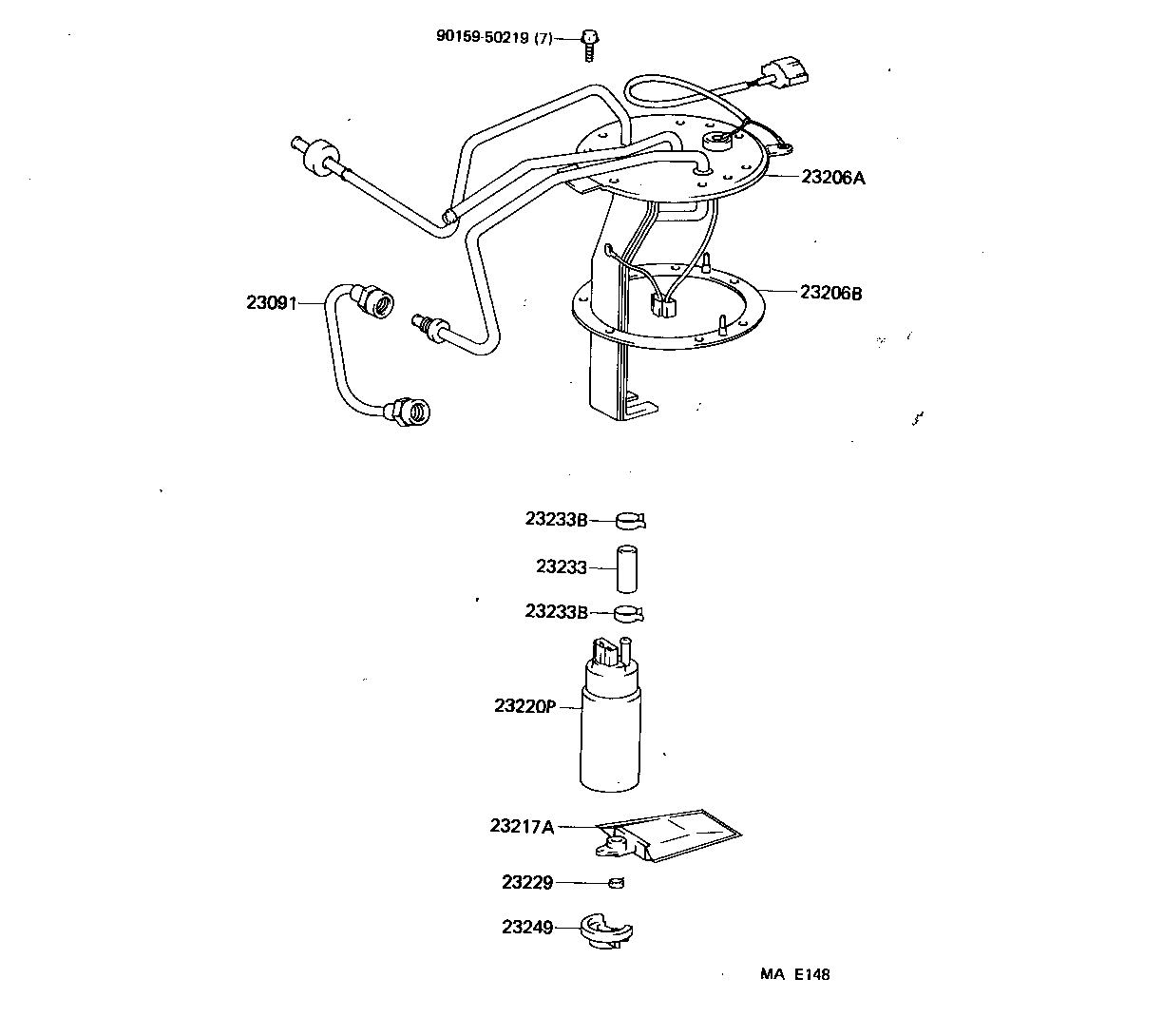

ILLUST NO. 2 OF 2(9008- )1JZGTE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23091 - TUBE SUB-ASSY, FUEL PUMP | ||||
| 23091-70040 |
1JZ#..JZX81 |
1 | ||
| 23091-70040 |
1JZ#..JZX81 |
1 | ||
| 23206A - BRACKET, FUEL PUMP | ||||
| 23206-46020 |
1JZGTE..JZX81 |
1 | ||
| 23206-46020 |
1JZGTE..JZX81 |
1 | ||
| 23206-46060 |
1JZGTE..JZX81 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 23206-46060 |
1JZGTE..JZX81 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 23206B - GASKET, FUEL PUMP BRACKET | ||||
| 77169-14010 |
1JZ#..JZX81 |
1 | ||
| 77169-14010 |
1JZ#..JZX81 |
1 | ||
| 23217A - FILTER, FUEL PUMP | ||||
| 23217-16030 |
1JZGTE..JZX81 |
1 | ||
| 23217-16030 |
1JZGTE..JZX81 |
1 | ||
| 23220P - PUMP ASSY, FUEL | ||||
| 23221-46040 |
1JZGTE..JZX81 |
1 | ||
| 23221-46040 |
1JZGTE..JZX81 |
1 | ||
| 23229 - CLIP(FOR FUEL PUMP FILTER) | ||||
| 23229-16010 |
1JZ#..JZX81 |
1 | ||
| 23229-16010 |
1JZ#..JZX81 |
1 | ||
| 23233 - HOSE, FUEL PUMP | ||||
| 23239-16010 |
1JZGTE..JZX81 |
1 | ||
| 23239-16010 |
1JZGTE..JZX81 |
1 | ||
| 23239-63010 |
1JZGTE..JZX81 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 23239-63010 |
1JZGTE..JZX81 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 23249 - RUBBER, CUSHION(FOR FUEL PUMP) | ||||
| 23249-74150 |
1JZGTE..JZX81 |
1 | ||
| 23249-74150 |
1JZGTE..JZX81 |
1 | ||
| Common parts | ||||
| 90159-50219 | ||||

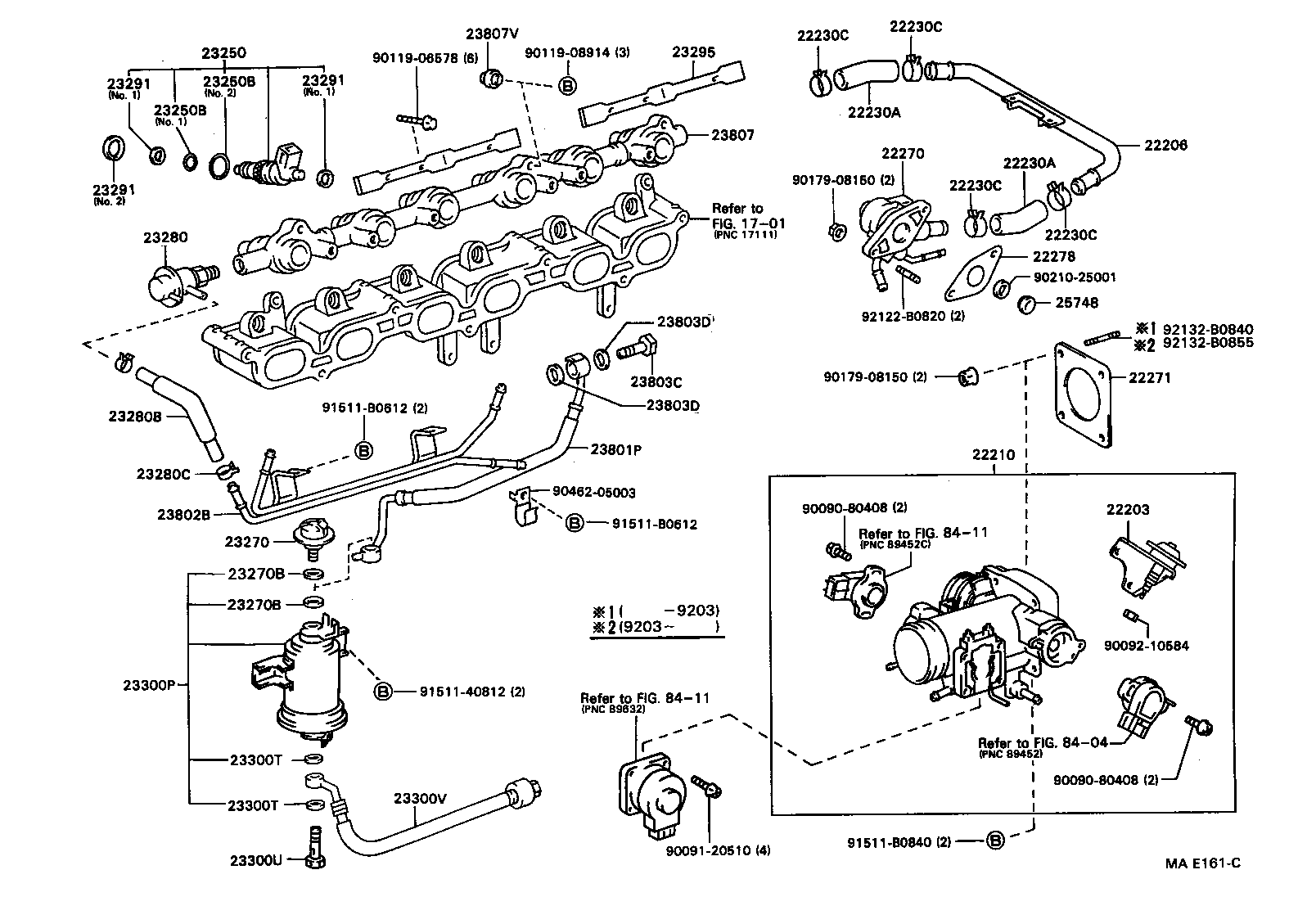

ILLUST NO. 1 OF 2(9008- )1JZGTE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22203 - DASH POT SUB-ASSY(FOR THROTTLE BODY) | ||||
| 22203-46010 |
1JZGTE..JZX81 |
1 | ||
| 22206 - PIPE SUB-ASSY, IDLE SPEED CONTROL | ||||
| 22206-88400 |
1JZGTE..JZX81 |
1 | ||
| 22210 - BODY ASSY, THROTTLE | ||||
| 22210-46061 |
1JZGTE..JZX81 |
1 | ||
| 22210-46060 |
1JZGTE..JZX81 |
1 | ||
| 22230A - HOSE, AUXILIARY AIR VALVE, NO.1 | ||||
| 22233-88400 |
1JZGTE..JZX81 |
2 | ||
| 22230A - HOSE, AUXILIARY AIR VALVE, NO.1 | ||||
| 22233-88400 |
1JZGTE..JZX81 |
2 | ||
| 22230C - CLIP, AUXILIARY AIR VALVE HOSE, NO.1 | ||||
| 90467-26003 |
1JZGTE..JZX81 |
4 | ||
| 22230C - CLIP, AUXILIARY AIR VALVE HOSE, NO.1 | ||||
| 90467-26003 |
1JZGTE..JZX81 |
4 | ||
| 22230C - CLIP, AUXILIARY AIR VALVE HOSE, NO.1 | ||||
| 90467-26003 |
1JZGTE..JZX81 |
4 | ||
| 22230C - CLIP, AUXILIARY AIR VALVE HOSE, NO.1 | ||||
| 90467-26003 |
1JZGTE..JZX81 |
4 | ||
| 22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY) | ||||
| 22270-46030 |
1JZGTE..JZX81 |
1 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-88400 |
1JZGTE..JZX81 |
1 | ||
| 22278 - GASKET, IDLE SPEED CONTROL VALVE | ||||
| 22278-88400 |
1JZGTE..JZX81 |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-49015 |
1JZGTE..JZX81 |
6 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-17007 |
1JZGTE..JZX81 NO.2 |
6 | ||
| 90301-14006 |
1JZGTE..JZX81 NO.1 |
6 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-17007 |
1JZGTE..JZX81 NO.2 |
6 | ||
| 90301-14006 |
1JZGTE..JZX81 NO.1 |
6 | ||
| 23270 - DAMPER ASSY, FUEL PRESSURE PULSATION | ||||
| 23207-46010 |
1JZGTE..JZX81 |
1 | ||
| 23280 - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-46020 |
1JZGTE..JZX81 |
1 | ||
| 23280B - HOSE, FUEL PRESSURE REGULATOR RETURN | ||||
| 90447-15029 |
1JZGTE..JZX81 |
1 | ||
| 23280C - CLAMP OR CLIP(FOR FUEL PRESSURE REGULATOR RETURN HOSE) | ||||
| 90467-13051 |
1JZGTE..JZX81 |
2 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-76010 |
1JZGTE..JZX81 NO.2 |
6 | ||
| 23291-75010 |
1JZGTE..JZX81 NO.1 |
12 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-76010 |
1JZGTE..JZX81 NO.2 |
6 | ||
| 23291-75010 |
1JZGTE..JZX81 NO.1 |
12 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-76010 |
1JZGTE..JZX81 NO.2 |
6 | ||
| 23291-75010 |
1JZGTE..JZX81 NO.1 |
12 | ||
| 23295 - HOLDER, INJECTOR, NO.1 | ||||
| 23295-88400 |
1JZGTE..JZX81 |
2 | ||
| 23300P - FILTER, FUEL(FOR EFI) | ||||
| 23300-49175 |
1JZ#..JZX81 |
1 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12005 |
1JZ#..JZX81 |
2 | ||
| 90430-12026 |
1JZ#..JZX81 |
2 | ||
| 90430-12026 |
1JZ#..JZX81 |
2 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12005 |
1JZ#..JZX81 |
2 | ||
| 90430-12026 |
1JZ#..JZX81 |
2 | ||
| 90430-12026 |
1JZ#..JZX81 |
2 | ||
| 23300U - BOLT, UNION(FOR FUEL FILTER) | ||||
| 90401-12097 |
1JZGTE..JZX81 |
1 | ||
| 23300V - HOSE, FUEL(FOR FUEL INLET) | ||||
| 90923-01386 |
1JZGTE..JZX81 |
1 | ||
| 23801P - PIPE SUB-ASSY, FUEL, NO.1 | ||||
| 23801-88400 |
1JZGTE..JZX81 |
1 | ||
| 23801-88403 |
1JZGTE..JZX81 |
1 | ||
| 23802B - PIPE SUB-ASSY, FUEL, NO.2 | ||||
| 23802-88400 |
1JZGTE..JZX81 |
1 | ||
| 23803C - GASKET(NOZZLE LEKAGE PIPE NO.3) | ||||
| 90401-12097 |
1JZGTE..JZX81 |
1 | ||
| 23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3) | ||||
| 90430-12026 |
1JZ#..JZX81 |
2 | ||
| 23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3) | ||||
| 90430-12026 |
1JZ#..JZX81 |
2 | ||
| 23807 - PIPE SUB-ASSY, FUEL DELIVERY | ||||
| 23814-88400 |
1JZGTE..JZX81 |
1 | ||
| 23807V - SPACER, NO.1(FOR DELIVERY PIPE) | ||||
| 90561-08009 |
1JZGTE..JZX81 |
3 | ||
| 25748 - VALVE, CHECK(FOR IDLE SPEED CONTROL) | ||||
| 25748-88341 |
1JZGTE..JZX81 |
1 | ||
| 25748-88400 |
1JZGTE..JZX81 |
1 | ||
| Common parts | ||||
| 90090-80408 | ||||
| 90091-20510 | ||||
| 90092-10584 | ||||
| 90119-06578 | ||||
| 90119-08914 | ||||
| 90179-08150 | ||||
| 90210-25001 | ||||
| 90462-05003 | ||||
| 91511-40812 | ||||
| 91511-B0612 | ||||
| 91511-B0840 | ||||
| 92122-B0820 | ||||
| 92132-B0840 | ||||
| 92132-B0855 | ||||
| Linked diagrams | ||||
| 1701 | ||||
| 8404 | ||||
| 8411 | ||||
