JZX81-BTPVZ (1990)

Toyota Chaser

Production Aug 1990 - Oct 1992
Engine 1JZGTE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9008- )1JZGTE

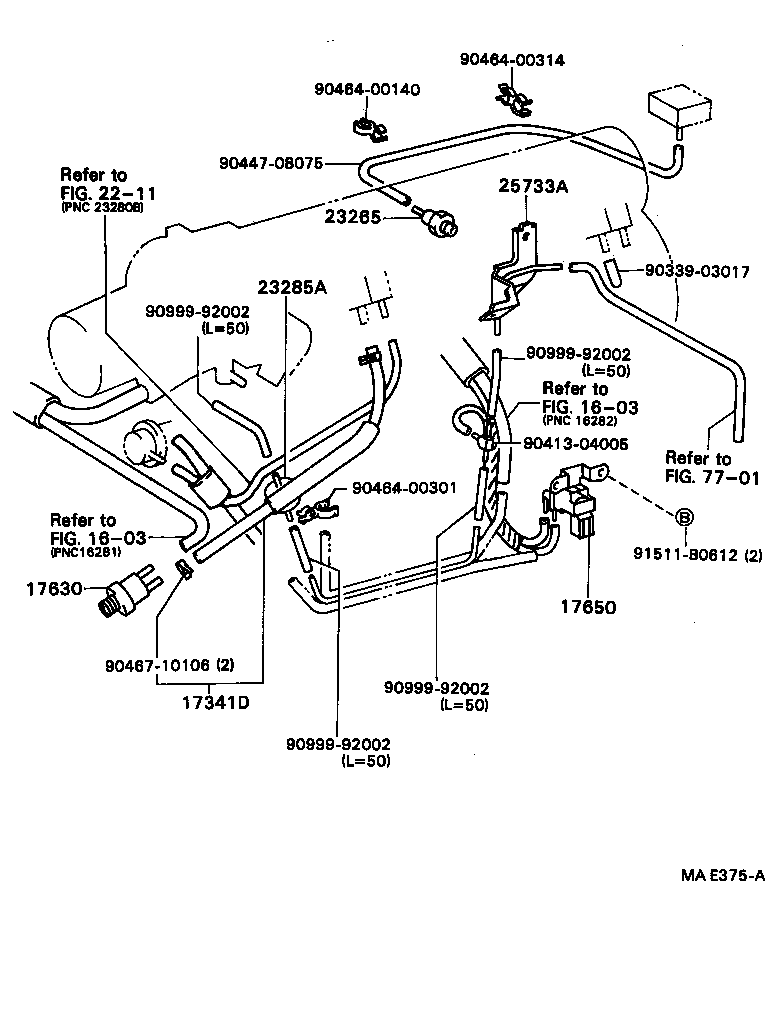

Click highlighted areas on diagram

diagram 1603 1603 17341D 17630 17650 2211 23265 23285A 25733A 7701 9033903017 9041304005 9044708075 9046400140 9046400301 9046400314 9046710106 9099992002 9099992002 9099992002 9099992002 91511B0612
Part # Description Qty Price
17341D - HOSE, NO.1(FOR IDLE-UP)
17341-46060

1JZGTE..JZX81

 1
17630 - VALVE ASSY, AIR CONTROL
17630-70020

1JZ#..JZX81

 1
17650 - VALVE ASSY, VACUUM SWITCHING
90910-12108

1JZGTE..JZX81

 1
23265 - FILTER, GAS, NO.1
90917-11031

1JZ#..JZX81

*53 & (8905-9210)*54

 1
23285A - VALVE, CHECK, NO.1
90917-10080

1JZ#..JZX81

 1
25733A - PIPE, VACUUM, NO.1
25706-88400

1JZGTE..JZX81

 1
Common parts
90339-03017
90413-04005
90447-08075
90464-00140
90464-00301
90464-00314
90467-10106
90999-92002
91511-B0612
Linked diagrams
1603
2211
7701
