JZX81-BTPVZ (1990)
Toyota Chaser

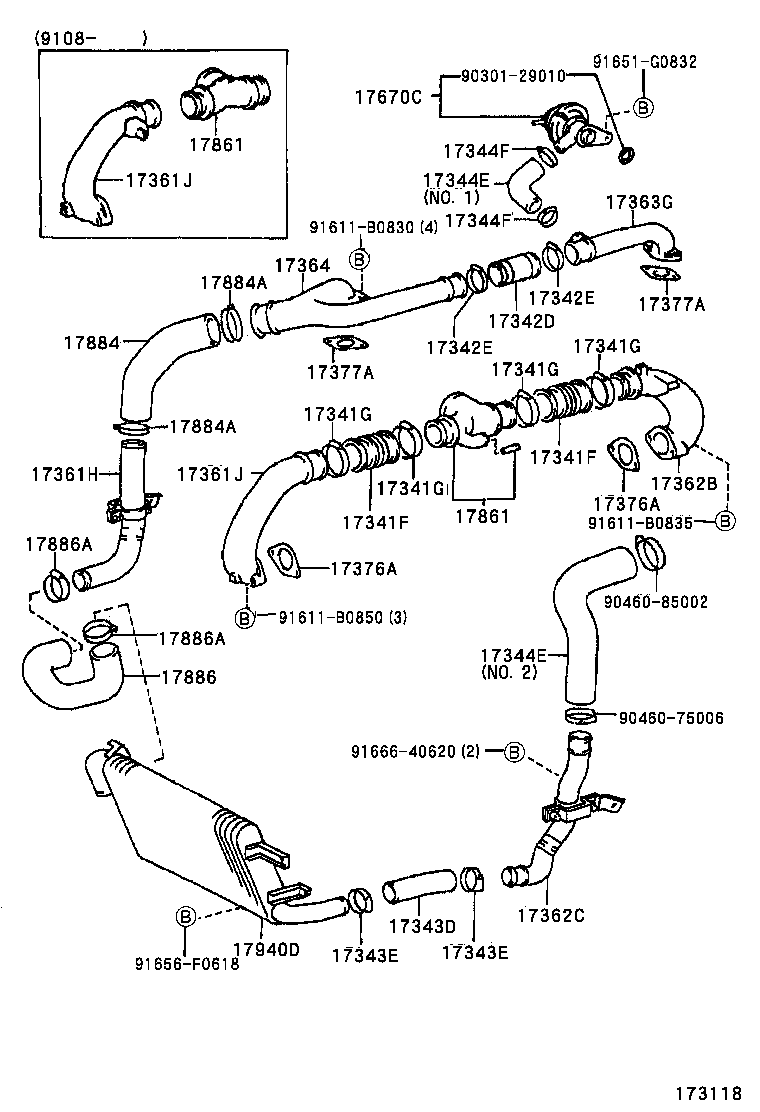

ILLUST NO. 2 OF 2(9008-9210)1JZGTE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17341F - HOSE, AIR, NO.1 | ||||
| 17341-88400 |
1JZGTE..JZX81 |
2 | ||
| 17341F - HOSE, AIR, NO.1 | ||||
| 17341-88400 |
1JZGTE..JZX81 |
2 | ||
| 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) | ||||
| 90460-65009 |
1JZGTE..JZX81 |
4 | ||
| 90460-69007 |
1JZGTE..JZX81 |
4 | ||
| 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) | ||||
| 90460-65009 |
1JZGTE..JZX81 |
4 | ||
| 90460-69007 |
1JZGTE..JZX81 |
4 | ||
| 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) | ||||
| 90460-65009 |
1JZGTE..JZX81 |
4 | ||
| 90460-69007 |
1JZGTE..JZX81 |
4 | ||
| 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) | ||||
| 90460-65009 |
1JZGTE..JZX81 |
4 | ||
| 90460-69007 |
1JZGTE..JZX81 |
4 | ||
| 17342D - HOSE, AIR, NO.2 | ||||
| 17342-88400 |
1JZGTE..JZX81 |
1 | ||
| 17342E - CLAMP OR CLIP(FOR AIR HOSE, NO.2) | ||||
| 90460-55014 |
1JZGTE..JZX81 |
2 | ||
| 17342E - CLAMP OR CLIP(FOR AIR HOSE, NO.2) | ||||
| 90460-55014 |
1JZGTE..JZX81 |
2 | ||
| 17343D - HOSE, AIR, NO.3 | ||||
| 17343-46010 |
1JZGTE..JZX81 |
1 | ||
| 17343E - CLAMP, HOSE(FOR AIR HOSE, NO.3) | ||||
| 90460-75006 |
1JZGTE..JZX81 AIR TUBE SIDE |
1 | ||
| 90460-70005 |
1JZGTE..JZX81 INTER COOLER SIDE |
1 | ||
| 17343E - CLAMP, HOSE(FOR AIR HOSE, NO.3) | ||||
| 90460-75006 |
1JZGTE..JZX81 AIR TUBE SIDE |
1 | ||
| 90460-70005 |
1JZGTE..JZX81 INTER COOLER SIDE |
1 | ||
| 17344E - HOSE, AIR, NO.4 | ||||
| 17344-46010 |
1JZGTE..JZX81 NO.2 |
1 | ||
| 17344-88400 |
1JZGTE..JZX81 NO.1 |
1 | ||
| 17344E - HOSE, AIR, NO.4 | ||||
| 17344-46010 |
1JZGTE..JZX81 NO.2 |
1 | ||
| 17344-88400 |
1JZGTE..JZX81 NO.1 |
1 | ||
| 17344F - CLAMP, HOSE(FOR AIR HOSE, NO.4) | ||||
| 90460-40001 |
1JZGTE..JZX81 |
2 | ||
| 17344F - CLAMP, HOSE(FOR AIR HOSE, NO.4) | ||||
| 90460-40001 |
1JZGTE..JZX81 |
2 | ||
| 17361H - TUBE, AIR(FOR SUPERCHARGER) | ||||
| 17361-46010 |
1JZGTE..JZX81 |
1 | ||
| 17361J - TUBE, AIR, NO.1 | ||||
| 17361-88400 |
1JZGTE..JZX81 |
1 | ||
| 17361-88401 |
1JZGTE..JZX81 |
1 | ||
| 17361J - TUBE, AIR, NO.1 | ||||
| 17361-88400 |
1JZGTE..JZX81 |
1 | ||
| 17361-88401 |
1JZGTE..JZX81 |
1 | ||
| 17362B - TUBE, AIR, NO.2 | ||||
| 17362-88400 |
1JZGTE..JZX81 |
1 | ||
| 17362C - TUBE, AIR, NO.2 | ||||
| 17362-46010 |
1JZGTE..JZX81 |
1 | ||
| 17363G - TUBE, AIR, NO.3 | ||||
| 17363-88400 |
1JZGTE..JZX81 |
1 | ||
| 17364 - TUBE, AIR, NO.4 | ||||
| 17364-88400 |
1JZGTE..JZX81 |
1 | ||
| 17376A - GASKET, AIR TUBE | ||||
| 17376-88400 |
1JZGTE..JZX81 |
2 | ||
| 17376A - GASKET, AIR TUBE | ||||
| 17376-88400 |
1JZGTE..JZX81 |
2 | ||
| 17377A - GASKET, AIR TUBE, NO.2 | ||||
| 17377-88400 |
1JZGTE..JZX81 |
2 | ||
| 17377A - GASKET, AIR TUBE, NO.2 | ||||
| 17377-88400 |
1JZGTE..JZX81 |
2 | ||
| 17670C - VALVE ASSY, AIR BY-PASS | ||||
| 17670-88400 |
1JZGTE..JZX81 |
1 | ||
| 17861 - CONNECTOR, INTAKE AIR | ||||
| 17861-88401 |
1JZGTE..JZX81 |
1 | ||
| 17861-88400 |
1JZGTE..JZX81 |
1 | ||
| 17861 - CONNECTOR, INTAKE AIR | ||||
| 17861-88401 |
1JZGTE..JZX81 |
1 | ||
| 17861-88400 |
1JZGTE..JZX81 |
1 | ||
| 17884 - HOSE, AIR CLEANER, NO.4 | ||||
| 17341-46020 |
1JZGTE..JZX81 |
1 | ||
| 17884A - CLAMP(FOR AIR CLEANER HOSE, NO.4) | ||||
| 90460-75006 |
1JZGTE..JZX81 |
2 | ||
| 17884A - CLAMP(FOR AIR CLEANER HOSE, NO.4) | ||||
| 90460-75006 |
1JZGTE..JZX81 |
2 | ||
| 17886 - HOSE, AIR CLEANER, NO.6 | ||||
| 17342-46010 |
1JZGTE..JZX81 |
1 | ||
| 17886A - CLAMP(FOR AIR CLEANER HOSE, NO.6) | ||||
| 90460-70005 |
1JZGTE..JZX81 INTER COOLER SIDE |
1 | ||
| 90460-75006 |
1JZGTE..JZX81 AIR TUBE SIDE |
1 | ||
| 17886A - CLAMP(FOR AIR CLEANER HOSE, NO.6) | ||||
| 90460-70005 |
1JZGTE..JZX81 INTER COOLER SIDE |
1 | ||
| 90460-75006 |
1JZGTE..JZX81 AIR TUBE SIDE |
1 | ||
| 17940D - INTERCOOLER ASSY | ||||
| 17940-46010 |
1JZGTE..JZX81 |
1 | ||
| Common parts | ||||
| 90301-29010 | ||||
| 90460-75006 | ||||
| 90460-85002 | ||||
| 91611-B0830 | ||||
| 91611-B0835 | ||||
| 91611-B0850 | ||||
| 91651-G0832 | ||||
| 91656-F0618 | ||||
| 91666-40620 | ||||

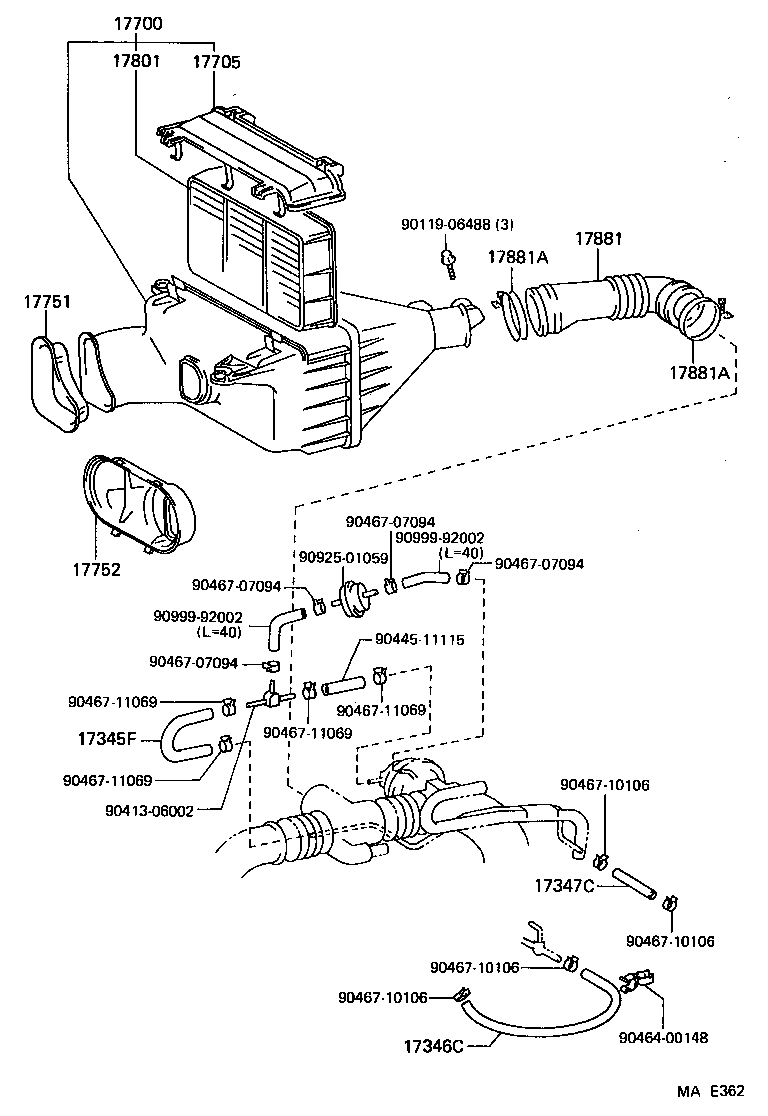

ILLUST NO. 1 OF 2(9008-9210)1JZGTE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17345F - HOSE, AIR, NO.5 | ||||
| 17345-88400 |
1JZGTE..JZX81 |
1 | ||
| 17346C - HOSE, NO.6 | ||||
| 17346-88400 |
1JZGTE..JZX81 |
1 | ||
| 17347C - HOSE, AIR, NO.7 | ||||
| 90445-10061 |
1JZGTE..JZX81 |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-46080 |
1JZGTE..JZX81 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-46060 |
1JZ#..JZX81 |
1 | ||
| 17751 - INLET, AIR CLEANER, NO.1 | ||||
| 17751-70020 |
1JZ#..JZX81 |
1 | ||
| 17752 - INLET, AIR CLEANER, NO.2 | ||||
| 17752-46050 |
1JZGTE..JZX81 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-46040 |
1JZ#..JZX81 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-46030 |
1JZGTE..JZX81 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10830 |
1JZGTE..JZX81 ｴﾝｼﾞﾝ側 |
1 | ||
| 96111-10900 |
1JZGTE..JZX81 AIR CLEANER SIDE |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10830 |
1JZGTE..JZX81 ｴﾝｼﾞﾝ側 |
1 | ||
| 96111-10900 |
1JZGTE..JZX81 AIR CLEANER SIDE |
1 | ||
| Common parts | ||||
| 90119-06488 | ||||
| 90413-06002 | ||||
| 90445-11115 | ||||
| 90464-00148 | ||||
| 90467-07094 | ||||
| 90467-10106 | ||||
| 90467-11069 | ||||
| 90925-01059 | ||||
| 90999-92002 | ||||
