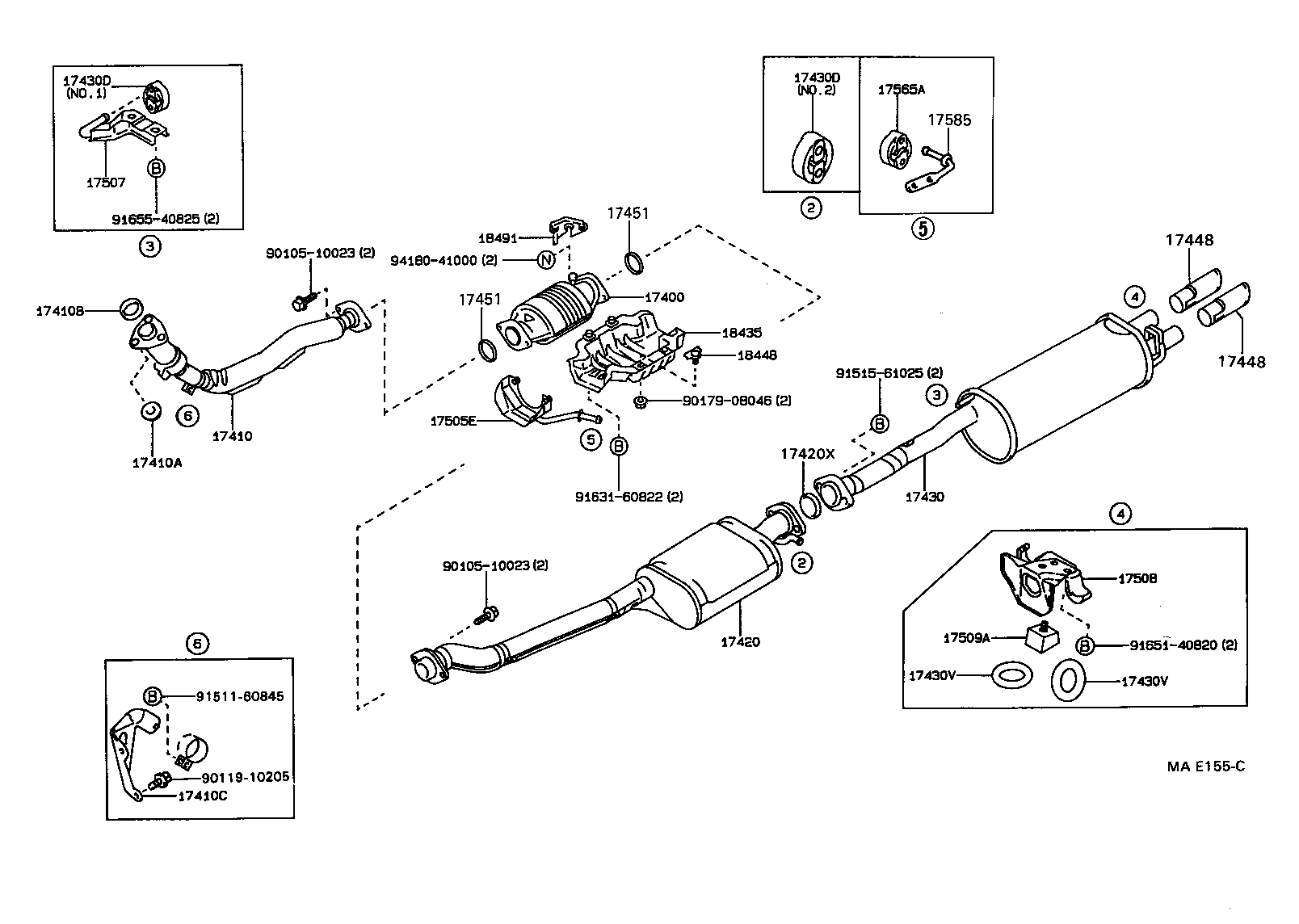

JZX81-BTPVZ (1990)
Toyota Chaser
(9008- )1JZGTE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17400 - CONVERTER ASSY, W/CATALYST | ||||
| 18450-70020 |
1GGTE,1JZGTE..GX81,JZX81 |
1 | ||
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-46010 |
1JZGTE..JZX81 |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
1GFE,1GG#,1JZ#,2L#,7MGE,4SF#,3YP..GX81,JZX81,LX80,MX83,SX80,YX80 |
3 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06056 |
1JZGTE..JZX81 |
1 | ||
| 17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT) | ||||
| 17571-46070 |
1JZGTE..JZX81 |
1 | ||
| 17420 - PIPE ASSY, EXHAUST, CENTER | ||||
| 17420-46010 |
1JZGTE..JZX81 |
1 | ||
| 17420X - GASKET, EXHAUST PIPE, CENTER | ||||
| 90917-06054 |
1JZGTE..JZX81 |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-46010 |
1JZGTE..JZX81 |
1 | ||
| 17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT) | ||||
| 17565-11100 |
1GFE,1GG#,1JZ#,2L#,7MGE,4SF#,3YP..GX81,JZX81,LX80,MX83,SX80,YX80 NO.1 |
1 | ||
| 17565-63020 |
1JZGTE,4SF#..JZX81,SX80..4FC NO.2 |
2 | ||
| 17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT) | ||||
| 17565-11100 |
1GFE,1GG#,1JZ#,2L#,7MGE,4SF#,3YP..GX81,JZX81,LX80,MX83,SX80,YX80 NO.1 |
1 | ||
| 17565-63020 |
1JZGTE,4SF#..JZX81,SX80..4FC NO.2 |
2 | ||
| 17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 90301-36001 |
1GFE,1GG#,1JZ#,2L#,7MGE,4SF#..GX81,JZX81,LX80,MX83,SX80 |
2 | ||
| 17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 90301-36001 |
1GFE,1GG#,1JZ#,2L#,7MGE,4SF#..GX81,JZX81,LX80,MX83,SX80 |
2 | ||
| 17448 - BAFFLE, TAIL PIPE | ||||
| 17408-46010 |
1JZGTE..JZX81 |
2 | ||
| 17448 - BAFFLE, TAIL PIPE | ||||
| 17408-46010 |
1JZGTE..JZX81 |
2 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06043 |
1GG#,1JZ#,7MGE..GX81,JZX81,MX83 ﾌﾛﾝﾄ |
1 | ||
| 90917-06054 |
1GGE,1JZ#,7MGE..GX81,JZX81,MX83 ﾘﾔ |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06043 |
1GG#,1JZ#,7MGE..GX81,JZX81,MX83 ﾌﾛﾝﾄ |
1 | ||
| 90917-06054 |
1GGE,1JZ#,7MGE..GX81,JZX81,MX83 ﾘﾔ |
1 | ||
| 17507 - BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT | ||||
| 17507-70030 |
1GFE,1GG#,1JZ#,7MGE..GX81,JZX81,MX83 |
1 | ||
| 17508 - SUPPORT SUB-ASSY, EXHAUST PIPE, NO.3 | ||||
| 17508-70060 |
1GFE,1GG#,1JZ#,2L#,7MGE,4SF#,3YP..GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 17509A - BRACKET SUB-ASSY, EXHAUST PIPE NO.4 SUPPORT | ||||
| 17509-70010 |
4SF#..SX80..5F;1GFE,1GG#,1JZ#,2L#,7MGE,3YP..GX81,JZX81,LX80,MX83,YX80 |
1 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-16020 |
1GFE,1GG#,1JZ#,7MGE,4SF#..GX81,JZX81,MX83,SX80 |
1 | ||
| 17585 - HANGER, EXHAUST PIPE | ||||
| 17585-70090 |
1GFE,1GG#,1JZ#,7MGE..GX81,JZX81,MX83..4FC |
1 | ||
| 18435 - PROTECTOR, CATALYTIC CONVERTER | ||||
| 18407-42010 |
1GFE,1GG#,1JZ#,7MGE..GX81,JZX81,MX83 |
1 | ||
| 18448 - BRACKET, CONVERTER PROTECTOR, CENTER | ||||
| 18448-43010 |
1GFE,1GG#,1JZ#,7MGE..GX81,JZX81,MX83 |
2 | ||
| 18491 - FLANGE, THERMOSENSOR INLET | ||||
| 18491-63010 |
1GFE,1GG#,1JZ#,7MGE..GX81,JZX81,MX83 |
1 | ||
| Common parts | ||||
| 90105-10023 | ||||
| 90119-10205 | ||||
| 90179-08046 | ||||
| 91511-60845 | ||||
| 91515-61025 | ||||
| 91631-60822 | ||||
| 91651-40820 | ||||
| 91655-40825 | ||||
| 94180-41000 | ||||
