JZX81-BTPVZ (1990)
Toyota Chaser

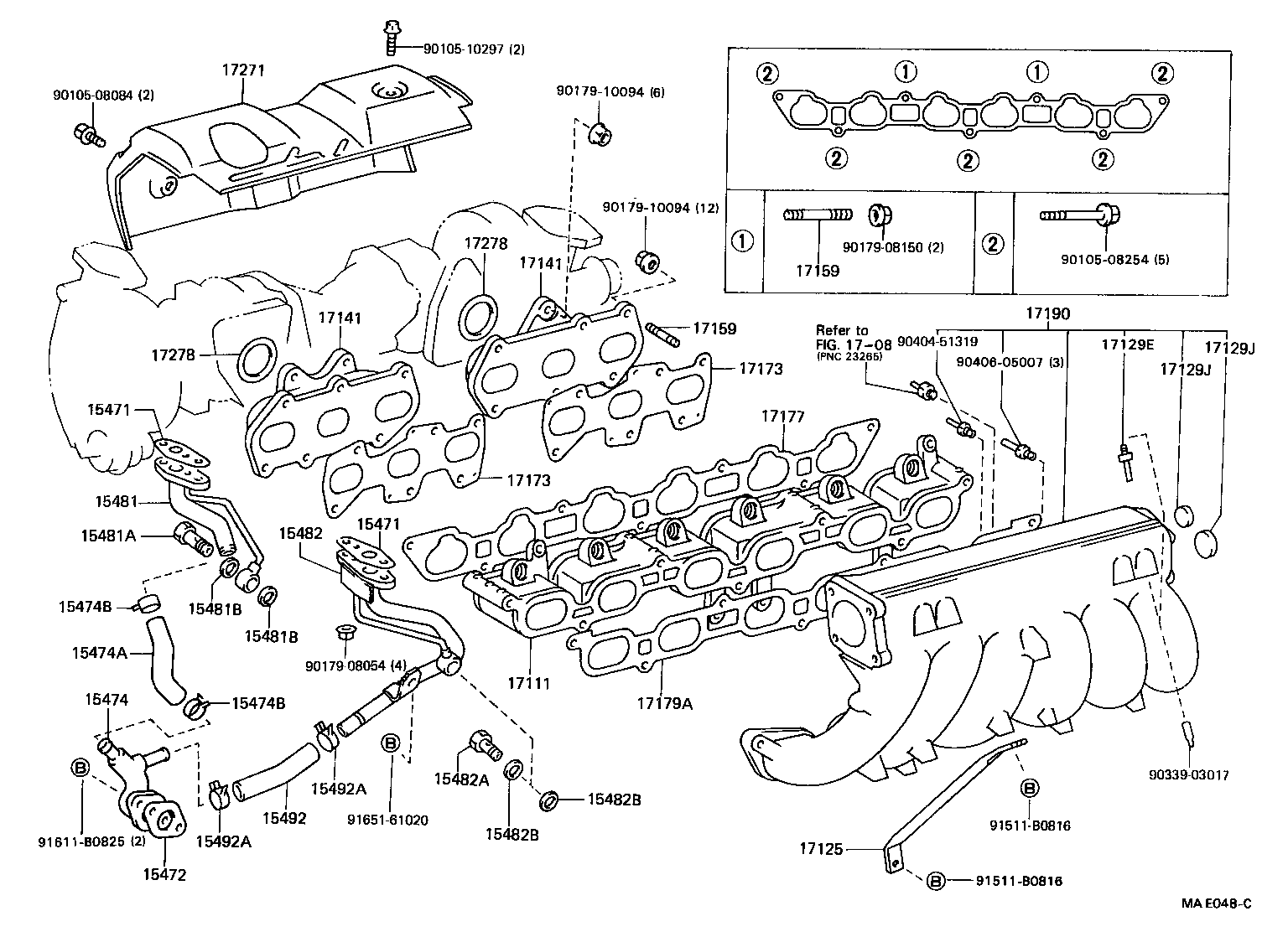

ILLUST NO. 1 OF 2(9008- )1JZGTE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15471 - GASKET, TURBO OIL INLET | ||||
| 15471-88380 |
1JZGTE..JZX81 |
2 | ||
| 15471 - GASKET, TURBO OIL INLET | ||||
| 15471-88380 |
1JZGTE..JZX81 |
2 | ||
| 15472 - GASKET, TURBO OIL OUTLET, NO.1 | ||||
| 15472-88400 |
1JZGTE..JZX81 |
1 | ||
| 15474 - PIPE, TURBO OIL OUTLET | ||||
| 15474-88400 |
1JZGTE..JZX81 |
1 | ||
| 15474A - HOSE, TURBO OIL OUTLET | ||||
| 15491-88400 |
1JZGTE..JZX81 |
1 | ||
| 15474B - CLAMP OR CLIP(FOR TURBO OIL OUTLET HOSE) | ||||
| 90467-26003 |
1JZGTE..JZX81 |
2 | ||
| 90467-26003 |
1JZGTE..JZX81 |
2 | ||
| 15474B - CLAMP OR CLIP(FOR TURBO OIL OUTLET HOSE) | ||||
| 90467-26003 |
1JZGTE..JZX81 |
2 | ||
| 90467-26003 |
1JZGTE..JZX81 |
2 | ||
| 15481 - PIPE, TURBO OIL, NO.1 | ||||
| 15481-88400 |
1JZGTE..JZX81 |
1 | ||
| 15481A - BOLT, UNION, NO.1 | ||||
| 90401-12009 |
1JZGTE..JZX81 |
1 | ||
| 15481B - GASKET(FOR UNION BOLT NO.1) | ||||
| 90430-12110 |
1JZGTE..JZX81 |
2 | ||
| 15481B - GASKET(FOR UNION BOLT NO.1) | ||||
| 90430-12110 |
1JZGTE..JZX81 |
2 | ||
| 15482 - PIPE, TURBO OIL, NO.2 | ||||
| 15482-88400 |
1JZGTE..JZX81 |
1 | ||
| 15482A - BOLT, UNION, NO.2 | ||||
| 90401-12009 |
1JZGTE..JZX81 |
1 | ||
| 15482B - GASKET(FOR UNION BOLT NO.2) | ||||
| 90430-12110 |
1JZGTE..JZX81 |
2 | ||
| 15482B - GASKET(FOR UNION BOLT NO.2) | ||||
| 90430-12110 |
1JZGTE..JZX81 |
2 | ||
| 15492 - HOSE, TURBO OIL OUTLET, NO.2 | ||||
| 15492-88400 |
1JZGTE..JZX81 |
1 | ||
| 15492A - CLIP(FOR TURBO OIL OUTLET HOSE NO.2) | ||||
| 90467-26003 |
1JZGTE..JZX81 |
2 | ||
| 15492A - CLIP(FOR TURBO OIL OUTLET HOSE NO.2) | ||||
| 90467-26003 |
1JZGTE..JZX81 |
2 | ||
| 17111 - MANIFOLD, INTAKE | ||||
| 17111-88401 |
1JZGTE..JZX81 |
1 | ||
| 17111-88400 |
1JZGTE..JZX81 |
1 | ||
| 17125 - STAY, SURGE TANK, NO.1 | ||||
| 17125-88400 |
1JZGTE..JZX81 |
1 | ||
| 17129E - UNION, NO.3 | ||||
| 90404-51026 |
1JZGTE..JZX81 |
2 | ||
| 17129J - PLUG, TIGHT(FOR INTAKE AIR SURGE TANK) | ||||
| 96411-43000 |
1JZGTE..JZX81 外径=30,OD=30 |
1 | ||
| 96411-41800 |
1JZGTE..JZX81 外径=18,OD=18 |
1 | ||
| 17129J - PLUG, TIGHT(FOR INTAKE AIR SURGE TANK) | ||||
| 96411-43000 |
1JZGTE..JZX81 外径=30,OD=30 |
1 | ||
| 96411-41800 |
1JZGTE..JZX81 外径=18,OD=18 |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-88400 |
1JZGTE..JZX81 |
2 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-88400 |
1JZGTE..JZX81 |
2 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-10063 |
1JZGTE..JZX81 EXHAUST SIDE |
12 | ||
| 90116-08351 |
1JZGTE..JZX81 INTAKE SIDE |
2 | ||
| 90116-10169 |
1JZGTE..JZX81 EXHAUST SIDE |
12 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-10063 |
1JZGTE..JZX81 EXHAUST SIDE |
12 | ||
| 90116-08351 |
1JZGTE..JZX81 INTAKE SIDE |
2 | ||
| 90116-10169 |
1JZGTE..JZX81 EXHAUST SIDE |
12 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-88400 |
1JZGTE..JZX81 |
2 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-88400 |
1JZGTE..JZX81 |
2 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-88400 |
1JZGTE..JZX81 |
1 | ||
| 17179A - GASKET, INTAKE MANIFOLD, NO.2 | ||||
| 17179-88400 |
1JZGTE..JZX81 |
1 | ||
| 17190 - TANK ASSY, INTAKE AIR SURGE | ||||
| 17190-88400 |
1JZGTE..JZX81 |
1 | ||
| 17271 - INSULATOR, TURBO, NO.1 | ||||
| 17271-88400 |
1JZGTE..JZX81 |
1 | ||
| 17278 - GASKET, TURBO TO EXHAUST MANIFOLD | ||||
| 17278-88400 |
1JZGTE..JZX81 |
2 | ||
| 17278 - GASKET, TURBO TO EXHAUST MANIFOLD | ||||
| 17278-88400 |
1JZGTE..JZX81 |
2 | ||
| Common parts | ||||
| 90105-08084 | ||||
| 90105-08254 | ||||
| 90105-10297 | ||||
| 90179-08054 | ||||
| 90179-08150 | ||||
| 90179-10094 | ||||
| 90339-03017 | ||||
| 90404-51319 | ||||
| 90406-05007 | ||||
| 91511-B0816 | ||||
| 91611-B0825 | ||||
| 91651-61020 | ||||
| Linked diagrams | ||||
| 1708 | ||||
ILLUST NO. 2 OF 2(9008- )1JZGTE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04175 - GASKET KIT, TURBOCHARGER | ||||
| 04175-46010 |
1JZGTE..JZX81 |
1 | ||
| 17021A - BOLT, STUD(FOR BEARING HOUSING) | ||||
| 90116-08158 |
1JZGTE..JZX81 |
4 | ||
| 17021A - BOLT, STUD(FOR BEARING HOUSING) | ||||
| 90116-08158 |
1JZGTE..JZX81 |
4 | ||
| 17021B - BOLT, STUD | ||||
| 90116-06048 |
1JZGTE..JZX81 |
4 | ||
| 17021B - BOLT, STUD | ||||
| 90116-06048 |
1JZGTE..JZX81 |
4 | ||
| 17025A - BOLT, STUD(FOR TURBINE HOUSING) | ||||
| 90116-08358 |
1JZGTE..JZX81 |
8 | ||
| 17025A - BOLT, STUD(FOR TURBINE HOUSING) | ||||
| 90116-08358 |
1JZGTE..JZX81 |
8 | ||
| 17141G - BOLT, STUD(FOR TURBOCHARGER) | ||||
| 90116-10175 |
1JZGTE..JZX81 |
6 | ||
| 17141G - BOLT, STUD(FOR TURBOCHARGER) | ||||
| 90116-10175 |
1JZGTE..JZX81 |
6 | ||
| 17201 - TURBOCHARGER SUB-ASSY | ||||
| 17208-46010 |
1JZGTE..JZX81 ﾘﾔ |
1 | ||
| 17201-46010 |
1JZGTE..JZX81 ﾌﾛﾝﾄ |
1 | ||
| 17201 - TURBOCHARGER SUB-ASSY | ||||
| 17208-46010 |
1JZGTE..JZX81 ﾘﾔ |
1 | ||
| 17201-46010 |
1JZGTE..JZX81 ﾌﾛﾝﾄ |
1 | ||
| 17224A - UNION(FOR COMPRESSOR HOUSING) | ||||
| 90404-51040 |
1JZGTE..JZX81 |
2 | ||
| 17224A - UNION(FOR COMPRESSOR HOUSING) | ||||
| 90404-51040 |
1JZGTE..JZX81 |
2 | ||
| 17279 - GASKET, TURBINE OUTLET ELBOW | ||||
| 17279-88400 |
1JZGTE..JZX81 |
4 | ||
| 17279 - GASKET, TURBINE OUTLET ELBOW | ||||
| 17279-88400 |
1JZGTE..JZX81 |
4 | ||
| 17291 - ELBOW, TURBINE OUTLET | ||||
| 17291-88400 |
1JZGTE..JZX81 |
1 | ||
| 17293 - STAY, TURBOCHARGER | ||||
| 17293-88402 |
1JZGTE..JZX81 |
1 | ||
| 17293-88400 |
1JZGTE..JZX81 |
1 | ||
| 17294 - HOSE, ACTUATOR | ||||
| 90445-12257 |
1JZGTE..JZX81 ﾌﾛﾝﾄ |
1 | ||
| 90445-12245 |
1JZGTE..JZX81 ﾘﾔ |
1 | ||
| 90445-12246 |
1JZGTE..JZX81 ﾌﾛﾝﾄ |
1 | ||
| 17294 - HOSE, ACTUATOR | ||||
| 90445-12257 |
1JZGTE..JZX81 ﾌﾛﾝﾄ |
1 | ||
| 90445-12245 |
1JZGTE..JZX81 ﾘﾔ |
1 | ||
| 90445-12246 |
1JZGTE..JZX81 ﾌﾛﾝﾄ |
1 | ||
| 17296 - PLATE, BEARING HOUSING, SIDE | ||||
| 17296-28010 |
1JZGTE..JZX81 |
2 | ||
| 17296 - PLATE, BEARING HOUSING, SIDE | ||||
| 17296-28010 |
1JZGTE..JZX81 |
2 | ||
| 17297 - STAY, TURBOCHARGER, NO.2 | ||||
| 17297-88401 |
1JZGTE..JZX81 |
1 | ||
| 17297-88400 |
1JZGTE..JZX81 |
1 | ||
| Common parts | ||||
| 90116-08187 | ||||
| 90116-10058 | ||||
| 90119-10743 | ||||
| 90126-10010 | ||||
| 90179-08082 | ||||
| 90179-10094 | ||||
| 90523-04002 | ||||
| 91621-60818 | ||||
| 91655-G0620 | ||||
