JZX81-BTPVZ (1990)

Toyota Chaser

Production Aug 1990 - Oct 1992
Engine 1JZGTE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9008- )1JZGTE

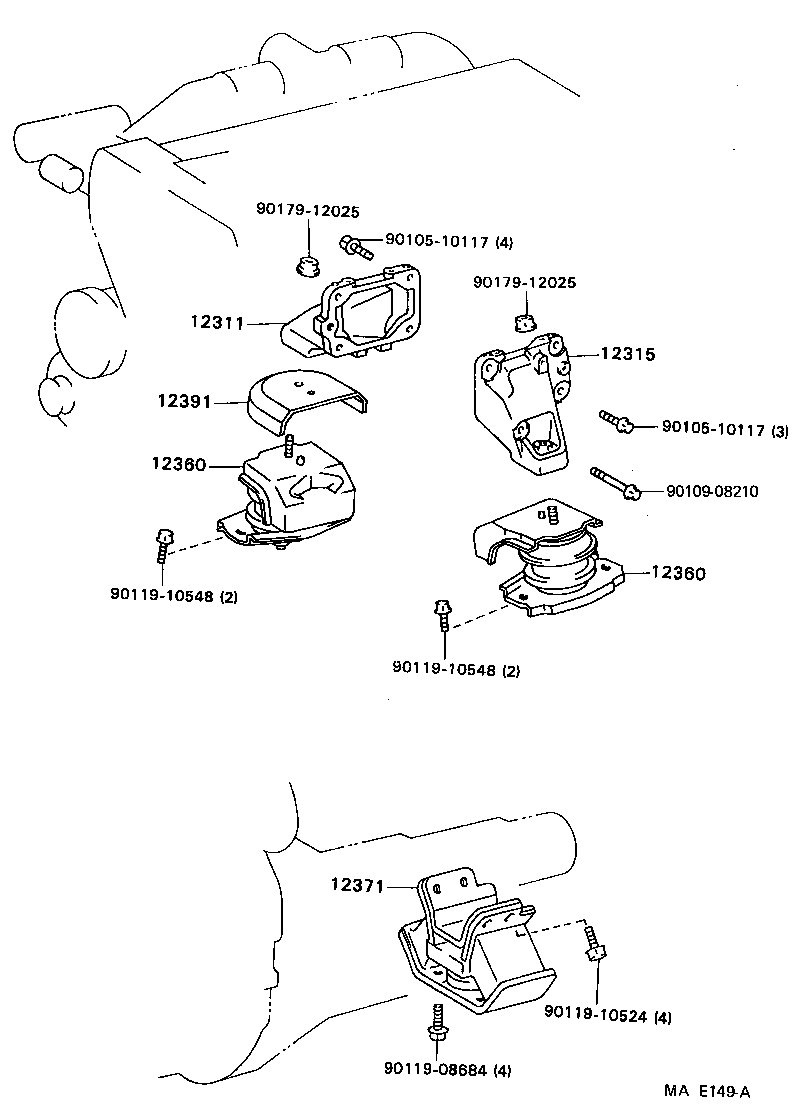

Click highlighted areas on diagram

diagram 12311 12315 12360 12360 12371 12391 9010510117 9010510117 9010908210 9011908684 9011910524 9011910548 9011910548 9017912025 9017912025
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-46020

1JZ#..JZX81

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-46020

1JZ#..JZX81

 1
12360 - INSULATOR ASSY, ENGINE MOUNTING, FRONT
12360-46010

1JZ#..JZX81

 2
12360 - INSULATOR ASSY, ENGINE MOUNTING, FRONT
12360-46010

1JZ#..JZX81

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-42020

1JZ#..JZX81

 1
12391 - INSULATOR, ENGINE MOUNTING FRONT, HEAT, RH
12391-46020

1JZGTE..JZX81

 1
Common parts
90105-10117
90109-08210
90119-08684
90119-10524
90119-10548
90179-12025
