JZX81-BTPVZ (1990)
Toyota Chaser
Production
Aug 1990
-
Oct 1992
Engine
1JZGTE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9008- )1JZGTE

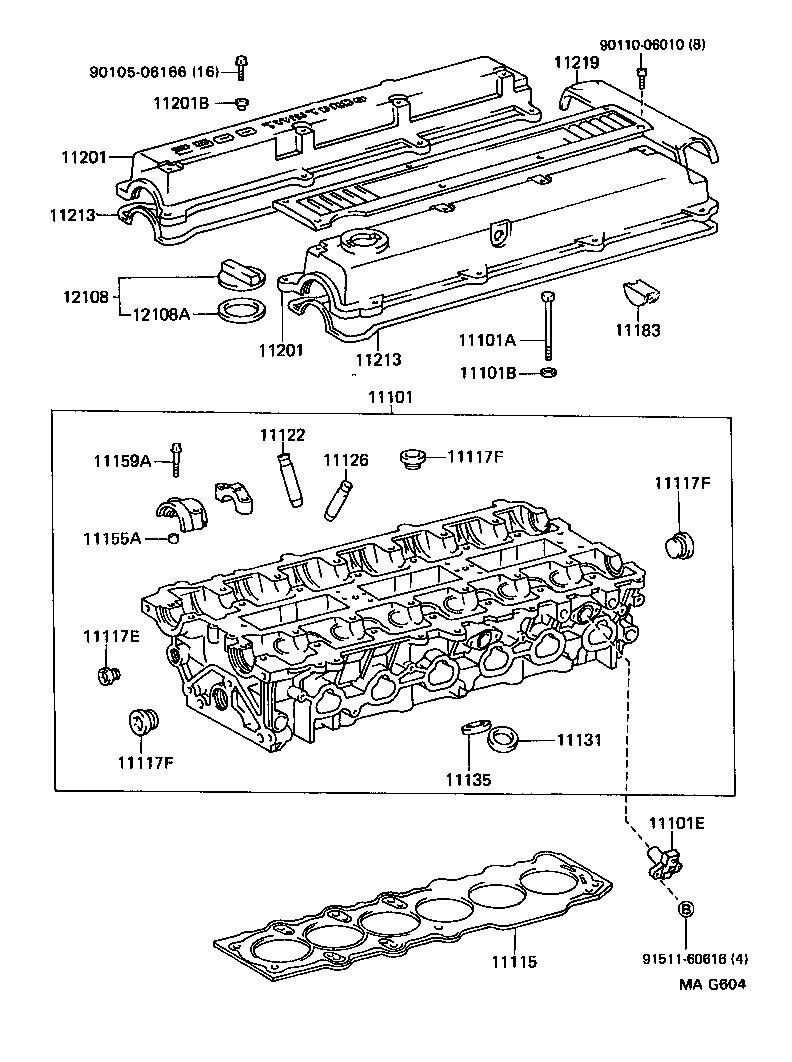

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-88400 |
1JZGTE..JZX81 |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02102 |
1JZ#..JZX81 |
14 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90201-11018 |
1JZ#..JZX81 |
14 | ||
| 11101E - SENSOR, CAM POSITION | ||||
| 90919-05007 |
1JZGTE..JZX81 |
2 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-88400 |
1JZGTE..JZX81 |
1 | ||
| 11117E - PLUG, W/HEAD STRAIGHT SCREW, NO.1 | ||||
| 90341-18010 |
1JZGTE..JZX81 |
4 | ||
| 11117F - PLUG, W/HEAD STRAIGHT SCREW, NO.2 | ||||
| 90341-27003 |
1JZGTE..JZX81 |
6 | ||
| 11117F - PLUG, W/HEAD STRAIGHT SCREW, NO.2 | ||||
| 90341-27003 |
1JZGTE..JZX81 |
6 | ||
| 11117F - PLUG, W/HEAD STRAIGHT SCREW, NO.2 | ||||
| 90341-27003 |
1JZGTE..JZX81 |
6 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11122-88400 |
1JZGTE..JZX81 STD |
12 | ||
| 11123-88400 |
1JZGTE..JZX81 O/S 0.05 |
12 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11122-88400 |
1JZGTE..JZX81 STD |
12 | ||
| 11123-88400 |
1JZGTE..JZX81 O/S 0.05 |
12 | ||
| 11131 - SEAT, INTAKE VALVE | ||||
| 11131-46030 |
1JZGTE..JZX81 STD |
12 | ||
| 11132-46030 |
1JZGTE..JZX81 O/S 0.03 |
12 | ||
| 11135 - SEAT, EXHAUST VALVE | ||||
| 11136-46030 |
1JZGTE..JZX81 O/S 0.03 |
12 | ||
| 11135-46030 |
1JZGTE..JZX81 STD |
12 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90119-08890 |
1JZ#..JZX81 |
28 | ||
| 11183 - PLUG, SEMICIRCULAR | ||||
| 11183-88400 |
1JZGTE..JZX81 |
2 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11202-88400 |
1JZGTE..JZX81 EXHAUST SIDE |
1 | ||
| 11201-88400 |
1JZGTE..JZX81 INTAKE SIDE |
1 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11202-88400 |
1JZGTE..JZX81 EXHAUST SIDE |
1 | ||
| 11201-88400 |
1JZGTE..JZX81 INTAKE SIDE |
1 | ||
| 11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER) | ||||
| 90210-07001 |
1JZ#..JZX81 *53 & (9109-9210)*54 |
16 | ||
| 90210-07001 |
1JZ#..JZX81 |
16 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-88400 |
1JZGTE..JZX81 |
2 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-88400 |
1JZGTE..JZX81 |
2 | ||
| 11219 - COVER, CYLINDER HEAD, NO.3 | ||||
| 11219-88400 |
1JZGTE..JZX81 |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-46010 |
1JZ#..JZX81 |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 12195-46010 |
1JZ#..JZX81 |
1 | ||
| 12195-46011 |
1JZ#..JZX81 |
1 | ||
| Common parts | ||||
| 90105-06166 | ||||
| 90110-06010 | ||||
| 91511-60616 | ||||
