JZX81-BTPQF (1990)

Toyota Chaser

Production Aug 1990 - Oct 1992
Engine 1JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9008-9210)JZX81

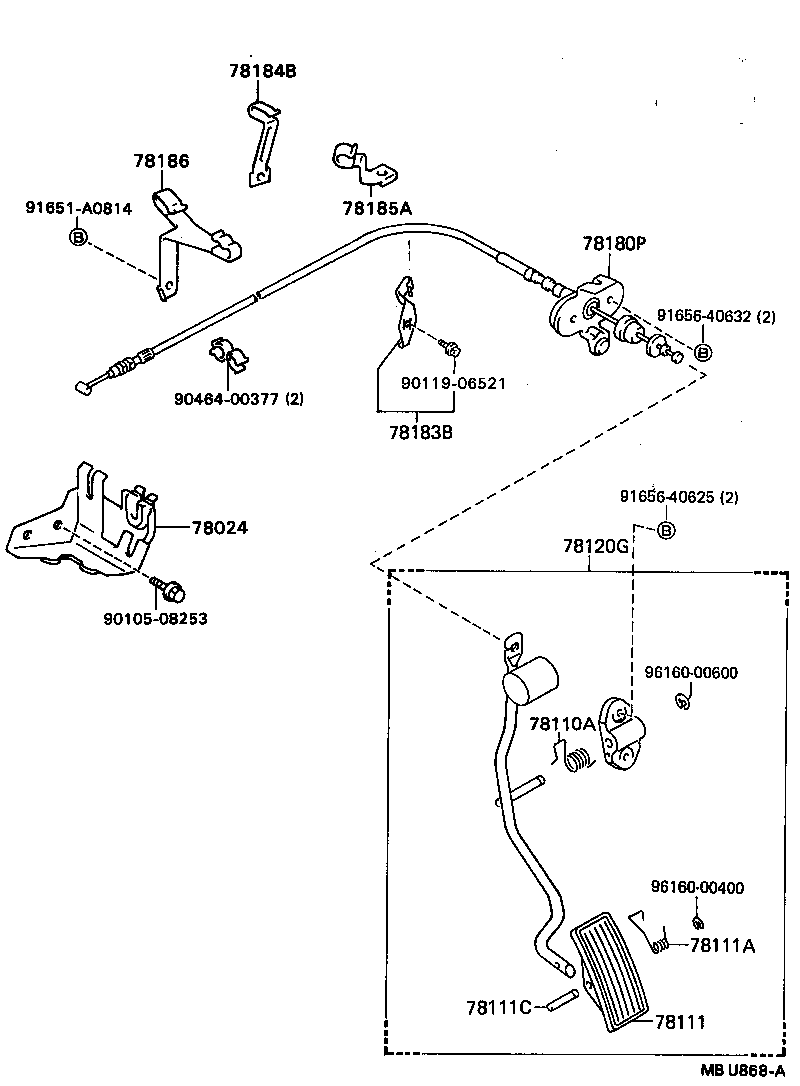

Click highlighted areas on diagram

diagram 78024 78110A 78111 78111A 78111C 78120G 78180P 78183B 78184B 78185A 78186 9010508253 9011906521 9046400377 91651A0814 9165640625 9165640632 9616000400 9616000600
Part # Description Qty Price
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-18060

GX81..5F..TWT;GX81,JZX81,LX80,MX83,SX80,YX80..ATM

 1
78111A - SPRING (FOR ACCELERATOR PEDAL)
90508-23108

GX81,JZX81,LX80,MX83,SX80,YX80

 1
78111C - PIN (FOR ACCELERATOR PEDAL)
90249-05001

GX81,JZX81,LX80,MX83,SX80,YX80

 1
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-22270

GX81..5F..TWT;GX81,JZX81,LX80,MX83,SX80,YX80..ATM

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-2A390

JZX81..TWC

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-22061

GX81,JZX81,LX80,MX83,SX80,YX80

 1
78183-22060

GX81,JZX81,LX80,MX83,SX80,YX80

 1
78184B - BRACKET, ACCELERATOR CONTROL CABLE
78184-22231

JZX81..AVT

ｱﾘ(*66)

 1
78184-22351

GX81,JZX81,SX80,YX80..AVT,KYO,SXL,XG,XL

 1
Common parts
90105-08253
90119-06521
90464-00377
91651-A0814
91656-40625
91656-40632
96160-00400
96160-00600
