JZX81-BTPQF (1990)
Toyota Chaser
(8808-9210)

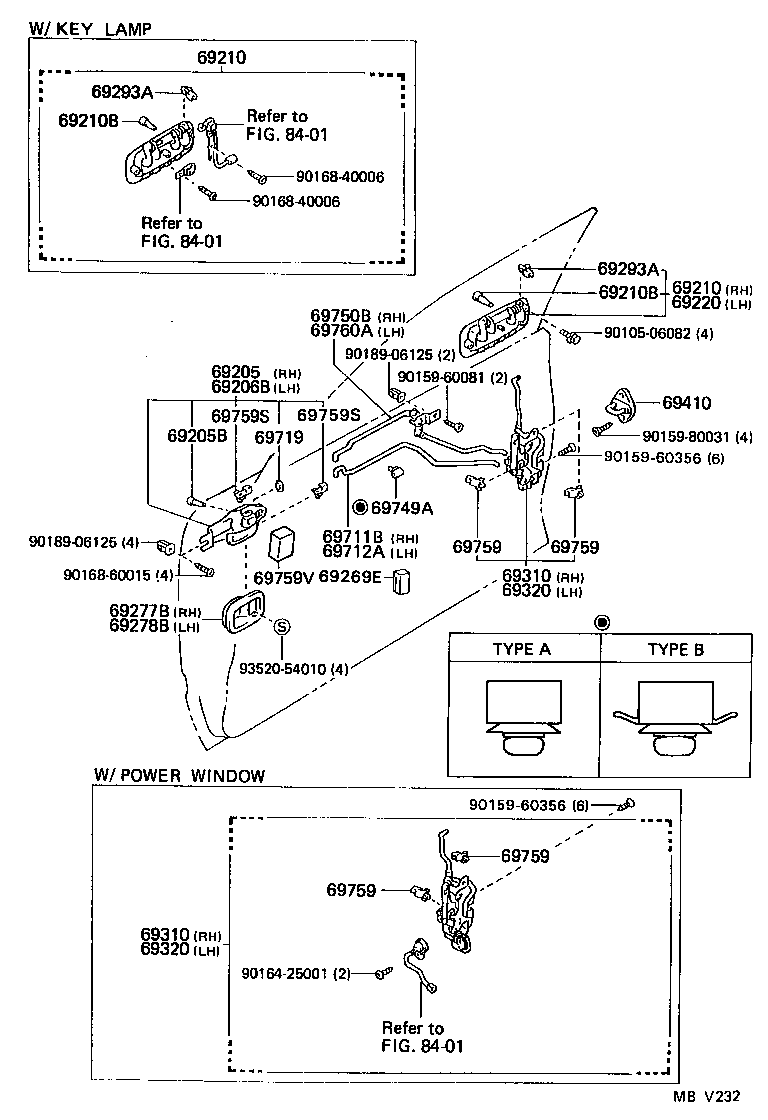

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 69205-2205002 |
GX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG NEW MAROON,TRIM3# |
1 | ||
| 69205-2205006 |
GX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG,XL SABLE,TRIM4# |
1 | ||
| 69205-2205003 |
GX81,JZX81,LX80,MX83,SX80,YX80 MEDIUM GRAY,TRIM1# |
1 | ||
| 69205-2206006 |
GX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG,XL SABLE,TRIM4# |
1 | ||
| 69205-2206002 |
GX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG NEW MAROON,TRIM3# |
1 | ||
| 69205-2206003 |
GX81,JZX81,LX80,MX83,SX80,YX80 MEDIUM GRAY,TRIM1# |
1 | ||
| 69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69206-2205002 |
GX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG NEW MAROON,TRIM3# |
1 | ||
| 69206-2205006 |
GX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG,XL SABLE,TRIM4# |
1 | ||
| 69206-2206006 |
GX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG,XL SABLE,TRIM4# |
1 | ||
| 69206-2206003 |
GX81,JZX81,LX80,MX83,SX80,YX80 MEDIUM GRAY,TRIM1# |
1 | ||
| 69206-2205003 |
GX81,JZX81,LX80,MX83,SX80,YX80 MEDIUM GRAY,TRIM1# |
1 | ||
| 69206-2206002 |
GX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG NEW MAROON,TRIM3# |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-22130 |
GX81,JZX81..AVT,GT |
1 | ||
| 69210-2216008 |
JZX81..AVT 2.5 ｼﾝｱﾊﾞﾝﾃﾛ-ﾄﾞﾘ-,WHITE PEARL MICA,049,22K |
1 | ||
| 69210-2216008 |
JZX81..AVT ｱﾊﾞﾝﾃ ﾛ-ﾄﾞﾘ-,WHITE PEARL MICA,049 |
1 | ||
| 69210-2216018 |
JZX81..AVT 2.5 ｼﾝｱﾊﾞﾝﾃﾛ-ﾄﾞﾘ-,SUPER WHITE 4,050 |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-22130 |
GX81,JZX81..AVT,GT |
1 | ||
| 69210-2216008 |
JZX81..AVT 2.5 ｼﾝｱﾊﾞﾝﾃﾛ-ﾄﾞﾘ-,WHITE PEARL MICA,049,22K |
1 | ||
| 69210-2216008 |
JZX81..AVT ｱﾊﾞﾝﾃ ﾛ-ﾄﾞﾘ-,WHITE PEARL MICA,049 |
1 | ||
| 69210-2216018 |
JZX81..AVT 2.5 ｼﾝｱﾊﾞﾝﾃﾛ-ﾄﾞﾘ-,SUPER WHITE 4,050 |
1 | ||
| 69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE) | ||||
| 90541-04018 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
4 | ||
| 69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE) | ||||
| 90541-04018 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
4 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69220-22110 |
GX81,JZX81,LX80,SX80,YX80..AVT,GT,KYO,SXL,XG,XL |
1 | ||
| 69220-2215018 |
JZX81..AVT 2.5 ｼﾝｱﾊﾞﾝﾃﾛ-ﾄﾞﾘ-,SUPER WHITE 4,050 |
1 | ||
| 69220-2215008 |
JZX81..AVT ｱﾊﾞﾝﾃ ﾛ-ﾄﾞﾘ-,WHITE PEARL MICA,049 |
1 | ||
| 69220-2215008 |
JZX81..AVT 2.5 ｼﾝｱﾊﾞﾝﾃﾛ-ﾄﾞﾘ-,WHITE PEARL MICA,049,22K |
1 | ||
| 69277B - BEZEL, FRONT DOOR INSIDE HANDLE, RH | ||||
| 69277-2207006 |
GX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG,XL SABLE,TRIM4# |
1 | ||
| 69277-2207002 |
GX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG NEW MAROON,TRIM3# |
1 | ||
| 69277-2207003 |
GX81,JZX81,LX80,MX83,SX80,YX80 MEDIUM GRAY,TRIM1# |
1 | ||
| 69278B - BEZEL, FRONT DOOR INSIDE HANDLE, LH | ||||
| 69278-2203002 |
GX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG NEW MAROON,TRIM3# |
1 | ||
| 69278-2203006 |
GX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG,XL SABLE,TRIM4# |
1 | ||
| 69278-2203003 |
GX81,JZX81,LX80,MX83,SX80,YX80 MEDIUM GRAY,TRIM1# |
1 | ||
| 69293A - SNAP, FRONT DOOR OUTSIDE HANDLE | ||||
| 69293-12050 |
GX81,JZX81,LX80,MX83,SX80,YX80 右側 |
1 | ||
| 69293-12060 |
GX81,JZX81,LX80,MX83,SX80,YX80 左側 |
1 | ||
| 69293A - SNAP, FRONT DOOR OUTSIDE HANDLE | ||||
| 69293-12050 |
GX81,JZX81,LX80,MX83,SX80,YX80 右側 |
1 | ||
| 69293-12060 |
GX81,JZX81,LX80,MX83,SX80,YX80 左側 |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69030-22291 |
GX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69030-22291 |
GX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69040-22331 |
GX81,JZX81,MX83..AVT,AVTG,GT |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69040-22331 |
GX81,JZX81,MX83..AVT,AVTG,GT |
1 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-20070 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
2 | ||
| 69711B - LINK, FRONT DOOR LOCK REMOTE CONTROL, RH | ||||
| 69711-22090 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 69712A - LINK, FRONT DOOR LOCK REMOTE CONTROL, LH | ||||
| 69712-22090 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 69749A - CLAMP, FRONT DOOR LOCK LINK, NO.1 | ||||
| 69749-20030 |
GX81,JZX81,LX80,MX83,SX80,YX80 ﾀｲﾌﾟ A |
2 | ||
| 69749-50010 |
GX81,JZX81,LX80,MX83,SX80,YX80 ﾀｲﾌﾟ B |
2 | ||
| 69750B - LINK ASSY, FRONT DOOR INSIDE LOCKING, RH | ||||
| 69750-22010 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 69750-22040 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1 | ||||
| 69759-24050 |
GX81,JZX81,LX80,MX83,SX80,YX80 GREEN |
2 | ||
| 69759-24060 |
GX81,JZX81,LX80,MX83,SX80,YX80 GRAY |
2 | ||
| 69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1 | ||||
| 69759-24050 |
GX81,JZX81,LX80,MX83,SX80,YX80 GREEN |
2 | ||
| 69759-24060 |
GX81,JZX81,LX80,MX83,SX80,YX80 GRAY |
2 | ||
| 69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1 | ||||
| 69759-24050 |
GX81,JZX81,LX80,MX83,SX80,YX80 GREEN |
2 | ||
| 69759-24060 |
GX81,JZX81,LX80,MX83,SX80,YX80 GRAY |
2 | ||
| 69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1 | ||||
| 69759-24050 |
GX81,JZX81,LX80,MX83,SX80,YX80 GREEN |
2 | ||
| 69759-24060 |
GX81,JZX81,LX80,MX83,SX80,YX80 GRAY |
2 | ||
| 69759S - SNAP, FRONT DOOR INSIDE HANDLE | ||||
| 69759-14050 |
GX81,JZX81,LX80,MX83,SX80,YX80 左側 |
2 | ||
| 69759-24070 |
GX81,JZX81,LX80,MX83,SX80,YX80 右側 |
2 | ||
| 69759S - SNAP, FRONT DOOR INSIDE HANDLE | ||||
| 69759-14050 |
GX81,JZX81,LX80,MX83,SX80,YX80 左側 |
2 | ||
| 69759-24070 |
GX81,JZX81,LX80,MX83,SX80,YX80 右側 |
2 | ||
| 69760A - LINK ASSY, FRONT DOOR INSIDE LOCKING, LH | ||||
| 69760-22010 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 69760-22040 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| Common parts | ||||
| 90105-06082 | ||||
| 90159-60081 | ||||
| 90159-60356 | ||||
| 90159-80031 | ||||
| 90164-25001 | ||||
| 90168-40006 | ||||
| 90168-60015 | ||||
| 90189-06125 | ||||
| 93520-54010 | ||||
| Linked diagrams | ||||
| 8401 | ||||
