JZX81-BTPQF (1990)
Toyota Chaser
(9008- )1JZ#,7MGE
12V 1.4KW

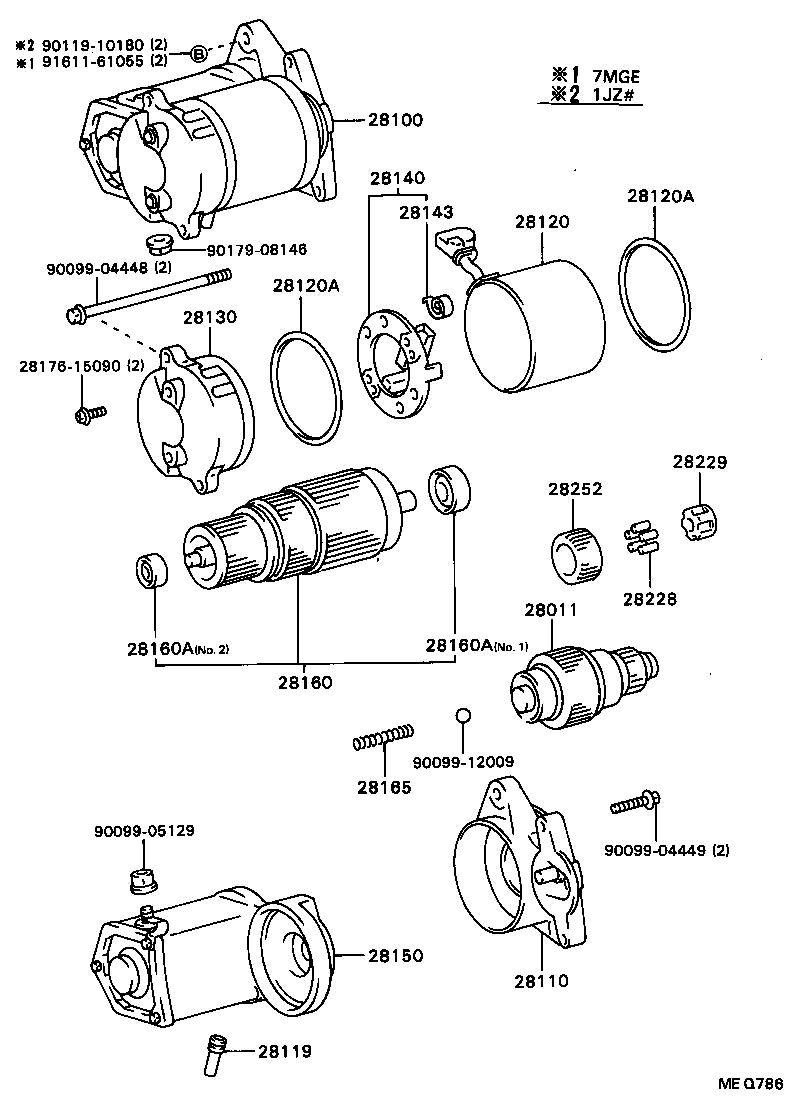

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-76070 |
1JZ#,7MGE..JZX81,MX83 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28011-70020 |
1GFE,1GG#,1JZ#..GX81,JZX81 |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-46090 |
1JZ#,7MGE..JZX81,MX83 12V 1.4KW,ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28100-46080 |
1JZ#..JZX81 12V 0.8KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-46090 |
1JZ#,7MGE..JZX81,MX83 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28110-46080 |
1JZ#..JZX81 |
1 | ||
| 28119 - COVER, STARTER END FRAME | ||||
| 28199-46080 |
1G#,1JZ#..GX81,JZX81 |
1 | ||
| 28199-74110 |
1JZ#,7MGE..JZX81,MX83 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-70020 |
1GFE,1GG#,1JZ#..GX81,JZX81 |
1 | ||
| 28120-74070 |
1JZ#,7MGE..JZX81,MX83 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28120A - RING, O(FOR STARTER YOKE) | ||||
| 90099-14064 |
1JZ#,7MGE,3YP..JZX81,MX83,YX80 ｶﾝﾚｲﾁ ｼﾖｳ |
2 | ||
| 90099-14092 |
1GFE,1GG#,1JZ#..GX81,JZX81 |
2 | ||
| 28120A - RING, O(FOR STARTER YOKE) | ||||
| 90099-14064 |
1JZ#,7MGE,3YP..JZX81,MX83,YX80 ｶﾝﾚｲﾁ ｼﾖｳ |
2 | ||
| 90099-14092 |
1GFE,1GG#,1JZ#..GX81,JZX81 |
2 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-46090 |
1JZ#,7MGE..JZX81,MX83 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28130-15190 |
1JZ#..JZX81 |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-70020 |
1GFE,1GG#,1JZ#..GX81,JZX81 |
1 | ||
| 28140-76070 |
1JZ#,7MGE..JZX81,MX83 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 90099-17112 |
1GFE,1GG#,1JZ#..GX81,JZX81 ｶﾝﾚｲﾁ ｼﾖｳ |
4 | ||
| 28143-70020 |
1GFE,1GG#,1JZ#..GX81,JZX81 |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-46090 |
1JZ#,7MGE..JZX81,MX83 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28150-46120 |
1JZ#,7MGE..JZX81,MX83 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28150-46080 |
1G#,1JZ#..GX81,JZX81 |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-74070 |
1JZ#,7MGE..JZX81,MX83 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10196 |
1JZ#,7MGE..JZX81,MX83 ｶﾝﾚｲﾁ ｼﾖｳ,NO.2 |
1 | ||
| 90099-10197 |
1JZ#,7MGE..JZX81,MX83 ｶﾝﾚｲﾁ ｼﾖｳ,NO.1 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10196 |
1JZ#,7MGE..JZX81,MX83 ｶﾝﾚｲﾁ ｼﾖｳ,NO.2 |
1 | ||
| 90099-10197 |
1JZ#,7MGE..JZX81,MX83 ｶﾝﾚｲﾁ ｼﾖｳ,NO.1 |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-76070 |
1JZ#,7MGE..JZX81,MX83 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28228 - ROLLER, STARTER IDLE GEAR CLUTCH | ||||
| 28228-26040 |
1GFE,1GG#,1JZ#..GX81,JZX81 ｶﾝﾚｲﾁ ｼﾖｳ |
5 | ||
| 28229 - RETAINER, STARTER IDLE GEAR | ||||
| 28229-74070 |
1JZ#,7MGE..JZX81,MX83 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-74070 |
1JZ#,7MGE..JZX81,MX83 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| Common parts | ||||
| 28176-15090 | ||||
| 90099-04448 | ||||
| 90099-04449 | ||||
| 90099-05129 | ||||
| 90099-12009 | ||||
| 90119-10180 | ||||
| 90179-08146 | ||||
| 91611-61055 | ||||
