JZX101-BTPZF (1996)

Toyota Chaser

Production Sep 1996 - Jun 2001
Engine 2JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9609- )JZX10#..AVT,AVTG,TOUS

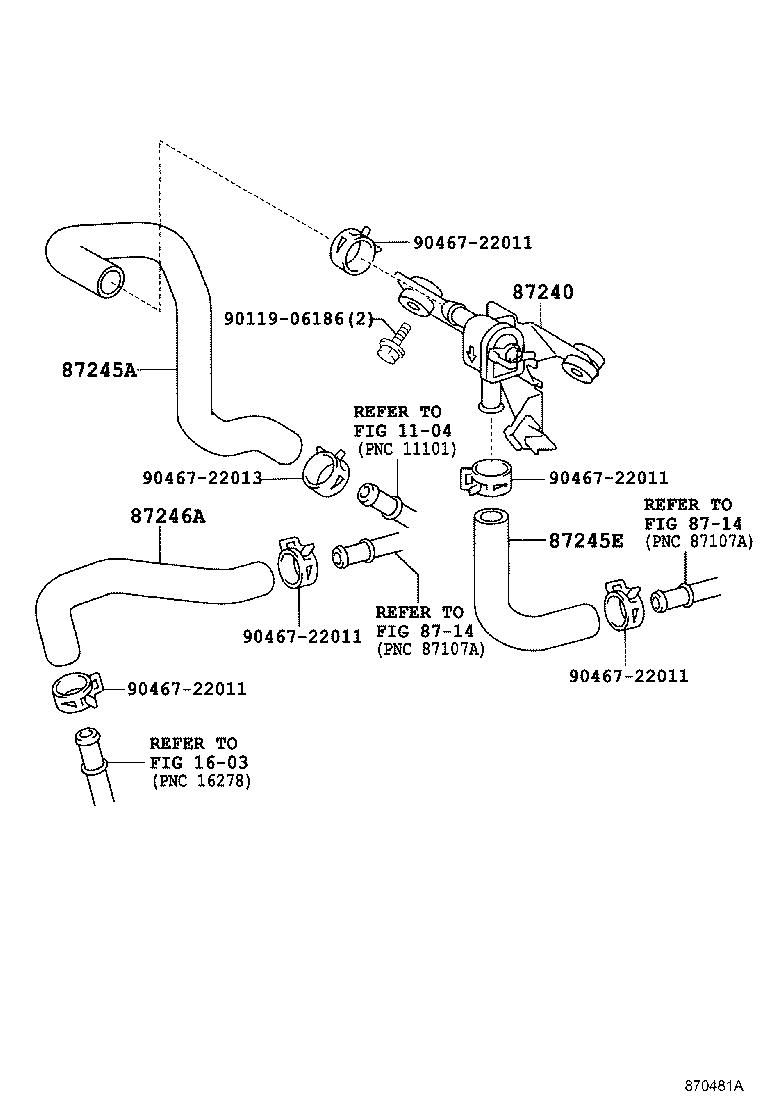

Click highlighted areas on diagram

diagram 1104 1603 8714 8714 87240 87245A 87245E 87246A 9011906186 9046722011 9046722011 9046722011 9046722011 9046722011 9046722013
Part # Description Qty Price
87240 - VALVE ASSY, HEATER WATER
87240-22370

GX10#,JZX10#,LX100,SX100

 1
87245A - HOSE, HEATER WATER, INLET A
87245-2A640

JZX10#..AVT,AVTG,TOUS

 1
87245E - HOSE, HEATER WATER, INLET E
87245-2A520

JZX100..TOUV;GX100,JZX101,LX100,SX100

 1
87245-2A520

GX10#,JZX10#,LX100,SX100

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-2A510

JZX10#..AVT,AVTG,TOUS

 1
Common parts
90119-06186
90467-22011
90467-22013
Linked diagrams
1104
1603
8714
