JZX101-BTPZF (1996)
Toyota Chaser

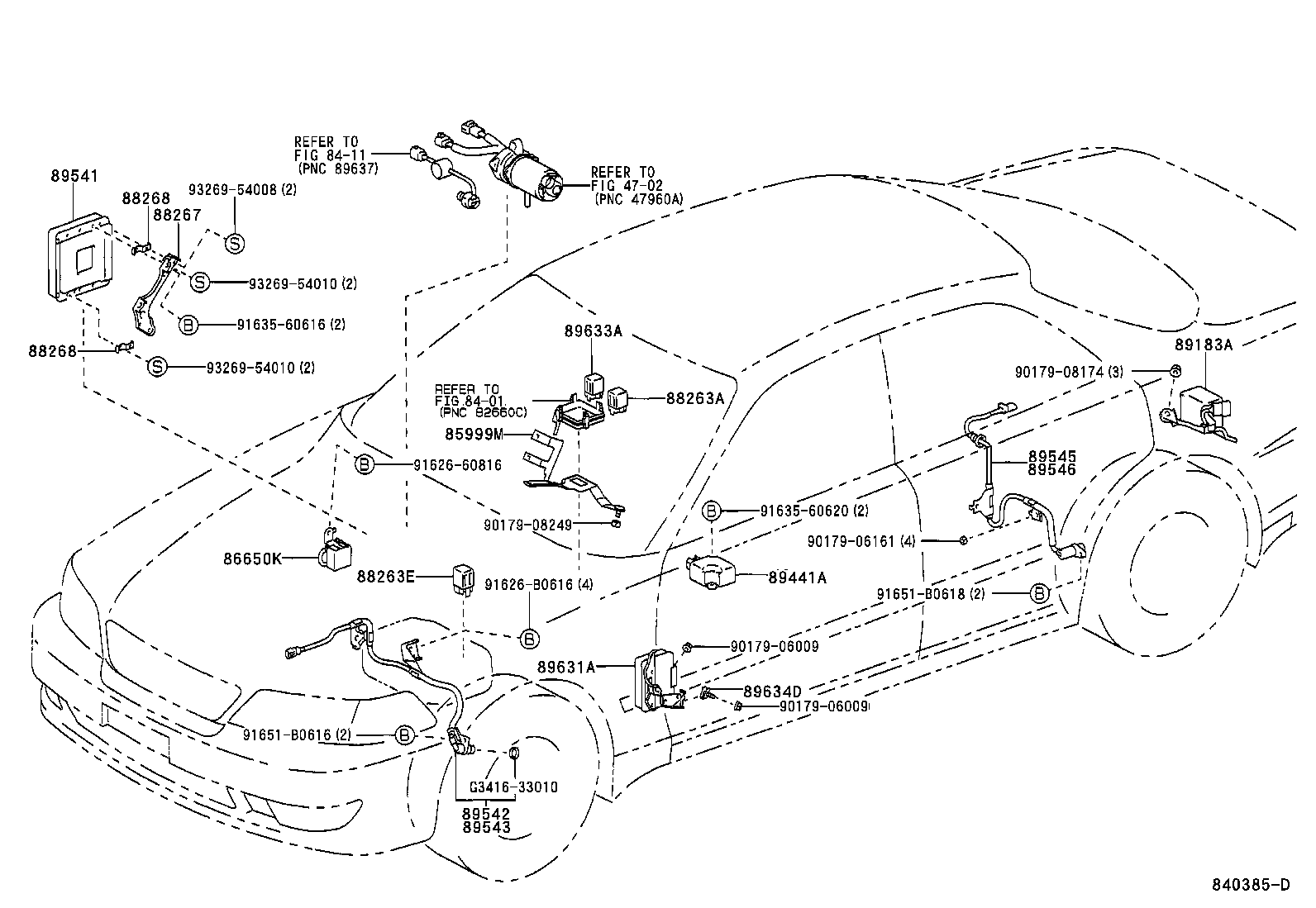

(9609-9808)JZX101
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85999M - BRACKET, RELAY | ||||
| 85999-22450 |
JZX101 |
1 | ||
| 86650K - BUZZER ASSY, SKID CONTROL | ||||
| 86650-22120 |
JZX101 |
1 | ||
| 86650-22130 |
JZX100,101..AVT,AVTG |
1 | ||
| 88263A - RELAY, SKID CONTROL | ||||
| 88263-24020 |
JZX100,101..AVT,AVTG ｱﾘ(VSC) |
1 | ||
| 88263-24020 |
JZX101 |
1 | ||
| 88263E - RELAY, SKID CONTROL NO.2 | ||||
| 88263-24030 |
GX10#,JZX10#,LX100,SX100 |
1 | ||
| 88267 - BRACKET, SKID CONTROL COMPUTER, NO.1 | ||||
| 88267-22180 |
JZX101;JZX100..TOUV |
1 | ||
| 88268 - BRACKET, SKID CONTROL COMPUTER, NO.2 | ||||
| 88268-30150 |
JZX101 |
2 | ||
| 88268 - BRACKET, SKID CONTROL COMPUTER, NO.2 | ||||
| 88268-30150 |
JZX101 |
2 | ||
| 89183A - SENSOR, YAWRATE | ||||
| 89183-22010 |
JZX101 |
1 | ||
| 89180-22010 |
JZX100,101..AVT,AVTG |
1 | ||
| 89441A - SENSOR, DECELERATION | ||||
| 89441-30050 |
JZX100,101..AVT,AVTG |
1 | ||
| 89441-30031 |
JZX101 |
1 | ||
| 89541 - COMPUTER, SKID CONTROL | ||||
| 89541-22210 |
JZX101 |
1 | ||
| 89542 - SENSOR, SPEED, FRONT RH | ||||
| 89542-22100 |
GX100,JZX100,101,LX100,SX100 |
1 | ||
| 89543 - SENSOR, SPEED, FRONT LH | ||||
| 89543-22100 |
GX100,JZX100,101,LX100,SX100 |
1 | ||
| 89545 - SENSOR, SPEED, REAR RH | ||||
| 89545-22020 |
GX100..5F;GX105,JZX10#,LX100,SX100 |
1 | ||
| 89546 - SENSOR, SPEED, REAR LH | ||||
| 89546-22020 |
GX100..5F;GX105,JZX10#,LX100,SX100 |
1 | ||
| 89631A - DRIVER ASSY, THROTTLE VALVE MOTOR | ||||
| 89630-22060 |
JZX101 |
1 | ||
| 89633A - RELAY, TRACTION CONTROL OR VSC | ||||
| 89633-24010 |
JZX101 |
1 | ||
| 89634D - BRACKET, SKID CONTROL COMPUTER NO.3 | ||||
| 89634-22040 |
GX10#,JZX10#,LX100,SX100..AVT,AVTG,RAF,TOU,TOUS,XL |
1 | ||
| Common parts | ||||
| 90179-06009 | ||||
| 90179-06161 | ||||
| 90179-08174 | ||||
| 90179-08249 | ||||
| 91626-60816 | ||||
| 91626-B0616 | ||||
| 91635-60616 | ||||
| 91635-60620 | ||||
| 91651-B0616 | ||||
| 91651-B0618 | ||||
| 93269-54008 | ||||
| 93269-54010 | ||||
| G3416-33010 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 8401 | ||||
| 8411 | ||||

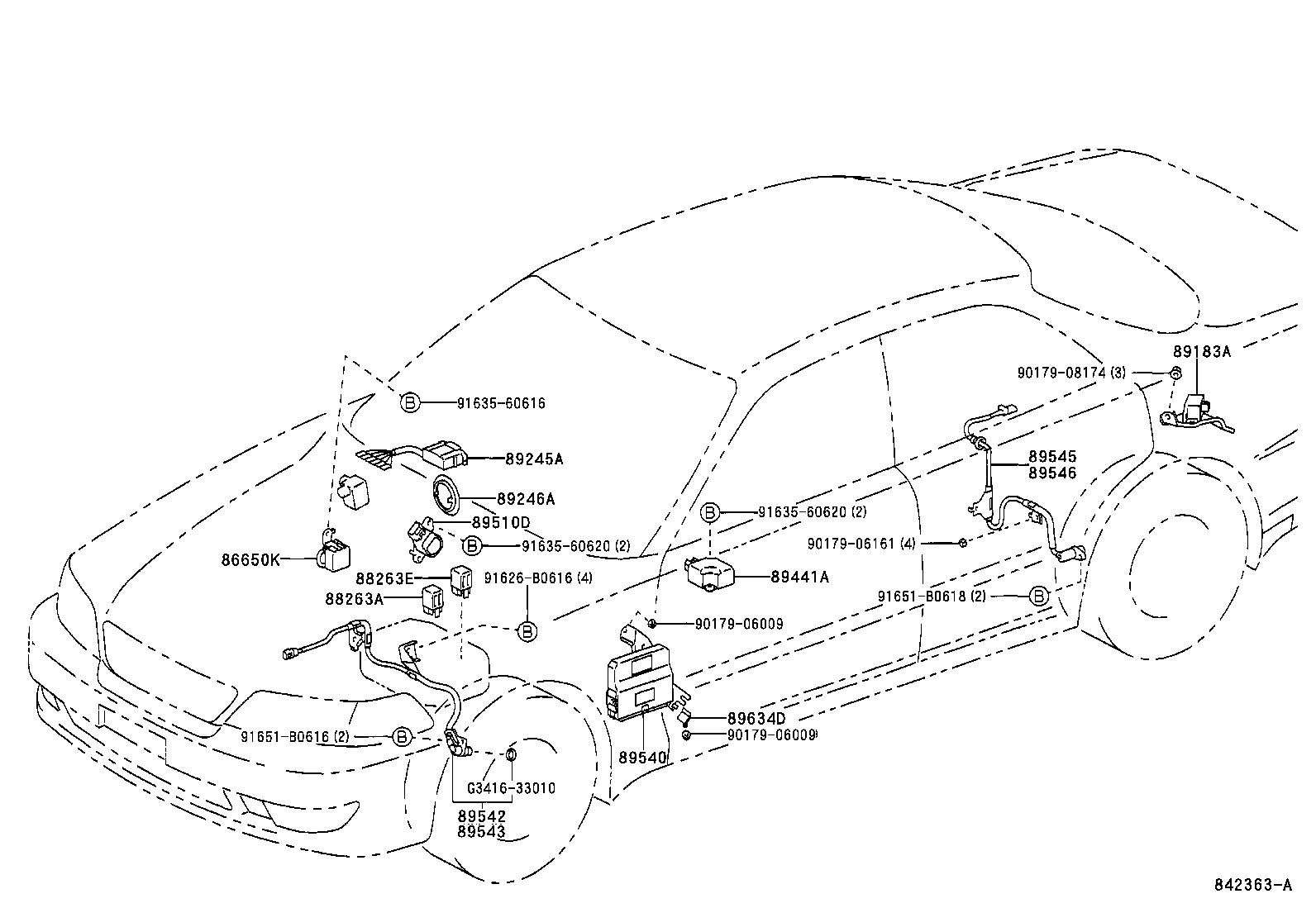

(9808- )JZX100,101..AVT,AVTG
ｱﾘ(VSC)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86650K - BUZZER ASSY, SKID CONTROL | ||||
| 86650-22120 |
JZX101 |
1 | ||
| 86650-22130 |
JZX100,101..AVT,AVTG |
1 | ||
| 88263A - RELAY, SKID CONTROL | ||||
| 88263-24020 |
JZX100,101..AVT,AVTG ｱﾘ(VSC) |
1 | ||
| 88263-24020 |
JZX101 |
1 | ||
| 88263E - RELAY, SKID CONTROL NO.2 | ||||
| 88263-24030 |
GX10#,JZX10#,LX100,SX100 |
1 | ||
| 89183A - SENSOR, YAWRATE | ||||
| 89183-22010 |
JZX101 |
1 | ||
| 89180-22010 |
JZX100,101..AVT,AVTG |
1 | ||
| 89245A - SENSOR, STEERING | ||||
| 89245-30020 |
JZX100,101..AVT,AVTG |
1 | ||
| 89245-50010 |
JZX100,101..AVT,AVTG |
1 | ||
| 89246A - DISC, SENSOR STEERING | ||||
| 89246-30010 |
JZX100,101..AVT,AVTG |
1 | ||
| 89246-50010 |
JZX100,101..AVT,AVTG |
1 | ||
| 89441A - SENSOR, DECELERATION | ||||
| 89441-30050 |
JZX100,101..AVT,AVTG |
1 | ||
| 89441-30031 |
JZX101 |
1 | ||
| 89540 - COMPUTER ASSY, SKID CONTROL | ||||
| 89540-22380 |
JZX100,101..AVT,AVTG ｱﾘ(VSC) |
1 | ||
| 89542 - SENSOR, SPEED, FRONT RH | ||||
| 89542-22100 |
GX100,JZX100,101,LX100,SX100 |
1 | ||
| 89543 - SENSOR, SPEED, FRONT LH | ||||
| 89543-22100 |
GX100,JZX100,101,LX100,SX100 |
1 | ||
| 89545 - SENSOR, SPEED, REAR RH | ||||
| 89545-22020 |
GX100..5F;GX105,JZX10#,LX100,SX100 |
1 | ||
| 89546 - SENSOR, SPEED, REAR LH | ||||
| 89546-22020 |
GX100..5F;GX105,JZX10#,LX100,SX100 |
1 | ||
| 89634D - BRACKET, SKID CONTROL COMPUTER NO.3 | ||||
| 89634-22040 |
GX10#,JZX10#,LX100,SX100..AVT,AVTG,RAF,TOU,TOUS,XL |
1 | ||
| Common parts | ||||
| 90179-06009 | ||||
| 90179-06161 | ||||
| 90179-08174 | ||||
| 91626-B0616 | ||||
| 91635-60616 | ||||
| 91635-60620 | ||||
| 91651-B0616 | ||||
| 91651-B0618 | ||||
| G3416-33010 | ||||
