JZX101-BTPZF (1996)

Toyota Chaser

Production Sep 1996 - Jun 2001
Engine 2JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9609- )

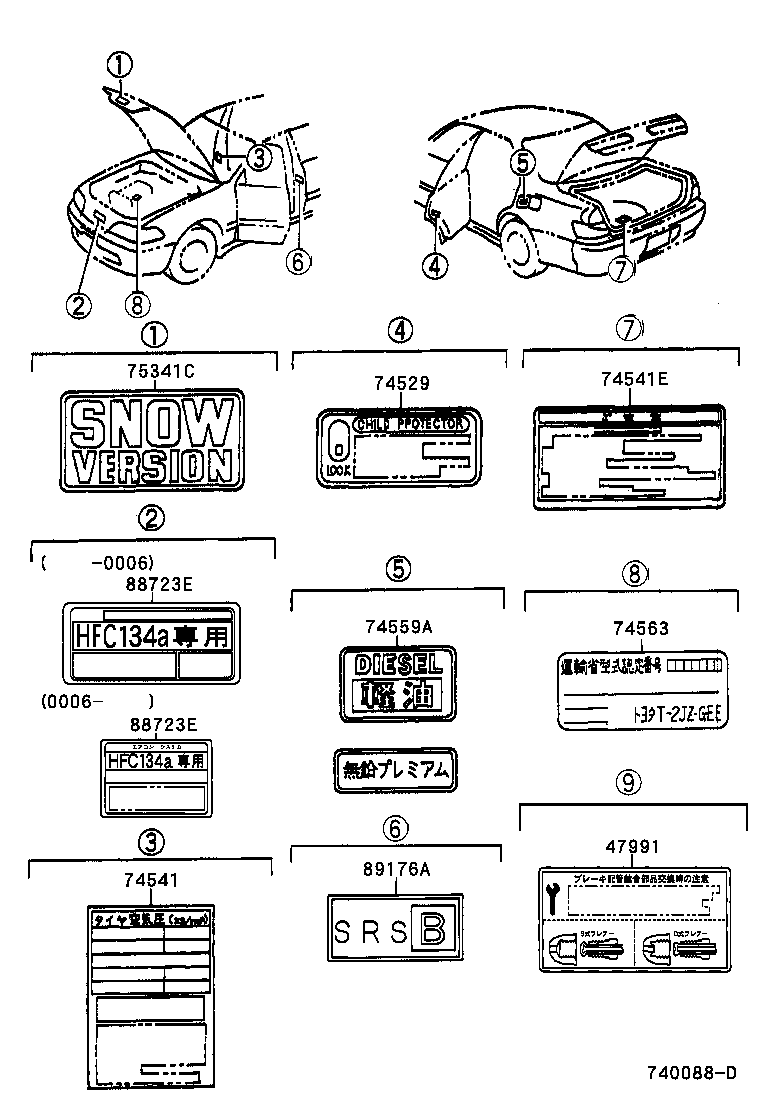

Click highlighted areas on diagram

diagram 47991 74529 74541 74541E 74559A 74563 75341C 88723E 88723E 89176A
Part # Description Qty Price
47991 - LABEL, BRAKE TUBE INFORMATION
47991-13010

GX10#,JZX10#,SX100

 1
74529 - PLATE, CHILD PROOF OR CHILD PROTECTOR LOCK CAUTION
69339-12010

GX10#,JZX10#,LX100,SX100

 2
74541 - PLATE, TIRE PRESSURE CAUTION
42661-22730

JZX101

 1
42661-22731

JZX101

 1
74541E - PLATE, COMPACT SPARE TIRE CAUTION
42668-30010

GX10#,JZX10#,SX100..AVT,AVTG,TOU,TOUS,XL

 1
42668-40010

GX10#,JZX10#,LX100,SX100..AVT,AVTG,TOU,TOUS,XL

 1
74559A - PLATE, FUEL CAUTION
74579-24010

JZX10#

 1
75341C - PLATE, HOOD NAME
75341-20060

GX10#,JZX10#,LX100,SX100

 2
88723E - LABEL, COOLER SERVICE CAUTION
88723-22060

GX10#,JZX10#,SX100

 1
88723-42050

GX10#,JZX10#,SX100

 1
88723-22060

JZX101;JZX100..TOUV

 1
88723E - LABEL, COOLER SERVICE CAUTION
88723-22060

GX10#,JZX10#,SX100

 1
88723-42050

GX10#,JZX10#,SX100

 1
88723-22060

JZX101;JZX100..TOUV

 1
89176A - LABEL, AIR BAG DEPLOYMENT INFORMATION
89176-51010

GX10#,JZX10#,LX100,SX100

 1
