JZX101-BTPZF (1996)

Toyota Chaser

Production Sep 1996 - Jun 2001
Engine 2JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9609- )

Click highlighted areas on diagram

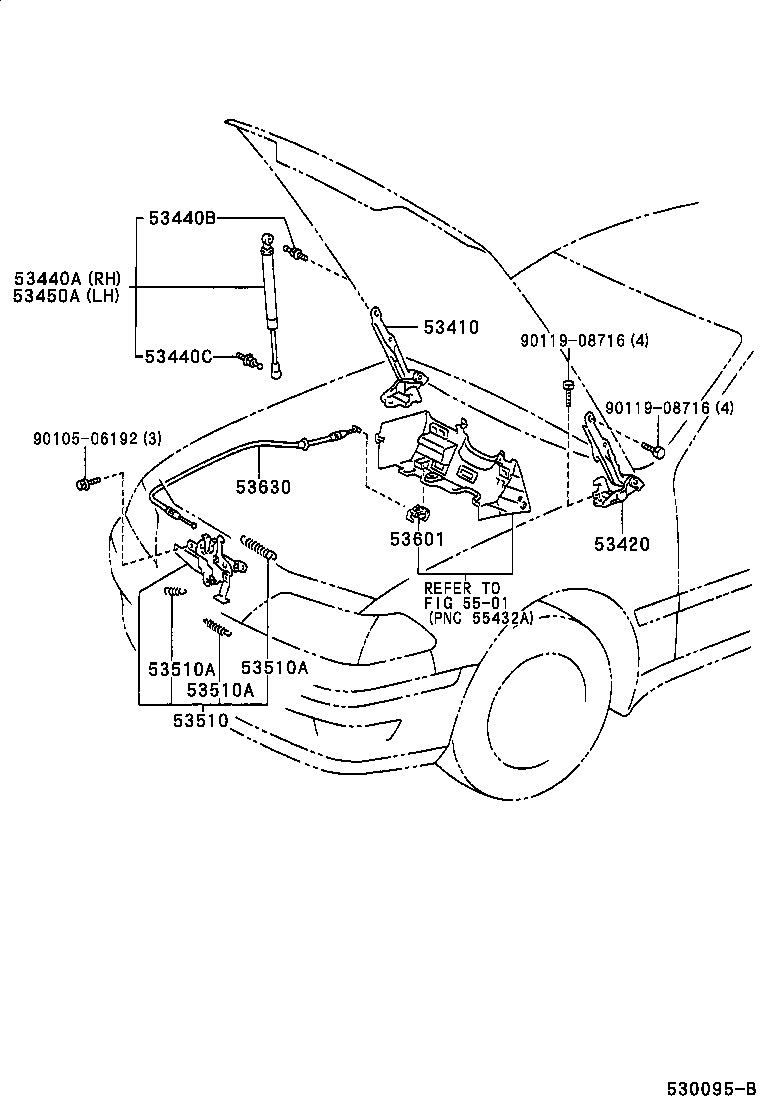

diagram 53410 53420 53440A 53440B 53440C 53450A 53510 53510A 53510A 53510A 53601 53630 5501 9010506192 9011908716 9011908716
Part # Description Qty Price
53410 - HINGE ASSY, HOOD, RH
53410-22110

GX10#,JZX10#,LX100,SX100

 1
53420 - HINGE ASSY, HOOD, LH
53420-22110

GX10#,JZX10#,LX100,SX100

 1
53440A - SUPPORT ASSY, HOOD, RH
53440-29095

GX100,JZX10#,LX100,SX100

 1
53440-29105

GX10#,JZX10#,LX100,SX100

 1
53440B - BOLT, HOOD SUPPORT, NO.1
68961-24030

GX10#,JZX10#,LX100,SX100

 2
53440C - BOLT, HOOD SUPPORT, NO.2
68961-24030

GX10#,JZX10#,LX100,SX100

 2
53450A - SUPPORT ASSY, HOOD, LH
53440-29095

GX100,JZX10#,LX100,SX100

 1
53440-29105

GX10#,JZX10#,LX100,SX100

 1
53510 - LOCK ASSY, HOOD
53510-22360

GX10#,JZX10#,LX100,SX100

 1
53510-22350

GX100,JZX10#,LX100,SX100

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-12067

GX10#,JZX10#,LX100,SX100

線径=1.4,ｺｲﾙ巻数=7.25

 1
90506-20071

GX10#,JZX10#,LX100,SX100

線径=2.0,ｺｲﾙ巻数=17.0

 1
90506-09057

GX10#,JZX10#,LX100,SX100

線径=0.9,ｺｲﾙ巻数=23

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-12067

GX10#,JZX10#,LX100,SX100

線径=1.4,ｺｲﾙ巻数=7.25

 1
90506-20071

GX10#,JZX10#,LX100,SX100

線径=2.0,ｺｲﾙ巻数=17.0

 1
90506-09057

GX10#,JZX10#,LX100,SX100

線径=0.9,ｺｲﾙ巻数=23

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-12067

GX10#,JZX10#,LX100,SX100

線径=1.4,ｺｲﾙ巻数=7.25

 1
90506-20071

GX10#,JZX10#,LX100,SX100

線径=2.0,ｺｲﾙ巻数=17.0

 1
90506-09057

GX10#,JZX10#,LX100,SX100

線径=0.9,ｺｲﾙ巻数=23

 1
53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL
53611-22010G0

GX10#,JZX10#,LX100,SX100..AVT,AVTG,RAF,XL

SAGE,TRIM6#

 1
53611-22010E0

GX100,JZX10#,LX100,SX100..AVT,AVTG,RAF

ORCHID,TRIM4#

 1
53611-22010E0

GX10#,JZX10#,LX100,SX100..AVT,AVTG,XL

ORCHID,TRIM4#

 1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-22230

GX10#,JZX10#,LX100,SX100

 1
Common parts
90105-06192
90119-08716
Linked diagrams
5501
