JZX101-BTPZF (1996)
Toyota Chaser
(9609- )GX105,JZX10#..AVT,AVTG,TOUS

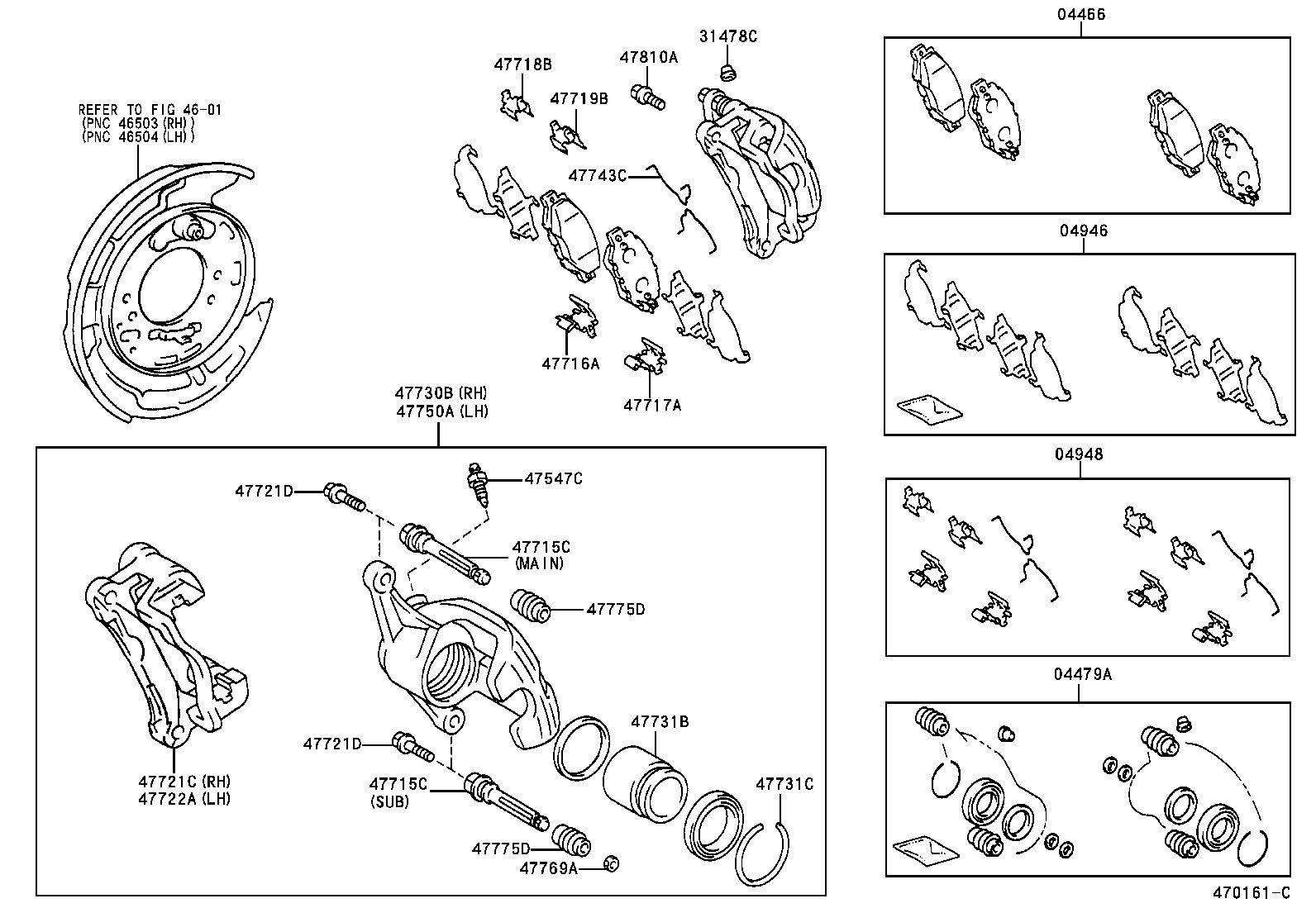

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04466 - PAD KIT, DISC BRAKE, REAR | ||||
| 04466-30140 |
GX105,JZX10#..AVT,AVTG,TOUS |
1 | ||
| 04466-30030 |
JZX10#..AVT,AVTG,TOUS |
1 | ||
| 04479A - CYLINDER KIT, DISC BRAKE, REAR | ||||
| 04479-30200 |
GX105,JZX10#..AVT,AVTG,TOUS |
1 | ||
| 04946 - SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE) | ||||
| 04946-24010 |
GX105,JZX10#..AVT,AVTG,TOUS |
1 | ||
| 04948 - FITTING KIT, DISC BRAKE, REAR | ||||
| 04948-30040 |
GX105,JZX10#..AVT,AVTG,TOUS |
1 | ||
| 31478C - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE) | ||||
| 31478-30010 |
GX10#,JZX10#,LX100,SX100 |
2 | ||
| 47547C - PLUG, BLEEDER(FOR REAR DISC BRAKE) | ||||
| 47547-27030 |
GX105,JZX10#..AVT,AVTG,TOUS |
2 | ||
| 47715C - PIN, CYLINDER SLIDE(FOR REAR DISC BRAKE) | ||||
| 47715-22080 |
GX105,JZX10#..AVT,AVTG,TOUS ﾒｲﾝ |
2 | ||
| 47715-22070 |
GX105,JZX10#..AVT,AVTG,TOUS ｻﾌﾞ |
2 | ||
| 47715C - PIN, CYLINDER SLIDE(FOR REAR DISC BRAKE) | ||||
| 47715-22080 |
GX105,JZX10#..AVT,AVTG,TOUS ﾒｲﾝ |
2 | ||
| 47715-22070 |
GX105,JZX10#..AVT,AVTG,TOUS ｻﾌﾞ |
2 | ||
| 47716A - PLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE) | ||||
| 47716-30180 |
GX105,JZX10#..AVT,AVTG,TOUS |
2 | ||
| 47717A - PLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE) | ||||
| 47716-30190 |
GX105,JZX10#..AVT,AVTG,TOUS |
2 | ||
| 47718B - PLATE, PAD SUPPORT, NO.3(FOR REAR DISK BRAKE) | ||||
| 47717-30090 |
GX105,JZX10#..AVT,AVTG,TOUS |
2 | ||
| 47719B - PLATE, PAD SUPPORT, NO.4(FOR REAR DISK BRAKE) | ||||
| 47717-30100 |
GX105,JZX10#..AVT,AVTG,TOUS |
2 | ||
| 47721C - MOUNTING, REAR DISC BRAKE CYLINDER, RH | ||||
| 47721-30170 |
GX105,JZX10#..AVT,AVTG,TOUS |
1 | ||
| 47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING) | ||||
| 90105-08164 |
GX105,JZX10#..AVT,AVTG,TOUS *8−1.00PX23−15 |
4 | ||
| 47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING) | ||||
| 90105-08164 |
GX105,JZX10#..AVT,AVTG,TOUS *8−1.00PX23−15 |
4 | ||
| 47722A - MOUNTING, REAR DISC BRAKE CYLINDER, LH | ||||
| 47722-30090 |
GX105,JZX10#..AVT,AVTG,TOUS |
1 | ||
| 47730B - CYLINDER ASSY, REAR DISC BRAKE, RH | ||||
| 47730-30351 |
GX105,JZX10#..AVT,AVTG,TOUS |
1 | ||
| 47731B - PISTON, REAR DISC BRAKE | ||||
| 47731-30120 |
GX105,JZX10#..AVT,AVTG,TOUS |
2 | ||
| 47731C - RING, SET(FOR REAR DISC BRAKE PISTON) | ||||
| 90520-52006 |
GX105,JZX10#..AVT,AVTG,TOUS |
2 | ||
| 47743C - SPRING, ANTI-SQUEAL(FOR REAR DISC BRAKE) | ||||
| 47743-30040 |
GX105,JZX10#..AVT,AVTG,TOUS |
4 | ||
| 47750A - CYLINDER ASSY, DISC BRAKE, REAR LH | ||||
| 47750-30351 |
GX105,JZX10#..AVT,AVTG,TOUS |
1 | ||
| 47769A - BUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE) | ||||
| 47769-50010 |
GX105,JZX10#..AVT,AVTG,TOUS |
2 | ||
| 47775D - BOOT, BUSH DUST(FOR REAR DISC BRAKE) | ||||
| 47775-30070 |
GX105,JZX10#..AVT,AVTG,TOUS |
4 | ||
| 47775D - BOOT, BUSH DUST(FOR REAR DISC BRAKE) | ||||
| 47775-30070 |
GX105,JZX10#..AVT,AVTG,TOUS |
4 | ||
| 47810A - BOLT, HEXAGON(FOR REAR CALIPER) | ||||
| 90119-10206 |
GX10#,JZX10#,LX100,SX100 |
4 | ||
| Linked diagrams | ||||
| 4601 | ||||
