JZX100-BTPZF (1996)
Toyota Chaser

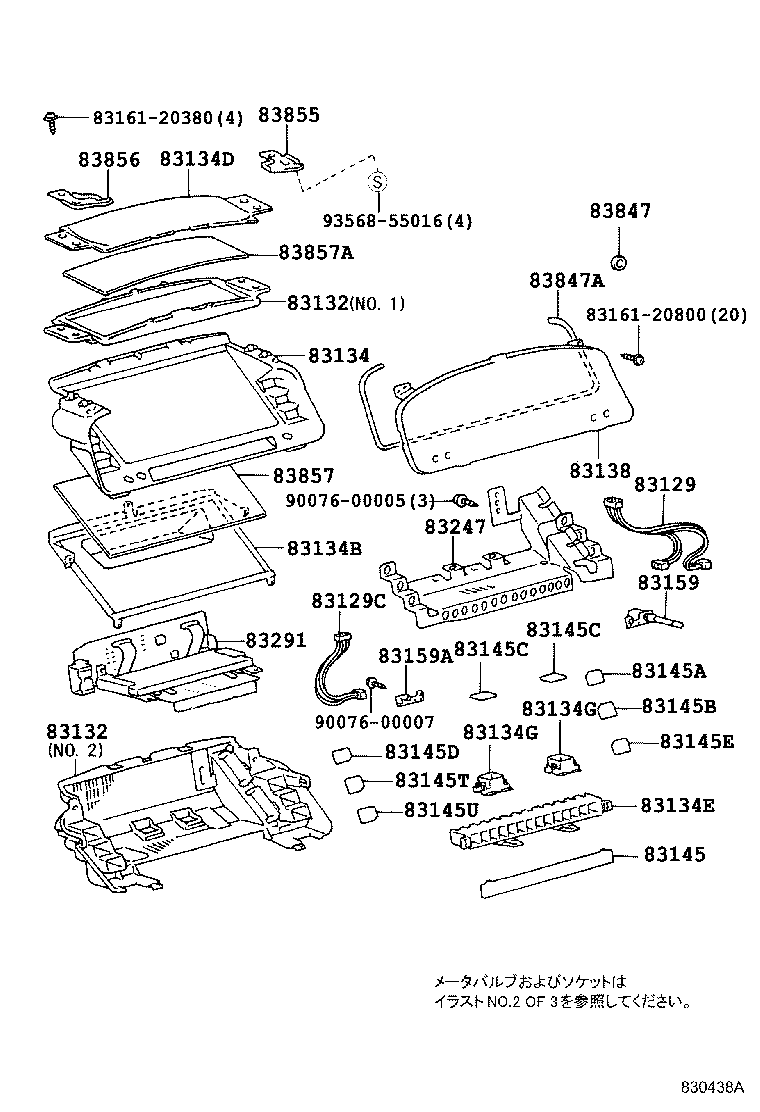

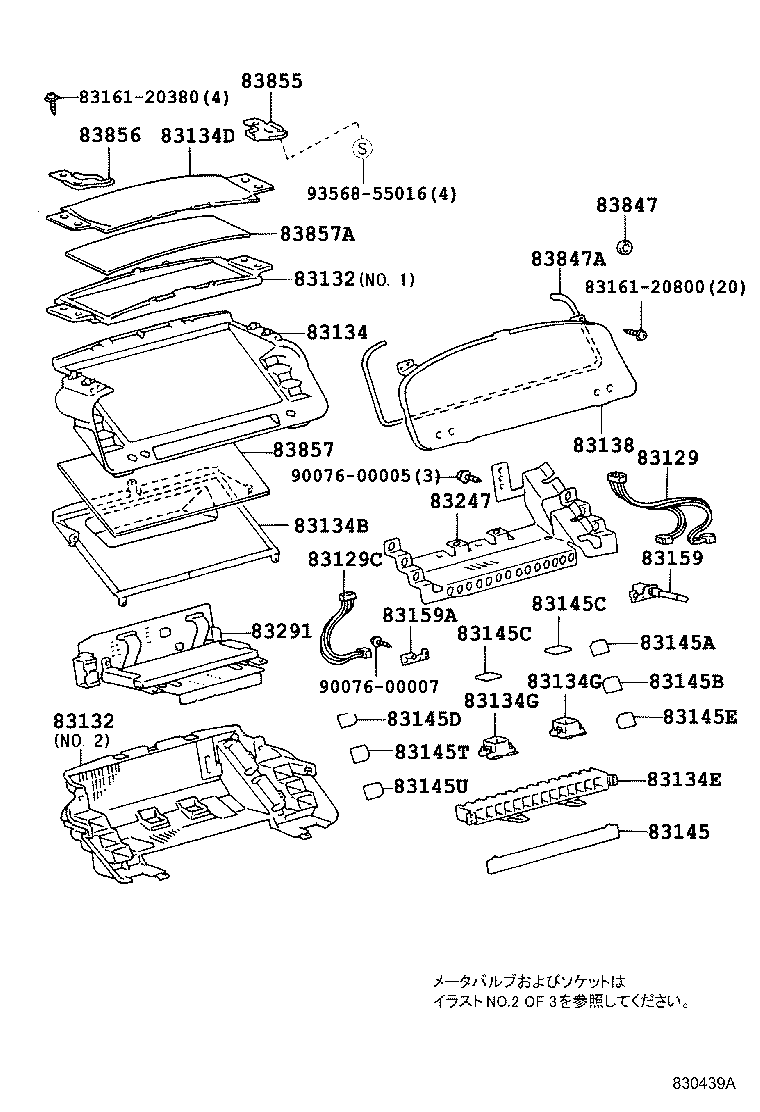

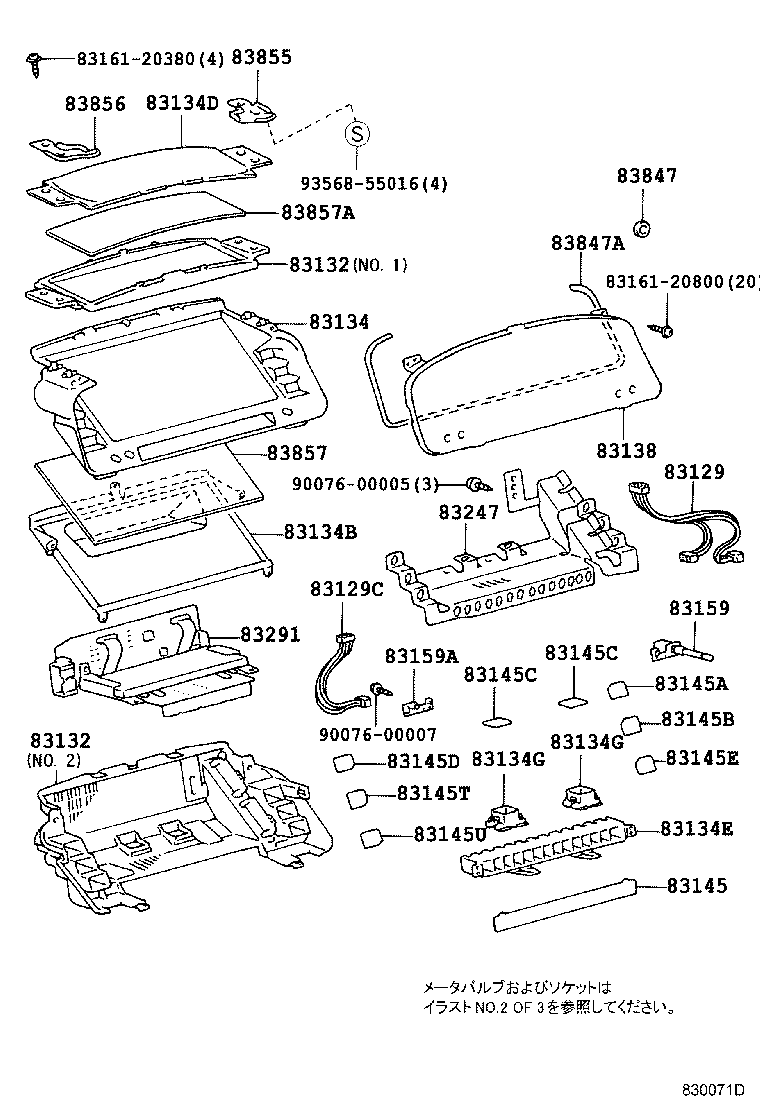

ILLUST NO. 1 OF 3(9609-9708)GX100,JZX10#,LX100
ﾃﾞｼﾞﾀﾙﾒ-ﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83129 - WIRE, METER | ||||
| 83875-22010 |
GX10#,JZX10#..4FC..(AVT,AVTG) |
1 | ||
| 83129C - WIRE, COMBINATION METER | ||||
| 83876-22010 |
GX10#,JZX10#..4FC..(AVT,AVTG) |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83841-22220 |
JZX100..AVT ｵﾌﾟﾁﾄﾛﾝﾒ-ﾀ,ｱﾘ(VSC) |
1 | ||
| 83841-22060 |
GX10#,JZX100,105..4FC..AVT ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83841-22010 |
GX10#,JZX10#..4FC..(AVT,AVTG) ﾃﾞｼﾞﾀﾙ ﾒ-ﾀ,NO.1 |
1 | ||
| 83842-22010 |
GX10#,JZX10#..4FC..(AVT,AVTG) ﾃﾞｼﾞﾀﾙ ﾒ-ﾀ,NO.2 |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83841-22220 |
JZX100..AVT ｵﾌﾟﾁﾄﾛﾝﾒ-ﾀ,ｱﾘ(VSC) |
1 | ||
| 83841-22060 |
GX10#,JZX100,105..4FC..AVT ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83841-22010 |
GX10#,JZX10#..4FC..(AVT,AVTG) ﾃﾞｼﾞﾀﾙ ﾒ-ﾀ,NO.1 |
1 | ||
| 83842-22010 |
GX10#,JZX10#..4FC..(AVT,AVTG) ﾃﾞｼﾞﾀﾙ ﾒ-ﾀ,NO.2 |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83821-22010 |
GX10#,JZX10#..4FC..(AVT,AVTG) |
1 | ||
| 83134B - COVER, COMBINATION METER, NO.2 | ||||
| 83822-22010 |
GX10#,JZX10#..4FC..(AVT,AVTG) |
1 | ||
| 83134D - COVER, COMBINATION METER, NO.3 | ||||
| 83134-2A680 |
GX10#,JZX10#..4FC..(AVT,AVTG) |
1 | ||
| 83134E - COVER, COMBINATION METER, NO.4 | ||||
| 83823-22010 |
GX10#,JZX10#..4FC..(AVT,AVTG) |
1 | ||
| 83134G - COVER, COMBINATION METER | ||||
| 83824-22010 |
GX10#,JZX10#..4FC..(AVT,AVTG) |
2 | ||
| 83134G - COVER, COMBINATION METER | ||||
| 83824-22010 |
GX10#,JZX10#..4FC..(AVT,AVTG) |
2 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83852-22010 |
GX10#,JZX10#..4FC..(AVT,AVTG) ﾃﾞｼﾞﾀﾙ ﾒ-ﾀ |
1 | ||
| 83852-22050 |
GX10#,JZX100,105,LX100..AVT,TOU,TOUS,TOUV,XL ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83831-22270 |
GX10#,JZX10#..4FC..(AVT,AVTG) |
1 | ||
| 83831-22010 |
GX100,JZX10#..4FC..(AVT,AVTG) |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83832-22010 |
GX10#,JZX10#..4FC..(AVT,AVTG) |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83833-22010 |
GX10#,JZX10#..4FC..(AVT,AVTG) |
1 | ||
| 83145C - LENS, METER, NO.4 | ||||
| 83838-22010 |
GX10#,JZX10#..4FC..(AVT,AVTG) |
2 | ||
| 83145C - LENS, METER, NO.4 | ||||
| 83838-22010 |
GX10#,JZX10#..4FC..(AVT,AVTG) |
2 | ||
| 83145D - LENS, METER, NO.5 | ||||
| 83835-22010 |
GX10#,JZX10#..4FC..(AVT,AVTG) |
1 | ||
| 83145E - LENS, METER, NO.6 | ||||
| 83831-22020 |
JZX100,105..AVT,AVTG |
1 | ||
| 83834-22010 |
GX10#,JZX10#..4FC..(AVT,AVTG) |
1 | ||
| 83145T - LENS, METER, NO.8 | ||||
| 83836-22010 |
GX10#,JZX10#..4FC..(AVT,AVTG) |
1 | ||
| 83145U - LENS, METER, NO.9 | ||||
| 83837-22010 |
GX10#,JZX10#..4FC..(AVT,AVTG) |
1 | ||
| 83159 - SWITCH, METER, NO.1 | ||||
| 83871-22010 |
GX10#,JZX10#..4FC..(AVT,AVTG) |
1 | ||
| 83159A - SWITCH, METER, NO.2 | ||||
| 83872-22010 |
GX10#,JZX10#..4FC..(AVT,AVTG) |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83861-22021 |
JZX100,105..AVT,AVTG ﾃﾞｼﾞﾀﾙ ﾒ-ﾀ |
1 | ||
| 83861-22270 |
GX10#,JZX10#..4FC..(AVT,AVTG) ﾃﾞｼﾞﾀﾙ ﾒ-ﾀ |
1 | ||
| 83861-22080 |
JZX100..5F;GX100,JZX100,105,LX100..AVT,XL ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83861-22020 |
JZX100,105..AVT,AVTG ﾃﾞｼﾞﾀﾙ ﾒ-ﾀ |
1 | ||
| 83861-22160 |
GX10#,JZX100,105..AVT;GX100,JZX100..5F..(TOU,TOUV) ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83291 - COMPUTER, COMBINATION METER | ||||
| 83291-22480 |
JZX100,105..AVT,AVTG |
1 | ||
| 83291-22510 |
JZX100,105..AVT,AVTG |
1 | ||
| 83847 - CUSHION, COMBINATION SPEEDOMETER, NO.1 | ||||
| 83847-22010 |
GX10#,JZX10#..4FC..(AVT,AVTG) |
4 | ||
| 83847A - CUSHION, COMBINATION SPEEDMETER | ||||
| 83848-22010 |
GX10#,JZX10#..4FC..(AVT,AVTG) |
1 | ||
| 83855 - BRACKET, COMBINATION METER, NO.1 | ||||
| 83855-22010 |
GX10#,JZX10#..4FC..(AVT,AVTG) |
1 | ||
| 83856 - BRACKET, COMBINATION METER, NO.2 | ||||
| 83856-22010 |
GX10#,JZX10#..4FC..(AVT,AVTG) |
1 | ||
| 83857 - REFLECTOR, COMBINATION METER, NO.1 | ||||
| 83857-22010 |
GX10#,JZX10#..4FC..(AVT,AVTG) |
1 | ||
| 83857A - REFLECTOR, COMBINATION METER | ||||
| 83858-22010 |
GX10#,JZX10#..4FC..(AVT,AVTG) |
1 | ||
| Common parts | ||||
| 83161-20380 | ||||
| 83161-20800 | ||||
| 90076-00005 | ||||
| 90076-00007 | ||||
| 93568-55016 | ||||

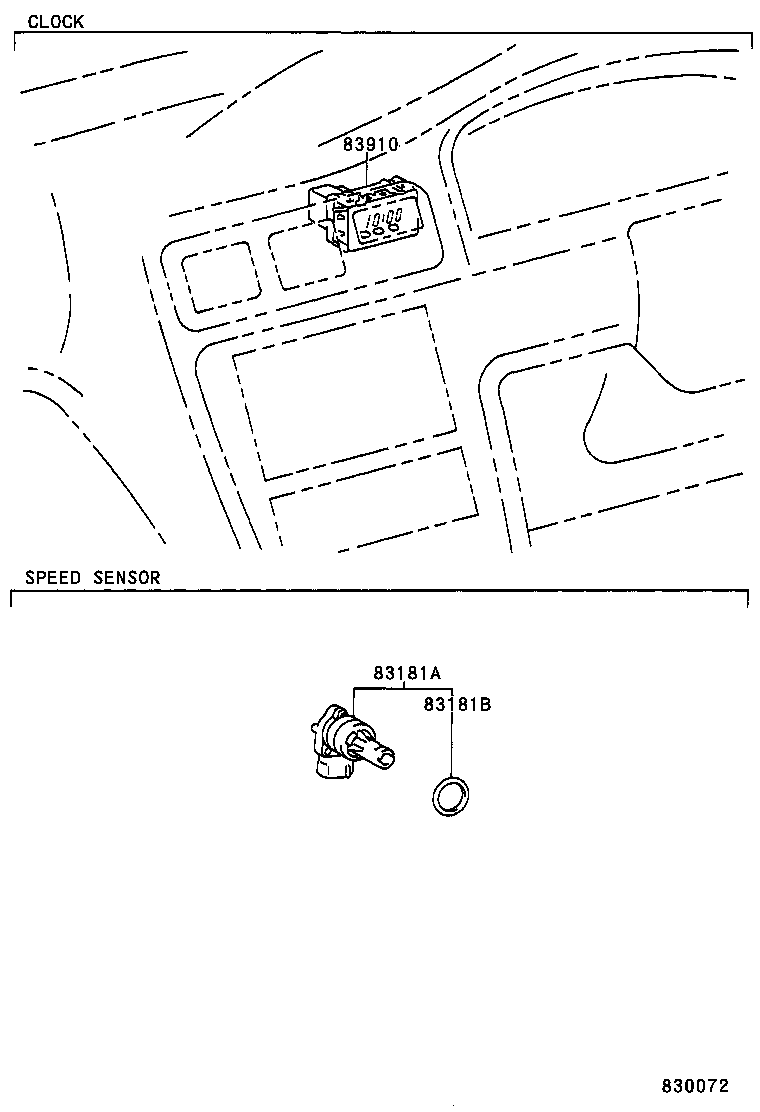

ILLUST NO. 3 OF 3(9609- )
ｸﾛﾂｸ & ｽﾋﾟ-ﾄﾞｾﾝｻ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83910 - CLOCK ASSY | ||||
| 83910-26020 |
GX100,JZX10#,LX100,SX100 |
1 | ||
| 83910-26020 |
GX10#,JZX10#,LX100,SX100..AVT,AVTG,XL |
1 | ||

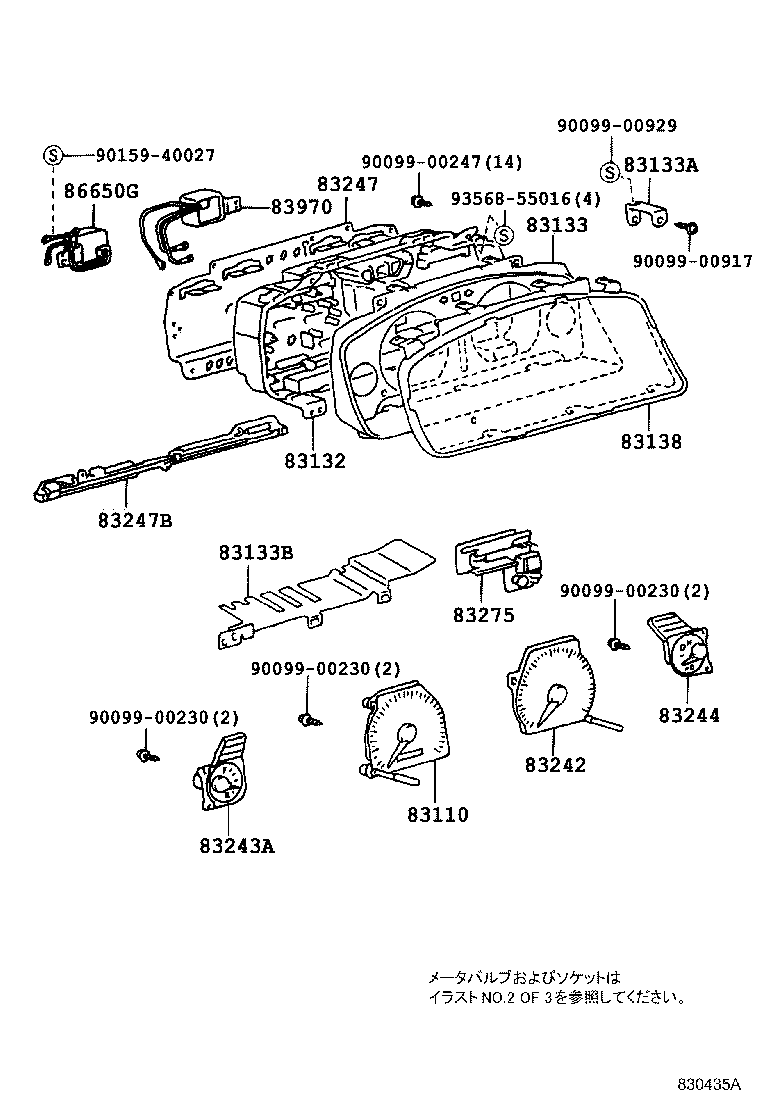

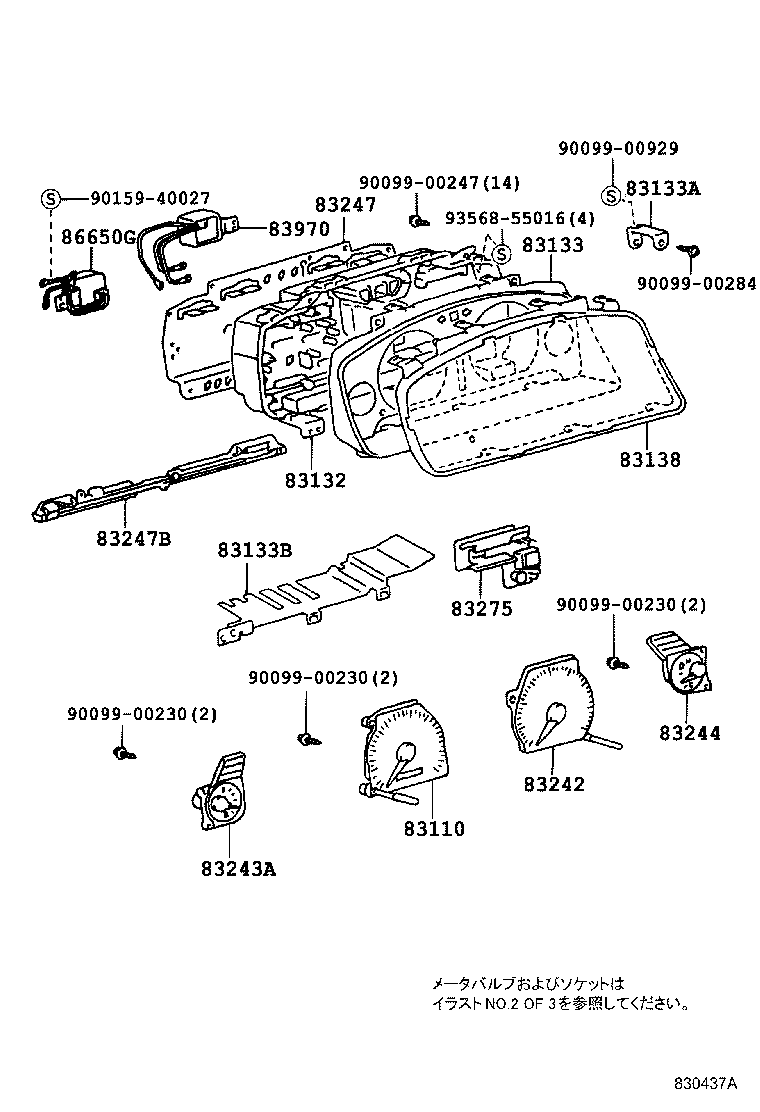

ILLUST NO. 1 OF 3(9609-9708)
ｱﾅﾛｸﾞﾒ-ﾀ , ｵﾌﾟﾃｨﾄﾛﾝﾒｰﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83110 - SPEEDOMETER ASSY | ||||
| 83220-22020 |
GX10#,JZX100,105..AVT,TOU,TOUS,TOUV ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83841-22220 |
JZX100..AVT ｵﾌﾟﾁﾄﾛﾝﾒ-ﾀ,ｱﾘ(VSC) |
1 | ||
| 83841-22060 |
GX10#,JZX100,105..4FC..AVT ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83841-22010 |
GX10#,JZX10#..4FC..(AVT,AVTG) ﾃﾞｼﾞﾀﾙ ﾒ-ﾀ,NO.1 |
1 | ||
| 83842-22010 |
GX10#,JZX10#..4FC..(AVT,AVTG) ﾃﾞｼﾞﾀﾙ ﾒ-ﾀ,NO.2 |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83811-22060 |
GX10#,JZX100,105,LX100..4FC..(AVT,XL) ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83133A - PLATE, COMBINATION METER, NO.2 | ||||
| 83811-22080 |
GX10#,JZX100,105,LX100..AVT,TOU,TOUS,TOUV,XL |
1 | ||
| 83133B - PLATE, COMBINATION METER, NO.3 | ||||
| 83811-22090 |
GX100,JZX10#,LX100 |
1 | ||
| 83811-22090 |
GX10#,JZX100,105,LX100..AVT,TOU,TOUS,TOUV |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83852-22010 |
GX10#,JZX10#..4FC..(AVT,AVTG) ﾃﾞｼﾞﾀﾙ ﾒ-ﾀ |
1 | ||
| 83852-22050 |
GX10#,JZX100,105,LX100..AVT,TOU,TOUS,TOUV,XL ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83242 - TACHOMETER ASSY, ENGINE | ||||
| 83881-22090 |
JZX100,105..AVT,TOUS |
1 | ||
| 83881-22090 |
JZX100,105..AVT |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83882-22050 |
GX10#,JZX100,105,LX100..AVT,TOU,TOUS,TOUV,XL ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83883-22050 |
GX10#,JZX100,105,LX100..AVT,TOU,TOUS,TOUV,XL ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83861-22021 |
JZX100,105..AVT,AVTG ﾃﾞｼﾞﾀﾙ ﾒ-ﾀ |
1 | ||
| 83861-22270 |
GX10#,JZX10#..4FC..(AVT,AVTG) ﾃﾞｼﾞﾀﾙ ﾒ-ﾀ |
1 | ||
| 83861-22080 |
JZX100..5F;GX100,JZX100,105,LX100..AVT,XL ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83861-22020 |
JZX100,105..AVT,AVTG ﾃﾞｼﾞﾀﾙ ﾒ-ﾀ |
1 | ||
| 83861-22160 |
GX10#,JZX100,105..AVT;GX100,JZX100..5F..(TOU,TOUV) ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83247B - PLATE, METER CIRCUIT, NO.2 | ||||
| 83864-22050 |
GX100,JZX100,105,LX100..AVT,TOU,TOUS,TOUV,XL |
1 | ||
| 83864-22050 |
GX10#,JZX100,105,LX100..AVT |
1 | ||
| 83275 - PLATE,COMPUTER METER CIRCUIT NO.1 | ||||
| 83275-22050 |
GX10#,JZX100,105,LX100..AVT,TOU,TOUS,TOUV,XL |
1 | ||
| 83970 - BUZZER ASSY, REVERSE WARNING | ||||
| 83970-20010 |
GX10#,JZX100,105,LX100,SX100..ATM..(AVT,RAF,TOU,TOUS,TOUV,XL) |
1 | ||
| 86650G - BUZZER ASSY | ||||
| 86650-12030 |
GX10#,JZX100,105,LX100,SX100..AVT,RAF,TOU,TOUS,TOUV,XL |
1 | ||
| Common parts | ||||
| 90099-00230 | ||||
| 90099-00247 | ||||
| 90099-00917 | ||||
| 90099-00929 | ||||
| 90159-40027 | ||||
| 93568-55016 | ||||

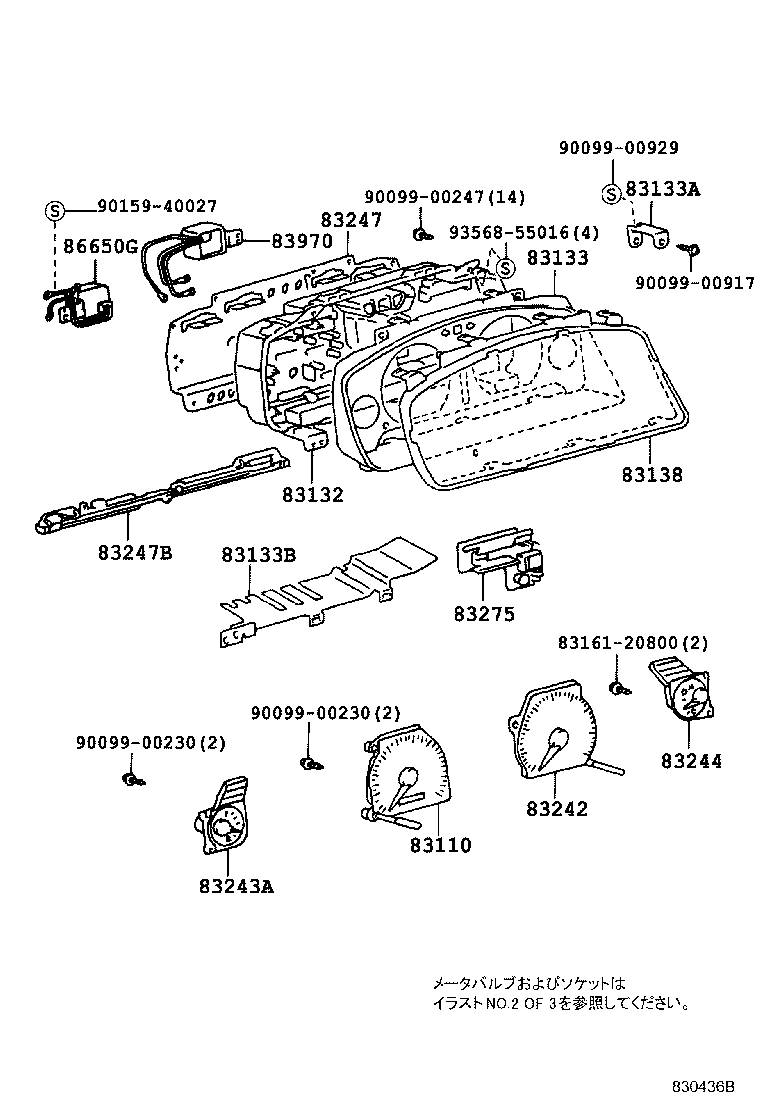

ILLUST NO. 1 OF 3(9708-9808)
ｱﾅﾛｸﾞﾒ-ﾀ , ｵﾌﾟﾃｨﾄﾛﾝﾒｰﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83110 - SPEEDOMETER ASSY | ||||
| 83220-22020 |
GX10#,JZX100,105..AVT,TOU,TOUS,TOUV ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83841-22220 |
JZX100..AVT ｵﾌﾟﾁﾄﾛﾝﾒ-ﾀ,ｱﾘ(VSC) |
1 | ||
| 83841-22060 |
GX10#,JZX100,105..4FC..AVT ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83841-22010 |
GX10#,JZX10#..4FC..(AVT,AVTG) ﾃﾞｼﾞﾀﾙ ﾒ-ﾀ,NO.1 |
1 | ||
| 83842-22010 |
GX10#,JZX10#..4FC..(AVT,AVTG) ﾃﾞｼﾞﾀﾙ ﾒ-ﾀ,NO.2 |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83811-22060 |
GX10#,JZX100,105,LX100..4FC..(AVT,XL) ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83133A - PLATE, COMBINATION METER, NO.2 | ||||
| 83811-22080 |
GX10#,JZX100,105,LX100..AVT,TOU,TOUS,TOUV,XL |
1 | ||
| 83133B - PLATE, COMBINATION METER, NO.3 | ||||
| 83811-22090 |
GX100,JZX10#,LX100 |
1 | ||
| 83811-22090 |
GX10#,JZX100,105,LX100..AVT,TOU,TOUS,TOUV |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83852-22010 |
GX10#,JZX10#..4FC..(AVT,AVTG) ﾃﾞｼﾞﾀﾙ ﾒ-ﾀ |
1 | ||
| 83852-22050 |
GX10#,JZX100,105,LX100..AVT,TOU,TOUS,TOUV,XL ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83242 - TACHOMETER ASSY, ENGINE | ||||
| 83881-22090 |
JZX100,105..AVT,TOUS |
1 | ||
| 83881-22090 |
JZX100,105..AVT |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83882-22050 |
GX10#,JZX100,105,LX100..AVT,TOU,TOUS,TOUV,XL ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83883-22050 |
GX10#,JZX100,105,LX100..AVT,TOU,TOUS,TOUV,XL ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83861-22021 |
JZX100,105..AVT,AVTG ﾃﾞｼﾞﾀﾙ ﾒ-ﾀ |
1 | ||
| 83861-22270 |
GX10#,JZX10#..4FC..(AVT,AVTG) ﾃﾞｼﾞﾀﾙ ﾒ-ﾀ |
1 | ||
| 83861-22080 |
JZX100..5F;GX100,JZX100,105,LX100..AVT,XL ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83861-22020 |
JZX100,105..AVT,AVTG ﾃﾞｼﾞﾀﾙ ﾒ-ﾀ |
1 | ||
| 83861-22160 |
GX10#,JZX100,105..AVT;GX100,JZX100..5F..(TOU,TOUV) ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83247B - PLATE, METER CIRCUIT, NO.2 | ||||
| 83864-22050 |
GX100,JZX100,105,LX100..AVT,TOU,TOUS,TOUV,XL |
1 | ||
| 83864-22050 |
GX10#,JZX100,105,LX100..AVT |
1 | ||
| 83275 - PLATE,COMPUTER METER CIRCUIT NO.1 | ||||
| 83275-22050 |
GX10#,JZX100,105,LX100..AVT,TOU,TOUS,TOUV,XL |
1 | ||
| 83970 - BUZZER ASSY, REVERSE WARNING | ||||
| 83970-20010 |
GX10#,JZX100,105,LX100,SX100..ATM..(AVT,RAF,TOU,TOUS,TOUV,XL) |
1 | ||
| 86650G - BUZZER ASSY | ||||
| 86650-12030 |
GX10#,JZX100,105,LX100,SX100..AVT,RAF,TOU,TOUS,TOUV,XL |
1 | ||
| Common parts | ||||
| 83161-20800 | ||||
| 90099-00230 | ||||
| 90099-00247 | ||||
| 90099-00917 | ||||
| 90099-00929 | ||||
| 90159-40027 | ||||
| 93568-55016 | ||||
ILLUST NO. 1 OF 3(9808- )
ｱﾅﾛｸﾞﾒ-ﾀ , ｵﾌﾟﾃｨﾄﾛﾝﾒｰﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83110 - SPEEDOMETER ASSY | ||||
| 83220-22020 |
GX10#,JZX100,105..AVT,TOU,TOUS,TOUV ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83841-22220 |
JZX100..AVT ｵﾌﾟﾁﾄﾛﾝﾒ-ﾀ,ｱﾘ(VSC) |
1 | ||
| 83841-22060 |
GX10#,JZX100,105..4FC..AVT ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83841-22010 |
GX10#,JZX10#..4FC..(AVT,AVTG) ﾃﾞｼﾞﾀﾙ ﾒ-ﾀ,NO.1 |
1 | ||
| 83842-22010 |
GX10#,JZX10#..4FC..(AVT,AVTG) ﾃﾞｼﾞﾀﾙ ﾒ-ﾀ,NO.2 |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83811-22060 |
GX10#,JZX100,105,LX100..4FC..(AVT,XL) ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83133A - PLATE, COMBINATION METER, NO.2 | ||||
| 83811-22080 |
GX10#,JZX100,105,LX100..AVT,TOU,TOUS,TOUV,XL |
1 | ||
| 83133B - PLATE, COMBINATION METER, NO.3 | ||||
| 83811-22090 |
GX100,JZX10#,LX100 |
1 | ||
| 83811-22090 |
GX10#,JZX100,105,LX100..AVT,TOU,TOUS,TOUV |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83852-22010 |
GX10#,JZX10#..4FC..(AVT,AVTG) ﾃﾞｼﾞﾀﾙ ﾒ-ﾀ |
1 | ||
| 83852-22050 |
GX10#,JZX100,105,LX100..AVT,TOU,TOUS,TOUV,XL ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83242 - TACHOMETER ASSY, ENGINE | ||||
| 83881-22090 |
JZX100,105..AVT,TOUS |
1 | ||
| 83881-22090 |
JZX100,105..AVT |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83882-22050 |
GX10#,JZX100,105,LX100..AVT,TOU,TOUS,TOUV,XL ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83883-22050 |
GX10#,JZX100,105,LX100..AVT,TOU,TOUS,TOUV,XL ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83861-22021 |
JZX100,105..AVT,AVTG ﾃﾞｼﾞﾀﾙ ﾒ-ﾀ |
1 | ||
| 83861-22270 |
GX10#,JZX10#..4FC..(AVT,AVTG) ﾃﾞｼﾞﾀﾙ ﾒ-ﾀ |
1 | ||
| 83861-22080 |
JZX100..5F;GX100,JZX100,105,LX100..AVT,XL ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83861-22020 |
JZX100,105..AVT,AVTG ﾃﾞｼﾞﾀﾙ ﾒ-ﾀ |
1 | ||
| 83861-22160 |
GX10#,JZX100,105..AVT;GX100,JZX100..5F..(TOU,TOUV) ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83247B - PLATE, METER CIRCUIT, NO.2 | ||||
| 83864-22050 |
GX100,JZX100,105,LX100..AVT,TOU,TOUS,TOUV,XL |
1 | ||
| 83864-22050 |
GX10#,JZX100,105,LX100..AVT |
1 | ||
| 83275 - PLATE,COMPUTER METER CIRCUIT NO.1 | ||||
| 83275-22050 |
GX10#,JZX100,105,LX100..AVT,TOU,TOUS,TOUV,XL |
1 | ||
| 83970 - BUZZER ASSY, REVERSE WARNING | ||||
| 83970-20010 |
GX10#,JZX100,105,LX100,SX100..ATM..(AVT,RAF,TOU,TOUS,TOUV,XL) |
1 | ||
| 86650G - BUZZER ASSY | ||||
| 86650-12030 |
GX10#,JZX100,105,LX100,SX100..AVT,RAF,TOU,TOUS,TOUV,XL |
1 | ||
| Common parts | ||||
| 90099-00230 | ||||
| 90099-00247 | ||||
| 90099-00284 | ||||
| 90099-00929 | ||||
| 90159-40027 | ||||
| 93568-55016 | ||||
ILLUST NO. 1 OF 3(9708-9808)
ﾃﾞｼﾞﾀﾙﾒ-ﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83129 - WIRE, METER | ||||
| 83875-22010 |
GX10#,JZX10#..4FC..(AVT,AVTG) |
1 | ||
| 83129C - WIRE, COMBINATION METER | ||||
| 83876-22010 |
GX10#,JZX10#..4FC..(AVT,AVTG) |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83841-22220 |
JZX100..AVT ｵﾌﾟﾁﾄﾛﾝﾒ-ﾀ,ｱﾘ(VSC) |
1 | ||
| 83841-22060 |
GX10#,JZX100,105..4FC..AVT ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83841-22010 |
GX10#,JZX10#..4FC..(AVT,AVTG) ﾃﾞｼﾞﾀﾙ ﾒ-ﾀ,NO.1 |
1 | ||
| 83842-22010 |
GX10#,JZX10#..4FC..(AVT,AVTG) ﾃﾞｼﾞﾀﾙ ﾒ-ﾀ,NO.2 |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83841-22220 |
JZX100..AVT ｵﾌﾟﾁﾄﾛﾝﾒ-ﾀ,ｱﾘ(VSC) |
1 | ||
| 83841-22060 |
GX10#,JZX100,105..4FC..AVT ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83841-22010 |
GX10#,JZX10#..4FC..(AVT,AVTG) ﾃﾞｼﾞﾀﾙ ﾒ-ﾀ,NO.1 |
1 | ||
| 83842-22010 |
GX10#,JZX10#..4FC..(AVT,AVTG) ﾃﾞｼﾞﾀﾙ ﾒ-ﾀ,NO.2 |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83821-22010 |
GX10#,JZX10#..4FC..(AVT,AVTG) |
1 | ||
| 83134B - COVER, COMBINATION METER, NO.2 | ||||
| 83822-22010 |
GX10#,JZX10#..4FC..(AVT,AVTG) |
1 | ||
| 83134D - COVER, COMBINATION METER, NO.3 | ||||
| 83134-2A680 |
GX10#,JZX10#..4FC..(AVT,AVTG) |
1 | ||
| 83134E - COVER, COMBINATION METER, NO.4 | ||||
| 83823-22010 |
GX10#,JZX10#..4FC..(AVT,AVTG) |
1 | ||
| 83134G - COVER, COMBINATION METER | ||||
| 83824-22010 |
GX10#,JZX10#..4FC..(AVT,AVTG) |
2 | ||
| 83134G - COVER, COMBINATION METER | ||||
| 83824-22010 |
GX10#,JZX10#..4FC..(AVT,AVTG) |
2 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83852-22010 |
GX10#,JZX10#..4FC..(AVT,AVTG) ﾃﾞｼﾞﾀﾙ ﾒ-ﾀ |
1 | ||
| 83852-22050 |
GX10#,JZX100,105,LX100..AVT,TOU,TOUS,TOUV,XL ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83831-22270 |
GX10#,JZX10#..4FC..(AVT,AVTG) |
1 | ||
| 83831-22010 |
GX100,JZX10#..4FC..(AVT,AVTG) |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83832-22010 |
GX10#,JZX10#..4FC..(AVT,AVTG) |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83833-22010 |
GX10#,JZX10#..4FC..(AVT,AVTG) |
1 | ||
| 83145C - LENS, METER, NO.4 | ||||
| 83838-22010 |
GX10#,JZX10#..4FC..(AVT,AVTG) |
2 | ||
| 83145C - LENS, METER, NO.4 | ||||
| 83838-22010 |
GX10#,JZX10#..4FC..(AVT,AVTG) |
2 | ||
| 83145D - LENS, METER, NO.5 | ||||
| 83835-22010 |
GX10#,JZX10#..4FC..(AVT,AVTG) |
1 | ||
| 83145E - LENS, METER, NO.6 | ||||
| 83831-22020 |
JZX100,105..AVT,AVTG |
1 | ||
| 83834-22010 |
GX10#,JZX10#..4FC..(AVT,AVTG) |
1 | ||
| 83145T - LENS, METER, NO.8 | ||||
| 83836-22010 |
GX10#,JZX10#..4FC..(AVT,AVTG) |
1 | ||
| 83145U - LENS, METER, NO.9 | ||||
| 83837-22010 |
GX10#,JZX10#..4FC..(AVT,AVTG) |
1 | ||
| 83159 - SWITCH, METER, NO.1 | ||||
| 83871-22010 |
GX10#,JZX10#..4FC..(AVT,AVTG) |
1 | ||
| 83159A - SWITCH, METER, NO.2 | ||||
| 83872-22010 |
GX10#,JZX10#..4FC..(AVT,AVTG) |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83861-22021 |
JZX100,105..AVT,AVTG ﾃﾞｼﾞﾀﾙ ﾒ-ﾀ |
1 | ||
| 83861-22270 |
GX10#,JZX10#..4FC..(AVT,AVTG) ﾃﾞｼﾞﾀﾙ ﾒ-ﾀ |
1 | ||
| 83861-22080 |
JZX100..5F;GX100,JZX100,105,LX100..AVT,XL ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83861-22020 |
JZX100,105..AVT,AVTG ﾃﾞｼﾞﾀﾙ ﾒ-ﾀ |
1 | ||
| 83861-22160 |
GX10#,JZX100,105..AVT;GX100,JZX100..5F..(TOU,TOUV) ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83291 - COMPUTER, COMBINATION METER | ||||
| 83291-22480 |
JZX100,105..AVT,AVTG |
1 | ||
| 83291-22510 |
JZX100,105..AVT,AVTG |
1 | ||
| 83847 - CUSHION, COMBINATION SPEEDOMETER, NO.1 | ||||
| 83847-22010 |
GX10#,JZX10#..4FC..(AVT,AVTG) |
4 | ||
| 83847A - CUSHION, COMBINATION SPEEDMETER | ||||
| 83848-22010 |
GX10#,JZX10#..4FC..(AVT,AVTG) |
1 | ||
| 83855 - BRACKET, COMBINATION METER, NO.1 | ||||
| 83855-22010 |
GX10#,JZX10#..4FC..(AVT,AVTG) |
1 | ||
| 83856 - BRACKET, COMBINATION METER, NO.2 | ||||
| 83856-22010 |
GX10#,JZX10#..4FC..(AVT,AVTG) |
1 | ||
| 83857 - REFLECTOR, COMBINATION METER, NO.1 | ||||
| 83857-22010 |
GX10#,JZX10#..4FC..(AVT,AVTG) |
1 | ||
| 83857A - REFLECTOR, COMBINATION METER | ||||
| 83858-22010 |
GX10#,JZX10#..4FC..(AVT,AVTG) |
1 | ||
| Common parts | ||||
| 83161-20380 | ||||
| 83161-20800 | ||||
| 90076-00005 | ||||
| 90076-00007 | ||||
| 93568-55016 | ||||
ILLUST NO. 1 OF 3(9808- )
ﾃﾞｼﾞﾀﾙﾒ-ﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83129 - WIRE, METER | ||||
| 83875-22010 |
GX10#,JZX10#..4FC..(AVT,AVTG) |
1 | ||
| 83129C - WIRE, COMBINATION METER | ||||
| 83876-22010 |
GX10#,JZX10#..4FC..(AVT,AVTG) |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83841-22220 |
JZX100..AVT ｵﾌﾟﾁﾄﾛﾝﾒ-ﾀ,ｱﾘ(VSC) |
1 | ||
| 83841-22060 |
GX10#,JZX100,105..4FC..AVT ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83841-22010 |
GX10#,JZX10#..4FC..(AVT,AVTG) ﾃﾞｼﾞﾀﾙ ﾒ-ﾀ,NO.1 |
1 | ||
| 83842-22010 |
GX10#,JZX10#..4FC..(AVT,AVTG) ﾃﾞｼﾞﾀﾙ ﾒ-ﾀ,NO.2 |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83841-22220 |
JZX100..AVT ｵﾌﾟﾁﾄﾛﾝﾒ-ﾀ,ｱﾘ(VSC) |
1 | ||
| 83841-22060 |
GX10#,JZX100,105..4FC..AVT ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83841-22010 |
GX10#,JZX10#..4FC..(AVT,AVTG) ﾃﾞｼﾞﾀﾙ ﾒ-ﾀ,NO.1 |
1 | ||
| 83842-22010 |
GX10#,JZX10#..4FC..(AVT,AVTG) ﾃﾞｼﾞﾀﾙ ﾒ-ﾀ,NO.2 |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83821-22010 |
GX10#,JZX10#..4FC..(AVT,AVTG) |
1 | ||
| 83134B - COVER, COMBINATION METER, NO.2 | ||||
| 83822-22010 |
GX10#,JZX10#..4FC..(AVT,AVTG) |
1 | ||
| 83134D - COVER, COMBINATION METER, NO.3 | ||||
| 83134-2A680 |
GX10#,JZX10#..4FC..(AVT,AVTG) |
1 | ||
| 83134E - COVER, COMBINATION METER, NO.4 | ||||
| 83823-22010 |
GX10#,JZX10#..4FC..(AVT,AVTG) |
1 | ||
| 83134G - COVER, COMBINATION METER | ||||
| 83824-22010 |
GX10#,JZX10#..4FC..(AVT,AVTG) |
2 | ||
| 83134G - COVER, COMBINATION METER | ||||
| 83824-22010 |
GX10#,JZX10#..4FC..(AVT,AVTG) |
2 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83852-22010 |
GX10#,JZX10#..4FC..(AVT,AVTG) ﾃﾞｼﾞﾀﾙ ﾒ-ﾀ |
1 | ||
| 83852-22050 |
GX10#,JZX100,105,LX100..AVT,TOU,TOUS,TOUV,XL ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83831-22270 |
GX10#,JZX10#..4FC..(AVT,AVTG) |
1 | ||
| 83831-22010 |
GX100,JZX10#..4FC..(AVT,AVTG) |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83832-22010 |
GX10#,JZX10#..4FC..(AVT,AVTG) |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83833-22010 |
GX10#,JZX10#..4FC..(AVT,AVTG) |
1 | ||
| 83145C - LENS, METER, NO.4 | ||||
| 83838-22010 |
GX10#,JZX10#..4FC..(AVT,AVTG) |
2 | ||
| 83145C - LENS, METER, NO.4 | ||||
| 83838-22010 |
GX10#,JZX10#..4FC..(AVT,AVTG) |
2 | ||
| 83145D - LENS, METER, NO.5 | ||||
| 83835-22010 |
GX10#,JZX10#..4FC..(AVT,AVTG) |
1 | ||
| 83145E - LENS, METER, NO.6 | ||||
| 83831-22020 |
JZX100,105..AVT,AVTG |
1 | ||
| 83834-22010 |
GX10#,JZX10#..4FC..(AVT,AVTG) |
1 | ||
| 83145T - LENS, METER, NO.8 | ||||
| 83836-22010 |
GX10#,JZX10#..4FC..(AVT,AVTG) |
1 | ||
| 83145U - LENS, METER, NO.9 | ||||
| 83837-22010 |
GX10#,JZX10#..4FC..(AVT,AVTG) |
1 | ||
| 83159 - SWITCH, METER, NO.1 | ||||
| 83871-22010 |
GX10#,JZX10#..4FC..(AVT,AVTG) |
1 | ||
| 83159A - SWITCH, METER, NO.2 | ||||
| 83872-22010 |
GX10#,JZX10#..4FC..(AVT,AVTG) |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83861-22021 |
JZX100,105..AVT,AVTG ﾃﾞｼﾞﾀﾙ ﾒ-ﾀ |
1 | ||
| 83861-22270 |
GX10#,JZX10#..4FC..(AVT,AVTG) ﾃﾞｼﾞﾀﾙ ﾒ-ﾀ |
1 | ||
| 83861-22080 |
JZX100..5F;GX100,JZX100,105,LX100..AVT,XL ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83861-22020 |
JZX100,105..AVT,AVTG ﾃﾞｼﾞﾀﾙ ﾒ-ﾀ |
1 | ||
| 83861-22160 |
GX10#,JZX100,105..AVT;GX100,JZX100..5F..(TOU,TOUV) ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83291 - COMPUTER, COMBINATION METER | ||||
| 83291-22480 |
JZX100,105..AVT,AVTG |
1 | ||
| 83291-22510 |
JZX100,105..AVT,AVTG |
1 | ||
| 83847 - CUSHION, COMBINATION SPEEDOMETER, NO.1 | ||||
| 83847-22010 |
GX10#,JZX10#..4FC..(AVT,AVTG) |
4 | ||
| 83847A - CUSHION, COMBINATION SPEEDMETER | ||||
| 83848-22010 |
GX10#,JZX10#..4FC..(AVT,AVTG) |
1 | ||
| 83855 - BRACKET, COMBINATION METER, NO.1 | ||||
| 83855-22010 |
GX10#,JZX10#..4FC..(AVT,AVTG) |
1 | ||
| 83856 - BRACKET, COMBINATION METER, NO.2 | ||||
| 83856-22010 |
GX10#,JZX10#..4FC..(AVT,AVTG) |
1 | ||
| 83857 - REFLECTOR, COMBINATION METER, NO.1 | ||||
| 83857-22010 |
GX10#,JZX10#..4FC..(AVT,AVTG) |
1 | ||
| 83857A - REFLECTOR, COMBINATION METER | ||||
| 83858-22010 |
GX10#,JZX10#..4FC..(AVT,AVTG) |
1 | ||
| Common parts | ||||
| 83161-20380 | ||||
| 83161-20800 | ||||
| 90076-00005 | ||||
| 90076-00007 | ||||
| 93568-55016 | ||||

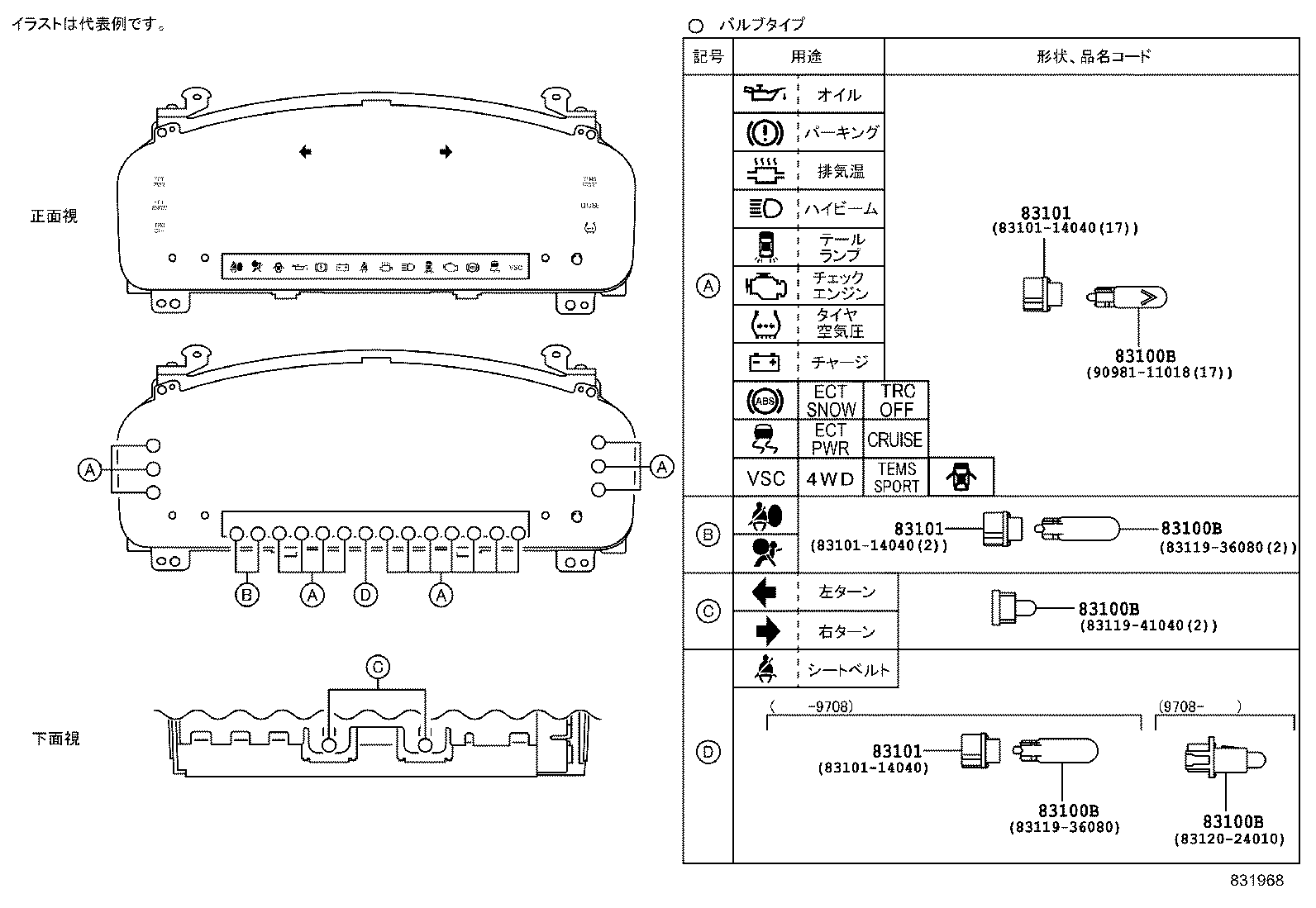

ILLUST NO. 2 OF 3(9609-9808)
ﾊﾞﾙﾌﾞ & ｿｹｯﾄ(ﾃﾞｼﾞﾀﾙﾒｰﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-30070 |
GX100,JZX100,105,LX100,SX100..AVT,RAF,TOU,TOUS,TOUV,XL 14V 2.0W,ｿｹｯﾄなし |
2 | ||
| 83119-36080 |
GX100,JZX10#..4FC..(AVT,AVTG) 12V 2.0W |
3 | ||
| 83119-41040 |
GX100,JZX10#..4FC 14V 2.0W,ｿｹｯﾄ付き |
2 | ||
| 83119-36080 |
GX100,JZX10#..4FC..(AVT,AVTG) |
2 | ||
| 90981-11018 |
GX100,JZX10#,LX100,SX100 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-24010 |
GX100,JZX10#,LX100,SX100 13.5V,ｿｹｯﾄ付き |
1 | ||
| 83109-30070 |
GX10#,JZX100,105,LX100,SX100..AVT,TOU,TOUS,TOUV,XL 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 90981-11018 |
GX10#,JZX100,105,LX100,SX100..AVT,TOU,TOUS,TOUV,XL 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-60020 |
JZX100..AVTG |
17 | ||
| 83119-41040 |
GX10#,JZX10#..4FC..(AVT,AVTG) 14V 2.0W,ｿｹｯﾄ付き |
2 | ||
| 83119-32010 |
GX10#,JZX100,105,LX100,SX100..AVT,RAF,TOU,TOUS,TOUV,XL 14V 3.0W |
1 | ||
| 83120-60010 |
GX10#,JZX10#..4FC..(AVT,AVTG) 14V 2.0W |
2 | ||
| 83120-60020 |
JZX100,105..AVT 12V 1.4W,ｿｹｯﾄ付き,ﾃﾞｼﾞﾀﾙ ﾒ-ﾀ |
17 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-30070 |
GX100,JZX100,105,LX100,SX100..AVT,RAF,TOU,TOUS,TOUV,XL 14V 2.0W,ｿｹｯﾄなし |
2 | ||
| 83119-36080 |
GX100,JZX10#..4FC..(AVT,AVTG) 12V 2.0W |
3 | ||
| 83119-41040 |
GX100,JZX10#..4FC 14V 2.0W,ｿｹｯﾄ付き |
2 | ||
| 83119-36080 |
GX100,JZX10#..4FC..(AVT,AVTG) |
2 | ||
| 90981-11018 |
GX100,JZX10#,LX100,SX100 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-24010 |
GX100,JZX10#,LX100,SX100 13.5V,ｿｹｯﾄ付き |
1 | ||
| 83109-30070 |
GX10#,JZX100,105,LX100,SX100..AVT,TOU,TOUS,TOUV,XL 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 90981-11018 |
GX10#,JZX100,105,LX100,SX100..AVT,TOU,TOUS,TOUV,XL 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-60020 |
JZX100..AVTG |
17 | ||
| 83119-41040 |
GX10#,JZX10#..4FC..(AVT,AVTG) 14V 2.0W,ｿｹｯﾄ付き |
2 | ||
| 83119-32010 |
GX10#,JZX100,105,LX100,SX100..AVT,RAF,TOU,TOUS,TOUV,XL 14V 3.0W |
1 | ||
| 83120-60010 |
GX10#,JZX10#..4FC..(AVT,AVTG) 14V 2.0W |
2 | ||
| 83120-60020 |
JZX100,105..AVT 12V 1.4W,ｿｹｯﾄ付き,ﾃﾞｼﾞﾀﾙ ﾒ-ﾀ |
17 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-30070 |
GX100,JZX100,105,LX100,SX100..AVT,RAF,TOU,TOUS,TOUV,XL 14V 2.0W,ｿｹｯﾄなし |
2 | ||
| 83119-36080 |
GX100,JZX10#..4FC..(AVT,AVTG) 12V 2.0W |
3 | ||
| 83119-41040 |
GX100,JZX10#..4FC 14V 2.0W,ｿｹｯﾄ付き |
2 | ||
| 83119-36080 |
GX100,JZX10#..4FC..(AVT,AVTG) |
2 | ||
| 90981-11018 |
GX100,JZX10#,LX100,SX100 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-24010 |
GX100,JZX10#,LX100,SX100 13.5V,ｿｹｯﾄ付き |
1 | ||
| 83109-30070 |
GX10#,JZX100,105,LX100,SX100..AVT,TOU,TOUS,TOUV,XL 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 90981-11018 |
GX10#,JZX100,105,LX100,SX100..AVT,TOU,TOUS,TOUV,XL 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-60020 |
JZX100..AVTG |
17 | ||
| 83119-41040 |
GX10#,JZX10#..4FC..(AVT,AVTG) 14V 2.0W,ｿｹｯﾄ付き |
2 | ||
| 83119-32010 |
GX10#,JZX100,105,LX100,SX100..AVT,RAF,TOU,TOUS,TOUV,XL 14V 3.0W |
1 | ||
| 83120-60010 |
GX10#,JZX10#..4FC..(AVT,AVTG) 14V 2.0W |
2 | ||
| 83120-60020 |
JZX100,105..AVT 12V 1.4W,ｿｹｯﾄ付き,ﾃﾞｼﾞﾀﾙ ﾒ-ﾀ |
17 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-30070 |
GX100,JZX100,105,LX100,SX100..AVT,RAF,TOU,TOUS,TOUV,XL 14V 2.0W,ｿｹｯﾄなし |
2 | ||
| 83119-36080 |
GX100,JZX10#..4FC..(AVT,AVTG) 12V 2.0W |
3 | ||
| 83119-41040 |
GX100,JZX10#..4FC 14V 2.0W,ｿｹｯﾄ付き |
2 | ||
| 83119-36080 |
GX100,JZX10#..4FC..(AVT,AVTG) |
2 | ||
| 90981-11018 |
GX100,JZX10#,LX100,SX100 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-24010 |
GX100,JZX10#,LX100,SX100 13.5V,ｿｹｯﾄ付き |
1 | ||
| 83109-30070 |
GX10#,JZX100,105,LX100,SX100..AVT,TOU,TOUS,TOUV,XL 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 90981-11018 |
GX10#,JZX100,105,LX100,SX100..AVT,TOU,TOUS,TOUV,XL 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-60020 |
JZX100..AVTG |
17 | ||
| 83119-41040 |
GX10#,JZX10#..4FC..(AVT,AVTG) 14V 2.0W,ｿｹｯﾄ付き |
2 | ||
| 83119-32010 |
GX10#,JZX100,105,LX100,SX100..AVT,RAF,TOU,TOUS,TOUV,XL 14V 3.0W |
1 | ||
| 83120-60010 |
GX10#,JZX10#..4FC..(AVT,AVTG) 14V 2.0W |
2 | ||
| 83120-60020 |
JZX100,105..AVT 12V 1.4W,ｿｹｯﾄ付き,ﾃﾞｼﾞﾀﾙ ﾒ-ﾀ |
17 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-30070 |
GX100,JZX100,105,LX100,SX100..AVT,RAF,TOU,TOUS,TOUV,XL 14V 2.0W,ｿｹｯﾄなし |
2 | ||
| 83119-36080 |
GX100,JZX10#..4FC..(AVT,AVTG) 12V 2.0W |
3 | ||
| 83119-41040 |
GX100,JZX10#..4FC 14V 2.0W,ｿｹｯﾄ付き |
2 | ||
| 83119-36080 |
GX100,JZX10#..4FC..(AVT,AVTG) |
2 | ||
| 90981-11018 |
GX100,JZX10#,LX100,SX100 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-24010 |
GX100,JZX10#,LX100,SX100 13.5V,ｿｹｯﾄ付き |
1 | ||
| 83109-30070 |
GX10#,JZX100,105,LX100,SX100..AVT,TOU,TOUS,TOUV,XL 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 90981-11018 |
GX10#,JZX100,105,LX100,SX100..AVT,TOU,TOUS,TOUV,XL 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-60020 |
JZX100..AVTG |
17 | ||
| 83119-41040 |
GX10#,JZX10#..4FC..(AVT,AVTG) 14V 2.0W,ｿｹｯﾄ付き |
2 | ||
| 83119-32010 |
GX10#,JZX100,105,LX100,SX100..AVT,RAF,TOU,TOUS,TOUV,XL 14V 3.0W |
1 | ||
| 83120-60010 |
GX10#,JZX10#..4FC..(AVT,AVTG) 14V 2.0W |
2 | ||
| 83120-60020 |
JZX100,105..AVT 12V 1.4W,ｿｹｯﾄ付き,ﾃﾞｼﾞﾀﾙ ﾒ-ﾀ |
17 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
GX100,JZX10#,LX100,SX100 |
1 | ||
| 83101-14040 |
GX10#,JZX10#,LX100,SX100 |
1 | ||
| 83101-32020 |
GX10#,JZX100,105,LX100,SX100..AVT,RAF,TOU,TOUS,TOUV,XL ﾌｭｰｴﾙ ｳｫｰﾆﾝｸﾞ |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
GX100,JZX10#,LX100,SX100 |
1 | ||
| 83101-14040 |
GX10#,JZX10#,LX100,SX100 |
1 | ||
| 83101-32020 |
GX10#,JZX100,105,LX100,SX100..AVT,RAF,TOU,TOUS,TOUV,XL ﾌｭｰｴﾙ ｳｫｰﾆﾝｸﾞ |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
GX100,JZX10#,LX100,SX100 |
1 | ||
| 83101-14040 |
GX10#,JZX10#,LX100,SX100 |
1 | ||
| 83101-32020 |
GX10#,JZX100,105,LX100,SX100..AVT,RAF,TOU,TOUS,TOUV,XL ﾌｭｰｴﾙ ｳｫｰﾆﾝｸﾞ |
1 | ||

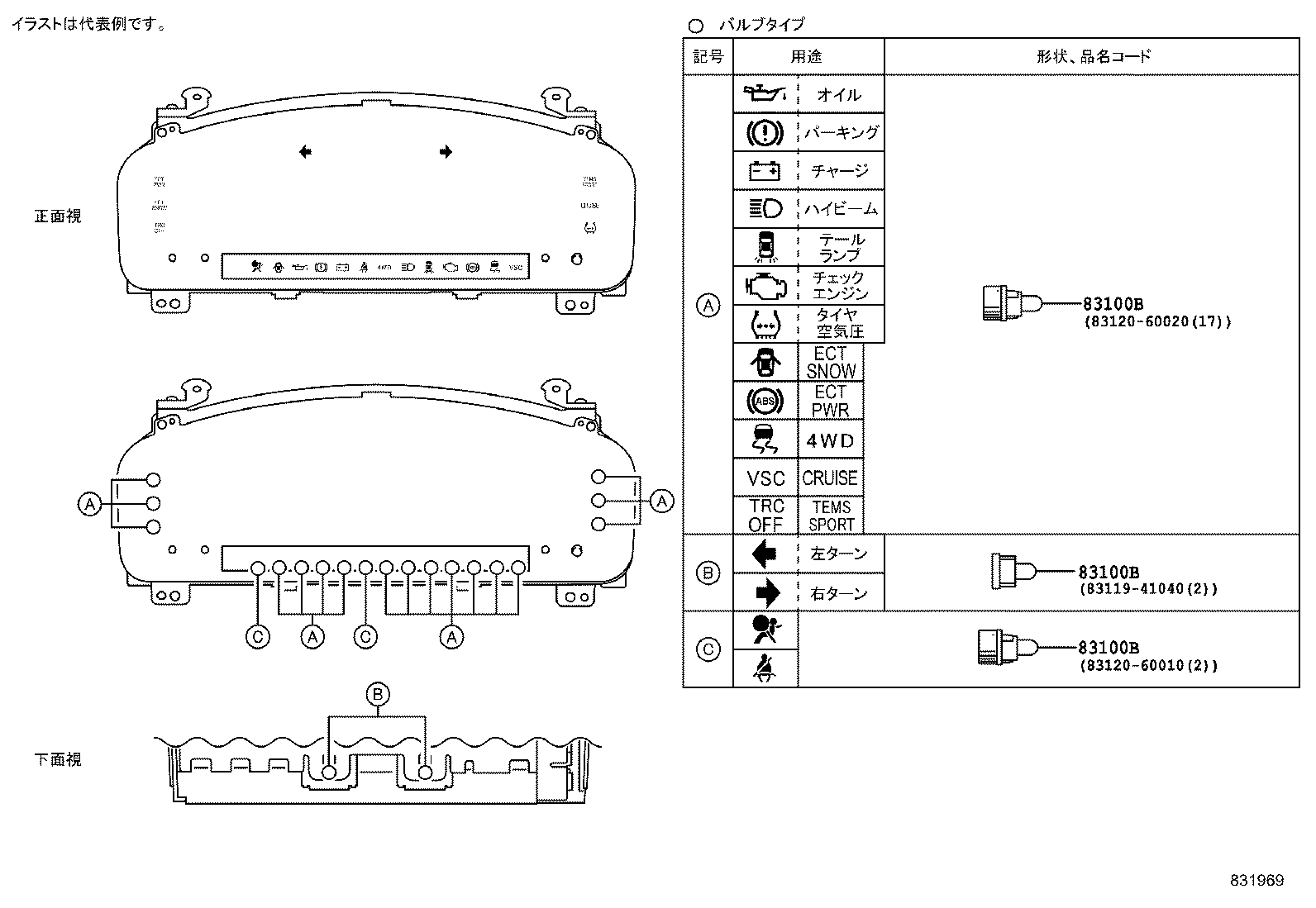

ILLUST NO. 2 OF 3(9808- )
ﾊﾞﾙﾌﾞ & ｿｹｯﾄ(ﾃﾞｼﾞﾀﾙﾒｰﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-30070 |
GX100,JZX100,105,LX100,SX100..AVT,RAF,TOU,TOUS,TOUV,XL 14V 2.0W,ｿｹｯﾄなし |
2 | ||
| 83119-36080 |
GX100,JZX10#..4FC..(AVT,AVTG) 12V 2.0W |
3 | ||
| 83119-41040 |
GX100,JZX10#..4FC 14V 2.0W,ｿｹｯﾄ付き |
2 | ||
| 83119-36080 |
GX100,JZX10#..4FC..(AVT,AVTG) |
2 | ||
| 90981-11018 |
GX100,JZX10#,LX100,SX100 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-24010 |
GX100,JZX10#,LX100,SX100 13.5V,ｿｹｯﾄ付き |
1 | ||
| 83109-30070 |
GX10#,JZX100,105,LX100,SX100..AVT,TOU,TOUS,TOUV,XL 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 90981-11018 |
GX10#,JZX100,105,LX100,SX100..AVT,TOU,TOUS,TOUV,XL 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-60020 |
JZX100..AVTG |
17 | ||
| 83119-41040 |
GX10#,JZX10#..4FC..(AVT,AVTG) 14V 2.0W,ｿｹｯﾄ付き |
2 | ||
| 83119-32010 |
GX10#,JZX100,105,LX100,SX100..AVT,RAF,TOU,TOUS,TOUV,XL 14V 3.0W |
1 | ||
| 83120-60010 |
GX10#,JZX10#..4FC..(AVT,AVTG) 14V 2.0W |
2 | ||
| 83120-60020 |
JZX100,105..AVT 12V 1.4W,ｿｹｯﾄ付き,ﾃﾞｼﾞﾀﾙ ﾒ-ﾀ |
17 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-30070 |
GX100,JZX100,105,LX100,SX100..AVT,RAF,TOU,TOUS,TOUV,XL 14V 2.0W,ｿｹｯﾄなし |
2 | ||
| 83119-36080 |
GX100,JZX10#..4FC..(AVT,AVTG) 12V 2.0W |
3 | ||
| 83119-41040 |
GX100,JZX10#..4FC 14V 2.0W,ｿｹｯﾄ付き |
2 | ||
| 83119-36080 |
GX100,JZX10#..4FC..(AVT,AVTG) |
2 | ||
| 90981-11018 |
GX100,JZX10#,LX100,SX100 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-24010 |
GX100,JZX10#,LX100,SX100 13.5V,ｿｹｯﾄ付き |
1 | ||
| 83109-30070 |
GX10#,JZX100,105,LX100,SX100..AVT,TOU,TOUS,TOUV,XL 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 90981-11018 |
GX10#,JZX100,105,LX100,SX100..AVT,TOU,TOUS,TOUV,XL 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-60020 |
JZX100..AVTG |
17 | ||
| 83119-41040 |
GX10#,JZX10#..4FC..(AVT,AVTG) 14V 2.0W,ｿｹｯﾄ付き |
2 | ||
| 83119-32010 |
GX10#,JZX100,105,LX100,SX100..AVT,RAF,TOU,TOUS,TOUV,XL 14V 3.0W |
1 | ||
| 83120-60010 |
GX10#,JZX10#..4FC..(AVT,AVTG) 14V 2.0W |
2 | ||
| 83120-60020 |
JZX100,105..AVT 12V 1.4W,ｿｹｯﾄ付き,ﾃﾞｼﾞﾀﾙ ﾒ-ﾀ |
17 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-30070 |
GX100,JZX100,105,LX100,SX100..AVT,RAF,TOU,TOUS,TOUV,XL 14V 2.0W,ｿｹｯﾄなし |
2 | ||
| 83119-36080 |
GX100,JZX10#..4FC..(AVT,AVTG) 12V 2.0W |
3 | ||
| 83119-41040 |
GX100,JZX10#..4FC 14V 2.0W,ｿｹｯﾄ付き |
2 | ||
| 83119-36080 |
GX100,JZX10#..4FC..(AVT,AVTG) |
2 | ||
| 90981-11018 |
GX100,JZX10#,LX100,SX100 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-24010 |
GX100,JZX10#,LX100,SX100 13.5V,ｿｹｯﾄ付き |
1 | ||
| 83109-30070 |
GX10#,JZX100,105,LX100,SX100..AVT,TOU,TOUS,TOUV,XL 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 90981-11018 |
GX10#,JZX100,105,LX100,SX100..AVT,TOU,TOUS,TOUV,XL 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-60020 |
JZX100..AVTG |
17 | ||
| 83119-41040 |
GX10#,JZX10#..4FC..(AVT,AVTG) 14V 2.0W,ｿｹｯﾄ付き |
2 | ||
| 83119-32010 |
GX10#,JZX100,105,LX100,SX100..AVT,RAF,TOU,TOUS,TOUV,XL 14V 3.0W |
1 | ||
| 83120-60010 |
GX10#,JZX10#..4FC..(AVT,AVTG) 14V 2.0W |
2 | ||
| 83120-60020 |
JZX100,105..AVT 12V 1.4W,ｿｹｯﾄ付き,ﾃﾞｼﾞﾀﾙ ﾒ-ﾀ |
17 | ||

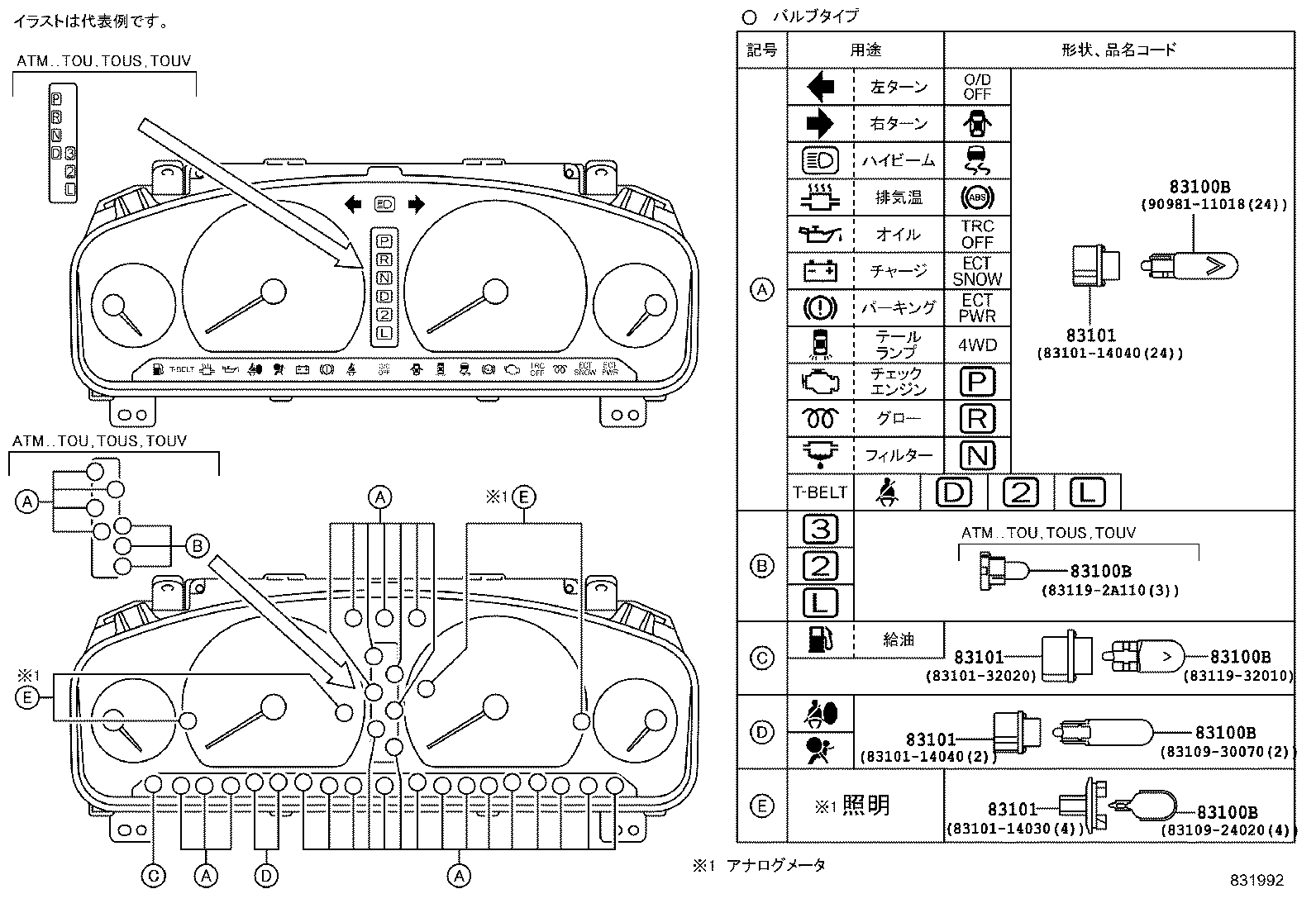

ILLUST NO. 2 OF 3(9609-9808)
ﾊﾞﾙﾌﾞ & ｿｹｯﾄ(ｱﾅﾛｸﾞﾒｰﾀ,ｵﾌﾟﾃｨﾄﾛﾝﾒｰﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-30070 |
GX100,JZX100,105,LX100,SX100..AVT,RAF,TOU,TOUS,TOUV,XL 14V 2.0W,ｿｹｯﾄなし |
2 | ||
| 83119-36080 |
GX100,JZX10#..4FC..(AVT,AVTG) 12V 2.0W |
3 | ||
| 83119-41040 |
GX100,JZX10#..4FC 14V 2.0W,ｿｹｯﾄ付き |
2 | ||
| 83119-36080 |
GX100,JZX10#..4FC..(AVT,AVTG) |
2 | ||
| 90981-11018 |
GX100,JZX10#,LX100,SX100 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-24010 |
GX100,JZX10#,LX100,SX100 13.5V,ｿｹｯﾄ付き |
1 | ||
| 83109-30070 |
GX10#,JZX100,105,LX100,SX100..AVT,TOU,TOUS,TOUV,XL 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 90981-11018 |
GX10#,JZX100,105,LX100,SX100..AVT,TOU,TOUS,TOUV,XL 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-60020 |
JZX100..AVTG |
17 | ||
| 83119-41040 |
GX10#,JZX10#..4FC..(AVT,AVTG) 14V 2.0W,ｿｹｯﾄ付き |
2 | ||
| 83119-32010 |
GX10#,JZX100,105,LX100,SX100..AVT,RAF,TOU,TOUS,TOUV,XL 14V 3.0W |
1 | ||
| 83120-60010 |
GX10#,JZX10#..4FC..(AVT,AVTG) 14V 2.0W |
2 | ||
| 83120-60020 |
JZX100,105..AVT 12V 1.4W,ｿｹｯﾄ付き,ﾃﾞｼﾞﾀﾙ ﾒ-ﾀ |
17 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-30070 |
GX100,JZX100,105,LX100,SX100..AVT,RAF,TOU,TOUS,TOUV,XL 14V 2.0W,ｿｹｯﾄなし |
2 | ||
| 83119-36080 |
GX100,JZX10#..4FC..(AVT,AVTG) 12V 2.0W |
3 | ||
| 83119-41040 |
GX100,JZX10#..4FC 14V 2.0W,ｿｹｯﾄ付き |
2 | ||
| 83119-36080 |
GX100,JZX10#..4FC..(AVT,AVTG) |
2 | ||
| 90981-11018 |
GX100,JZX10#,LX100,SX100 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-24010 |
GX100,JZX10#,LX100,SX100 13.5V,ｿｹｯﾄ付き |
1 | ||
| 83109-30070 |
GX10#,JZX100,105,LX100,SX100..AVT,TOU,TOUS,TOUV,XL 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 90981-11018 |
GX10#,JZX100,105,LX100,SX100..AVT,TOU,TOUS,TOUV,XL 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-60020 |
JZX100..AVTG |
17 | ||
| 83119-41040 |
GX10#,JZX10#..4FC..(AVT,AVTG) 14V 2.0W,ｿｹｯﾄ付き |
2 | ||
| 83119-32010 |
GX10#,JZX100,105,LX100,SX100..AVT,RAF,TOU,TOUS,TOUV,XL 14V 3.0W |
1 | ||
| 83120-60010 |
GX10#,JZX10#..4FC..(AVT,AVTG) 14V 2.0W |
2 | ||
| 83120-60020 |
JZX100,105..AVT 12V 1.4W,ｿｹｯﾄ付き,ﾃﾞｼﾞﾀﾙ ﾒ-ﾀ |
17 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-30070 |
GX100,JZX100,105,LX100,SX100..AVT,RAF,TOU,TOUS,TOUV,XL 14V 2.0W,ｿｹｯﾄなし |
2 | ||
| 83119-36080 |
GX100,JZX10#..4FC..(AVT,AVTG) 12V 2.0W |
3 | ||
| 83119-41040 |
GX100,JZX10#..4FC 14V 2.0W,ｿｹｯﾄ付き |
2 | ||
| 83119-36080 |
GX100,JZX10#..4FC..(AVT,AVTG) |
2 | ||
| 90981-11018 |
GX100,JZX10#,LX100,SX100 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-24010 |
GX100,JZX10#,LX100,SX100 13.5V,ｿｹｯﾄ付き |
1 | ||
| 83109-30070 |
GX10#,JZX100,105,LX100,SX100..AVT,TOU,TOUS,TOUV,XL 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 90981-11018 |
GX10#,JZX100,105,LX100,SX100..AVT,TOU,TOUS,TOUV,XL 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-60020 |
JZX100..AVTG |
17 | ||
| 83119-41040 |
GX10#,JZX10#..4FC..(AVT,AVTG) 14V 2.0W,ｿｹｯﾄ付き |
2 | ||
| 83119-32010 |
GX10#,JZX100,105,LX100,SX100..AVT,RAF,TOU,TOUS,TOUV,XL 14V 3.0W |
1 | ||
| 83120-60010 |
GX10#,JZX10#..4FC..(AVT,AVTG) 14V 2.0W |
2 | ||
| 83120-60020 |
JZX100,105..AVT 12V 1.4W,ｿｹｯﾄ付き,ﾃﾞｼﾞﾀﾙ ﾒ-ﾀ |
17 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-30070 |
GX100,JZX100,105,LX100,SX100..AVT,RAF,TOU,TOUS,TOUV,XL 14V 2.0W,ｿｹｯﾄなし |
2 | ||
| 83119-36080 |
GX100,JZX10#..4FC..(AVT,AVTG) 12V 2.0W |
3 | ||
| 83119-41040 |
GX100,JZX10#..4FC 14V 2.0W,ｿｹｯﾄ付き |
2 | ||
| 83119-36080 |
GX100,JZX10#..4FC..(AVT,AVTG) |
2 | ||
| 90981-11018 |
GX100,JZX10#,LX100,SX100 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-24010 |
GX100,JZX10#,LX100,SX100 13.5V,ｿｹｯﾄ付き |
1 | ||
| 83109-30070 |
GX10#,JZX100,105,LX100,SX100..AVT,TOU,TOUS,TOUV,XL 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 90981-11018 |
GX10#,JZX100,105,LX100,SX100..AVT,TOU,TOUS,TOUV,XL 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-60020 |
JZX100..AVTG |
17 | ||
| 83119-41040 |
GX10#,JZX10#..4FC..(AVT,AVTG) 14V 2.0W,ｿｹｯﾄ付き |
2 | ||
| 83119-32010 |
GX10#,JZX100,105,LX100,SX100..AVT,RAF,TOU,TOUS,TOUV,XL 14V 3.0W |
1 | ||
| 83120-60010 |
GX10#,JZX10#..4FC..(AVT,AVTG) 14V 2.0W |
2 | ||
| 83120-60020 |
JZX100,105..AVT 12V 1.4W,ｿｹｯﾄ付き,ﾃﾞｼﾞﾀﾙ ﾒ-ﾀ |
17 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-30070 |
GX100,JZX100,105,LX100,SX100..AVT,RAF,TOU,TOUS,TOUV,XL 14V 2.0W,ｿｹｯﾄなし |
2 | ||
| 83119-36080 |
GX100,JZX10#..4FC..(AVT,AVTG) 12V 2.0W |
3 | ||
| 83119-41040 |
GX100,JZX10#..4FC 14V 2.0W,ｿｹｯﾄ付き |
2 | ||
| 83119-36080 |
GX100,JZX10#..4FC..(AVT,AVTG) |
2 | ||
| 90981-11018 |
GX100,JZX10#,LX100,SX100 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-24010 |
GX100,JZX10#,LX100,SX100 13.5V,ｿｹｯﾄ付き |
1 | ||
| 83109-30070 |
GX10#,JZX100,105,LX100,SX100..AVT,TOU,TOUS,TOUV,XL 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 90981-11018 |
GX10#,JZX100,105,LX100,SX100..AVT,TOU,TOUS,TOUV,XL 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-60020 |
JZX100..AVTG |
17 | ||
| 83119-41040 |
GX10#,JZX10#..4FC..(AVT,AVTG) 14V 2.0W,ｿｹｯﾄ付き |
2 | ||
| 83119-32010 |
GX10#,JZX100,105,LX100,SX100..AVT,RAF,TOU,TOUS,TOUV,XL 14V 3.0W |
1 | ||
| 83120-60010 |
GX10#,JZX10#..4FC..(AVT,AVTG) 14V 2.0W |
2 | ||
| 83120-60020 |
JZX100,105..AVT 12V 1.4W,ｿｹｯﾄ付き,ﾃﾞｼﾞﾀﾙ ﾒ-ﾀ |
17 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
GX100,JZX10#,LX100,SX100 |
1 | ||
| 83101-14040 |
GX10#,JZX10#,LX100,SX100 |
1 | ||
| 83101-32020 |
GX10#,JZX100,105,LX100,SX100..AVT,RAF,TOU,TOUS,TOUV,XL ﾌｭｰｴﾙ ｳｫｰﾆﾝｸﾞ |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
GX100,JZX10#,LX100,SX100 |
1 | ||
| 83101-14040 |
GX10#,JZX10#,LX100,SX100 |
1 | ||
| 83101-32020 |
GX10#,JZX100,105,LX100,SX100..AVT,RAF,TOU,TOUS,TOUV,XL ﾌｭｰｴﾙ ｳｫｰﾆﾝｸﾞ |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
GX100,JZX10#,LX100,SX100 |
1 | ||
| 83101-14040 |
GX10#,JZX10#,LX100,SX100 |
1 | ||
| 83101-32020 |
GX10#,JZX100,105,LX100,SX100..AVT,RAF,TOU,TOUS,TOUV,XL ﾌｭｰｴﾙ ｳｫｰﾆﾝｸﾞ |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
GX100,JZX10#,LX100,SX100 |
1 | ||
| 83101-14040 |
GX10#,JZX10#,LX100,SX100 |
1 | ||
| 83101-32020 |
GX10#,JZX100,105,LX100,SX100..AVT,RAF,TOU,TOUS,TOUV,XL ﾌｭｰｴﾙ ｳｫｰﾆﾝｸﾞ |
1 | ||

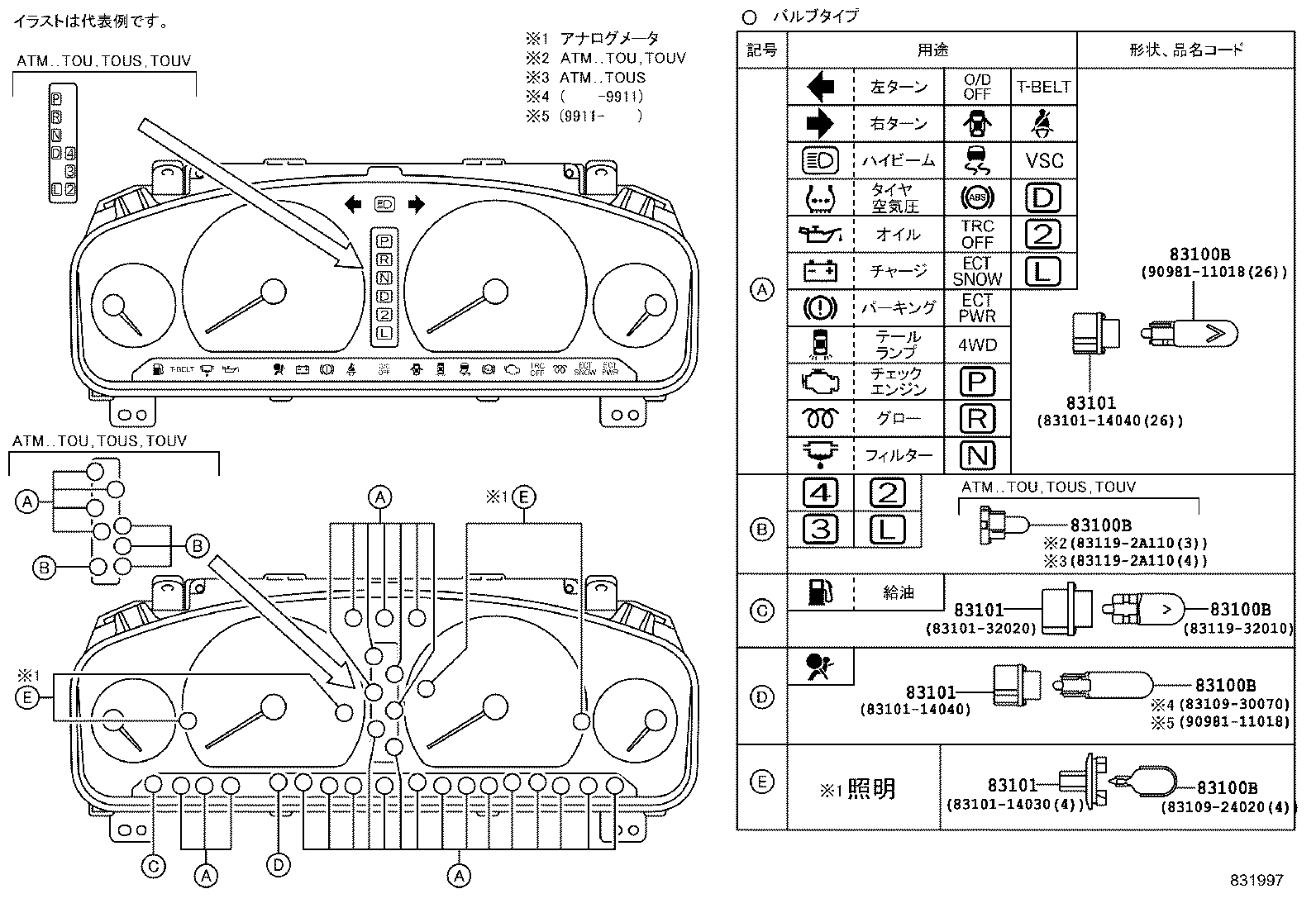

ILLUST NO. 2 OF 3(9808- )
ﾊﾞﾙﾌﾞ & ｿｹｯﾄ(ｱﾅﾛｸﾞﾒｰﾀ,ｵﾌﾟﾃｨﾄﾛﾝﾒｰﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-30070 |
GX100,JZX100,105,LX100,SX100..AVT,RAF,TOU,TOUS,TOUV,XL 14V 2.0W,ｿｹｯﾄなし |
2 | ||
| 83119-36080 |
GX100,JZX10#..4FC..(AVT,AVTG) 12V 2.0W |
3 | ||
| 83119-41040 |
GX100,JZX10#..4FC 14V 2.0W,ｿｹｯﾄ付き |
2 | ||
| 83119-36080 |
GX100,JZX10#..4FC..(AVT,AVTG) |
2 | ||
| 90981-11018 |
GX100,JZX10#,LX100,SX100 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-24010 |
GX100,JZX10#,LX100,SX100 13.5V,ｿｹｯﾄ付き |
1 | ||
| 83109-30070 |
GX10#,JZX100,105,LX100,SX100..AVT,TOU,TOUS,TOUV,XL 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 90981-11018 |
GX10#,JZX100,105,LX100,SX100..AVT,TOU,TOUS,TOUV,XL 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-60020 |
JZX100..AVTG |
17 | ||
| 83119-41040 |
GX10#,JZX10#..4FC..(AVT,AVTG) 14V 2.0W,ｿｹｯﾄ付き |
2 | ||
| 83119-32010 |
GX10#,JZX100,105,LX100,SX100..AVT,RAF,TOU,TOUS,TOUV,XL 14V 3.0W |
1 | ||
| 83120-60010 |
GX10#,JZX10#..4FC..(AVT,AVTG) 14V 2.0W |
2 | ||
| 83120-60020 |
JZX100,105..AVT 12V 1.4W,ｿｹｯﾄ付き,ﾃﾞｼﾞﾀﾙ ﾒ-ﾀ |
17 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-30070 |
GX100,JZX100,105,LX100,SX100..AVT,RAF,TOU,TOUS,TOUV,XL 14V 2.0W,ｿｹｯﾄなし |
2 | ||
| 83119-36080 |
GX100,JZX10#..4FC..(AVT,AVTG) 12V 2.0W |
3 | ||
| 83119-41040 |
GX100,JZX10#..4FC 14V 2.0W,ｿｹｯﾄ付き |
2 | ||
| 83119-36080 |
GX100,JZX10#..4FC..(AVT,AVTG) |
2 | ||
| 90981-11018 |
GX100,JZX10#,LX100,SX100 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-24010 |
GX100,JZX10#,LX100,SX100 13.5V,ｿｹｯﾄ付き |
1 | ||
| 83109-30070 |
GX10#,JZX100,105,LX100,SX100..AVT,TOU,TOUS,TOUV,XL 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 90981-11018 |
GX10#,JZX100,105,LX100,SX100..AVT,TOU,TOUS,TOUV,XL 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-60020 |
JZX100..AVTG |
17 | ||
| 83119-41040 |
GX10#,JZX10#..4FC..(AVT,AVTG) 14V 2.0W,ｿｹｯﾄ付き |
2 | ||
| 83119-32010 |
GX10#,JZX100,105,LX100,SX100..AVT,RAF,TOU,TOUS,TOUV,XL 14V 3.0W |
1 | ||
| 83120-60010 |
GX10#,JZX10#..4FC..(AVT,AVTG) 14V 2.0W |
2 | ||
| 83120-60020 |
JZX100,105..AVT 12V 1.4W,ｿｹｯﾄ付き,ﾃﾞｼﾞﾀﾙ ﾒ-ﾀ |
17 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-30070 |
GX100,JZX100,105,LX100,SX100..AVT,RAF,TOU,TOUS,TOUV,XL 14V 2.0W,ｿｹｯﾄなし |
2 | ||
| 83119-36080 |
GX100,JZX10#..4FC..(AVT,AVTG) 12V 2.0W |
3 | ||
| 83119-41040 |
GX100,JZX10#..4FC 14V 2.0W,ｿｹｯﾄ付き |
2 | ||
| 83119-36080 |
GX100,JZX10#..4FC..(AVT,AVTG) |
2 | ||
| 90981-11018 |
GX100,JZX10#,LX100,SX100 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-24010 |
GX100,JZX10#,LX100,SX100 13.5V,ｿｹｯﾄ付き |
1 | ||
| 83109-30070 |
GX10#,JZX100,105,LX100,SX100..AVT,TOU,TOUS,TOUV,XL 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 90981-11018 |
GX10#,JZX100,105,LX100,SX100..AVT,TOU,TOUS,TOUV,XL 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-60020 |
JZX100..AVTG |
17 | ||
| 83119-41040 |
GX10#,JZX10#..4FC..(AVT,AVTG) 14V 2.0W,ｿｹｯﾄ付き |
2 | ||
| 83119-32010 |
GX10#,JZX100,105,LX100,SX100..AVT,RAF,TOU,TOUS,TOUV,XL 14V 3.0W |
1 | ||
| 83120-60010 |
GX10#,JZX10#..4FC..(AVT,AVTG) 14V 2.0W |
2 | ||
| 83120-60020 |
JZX100,105..AVT 12V 1.4W,ｿｹｯﾄ付き,ﾃﾞｼﾞﾀﾙ ﾒ-ﾀ |
17 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-30070 |
GX100,JZX100,105,LX100,SX100..AVT,RAF,TOU,TOUS,TOUV,XL 14V 2.0W,ｿｹｯﾄなし |
2 | ||
| 83119-36080 |
GX100,JZX10#..4FC..(AVT,AVTG) 12V 2.0W |
3 | ||
| 83119-41040 |
GX100,JZX10#..4FC 14V 2.0W,ｿｹｯﾄ付き |
2 | ||
| 83119-36080 |
GX100,JZX10#..4FC..(AVT,AVTG) |
2 | ||
| 90981-11018 |
GX100,JZX10#,LX100,SX100 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-24010 |
GX100,JZX10#,LX100,SX100 13.5V,ｿｹｯﾄ付き |
1 | ||
| 83109-30070 |
GX10#,JZX100,105,LX100,SX100..AVT,TOU,TOUS,TOUV,XL 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 90981-11018 |
GX10#,JZX100,105,LX100,SX100..AVT,TOU,TOUS,TOUV,XL 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-60020 |
JZX100..AVTG |
17 | ||
| 83119-41040 |
GX10#,JZX10#..4FC..(AVT,AVTG) 14V 2.0W,ｿｹｯﾄ付き |
2 | ||
| 83119-32010 |
GX10#,JZX100,105,LX100,SX100..AVT,RAF,TOU,TOUS,TOUV,XL 14V 3.0W |
1 | ||
| 83120-60010 |
GX10#,JZX10#..4FC..(AVT,AVTG) 14V 2.0W |
2 | ||
| 83120-60020 |
JZX100,105..AVT 12V 1.4W,ｿｹｯﾄ付き,ﾃﾞｼﾞﾀﾙ ﾒ-ﾀ |
17 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-30070 |
GX100,JZX100,105,LX100,SX100..AVT,RAF,TOU,TOUS,TOUV,XL 14V 2.0W,ｿｹｯﾄなし |
2 | ||
| 83119-36080 |
GX100,JZX10#..4FC..(AVT,AVTG) 12V 2.0W |
3 | ||
| 83119-41040 |
GX100,JZX10#..4FC 14V 2.0W,ｿｹｯﾄ付き |
2 | ||
| 83119-36080 |
GX100,JZX10#..4FC..(AVT,AVTG) |
2 | ||
| 90981-11018 |
GX100,JZX10#,LX100,SX100 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-24010 |
GX100,JZX10#,LX100,SX100 13.5V,ｿｹｯﾄ付き |
1 | ||
| 83109-30070 |
GX10#,JZX100,105,LX100,SX100..AVT,TOU,TOUS,TOUV,XL 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 90981-11018 |
GX10#,JZX100,105,LX100,SX100..AVT,TOU,TOUS,TOUV,XL 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-60020 |
JZX100..AVTG |
17 | ||
| 83119-41040 |
GX10#,JZX10#..4FC..(AVT,AVTG) 14V 2.0W,ｿｹｯﾄ付き |
2 | ||
| 83119-32010 |
GX10#,JZX100,105,LX100,SX100..AVT,RAF,TOU,TOUS,TOUV,XL 14V 3.0W |
1 | ||
| 83120-60010 |
GX10#,JZX10#..4FC..(AVT,AVTG) 14V 2.0W |
2 | ||
| 83120-60020 |
JZX100,105..AVT 12V 1.4W,ｿｹｯﾄ付き,ﾃﾞｼﾞﾀﾙ ﾒ-ﾀ |
17 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
GX100,JZX10#,LX100,SX100 |
1 | ||
| 83101-14040 |
GX10#,JZX10#,LX100,SX100 |
1 | ||
| 83101-32020 |
GX10#,JZX100,105,LX100,SX100..AVT,RAF,TOU,TOUS,TOUV,XL ﾌｭｰｴﾙ ｳｫｰﾆﾝｸﾞ |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
GX100,JZX10#,LX100,SX100 |
1 | ||
| 83101-14040 |
GX10#,JZX10#,LX100,SX100 |
1 | ||
| 83101-32020 |
GX10#,JZX100,105,LX100,SX100..AVT,RAF,TOU,TOUS,TOUV,XL ﾌｭｰｴﾙ ｳｫｰﾆﾝｸﾞ |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
GX100,JZX10#,LX100,SX100 |
1 | ||
| 83101-14040 |
GX10#,JZX10#,LX100,SX100 |
1 | ||
| 83101-32020 |
GX10#,JZX100,105,LX100,SX100..AVT,RAF,TOU,TOUS,TOUV,XL ﾌｭｰｴﾙ ｳｫｰﾆﾝｸﾞ |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
GX100,JZX10#,LX100,SX100 |
1 | ||
| 83101-14040 |
GX10#,JZX10#,LX100,SX100 |
1 | ||
| 83101-32020 |
GX10#,JZX100,105,LX100,SX100..AVT,RAF,TOU,TOUS,TOUV,XL ﾌｭｰｴﾙ ｳｫｰﾆﾝｸﾞ |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
