Toyota Chaser JZX100 WIRING & CLAMP

JZX100-BTPSF (1996)

Toyota Chaser

Production Sep 1996 - Aug 1998

Engine 1JZGE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

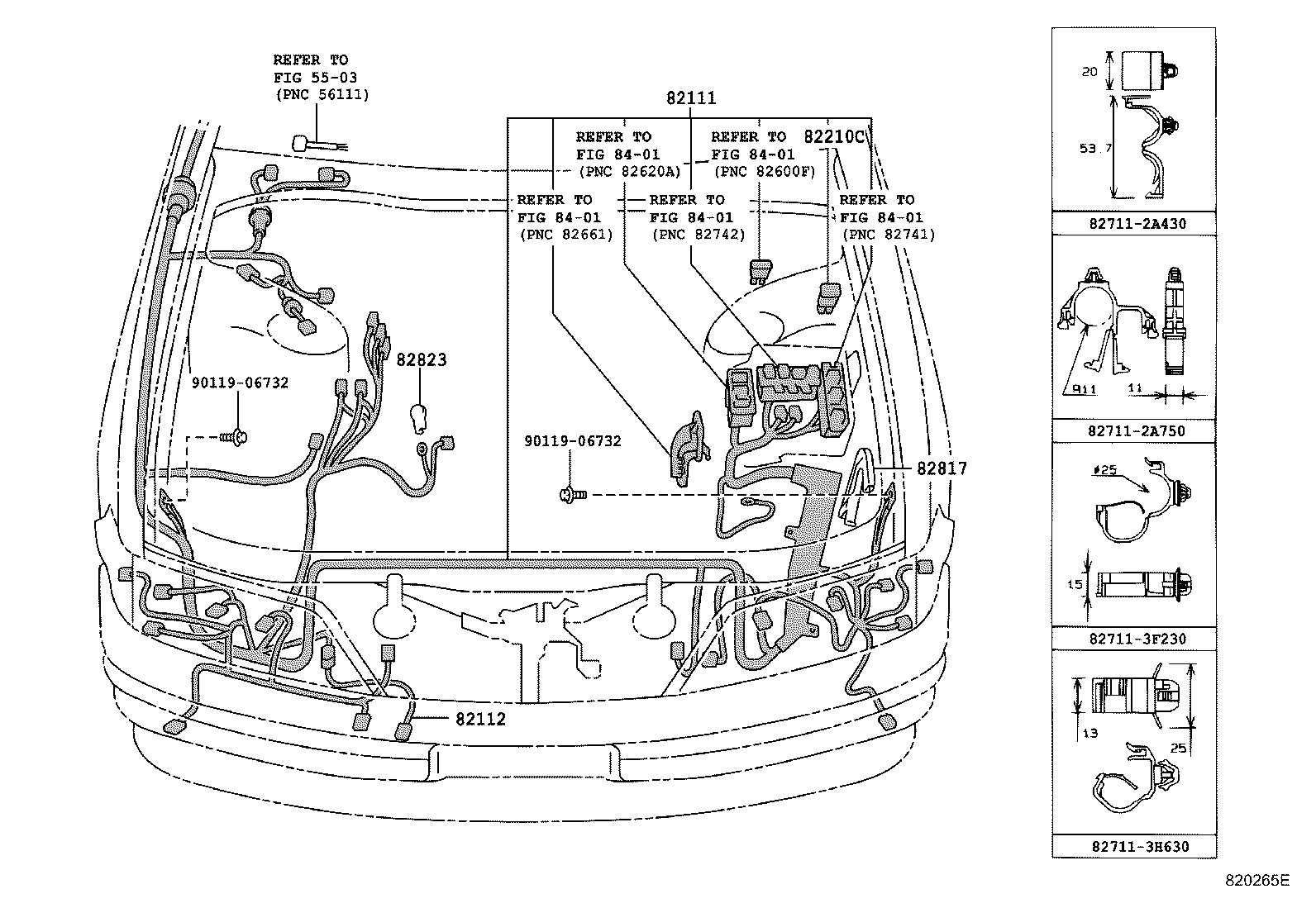

ILLUST NO. 1 OF 8(9609-9808)

Click highlighted areas on diagram

ｴﾝｼﾞﾝﾙ-ﾑﾜｲﾔ

Part #	Description	Period	Qty
82111 - WIRE, ENGINE ROOM MAIN
82111-2C480	JZX100..TOUS	09/1996 - 08/1998	1
82210C - FUSIBLE LINK
90982-08289	GX100,JZX10#,LX100,SX100 50A,ﾒｽ端子,赤	09/1996 - 02/1998	1
90982-08274	JZX10# 120A,ｵｽ端子,白,YAZAKI	09/1996 - 08/1998	1
90982-08287	GX100,JZX10#,LX100,SX100 30A,ﾒｽ端子,ｵﾚﾝｼﾞ,ｶｳﾙ	09/1996 - 03/1998	1
90982-08254	JZX10# 120A,ｵｽ端子,白,TAIHEIYO	09/1996 - 08/1998	1
90982-08288	GX100,JZX10#,LX100,SX100 40A,ﾒｽ端子,ｸﾞﾚｲ,ｶｳﾙ	09/1996 - 03/1998	1
90982-08283	GX100,JZX10#,LX100,SX100 30A,ﾒｽ端子,桃	03/1998 - 08/1998	1
90982-08285	GX100,JZX10#,LX100,SX100 50A,ﾒｽ端子,赤	02/1998 - 08/1998	1
90982-08283	GX100,JZX10#,SX100 30A,ﾒｽ端子,桃	02/1998 - 03/1998	1
90982-08246	GX100,JZX100,LX100,SX100..AVT,RAF,TOU,XL 100A,ｵｽ端子,青	09/1996 - 08/1998	1
90982-08202	GX10#,JZX10#,LX100,SX100 60A,ｵｽ端子,黄	09/1996 - 12/2999	1
90982-08284	GX100,JZX10#,LX100,SX100 40A,ﾒｽ端子,緑,ｴﾝｼﾞﾝﾙｰﾑ	02/1998 - 08/1998	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-2A300	GX10#,JZX10#,LX100,SX100	09/1996 - 12/2999	1
82823 - CAP, TERMINAL, NO.1
82823-24030	JZX10#	09/1996 - 12/2999	1
Common parts
82711-2A430
82711-2A750
82711-3F230
82711-3H630
90119-06732
Linked diagrams
5503
8401

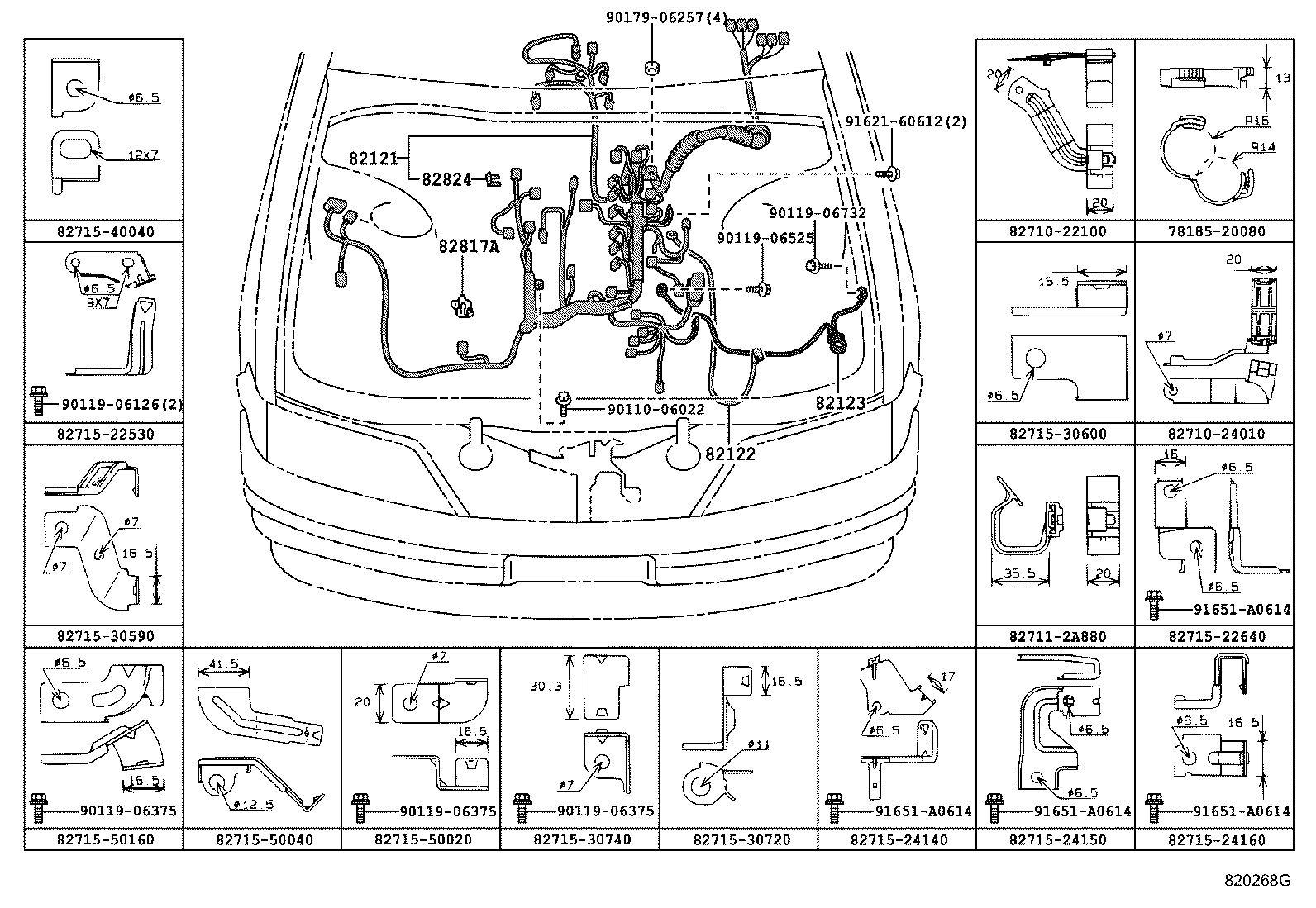

ILLUST NO. 2 OF 8(9609- )JZX10#..AVT,AVTG,TOUS

Click highlighted areas on diagram

ｴﾝｼﾞﾝﾜｲﾔ

Part #	Description	Period	Qty
82121 - WIRE, ENGINE
82121-2A450	JZX100..AVT,AVTG,TOUS ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ)	09/1996 - 10/1997	1
82121-2A451	JZX100..AVT,AVTG,TOUS ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ)	11/1997 - 08/1998	1
82121-2A461	JZX100..AVT,AVTG,TOUS	11/1997 - 08/1998	1
82121-2A460	JZX100..AVT,AVTG,TOUS	09/1996 - 10/1997	1
82122 - WIRE, ENGINE, NO.2
82122-22440	JZX10#..AVT,AVTG,TOUS	09/1996 - 12/2999	1
82122-22410	JZX10#..AVT,AVTG,TOUS ｶﾝﾚｲﾁｼﾖｳ	09/1996 - 12/2999	1
82123 - WIRE, ENGINE, NO.3
82123-22180	JZX100..AVT,AVTG,TOUS ｱﾘ(ﾊﾞﾂﾃﾘ=46B24L)	09/1996 - 12/2999	1
82123-22170	JZX100,101 ｱﾘ(ﾊﾞﾂﾃﾘ=55D23L)	09/1996 - 12/2999	1
82824 - CONNECTOR, WIRING HARNESS
82824-24010	GX10#,JZX10#,LX100,SX100	09/1996 - 12/2999	1
Common parts
78185-20080
82710-22100
82710-24010
82711-2A880
82715-22530
82715-22640
82715-24140
82715-24150
82715-24160
82715-30590
82715-30600
82715-30720
82715-30740
82715-40040
82715-50020
82715-50040
82715-50160
90110-06022
90119-06126
90119-06375
90119-06525
90119-06732
90179-06257
91621-60612
91651-A0614

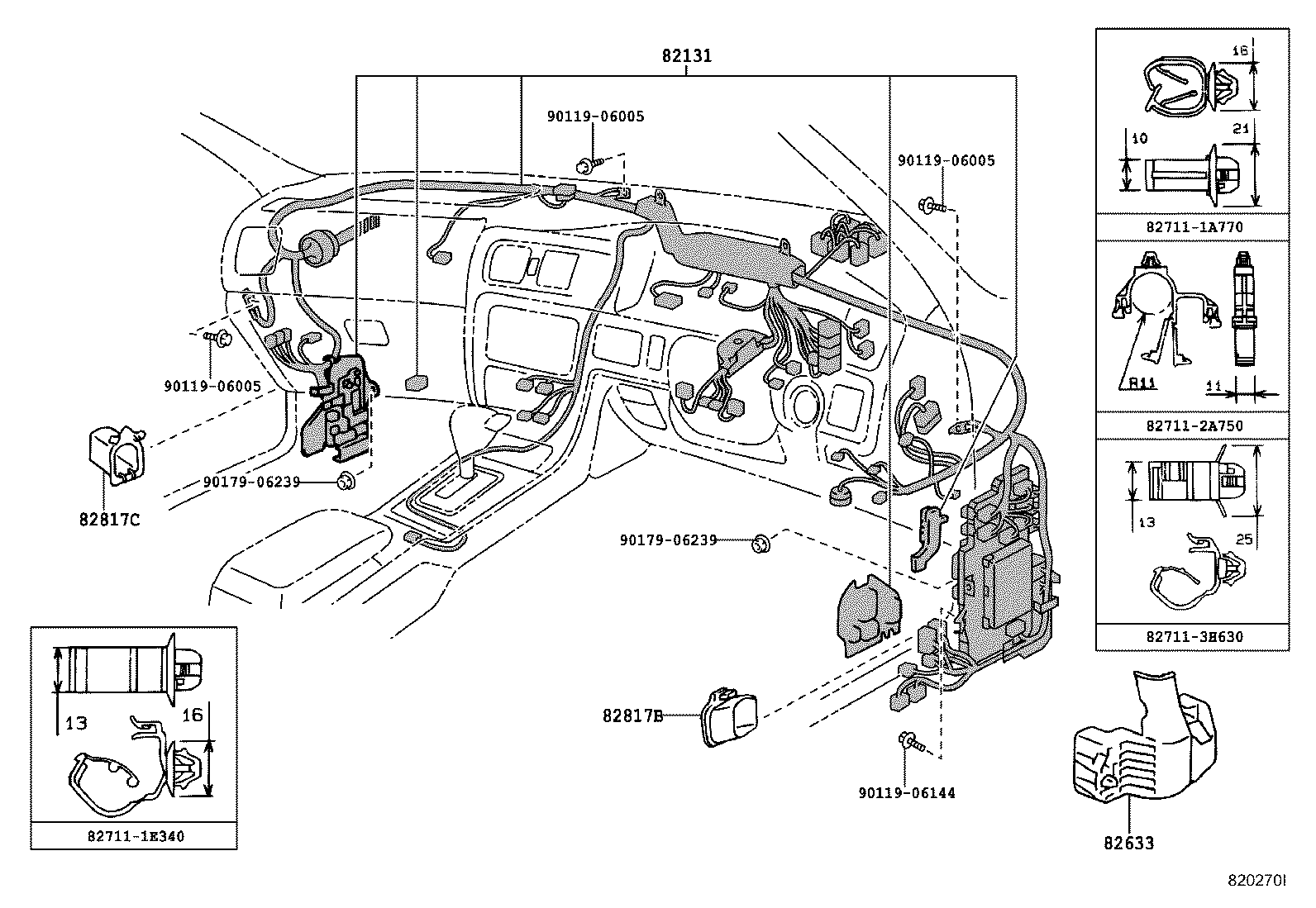

ILLUST NO. 3 OF 8(9609- )

Click highlighted areas on diagram

ｶｳﾙﾜｲﾔ

Part #	Description	Period	Qty
82131 - WIRE, COWL
82135-22370	JZX100..AVT,TOUS	09/1996 - 08/1997	1
82135-22360	JZX100..AVT,TOUS ｱﾘ(ﾃﾞﾝﾄﾞｳｶｸﾉｳﾐﾗ-)	09/1996 - 08/1997	1
82135-22350	JZX100..AVT,TOUS ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ)	09/1996 - 08/1997	1
82135-22470	JZX100..TOUS	08/1997 - 10/1997	1
82135-22460	JZX100..TOUS ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ)	08/1997 - 10/1997	1
82135-22461	JZX100..TOUS ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ)	11/1997 - 08/1998	1
82135-22471	JZX100..TOUS	11/1997 - 08/1998	1
82633 - HOLDER, FRONT PILLAR BLOCK, RH
82633-22010	GX10#,JZX10#,LX100,SX100	09/1996 - 12/2999	1
82817B - PROTECTOR, WIRING HARNESS, NO.3
82817-2A310	GX10#,JZX10#,LX100,SX100	09/1996 - 12/2999	1
82817C - PROTECTOR, WIRING HARNESS, NO.4
82817-2A700	GX10#,JZX10#,LX100,SX100	09/1996 - 12/2999	1
Common parts
82711-1A770
82711-1E340
82711-2A750
82711-3H630
90119-06005
90119-06144
90179-06239

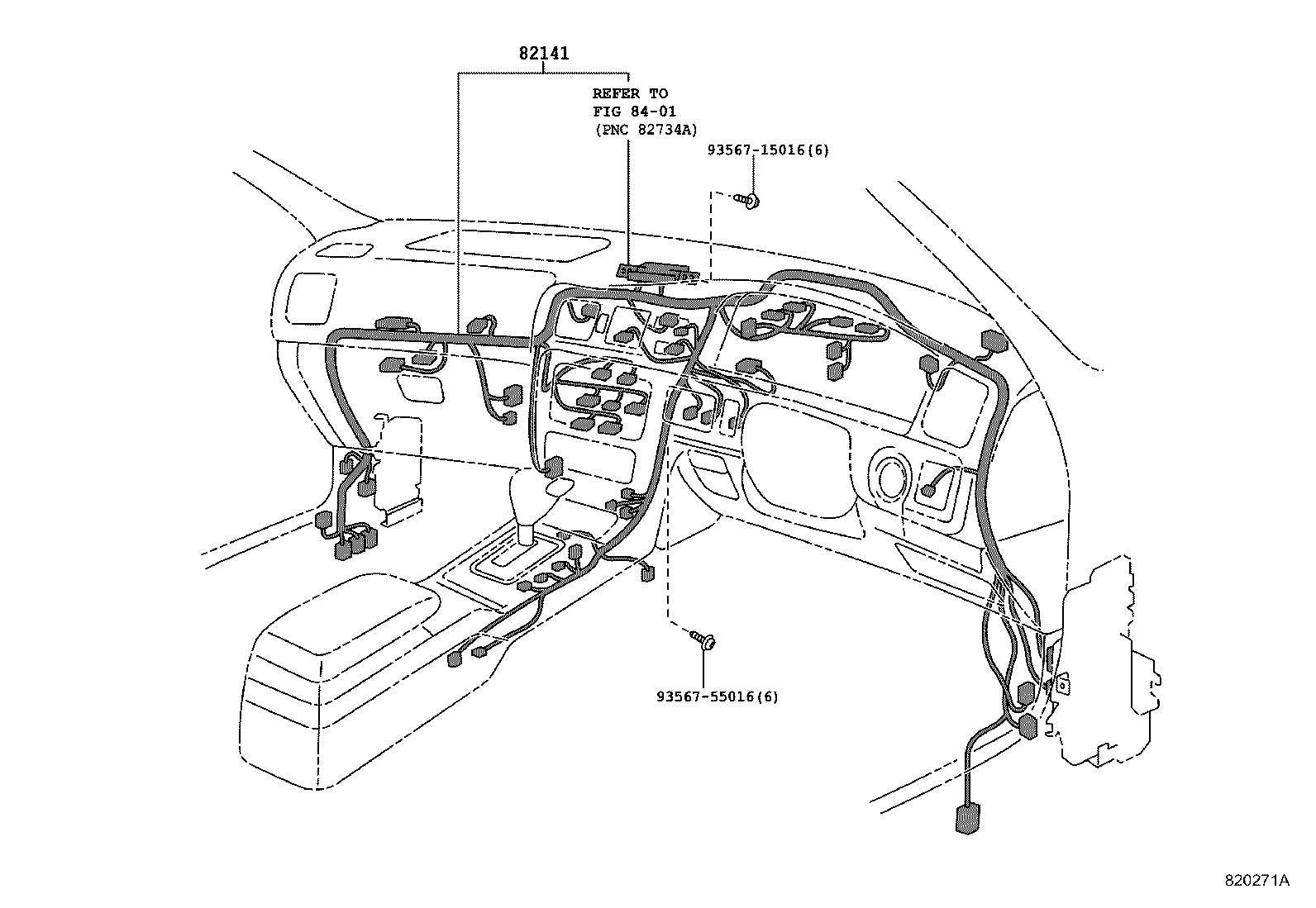

ILLUST NO. 4 OF 8(9609- )

Click highlighted areas on diagram

ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙﾜｲﾔ

Part #	Description	Period	Qty
82141 - WIRE, INSTRUMENT PANEL
82141-2A480	GX100,JZX100..4FC..(TOU,TOUS,TOUV) ｱﾘ(7 ｽﾋﾟ-ｶ)	09/1996 - 08/1997	1
82141-2A470	GX100,JZX100..TOU,TOUS ｱﾘ(4 OR 6 ｽﾋﾟ-ｶ)	09/1996 - 08/1997	1
82141-2A490	GX100,JZX100..TOU,TOUS "ﾜｲﾄﾞﾏﾙﾁAVｽﾃ-ｼﾖﾝ" 6 ｽﾋﾟ-ｶ	09/1996 - 08/1997	1
82141-2A481	GX100,JZX100..4FC..(TOU,TOUS,TOUV)	08/1997 - 10/1997	1
82141-2A482	GX100,JZX100..4FC..(TOU,TOUS,TOUV) ｱﾘ(7 ｽﾋﾟ-ｶ)	11/1997 - 08/1998	1
82141-2A471	GX100,JZX100..TOU,TOUS ｱﾘ(4 OR 6 ｽﾋﾟ-ｶ)	08/1997 - 10/1997	1
82141-2A491	GX100,JZX100..TOU,TOUS "ﾜｲﾄﾞﾏﾙﾁAVｽﾃ-ｼﾖﾝ" 6 ｽﾋﾟ-ｶ	08/1997 - 08/1998	1
82141-2A472	GX100,JZX100..TOU,TOUS ｱﾘ(4 OR 6 ｽﾋﾟ-ｶ)	11/1997 - 08/1998	1
Common parts
93567-15016
93567-55016
Linked diagrams
8401

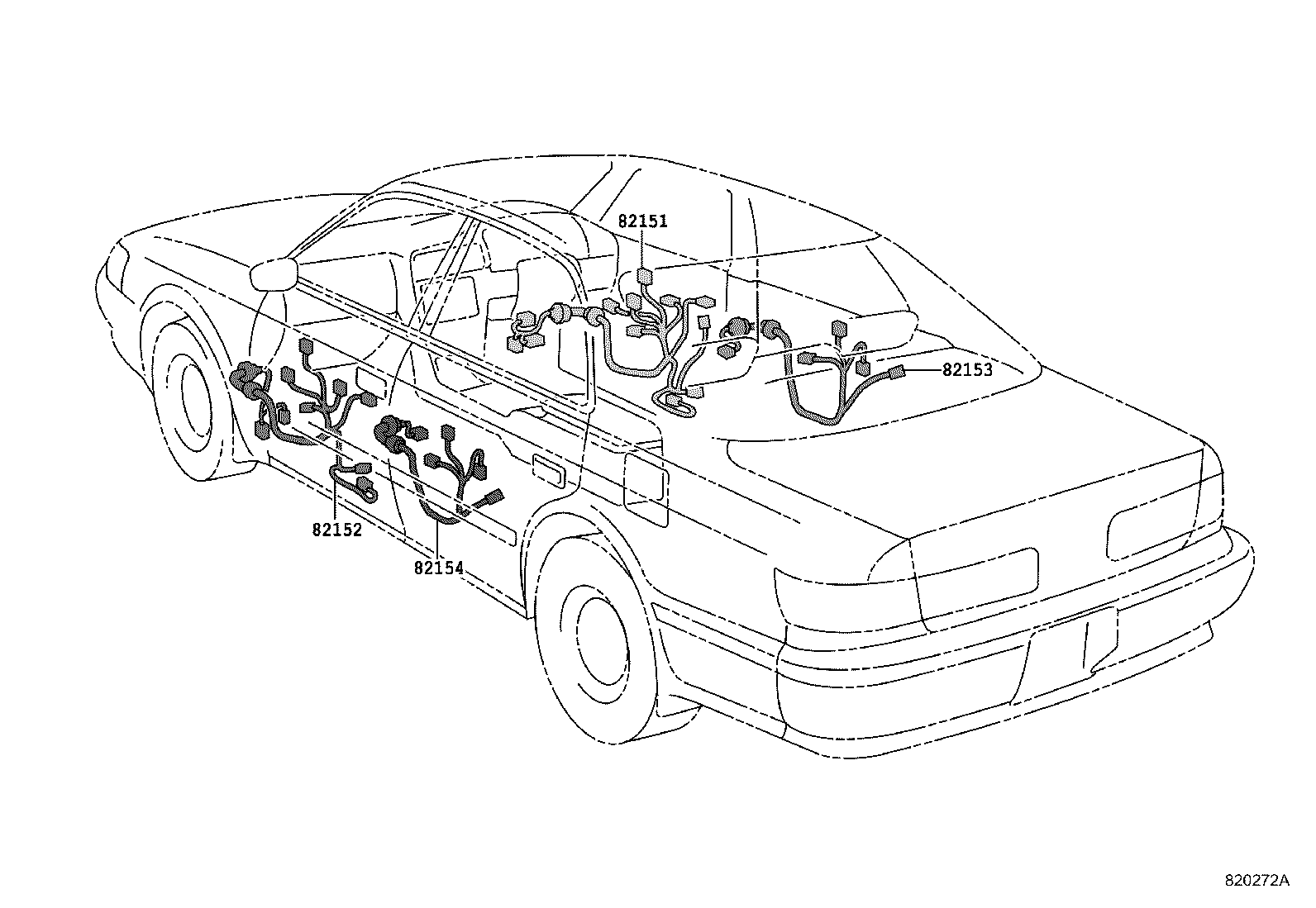

ILLUST NO. 5 OF 8(9609- )

Click highlighted areas on diagram

ﾙ-ﾌ & ﾄﾞｱﾜｲﾔ

Part #	Description	Period	Qty
82151 - WIRE, FRONT DOOR, RH
82151-22790	GX10#,JZX10#,LX100..AVT,AVTG,TOU,TOUS,TOUV ｱﾘ(ﾂｲ-ﾀｽﾋﾟ-ｶ & ﾃﾞﾝﾄﾞｳﾘﾓｺﾝﾋ-ﾀﾂｷﾐﾗ-)	09/1996 - 12/2999	1
82151-22820	JZX100..TOUS;GX100,JZX105,LX100..AVT,TOU ｱﾘ(ﾃﾞﾝﾄﾞｳﾘﾓｺﾝﾋ-ﾀﾂｷﾐﾗ-)	09/1996 - 08/1998	1
82151-22830	JZX100..TOUS;GX100,JZX105,LX100..AVT,TOU	09/1996 - 08/1998	1
82151-22800	GX10#,JZX100,105,LX100..AVT,AVTG,TOU,TOUS,TOUV ｱﾘ(ﾂｲ-ﾀｽﾋﾟ-ｶ)	09/1996 - 12/2999	1
82152 - WIRE, FRONT DOOR, LH
82152-22740	JZX100..TOUS;GX100,JZX105,LX100..AVT,TOU	09/1996 - 08/1998	1
82152-22730	JZX100..TOUS;GX100,JZX105,LX100..AVT,TOU ｱﾘ(ﾃﾞﾝﾄﾞｳﾘﾓｺﾝﾋ-ﾀﾂｷﾐﾗ-)	09/1996 - 08/1998	1
82152-22720	GX10#,JZX100,105,LX100..AVT,AVTG,TOU,TOUS,TOUV ｱﾘ(ﾂｲ-ﾀｽﾋﾟ-ｶ)	09/1996 - 12/2999	1
82152-22710	GX10#,JZX10#,LX100..AVT,AVTG,TOU,TOUS,TOUV ｱﾘ(ﾂｲ-ﾀｽﾋﾟ-ｶ & ﾃﾞﾝﾄﾞｳﾘﾓｺﾝﾋ-ﾀﾂｷﾐﾗ-)	09/1996 - 12/2999	1
82153 - WIRE, REAR DOOR, NO.1
82153-22160	GX100,JZX10#,LX100,SX100..AVT,AVTG,RAF,TOU,TOUS,TOUV	09/1996 - 08/1998	1
82154 - WIRE, REAR DOOR, NO.2
82154-22160	GX100,JZX10#,LX100,SX100..AVT,AVTG,RAF,TOU,TOUS,TOUV	09/1996 - 08/1998	1

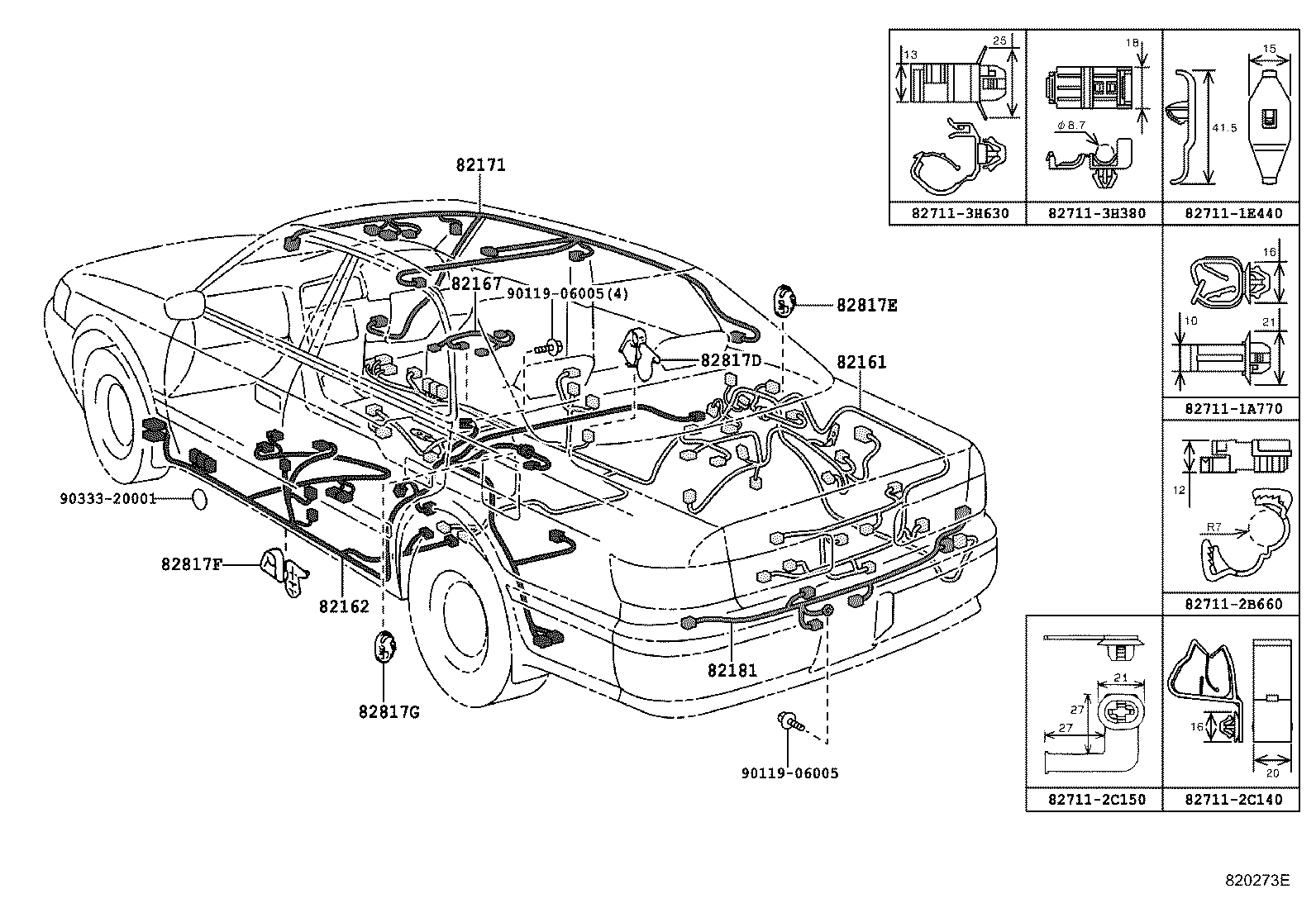

ILLUST NO. 6 OF 8(9609- )

Click highlighted areas on diagram

ｼ-ﾄ,ﾌﾛｱ & ﾗﾂｹﾞ-ｼﾞﾙ-ﾑﾜｲﾔ

Part #	Description	Period	Qty
82161 - WIRE, FLOOR
82161-2A770	GX100..5F;JZX100,105,LX100..AVT,TOUS,TOUV ｱﾘ(ﾘﾔﾜｲﾊﾟ)	09/1996 - 10/1997	1
82161-2A771	GX100..5F;JZX100,105,LX100..AVT,TOUS,TOUV ｱﾘ(ﾘﾔﾜｲﾊﾟ)	10/1997 - 08/1998	1
82161-2A780	JZX105,LX100;JZX100,SX100..RAF,TOUS,TOUV,XL	09/1996 - 10/1997	1
82161-2A781	JZX105,LX100;JZX100,SX100..RAF,TOUS,TOUV,XL	10/1997 - 08/1998	1
82162 - WIRE, FLOOR, NO.2
82162-2A120	GX100,JZX100,105,LX100..AVT,TOU,TOUS "ﾜｲﾄﾞﾏﾙﾁAVｽﾃ-ｼﾖﾝ" 6 ｽﾋﾟ-ｶ	09/1996 - 08/1998	1
82162-2A111	GX100,JZX100,105,LX100..AVT,TOU,TOUS ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ);"ﾜｲﾄﾞﾏﾙﾁAVｽﾃ-ｼﾖﾝ" 6 ｽﾋﾟ-ｶ	08/1997 - 08/1998	1
82162-2A150	GX100..5F;JZX100,105,LX100..AVT,TOUS ｱﾘ(6 ｽﾋﾟ-ｶ)	09/1996 - 08/1998	1
82162-2A130	GX100,JZX100,105,LX100..AVT,AVTG,TOU,TOUS,TOUV	09/1996 - 08/1998	1
82162-2A110	GX100,JZX100,105,LX100..AVT,TOU,TOUS ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ);"ﾜｲﾄﾞﾏﾙﾁAVｽﾃ-ｼﾖﾝ" 6 ｽﾋﾟ-ｶ	09/1996 - 08/1997	1
82167 - WIRE, SEAT, NO.1
82167-22190	GX100,JZX100..TOU,TOUS,TOUV	09/1996 - 07/1997	1
82167-22191	GX100,JZX100..TOU,TOUS,TOUV	07/1997 - 12/2999	1
82171 - WIRE, ROOF, NO.1
82171-22640	JZX100..TOUS,TOUV;GX10#,JZX105,LX100..AVT,TOU	09/1996 - 12/2999	1
82171-22620	JZX100..TOUS,TOUV;GX10#,JZX105,LX100..AVT,TOU ｱﾘ(ﾑ-ﾝﾙ-ﾌ)	09/1996 - 12/2999	1
82181 - WIRE, LUGGAGE ROOM, NO.1
82181-22290	GX100,JZX10#,LX100,SX100	09/1996 - 08/1998	1
82181-22300	GX100,JZX10#,LX100,SX100 ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ)	09/1996 - 08/1998	1
82817D - PROTECTOR, WIRING HARNESS, NO.5
82817-2A450	GX10#,JZX10#,LX100,SX100	09/1996 - 12/2999	1
82817E - PROTECTOR, WIRING HARNESS, NO.6
82817-2A470	GX10#,JZX10#,LX100,SX100	09/1996 - 12/2999	1
82817F - PROTECTOR, WIRING HARNESS, NO.7
82817-2A460	GX10#,JZX10#,LX100,SX100	09/1996 - 12/2999	1
82817G - PROTECTOR, WIRING HARNESS, NO.8
82817-2A470	GX10#,JZX10#,LX100..AVT,AVTG,TOU,TOUS,TOUV	09/1996 - 12/2999	1
Common parts
82711-1A770
82711-1E440
82711-2B660
82711-2C140
82711-2C150
82711-3H380
82711-3H630
90119-06005
90333-20001

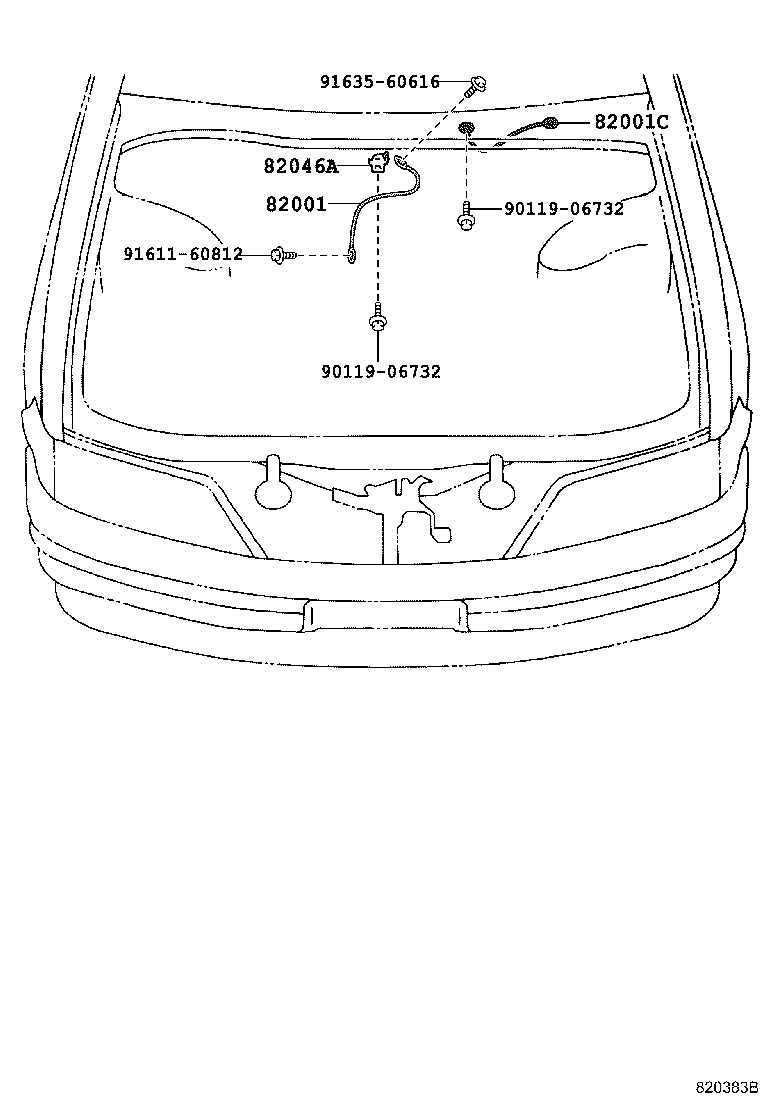

ILLUST NO. 7 OF 8(9609- )JZX10#

Click highlighted areas on diagram

ｹｰﾌﾞﾙﾎﾞﾝﾄﾞ

Part #	Description	Period	Qty
82001 - CABLE, BOND, NO.1
90980-07338	JZX10#	09/1996 - 12/2999	1
82001C - CABLE, BOND, NO.2
90980-07356	GX100,JZX10#	09/1996 - 08/1998	1
Common parts
90119-06732
91611-60812
91635-60616

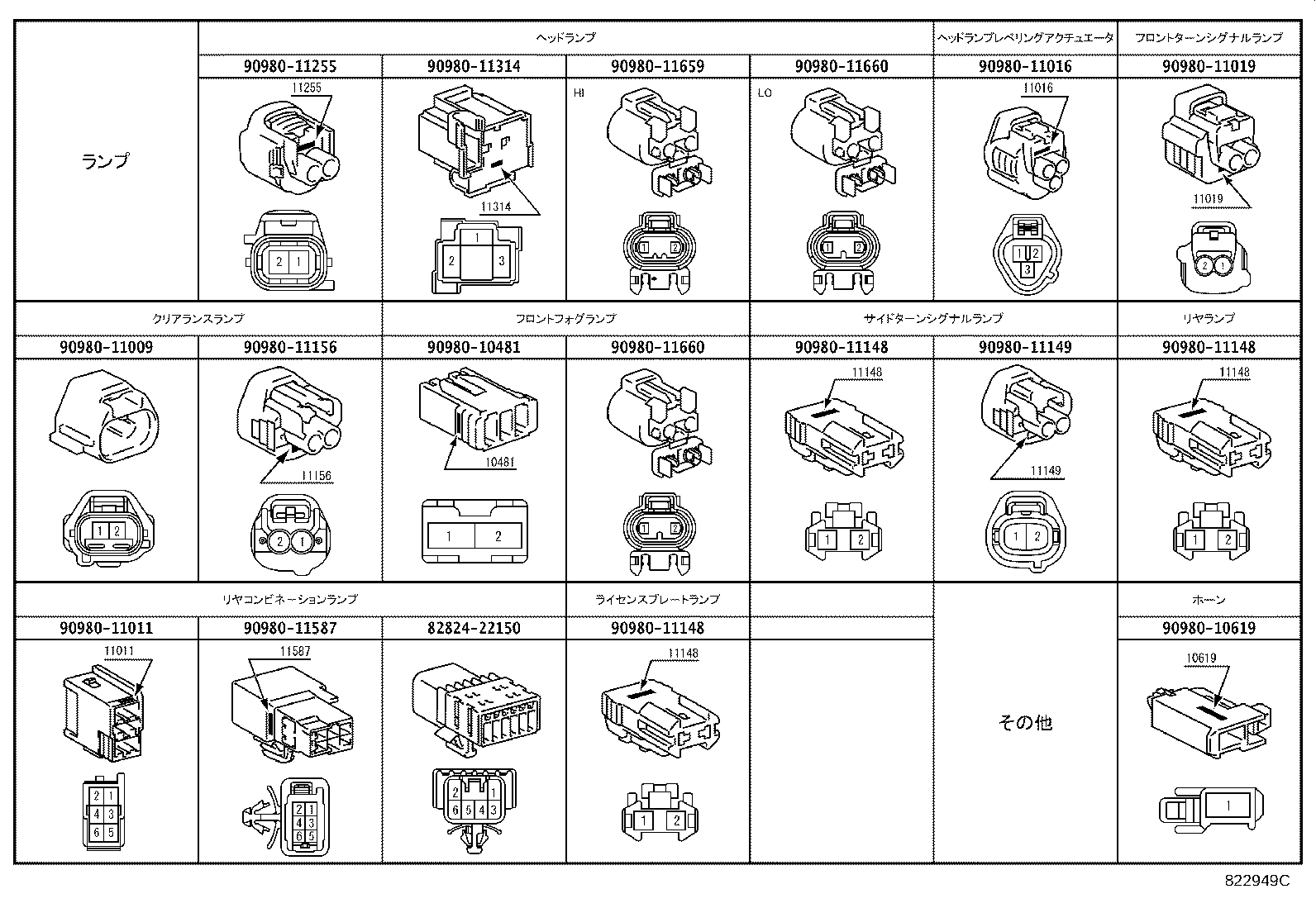

ILLUST NO. 8 OF 8(9609- )

Click highlighted areas on diagram

ｺﾈｸﾀ

Part #	Description	Period	Qty	Price
Common parts
82824-22150
90980-10481
90980-10619
90980-11009
90980-11011
90980-11016
90980-11019
90980-11148
90980-11149
90980-11156
90980-11255
90980-11314
90980-11587
90980-11659
90980-11660
