JZX100-BTPSF (1996)

Toyota Chaser

Production Sep 1996 - Aug 1998
Engine 1JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9609- )

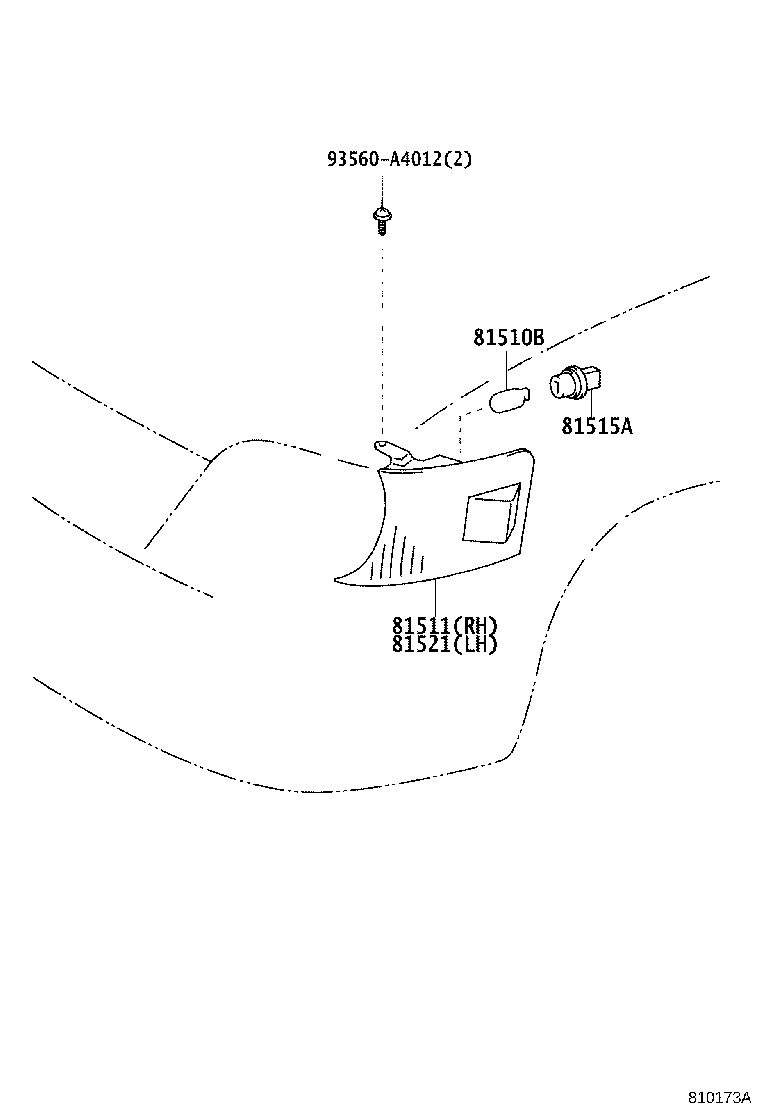

Click highlighted areas on diagram

diagram 81510B 81511 81515A 81521 93560A4012
Part # Description Qty Price
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-13050

GX10#,JZX10#,LX100,SX100

12V 21W

 2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-22440

GX100,JZX100..TOU,TOUS,TOUV

 1
81515A - PLUG ASSY, FRONT TURN SIGNAL LAMP
90075-99128

GX10#,JZX10#,LX100,SX100

 2
90075-99080

GX100,JZX10#,LX100,SX100

 2
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-22440

GX100,JZX100..TOU,TOUS,TOUV

 1
Common parts
93560-A4012
